More VW High Pressure Fuel Pump Kit - OE Supplier KIT-02847
OE Supplier
SKU: KIT-02847

VW High Pressure Fuel Pump Kit - OE Supplier KIT-02847

Passat

Kit includes all the damaged components as a result of a HPFP Failure

Save for later
Available
In Stock
Price each: $3,334.90
Core charge: + $100.00
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.
QTY
Make sure this fits your car
Validate fitment
To ensure fitment and browse only products that fit, please select a vehicle first.
What does this include?

Description

Details

SKU:
KIT-02847
FCP Euro ID:
Quality:
OE

OE Numbers

03L130851HX, 03L130851BX, 03L130851CX, 03L130755AA, 3L130851HX, 03L130755AB, 03L130755D, 03L130755L, 3AA919050L, 3AA919050B, 3AA919050F, 3AA919050H, 8E0919133A, 8E0919133, 8E0919133G, 1J0919133B, 9A791913320, 7N0127400D, 7N0127400, 03L130089J, 03L201360AD, 03L130321Q, WHT002494, 038109454A, N10714501, N91185401, N10403203, N91176101, N91048802, N90415403, 03L130277R, 03L130277N, 03L130235AD

MFG Numbers

0986437405, FG1608, 023278

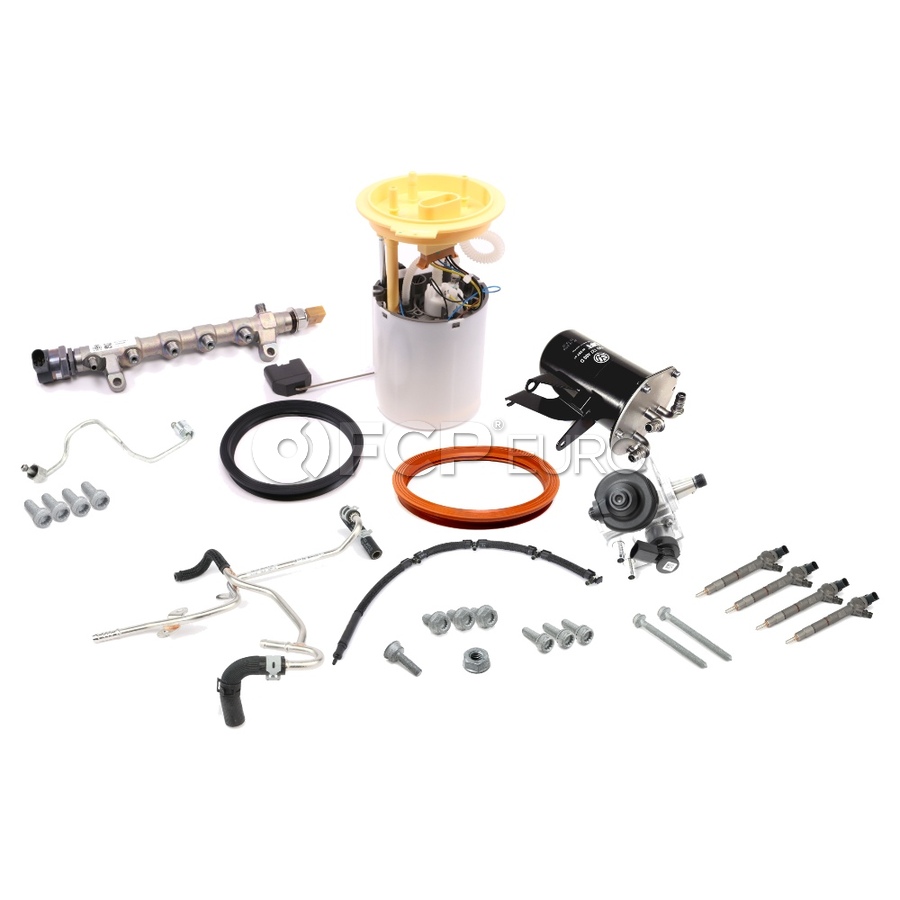

This Kit Includes

Qty Part SKU Brand Price
1 Direct Injection High Pressure Fuel Pump BOS-0986437405 $869.99
1 Fuel Pump Assembly DEL-FG1608 $152.99
1 Fuel Pump Seal VAG-1J0919133B $5.99
1 Fuel Filter VAG-7N0127400D $196.99
1 Fuel Injection Fuel Rail VAG-03L130089J $519.99
1 Fuel Line VAG-03L201360AD $120.99
1 Fuel Line VAG-03L130321Q $59.99
1 Direct Injection High Pressure Fuel Pump Bolt VAG-WHT002494 $3.09
1 Nut OES-038109454A $0.59
2 Bolt VAG-N10714501 $8.18
3 Engine Camshaft Bolt VAG-N91185401 $5.37
3 Direct Injection High Pressure Fuel Pump Sprocket VAG-N91176101 $5.97
4 Screw VAG-N91048802 $31.56
4 Fuel Injector VAG-03L130277R $1,311.72
1 Fuel Return Line URO-023278 $41.49

Product Information

The high pressure fuel pump on the CKRA TDI diesel engine found in the 2012-2014 VW Passat is known to fail with time and wear which can result in metal fragments being distributed throughout the entire fuel system. When this happens, its best to replace all of the major components within the system to prevent further contamination and premature failure of the new high pressure fuel pump once its installed. This kit contains all of the necessary recommended components needed to remedy a failed pump. FCP Euro also recommend to clean the fuel tank, non-included fuel lines, and other miscleaneos components within the fuel system.

NOTE:

  • Running the high pressure fuel pump dry will destroy it
  • Be sure to perform a fuel system bleeding before running.
  • Since timing belt removal is necessary to replace the high-pressure fuel pump, we recommend replacing the belt with our all-inclusive Timing Belt Kit
  • FCP Euro Strongly suggests to remove, inspect, and clean the low pressure fuel tank as necessary to eliminate the possibility of metal particles that may have made its way back into the fuel tank. If metal is still in the fuel tank and it is not removed, this could result in damage to the newly installed components.

About OE Supplier

OE Supplier parts are produced by a manufacturer that meets high quality standards and produces at least one part for a vehicle manufacturer. FCP recommends OE & OEM replacement parts as one of the best options in terms of quality and price. Typically all OE manufacturers adhere to stringent quality control and are known to be exceptional quality. OE Supplier parts will often be packaged in a white box with familiar name brand markings and logos on the part itself.

Fits These Cars

Volkswagen Passat

  • 2012 Volkswagen Passat TDI SE Direct Injection High Pressure Fuel Pump
    Automatic Dual Clutch FWD Sedan 2.0L L4 CKRA Diesel
  • 2012 Volkswagen Passat TDI SE Direct Injection High Pressure Fuel Pump
    Manual FWD Sedan 2.0L L4 CKRA Diesel
  • 2012 Volkswagen Passat TDI SEL Direct Injection High Pressure Fuel Pump
    Automatic Dual Clutch FWD Sedan 2.0L L4 CKRA Diesel
  • 2013 Volkswagen Passat TDI SE Direct Injection High Pressure Fuel Pump
    Automatic Dual Clutch FWD Sedan 2.0L L4 CKRA Diesel
  • 2013 Volkswagen Passat TDI SE Direct Injection High Pressure Fuel Pump
    Manual FWD Sedan 2.0L L4 CKRA Diesel
  • 2013 Volkswagen Passat TDI SEL Direct Injection High Pressure Fuel Pump
    Automatic Dual Clutch FWD Sedan 2.0L L4 CKRA Diesel
  • 2014 Volkswagen Passat TDI SE Direct Injection High Pressure Fuel Pump
    Automatic Dual Clutch FWD Sedan 2.0L L4 CKRA Diesel
  • 2014 Volkswagen Passat TDI SE Direct Injection High Pressure Fuel Pump
    Manual FWD Sedan 2.0L L4 CKRA Diesel
  • 2014 Volkswagen Passat TDI SEL Premium Direct Injection High Pressure Fuel Pump
    Automatic Dual Clutch FWD Sedan 2.0L L4 CKRA Diesel

Product Reviews

There are no reviews yet. Be the first to leave a review.

Questions & Answers

Ask a question
Question Posted by Kasey
Will this kit come with instructions, torque specs, etc?
Answer (Posted by FCP Euro Products Team)
No installation manual or torque-specification sheet is listed as an included component with KIT-02847, so we would not expect those materials to be supplied with the kit. For the correct vehicle-specific repair procedure and torque values, please send the full VIN and this request to service@fcpeuro.com
