VW Comprehensive Clutch Kit - South Bend KIT-02361

Stage 3 Daily:

Recommended for single mass flywheel (SMF) when original design is DMF. This clutch package is designed for high HP vehicles desiring a start performance similar to O.E. The pressure plate is Race Engineered (SS) and SFI approved with significant load increase over stage 1,2 pressure plates (+600-800 lbs.). Expect a pedal effort increase of 20%-25%. Discs are assembled with heat-treated wear resistant hubs; drive plates and springs for high load transfer and dependable operation. The sprung centers on the disc in conjunction with the marcel fin between the linings create a dual dampening effect that simulates O.E. start performance. A Performance Organic friction material with a high metal content increases torque and RPM capability and maintains low operating temperatures which reduces wear and glazing.

Recommended usages are daily, spirited street and occasional track.

NOTE:

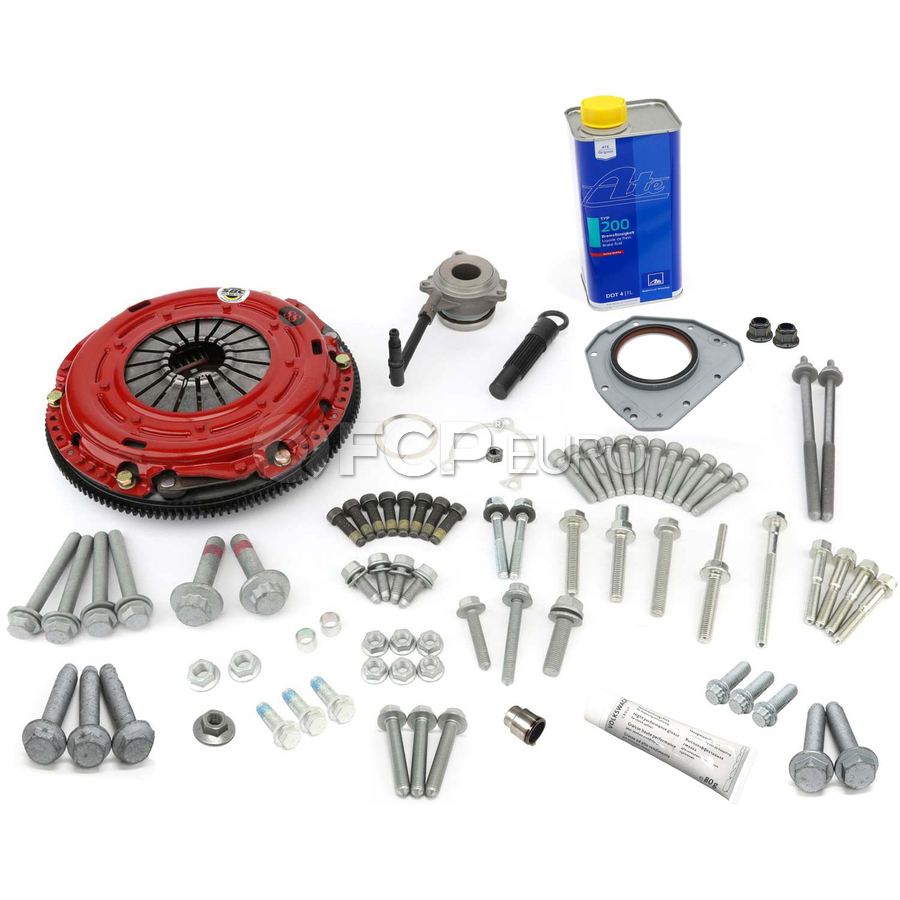

This Clutch Kit contains everything needed to complete the job to include:

• South Bend Stage 3 Daily Clutch Kit

• Transmission Bell Housing Hardware Kit (1x N91216701, 1x N10692401, 2x N91258401, 1x N10666602, 1x N91267602)

• New Flywheel Bolts (8x VAG-WHT007992)
• New Axle Shaft Bolts (12x VAG-N90991102 + 2x VAG-WHT005437A)
• New Ball Joint Lower Nuts (6x VAG-N10332002)
• New Subframe Mounting Bolts (4x VAG-N10785401 + 4x VAG-N91231201)
• New Dogbone Mount Bolt Kit (1x VAG-N10699401, 1x VAG-N91167101, 1x VAG-N91201001)
• New 034Motorsport Billet Aluminum Rear Main Seal
• New Sealant for Rear Main Seal (1x D176501A1 / Febi Bilstein 109660)
• New Stabilizer Bar Link Top Nuts (2x VAG-N0150816)
• New Pilot Bearing (1x 06B105313D )
• Slave Cylinder bolts (3x N90847002)
• Spline Grease For Clutch (1x G000100)
• Brake Fluid
• Level Sensor Nut (2x N10205802)
• Transmission Mount bolt (3x N10552404)
• Transmission Mount Bracket bolt (3x N10709001)
• Starter Bolt stud nut (1x N90074404)
• Steering Rack Bolts (2x N10552402)
• Shifter assembly nut (1x N90761103)
• Shim modification may be required for installation.
