Volvo Control Arm Kit - 36051003KT

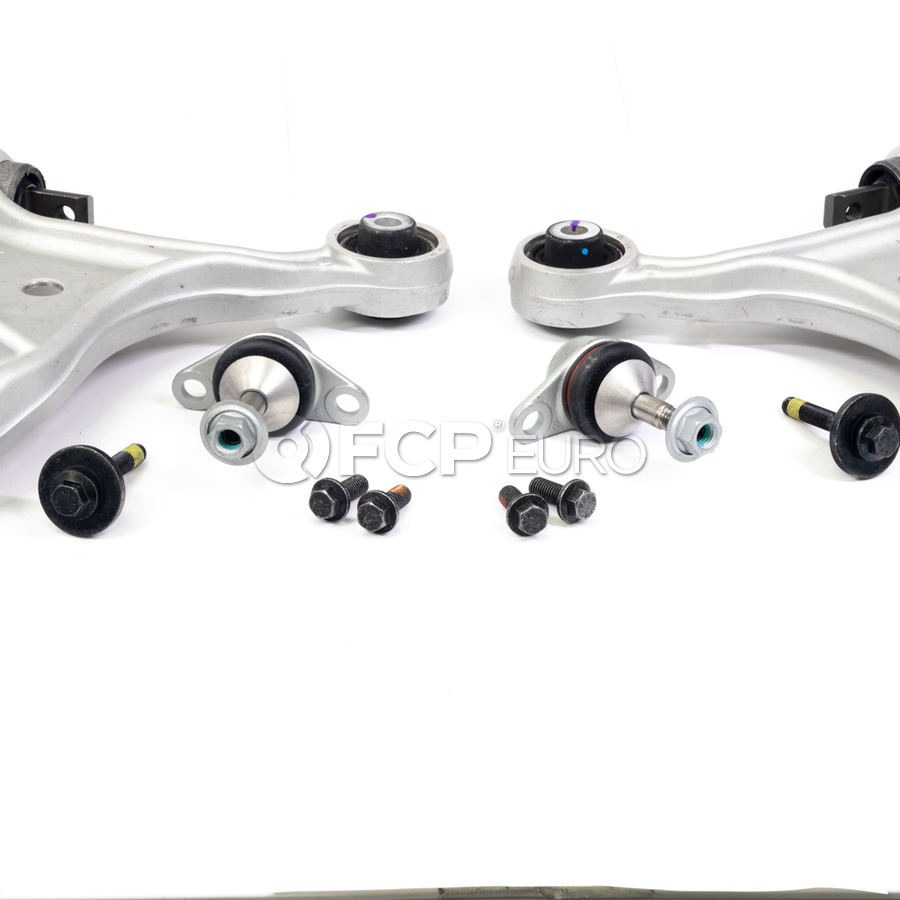

This 4 piece kit includes everything you need to refresh the front end of your P2 chassis Volvo S60 or V70 using High Density aftermarket parts. The control arms come with bushings pre-installed. Ball joints come with all required hardware, including a new axle nut complete with fresh threadlocker. To add sway bar end links, use kit 36051002KT1.

Torque Specs

Front mounting bolts (M12):

• 1st step, 65 Nm.
• 2nd step, 105�

Rear mounting bolt (M14):�

• 1st step, 105 Nm.
• 2nd step, 180�

Special note for 2007 only vehicles

If you have a 2007, there were two possible styles of control arms installed on the vehicle, aluminum (silver) or steel (black painted). Please see vehicle fitment notes for chassis splits, and double check with visual inspection before ordering.

In conjunction with this control arm kit, it is highly recommended to replace the steering rack stops for to avoid having the tires rub the fender at max steering angle. There are three steering rack stops available, and correspond with the size (width) of the tires mounted on the vehicle.

Choose Your Steering Rack Stops:

• For tire sizes 195/65 and 205/55 use 31212189 (Blue).
• For tire size 215/55 use 31212190 (White/Natural).
• For tire sizes 235/45, 225/45, 235/40 use 31212191 (Black).

Special Tools

Due to the design of the ball joint and steering knuckle, special tool 4019 is required.
