Volvo PCV Breather System Kit (C30 S40 V50 C70) - Genuine Volvo L5PCVKIT
  • Volvo PCV Breather System Kit (C30 S40 V50 C70) - Genuine Volvo L5PCVKIT
  • Volvo PCV Breather System Kit (C30 S40 V50 C70) - Genuine Volvo L5PCVKIT

NOTE:

  • Commonly replaced due to a known "Whistle" coming from engine which is caused by a damaged vacuum diaphragm integrated into the oil trap.

FCP Euro offers this Volvo breather system kit at an affordable price without having to sacrifice the quality that you and your Volvo deserve. If you notice that your Volvo does not operate with the same level of power it once had, or if your exhaust is emanating an unusual odor, this may be related to your Volvo breather system. This kit will replace rubber tubing and fittings that become brittle with age. The tubing can also become restricted due to built up oil deposits and sludge within the hoses. This kit includes a new oil trap, all of the breather hoses, an intake gasket and all of the necessary hose clamps.

What causes my breather system to fail?

  • Wrong oil grade, quality and/or viscosity
  • Vehicles driven too many miles between oil changes
  • Vehicles frequently driven short distances with many cold starts
  • Excessive idling
  • Fuels of low quality or with high alcohol content
  • Additives added to oil or fuel
  • High ambient temperature
  • High air humidity

What are some of the symptom’s I can expect if my breather system is clogged?

  • Illuminated oil pressure lamp. – Due to clogged oil suction strainer to oil pump or oil filter
  • Illuminated Check Engine Lamp- Due to incorrect engine fuel trim level parameters
  • Noise (whistling) – Noise due to high pressure in crankcase. This noise will stop if the oil filler cap is removed.
  • Poor Drivability- Clogged crankcase ventilation can reduce the engine performance
  • Uneven / Oscillating Idling- Caused by clogged crankcase ventilation
  • Oil leak- From engine seals due to restricted crankcase ventilation
  • Noise (knocking)- Low oil pressure can cause premature bearing wear and lead to internal engine component failure
  • High oil consumption/noise from Turbo
  • A damaged bearing or seal in the turbo due to lack of oil as a result of oil consumption.

What can I do to check for it?

  • The first step is to inspect the oil filter to see if it is abnormally dirty. An abnormally dirty filter is easily recognized by its thick, black deposits
  • If the engine has a problem with carbon deposits, the passageways in the engine block and oil trap may be completely or partially clogged. Remove and check the oil trap, hoses and their passageways in the engine block. There should not be any major collections of carbon deposits in the hoses or in the passageways in the block.
  • Drain the engine oil. Remove the oil pan and check the oil pan and crankcase for deposits. Normally, there should not be any deposits. Also check the oil suction strainer on the oil suction line for contaminants and deposits.
  • Use a low caliber Vacuum gauge to check for positive pressure through the dipstick tube

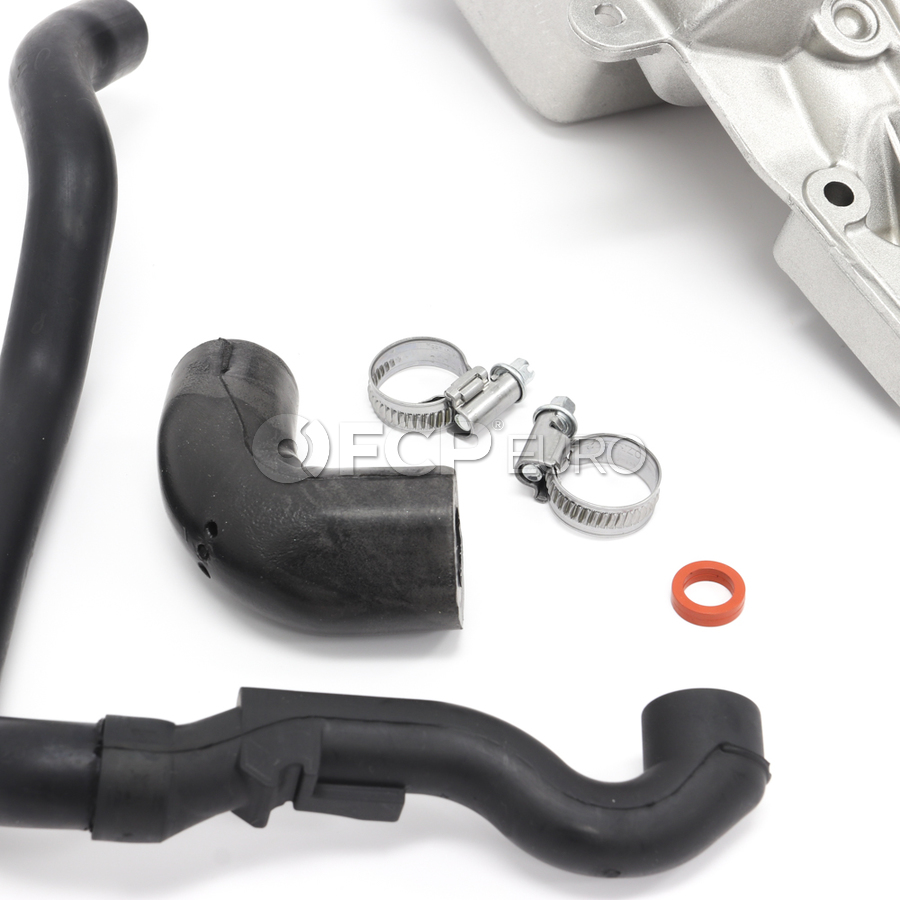

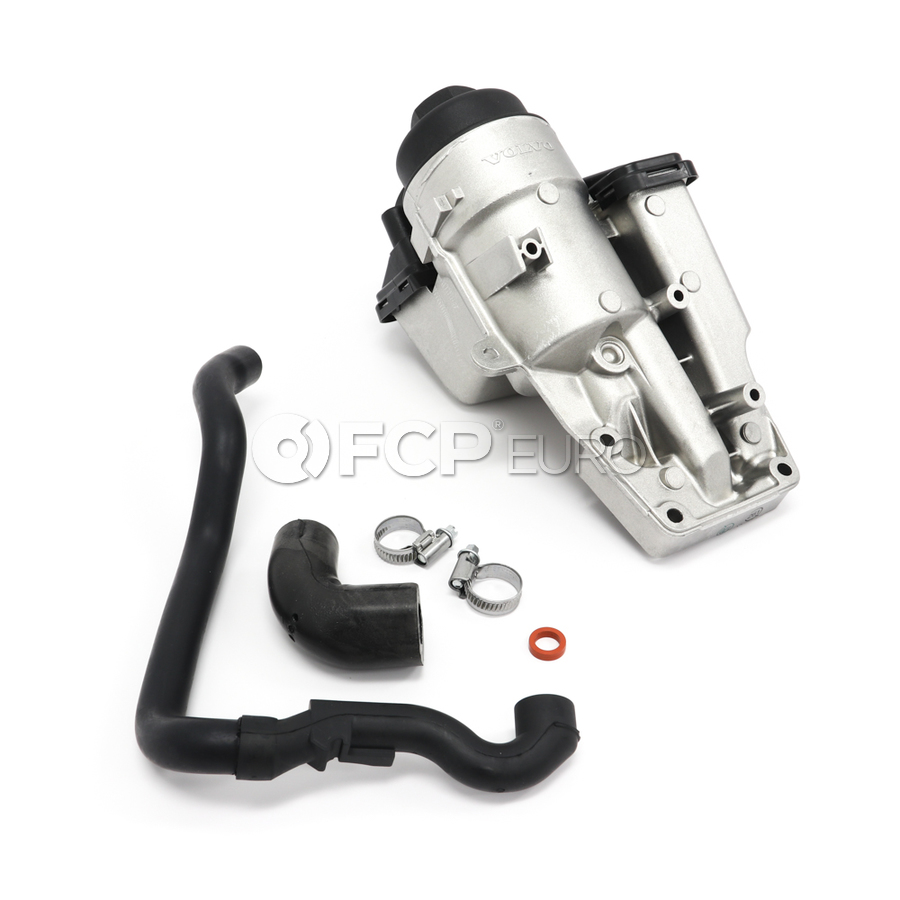

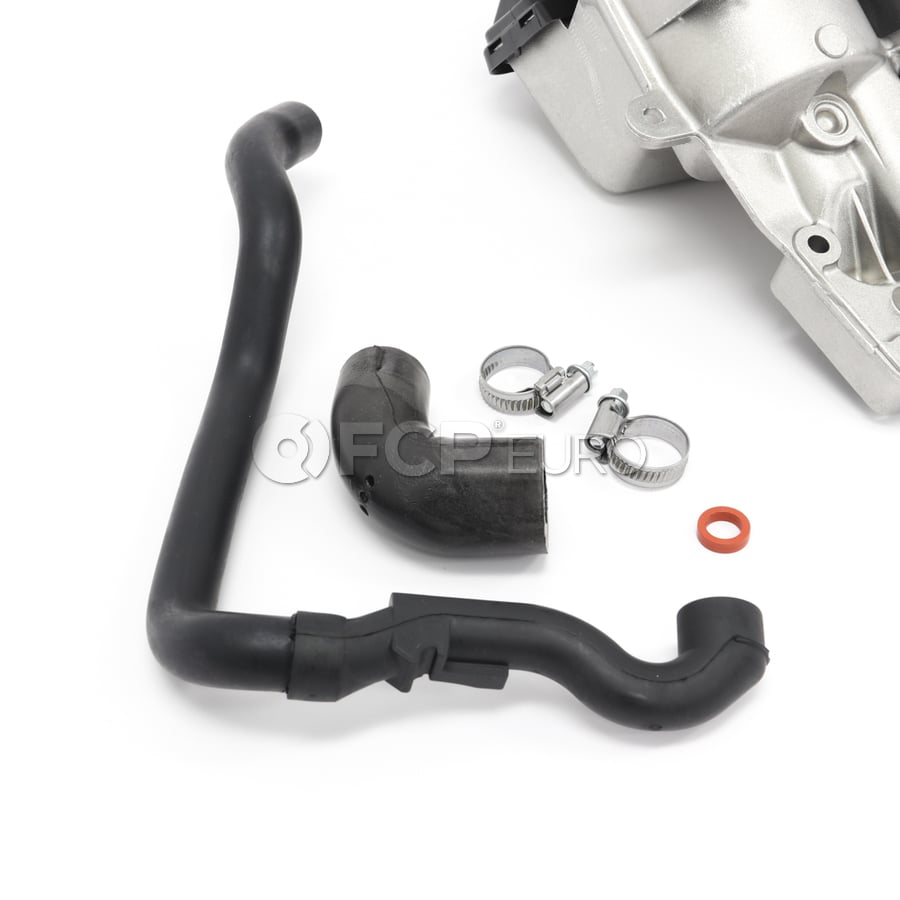

This Kit Includes:

Part SKU Brand MSRP

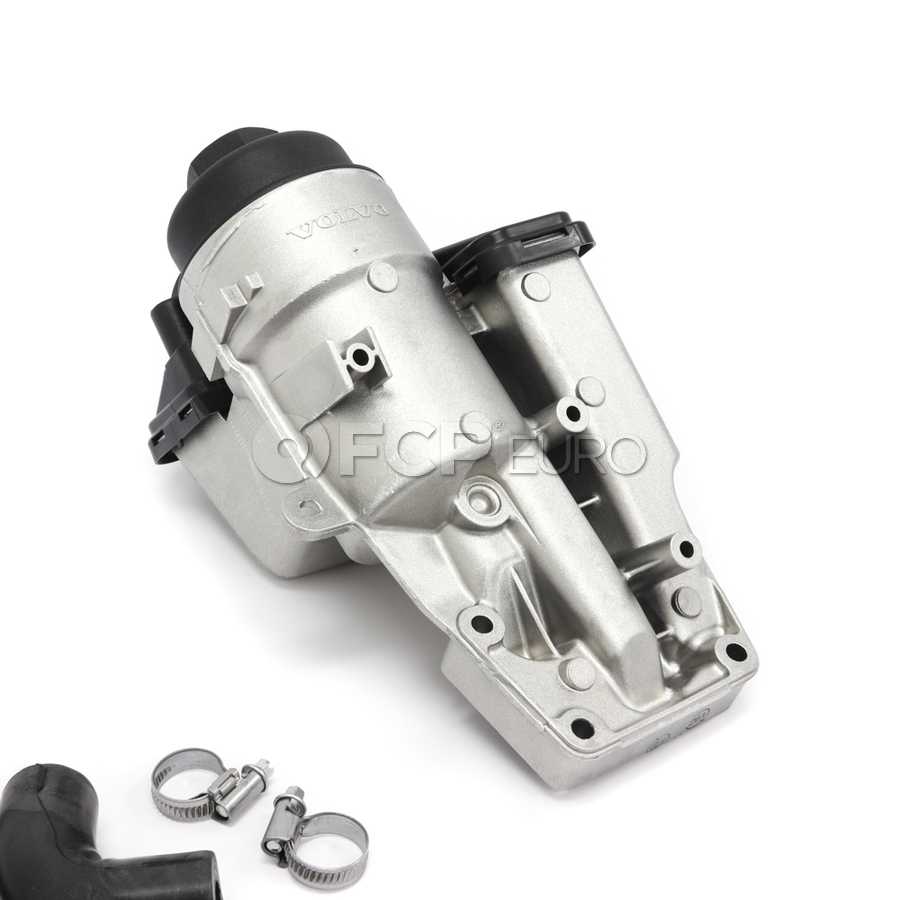

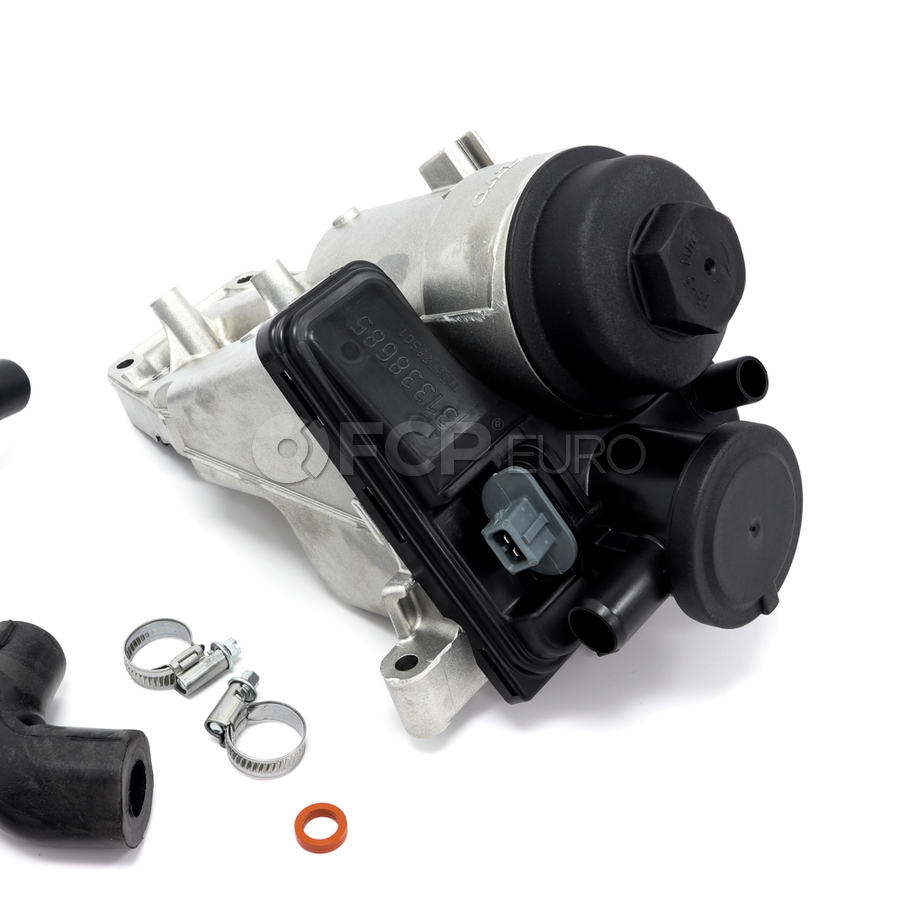

1x Engine Oil Filter Housing VOL-31338685 Genuine volvo logoGenuine Volvo $239.63
1x PCV Valve Hose VOL-8670008 Genuine volvo logoGenuine Volvo $37.91
1x Hose Clamp 976561 Oem supplier logoOEM Supplier $1.99
MSRP (bought separately): $279.53
Our kit price: $232.99
You save: $46.54

Fits These Cars:

2004 Volvo S40 PCV Valve Oil Trap Kit
Engine base: 2.4L L5, Sub model: i
2004 Volvo S40 PCV Valve Oil Trap Kit
Engine base: 2.5L L5, Sub model: T5
2005 Volvo S40 PCV Valve Oil Trap Kit
2006 Volvo S40 PCV Valve Oil Trap Kit
2007 Volvo S40 PCV Valve Oil Trap Kit
2008 Volvo S40 PCV Valve Oil Trap Kit
2009 Volvo S40 PCV Valve Oil Trap Kit
2010 Volvo S40 PCV Valve Oil Trap Kit
2011 Volvo S40 PCV Valve Oil Trap Kit
2005 Volvo V50 PCV Valve Oil Trap Kit
2006 Volvo V50 PCV Valve Oil Trap Kit
2007 Volvo V50 PCV Valve Oil Trap Kit
2008 Volvo V50 PCV Valve Oil Trap Kit
2009 Volvo V50 PCV Valve Oil Trap Kit
2010 Volvo V50 PCV Valve Oil Trap Kit
2011 Volvo V50 PCV Valve Oil Trap Kit
2006 Volvo C70 PCV Valve Oil Trap Kit
2007 Volvo C70 PCV Valve Oil Trap Kit
2008 Volvo C70 PCV Valve Oil Trap Kit
2009 Volvo C70 PCV Valve Oil Trap Kit
2010 Volvo C70 PCV Valve Oil Trap Kit
2011 Volvo C70 PCV Valve Oil Trap Kit
2012 Volvo C70 PCV Valve Oil Trap Kit
2013 Volvo C70 PCV Valve Oil Trap Kit
2008 Volvo C30 PCV Valve Oil Trap Kit
2009 Volvo C30 PCV Valve Oil Trap Kit
2010 Volvo C30 PCV Valve Oil Trap Kit
2011 Volvo C30 PCV Valve Oil Trap Kit
2012 Volvo C30 PCV Valve Oil Trap Kit
2013 Volvo C30 PCV Valve Oil Trap Kit
2012 Volvo S60 PCV Valve Oil Trap Kit
Engine base: 2.5L L5, Sub model: T5
2013 Volvo S60 PCV Valve Oil Trap Kit
Engine base: 2.5L L5, Sub model: T5
2014 Volvo S60 PCV Valve Oil Trap Kit
Engine base: 2.5L L5, Sub model: T5
2015 Volvo S60 PCV Valve Oil Trap Kit
Engine base: 2.5L L5, Sub model: T5
2015 Volvo V60 PCV Valve Oil Trap Kit
Engine base: 2.5L L5, Sub model: T5
2015 Volvo XC60 PCV Valve Oil Trap Kit
Sub model: T5
2015 Volvo XC60 PCV Valve Oil Trap Kit
Sub model: T5
Product match fitment

Volvo PCV Breather System Kit (C30 S40 V50 C70) - Genuine Volvo L5PCVKIT

Brand:
Genuine volvo logoGenuine Volvo
SKU #:
KIT-L5PCVKIT
Part:
PCV Valve Oil Trap Kit
OE Numbers:
31338685,8670008,976561
FCP ID:
396678
$232.99 MSRP: $279.53
Make sure this part fits.
Select your vehicle
Qty:
Available
Ships within 1 business day
  • Guaranteed to Fit, Guaranteed for Life We guarantee the fit and quality of our parts for life. If it doesn’t meet your expectations send it back for a replacement or refund. Learn more
  • Fitment Verified This product application guide has been tested to ensure it will accurately fit the cars outlined in our fitment guide.
  • Shop With Confidence We respect your privacy; we always keep your information confidential.
  • What If I Need to Return This Item? Not a problem! If you are not happy with your purchase, we will gladly help you exchange or return your items, provided you follow the guidelines outlined in our Returns Policy.
Give Us a Call
(877) 634-0063
Whether you have technical questions for our ASE certified staff or you need help fulfilling an order, we're here to help you.
Email Us Live Chat

Customer Reviews

Write a Review Average rating:
4.5 based on 4 review(s)
By: Greg
Fri, Apr 28 at 10:06AM

The unit went into the car the same way as the old one came out. You have to reuse all the screws and after reading the other reviews, it would be nice if you included one more clamp for the new breather hose. Also as a FYI, there are no instructions listed anywhere on the internet on how to replace a unit. I'm very happy with your price and pictures of this unit, for me it was easy to install. My unit lasted 193,000 miles before I had to replace it. Thanks FCP

By: Jack
Fri, Dec 23 at 7:44AM
Great Kit But Should Include More Hose Clamps And Elbow

My PCV was due at 195k miles on my 2008 C30. It took my 90 minutes to do (helps to have a cone air filter). Kit should include 1 more hose clamp and the elbow.

By: Edwin
Sat, Jul 23 at 6:14PM
Volvo Tech In Md

Got a whistling noise and check engine light from your C30/S40/V50? Here's your most likely culprit. Docking 1 star for being a partial kit. You'll need, at a minimum, another 25.6mm clamp to go on the other side of the breather hose. The inclusion of 8653344 would have completed the setup.

By: JP
Sat, Mar 19 at 7:08AM
Guru

OEM part, good price, no comebacks. What's not to like?
