Volvo Oil Filter Housing (C30 C70 S40 V50 S60 V60) - Genuine Volvo 31338685
  • Open uri20141114 27671 1wabyuz
  • Open uri20141114 27671 hu2mkz

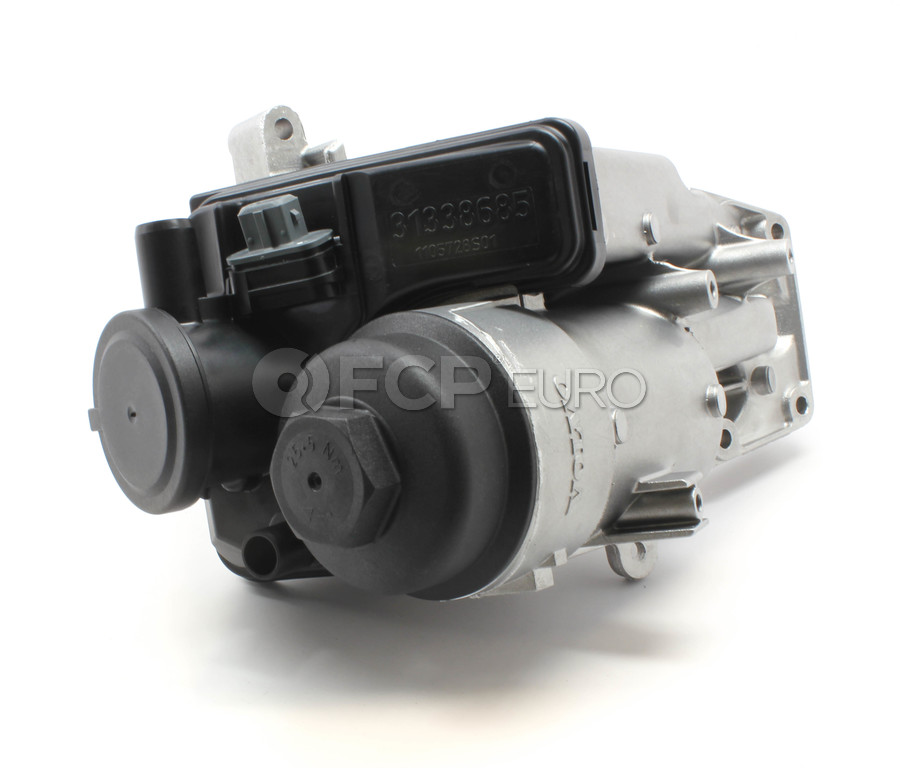

Volvo Oil Filter Housing

Typically referred to as the Crankcase Breather Box for the P1 and P3 platform 5 cylinder model vehicles: C30 C70 S40 V50 S60 V60. Commonly replaced due to a separation or tear in the vacuum diaphragm which causes a high pitched whistle at idle. This oil filter housing includes oil filter, oil filter cap, oil filter o-ring and seal to engine block.

What causes my breather system to fail?

  • Wrong oil grade, quality and/or viscosity
  • Vehicles driven too many miles between oil changes
  • Vehicles frequently driven short distances with many cold starts
  • Excessive idling
  • Fuels of low quality or with high alcohol content
  • Additives added to oil or fuel
  • High ambient temperature
  • High air humidity

What are some of the symptom’s I can expect if my breather system is clogged?

  • Illuminated oil pressure lamp. – Due to clogged oil suction strainer to oil pump or oil filter
  • Illuminated Check Engine Lamp- Due to incorrect engine fuel trim level parameters
  • Noise (whistling) – Noise due to high pressure in crankcase. This noise will stop if the oil filler cap is removed.
  • Poor Drivability- Clogged crankcase ventilation can reduce the engine performance
  • Uneven / Oscillating Idling- Caused by clogged crankcase ventilation
  • Oil leak- From engine seals due to restricted crankcase ventilation
  • Noise (knocking)- Low oil pressure can cause premature bearing wear and lead to internal engine component failure
  • High oil consumption/noise from Turbo
  • A damaged bearing or seal in the turbo due to lack of oil as a result of oil consumption.

What can I do to check for it?

  • The first step is to inspect the oil filter to see if it is abnormally dirty. An abnormally dirty filter is easily recognized by its thick, black deposits
  • If the engine has a problem with carbon deposits, the passageways in the engine block and oil trap may be completely or partially clogged. Remove and check the oil trap, hoses and their passageways in the engine block. There should not be any major collections of carbon deposits in the hoses or in the passageways in the block.
  • Drain the engine oil. Remove the oil pan and check the oil pan and crankcase for deposits. Normally, there should not be any deposits. Also check the oil suction strainer on the oil suction line for contaminants and deposits.
  • Use a low caliber Vacuum gauge to check for positive pressure through the dipstick tube

Fits These Cars:

2004 Volvo S40 Engine Oil Filter Housing
Engine base: 2.4L L5, Sub model: i
2004 Volvo S40 Engine Oil Filter Housing
Engine base: 2.5L L5, Sub model: T5
2005 Volvo S40 Engine Oil Filter Housing
2006 Volvo S40 Engine Oil Filter Housing
2007 Volvo S40 Engine Oil Filter Housing
2008 Volvo S40 Engine Oil Filter Housing
2009 Volvo S40 Engine Oil Filter Housing
2010 Volvo S40 Engine Oil Filter Housing
2011 Volvo S40 Engine Oil Filter Housing
2005 Volvo V50 Engine Oil Filter Housing
2006 Volvo V50 Engine Oil Filter Housing
2007 Volvo V50 Engine Oil Filter Housing
2008 Volvo V50 Engine Oil Filter Housing
2009 Volvo V50 Engine Oil Filter Housing
2010 Volvo V50 Engine Oil Filter Housing
2011 Volvo V50 Engine Oil Filter Housing
2006 Volvo C70 Engine Oil Filter Housing
2007 Volvo C70 Engine Oil Filter Housing
2008 Volvo C70 Engine Oil Filter Housing
2009 Volvo C70 Engine Oil Filter Housing
2010 Volvo C70 Engine Oil Filter Housing
2011 Volvo C70 Engine Oil Filter Housing
2012 Volvo C70 Engine Oil Filter Housing
2013 Volvo C70 Engine Oil Filter Housing
2008 Volvo C30 Engine Oil Filter Housing
2009 Volvo C30 Engine Oil Filter Housing
2010 Volvo C30 Engine Oil Filter Housing
2011 Volvo C30 Engine Oil Filter Housing
2012 Volvo C30 Engine Oil Filter Housing
2013 Volvo C30 Engine Oil Filter Housing
2012 Volvo S60 Engine Oil Filter Housing
Engine base: 2.5L L5, Sub model: T5
2013 Volvo S60 Engine Oil Filter Housing
Engine base: 2.5L L5, Sub model: T5
2014 Volvo S60 Engine Oil Filter Housing
Engine base: 2.5L L5, Sub model: T5
2015 Volvo S60 Engine Oil Filter Housing
Engine base: 2.5L L5, Sub model: T5
2015 Volvo V60 Engine Oil Filter Housing
Engine base: 2.5L L5, Sub model: T5
2015 Volvo XC60 Engine Oil Filter Housing
Sub model: T5
Product match fitment

Volvo Oil Filter Housing (C30 C70 S40 V50 S60 V60) - Genuine Volvo 31338685

Brand:
Genuine volvo logoGenuine Volvo
SKU #:
VOL-31338685
Part:
Engine Oil Filter Housing
OE Numbers:
30788494, 31338684, 31338685
FCP ID:
110941
$176.99 MSRP: $212.99
