2 on diagram

Anti-Lift & Caster Offset.

Volvo P1 owners are all too familiar with the commonly reported torque steer effect of their vehicles. Our new part provides anti-lift and caster offset to improve handling characteristics and has been proven and tested on road and track.

PFF19-1002G adds 1 degree of caster offset for a greater tire contact area, which, in turn, provides greater feedback information to the driver, improves traction and offers greater stability. The increased caster angle produces more weight and detail to the steering which is vital to driver confidence, allowing your Volvo to corner with more urgency, significantly improved grip and reduced understeer.

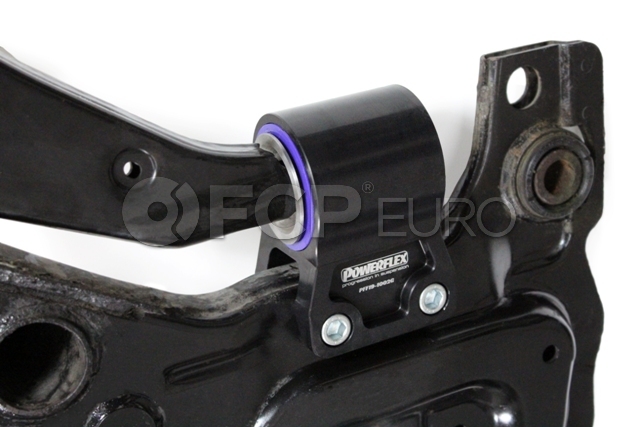

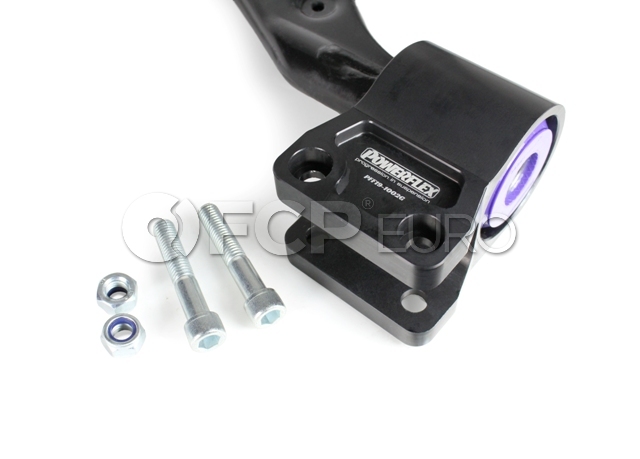

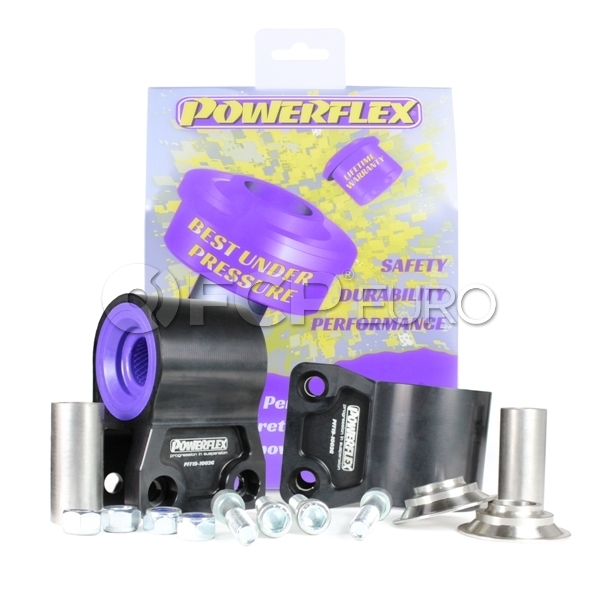

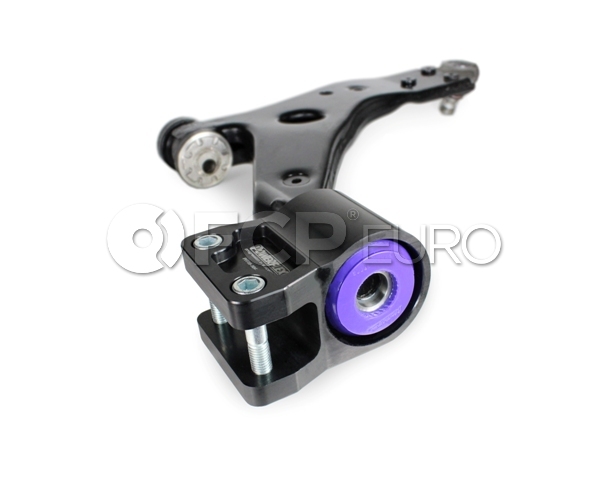

Starting out as a 6082 T6 (heat treated) solid billet of aluminium, our CNC machining centre and 4th axis shape the material into our unique design which is then hard black anodized, followed by an engraving process. By machining from a solid billet, Powerflex ensures the part has the best strength to weight ratio and looks great too. PFF19-1002G ships with CNC machined stainless steel thrust washers to enhance braking stability.

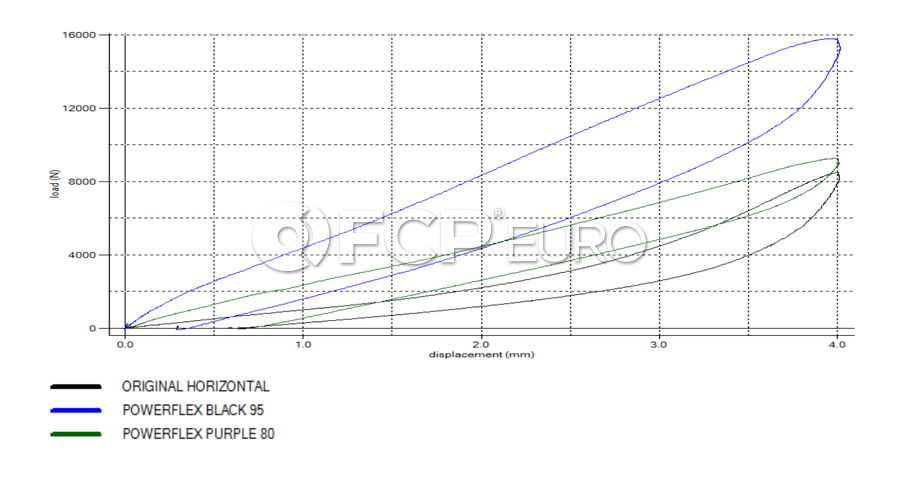

Powerflex Street Purple and Yellow bushings are 10-30% stiffer than OEM rubber in most applications. Powerflex Racing Black bushings are approx. 80% stiffer than OEM and are denoted by BLK at the end of the part number. Both are designed to last the life of the vehicle. Powerflex products feature a proprietary design that does not need to be re-lubed once installed.

For other Powerflex products on the diagram, please see the list below. Check application guide before ordering.

1: Volvo Lower Control Arm Bushing Set - Powerflex PFF19-8011

2: Volvo Lower Control Arm Bushing Set - Powerflex PFF19-1002G (Anti-Lift, Caster Offset), or PFF19-1202 and PFF19-1202BLK

3 and 4: Volvo Sway Bar Bushing Set - Powerflex PFR19-1204-21 (21mm Sway Bars), or PFR19-1204-22 (22mm) and PFR19-1204-22BLK (22mm)

7: Volvo Control Arm Bushing Set - Powerflex PFR88-307 and PFR88-307BLK

8: Volvo Control Arm Bushing Set - Powerflex PFR88-308 and PFR88-308BLK

10: Volvo Control Arm Bushing Set - Powerflex PFR19-810G (Camber Adjustable), or PFR19-810 and PFR19-810BLK

11: Volvo Lower Control Arm Bushing Set - Powerflex PFR19-811 and PFR19-811BLK

12: Volvo Trailing Arm Blade Bushing Set - Powerflex PFR19-812 and PFR19-812BLK

20: Volvo Engine Mount Bushing Insert Lower - Powerflex PFF19-1220 (late) and PFF19-1220BLK (late), or PFF19-1222 (early) and PFF19-1222BLK (early)

21: Volvo Engine Mount Bushing Insert Upper - Powerflex PFF19-1225
