21 on diagram

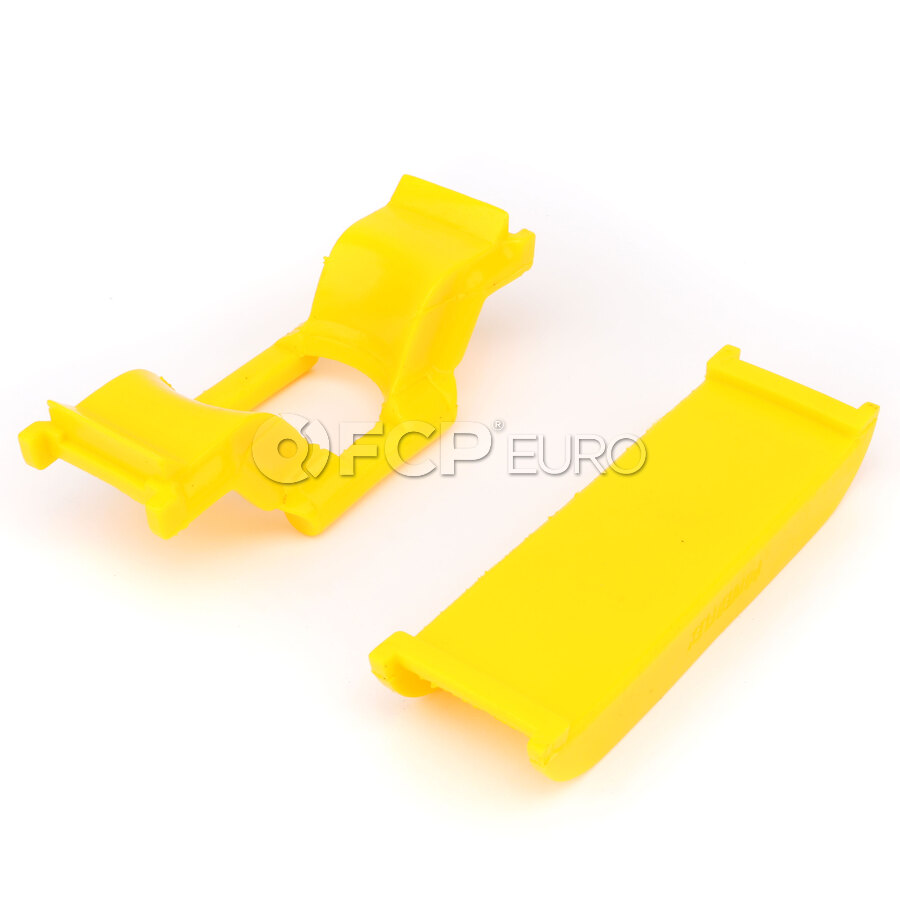

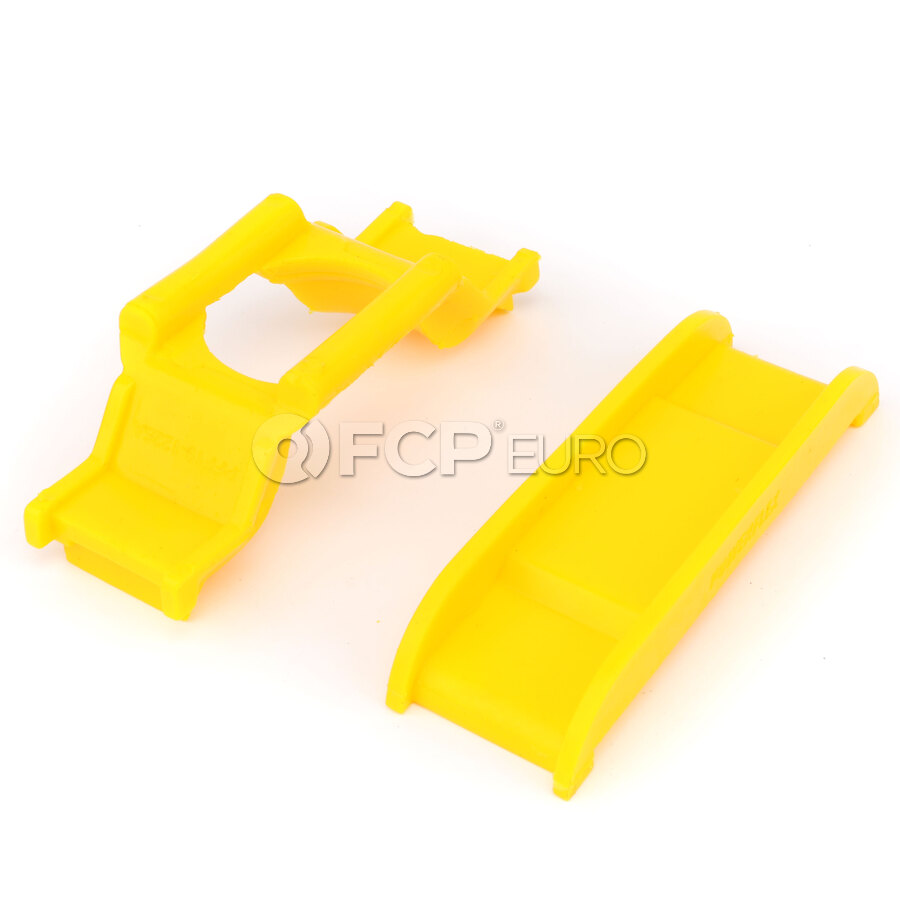

This bushing insert fits into the gaps on the stock mount to provide extra reinforcement. The engine will be more resistant to slop and movement resulting in a sporty more responsive power delivery. As such, some extra vibration from the engine will transfer to the chassis.

The OE mount was updated by Volvo and there are two possible styles installed on your vehicle. View the image above and make sure you have the correct insert for the hardware installed on your Volvo.

Powerflex Street Purple and Yellow bushings are 10-30% stiffer than OEM rubber in most applications. Powerflex Racing Black bushings are approx. 80% stiffer than OEM and are denoted by BLK at the end of the part number. Both are designed to last the life of the vehicle. Powerflex products feature a proprietary design that does not need to be re-lubed once installed.

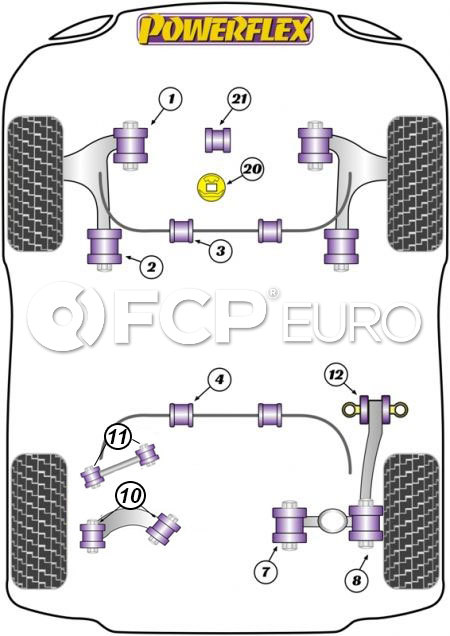

For other Powerflex products on the diagram, please see the list below. Check application guide before ordering.

1: Volvo Lower Control Arm Bushing Set - Powerflex PFF19-8011

2: Volvo Lower Control Arm Bushing Set - Powerflex PFF19-1002G (Anti-Lift, Caster Offset), or PFF19-1202 and PFF19-1202BLK

3 and 4: Volvo Sway Bar Bushing Set - Powerflex PFR19-1204-21 (21mm Sway Bars), or PFR19-1204-22 (22mm) and PFR19-1204-22BLK (22mm)

7: Volvo Control Arm Bushing Set - Powerflex PFR88-307 and PFR88-307BLK

8: Volvo Control Arm Bushing Set - Powerflex PFR88-308 and PFR88-308BLK

10: Volvo Control Arm Bushing Set - Powerflex PFR19-810G (Camber Adjustable), or PFR19-810 and PFR19-810BLK

11: Volvo Lower Control Arm Bushing Set - Powerflex PFR19-811 and PFR19-811BLK

12: Volvo Trailing Arm Blade Bushing Set - Powerflex PFR19-812 and PFR19-812BLK

20: Volvo Engine Mount Bushing Insert Lower - Powerflex PFF19-1220 (late) and PFF19-1220BLK (late), or PFF19-1222 (early) and PFF19-1222BLK (early)

21: Volvo Engine Mount Bushing Insert Upper - Powerflex PFF19-1225
