Borg Warner
SKU: KIT-01167

VW Turbocharger Kit - Borg Warner KIT-01167

Passat

w/ Liqui Moly 5W30 TOP TEC 4200 Engine Oil & Hengst Filter



Available
In Stock
Price each: $1,180.90
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.
QTY
Make sure this fits your car
To ensure fitment and browse only products that fit, please select a vehicle first.

Description

Details

SKU:
KIT-01167
FCP Euro ID:
Quality:
OE

OE Numbers

03L253056EX, 03L253056QX, 03L253010J, 03L253056E, 03L253010JX, 03L253056Q, 03L253039F, 03L145757Q, 03G145757A, 03L145757M, N90894601, N0138133, N0138131, 03L145117C, WHT001965, N90715601, WHT005635A, 00004321107, 00004330317, 83215B7FC67, N90813202, N90813201, N90813203, N91101401, PAF911014, 03L115562, N0210719, N0210717, Q1030005, G013A8J1G, G012A8GM8, G012A8GM1, G012A8FM9, G012A8FM8, G012A8FM1, G012A8FA8, G012A8FA1, G011A8CA1, ZVW237105, TL774C, G013A8JM1, 0009896807090109, 00004330147, 00004330515, 00004330103, 00004330112, 00004320378

MFG Numbers

54409880035, 170-070-2323, 5440-988-0035, 1700702323, 703840, 703.840, 245800, 2011, LM2011, 220125S, HWP0053, 15374, E115H01D208, 861526, 259900, 259.900, 643.520, 643520, LM22074

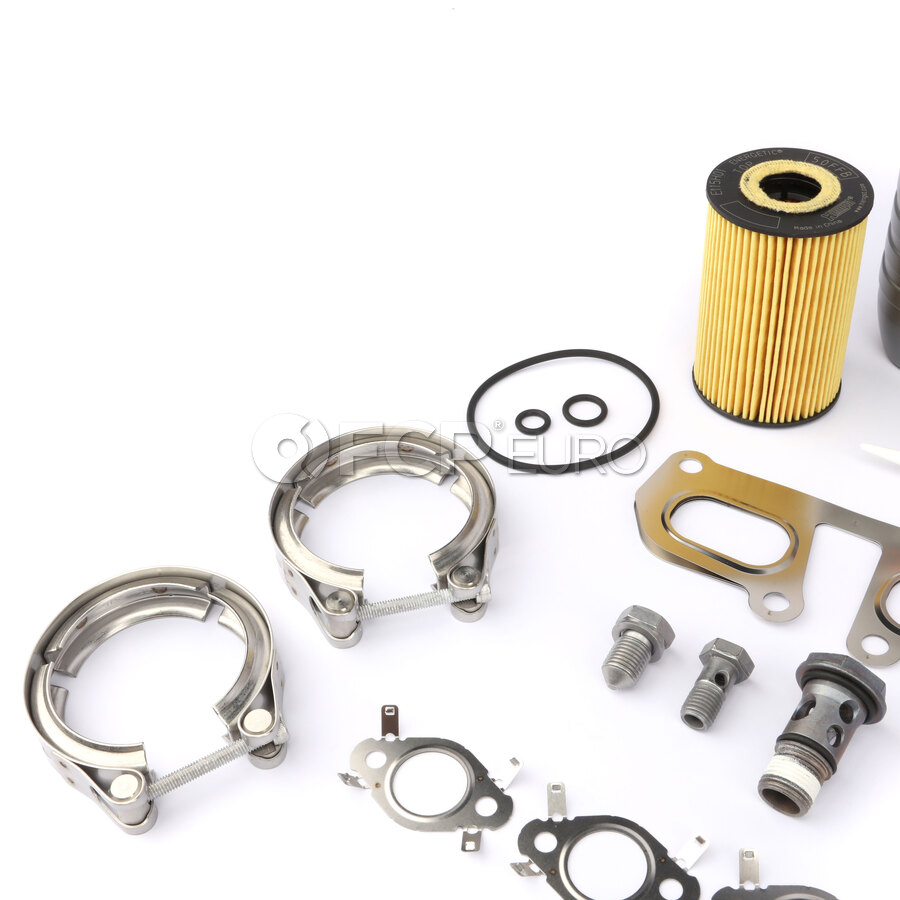

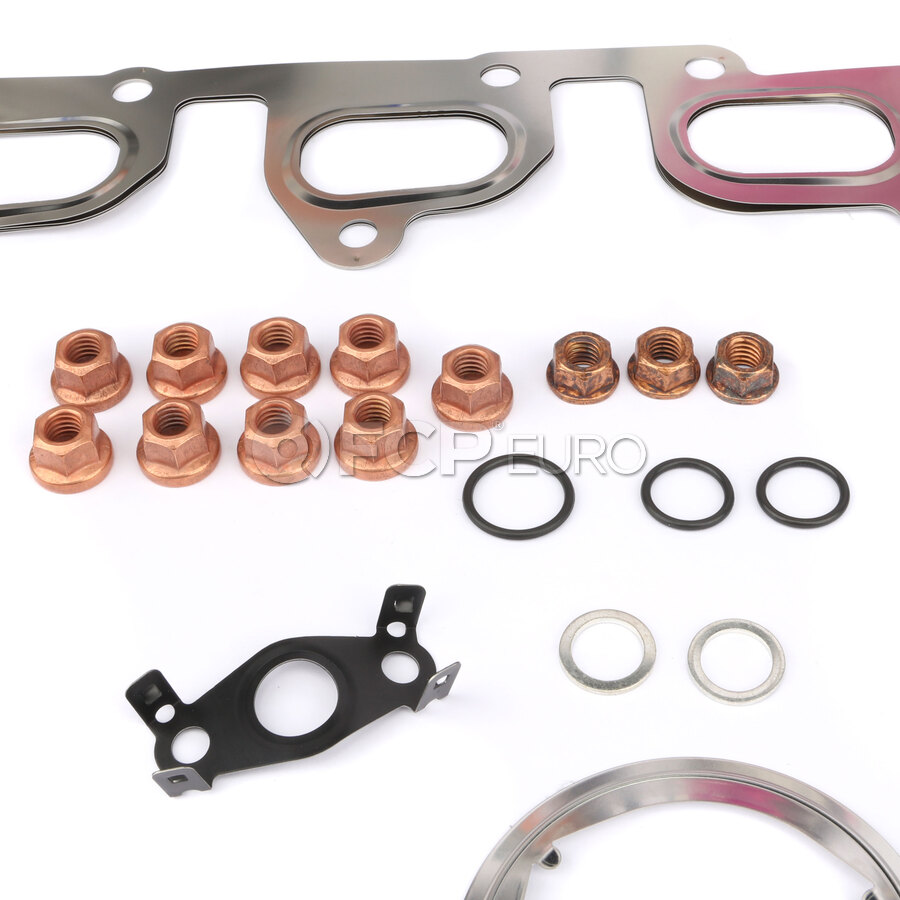

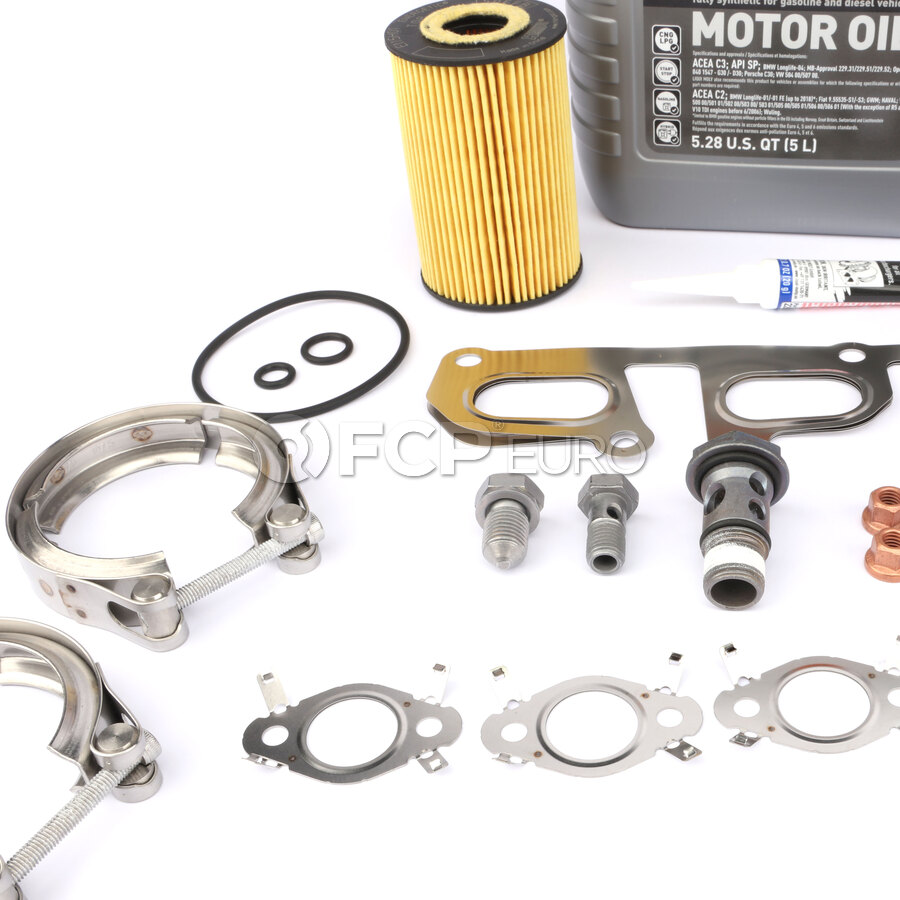

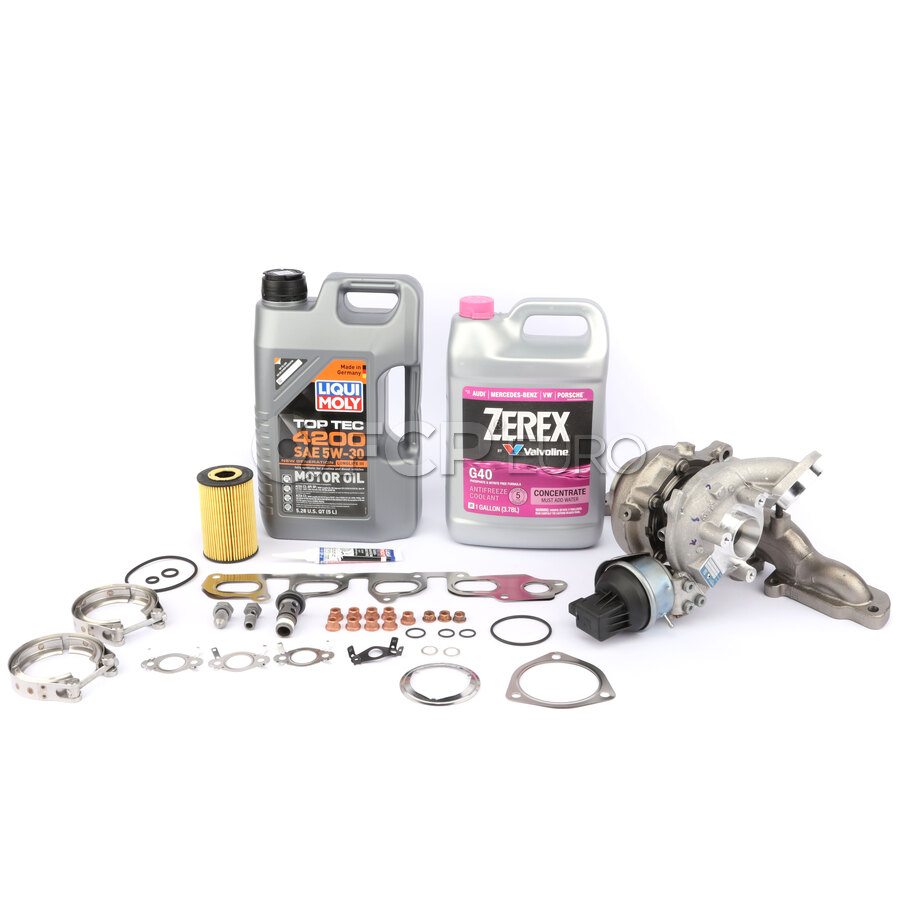

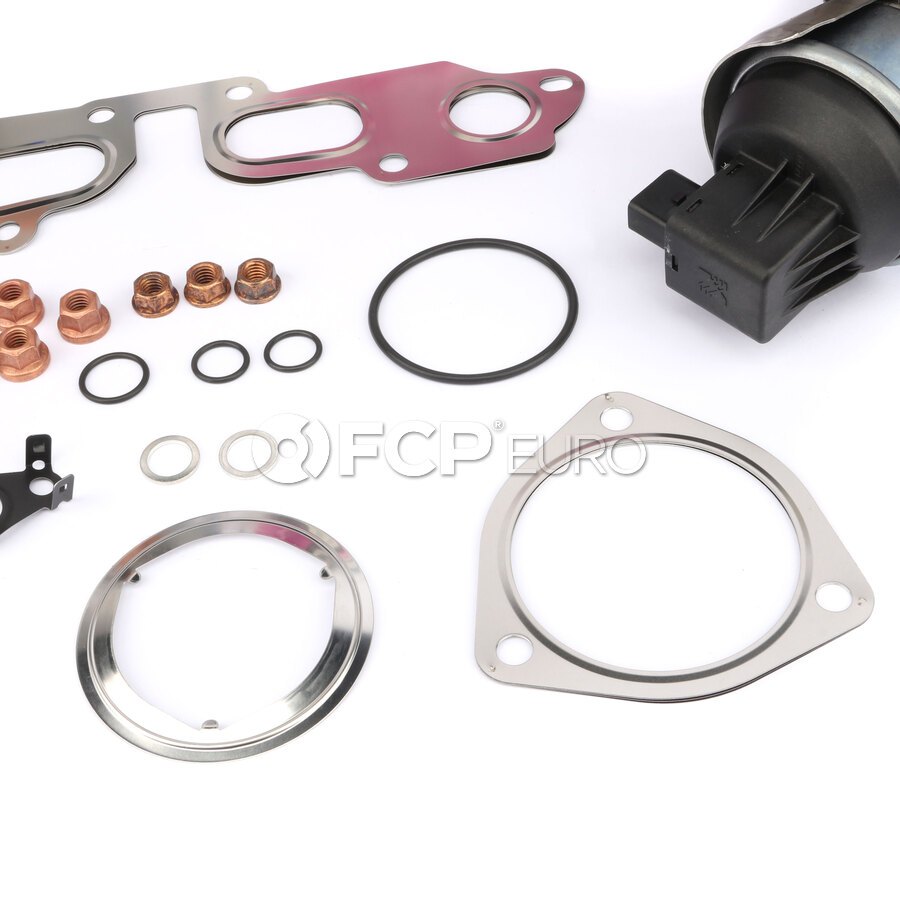

This Kit Includes

Qty Part SKU Brand Price

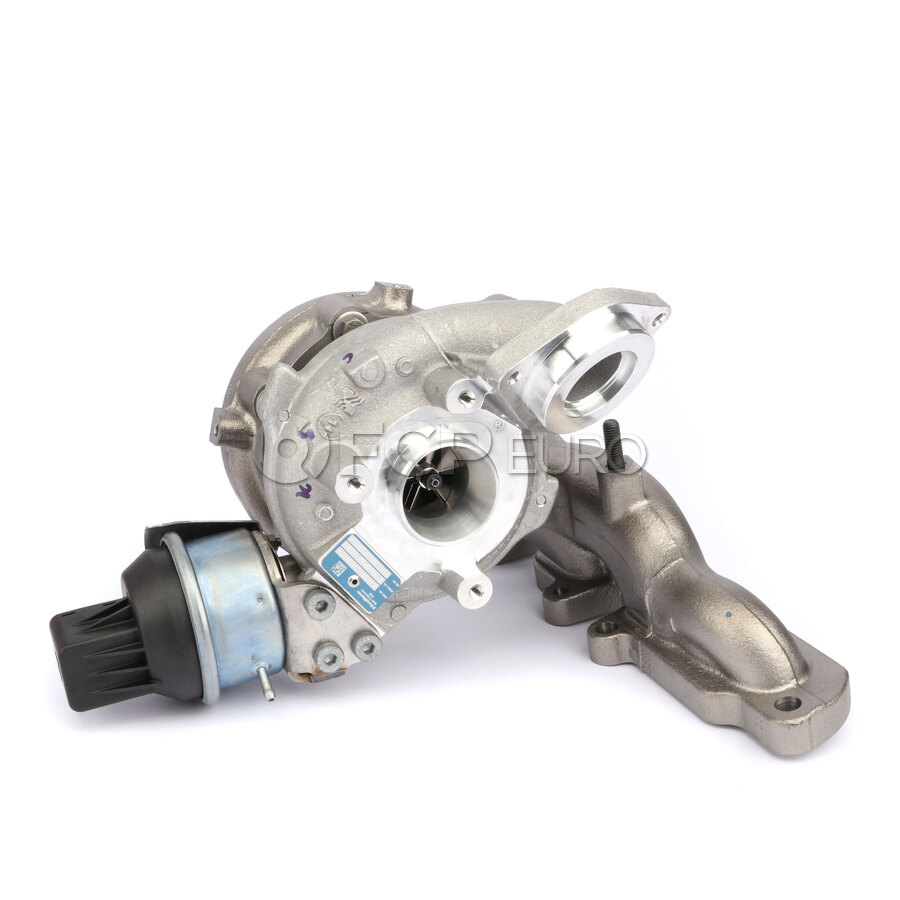

1 Turbocharger BOR-54409880035 $918.99
1 Exhaust Manifold Gasket ELR-703840 $15.79
1 Turbocharger Oil Line Gasket ELR-245800 $4.09
9 Turbocharger Nut OES-N90894601 $8.91
2 Engine Oil Drain Plug Gasket VAG-N0138133 $4.58
1 Turbocharger Gasket VAG-03L145117C $6.99
2 Turbocharger Oil Line O-Ring VAG-WHT001965 $5.58
1 Turbocharger Oil Line O-Ring VAG-N90715601 $2.59
1 Turbocharger Coolant Line Bolt VAG-WHT005635A $6.89

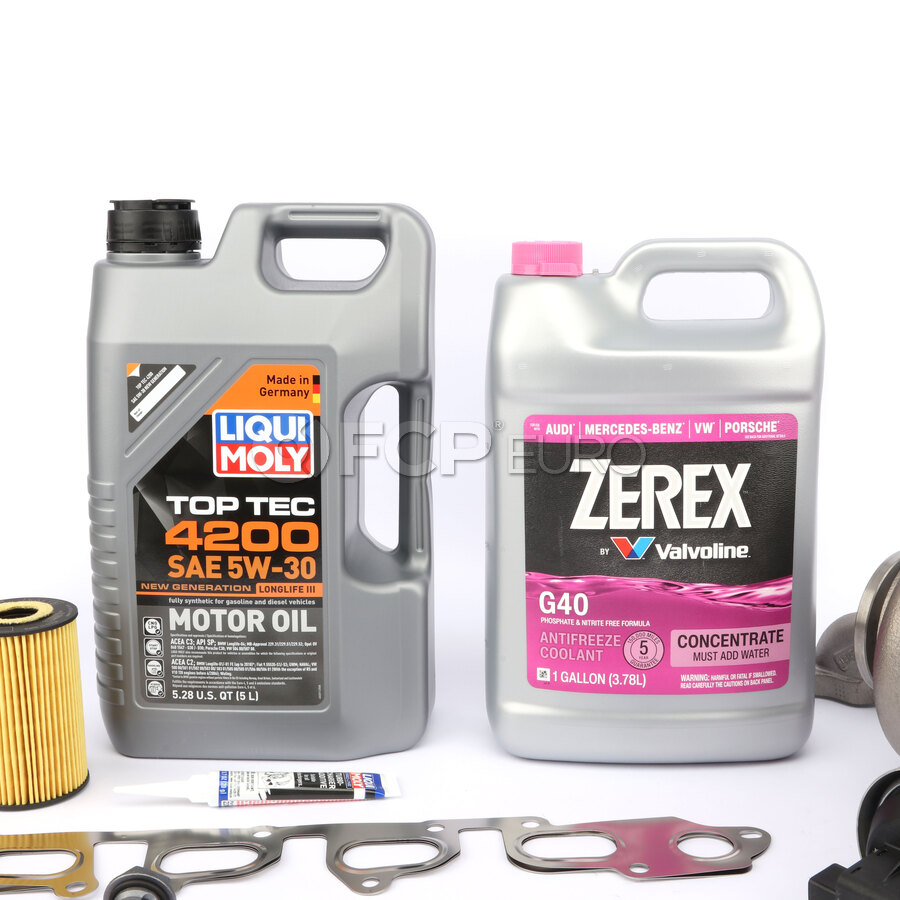

1 Engine Oil MOL-LM2011 $77.99
1 Engine Oil Drain Plug OES-220125S $1.11
1 Engine Oil Filter Kit HEN-E115H01D208 $10.34
1 Banjo Bolt and Fitting VAG-N0210719 $6.09
1 Engine Coolant / Antifreeze ZER-861526 $27.88
2 Exhaust Clamp ELR-259900 $35.58
1 Turbocharger Gasket ELR-643520 $7.89
3 Exhaust Manifold Nut VAG-N91130801 $3.57
1 Turbocharger Additive MOL-LM22074 $12.39
3 Exhaust Gas Recirculation (EGR) Tube Gasket VAG-03L131547N $18.36
1 Turbocharger Outlet Gasket VAG-1K0253115T $5.29

Product Information

Borg Warner’s highly efficient turbocharging technology meets the highest demands in performance, fuel economy, and emissions.

Borg Warner’s range of turbochargers for gasoline and diesel engines consists of a broad portfolio of high-performance and sophisticated turbo systems with waste gates, water-cooled bearing casings, and a new generation of turbines and impellers.

Features and Benefits:

  • High grade materials
  • Water-cooled bearing casings
  • Milled impeller wheels
  • Further developed systems for high-temperature applications up to 1,050F
  • New generation of turbines and impellers
  • Different boost concepts depending on engine strategy:
  • waste gate and boost pressure control valves
  • variable turbines
  • win flow turbines
  • Special design solutions such as integrated exhaust manifolds
Turbocharger kit

Turbochargers are commonly used on many modern cars as they allow smaller displacement engines to make the same power as higher displacement engines. In addition, turbocharged engines tend to be more fuel efficient relative to the power that they output. Turbochargers are relatively simple mechanical devices. They use exhaust gas to pressurize the intake air. With more air volume entering the engine it is possible to add more fuel which in turn allows for more power as well as efficiency.

Turbochargers are generally cooled by engine coolant and lubricated by engine oil. So it's not uncommon to see two feed lines going to the turbocharger and two return lines coming from the turbo. Over time turbochargers like all parts wear out. Smoke coming out of the exhaust can indicate that seals in the turbo have gone bad and oil is entering the exhaust. Really worn turbos also don't build boost effectively. If you suspect your turbocharger is worn or on its way top catastrophic failure it is advised to replace it before further engine damage can occur.

Turbocharger kit Failure Symptoms
  • Oil leaks
  • Smoking exhaust
  • Low boost pressure
  • Limp model
  • High oil consumption
  • Play in turbine shaft due to worn bearing

About Borg Warner

BorgWarner Turbo Systems provides aftermarket customers worldwide with a comprehensive range of BorgWarner, 3K and Schwitzer replacement turbochargers and spare parts. They also provide the full range of EFR series and Airwerks performance products.

The world’s largest vehicle makers rely on the products made by BorgWarner. Their turbochargers are manufactured in line with stringent, globally acknowledged quality standards and meet the highest expectations.

Their products not only prove their above-average performance, reliability and long service life in the tough tests performed by the automotive industry, but also every day on streets across the globe. You can find these resilient qualities both in their OEM products and in all original spare parts and Reman turbochargers.

With their dense global network of authorized distributors throughout the world, they are available everywhere you need them. In 2014, Borg Warner, the supplier of automotive parts and systems had acquired Wahler, and as such is acquiring their inventory.

Fits These Cars

Volkswagen Passat

  • 2012 Volkswagen Passat TDI SE Turbocharger Kit
    Automatic Dual Clutch FWD Sedan 2.0L L4 CKRA Diesel
  • 2012 Volkswagen Passat TDI SE Turbocharger Kit
    Manual FWD Sedan 2.0L L4 CKRA Diesel
  • 2012 Volkswagen Passat TDI SEL Turbocharger Kit
    Automatic Dual Clutch FWD Sedan 2.0L L4 CKRA Diesel
  • 2013 Volkswagen Passat TDI SE Turbocharger Kit
    Automatic Dual Clutch FWD Sedan 2.0L L4 CKRA Diesel
  • 2013 Volkswagen Passat TDI SE Turbocharger Kit
    Manual FWD Sedan 2.0L L4 CKRA Diesel
  • 2013 Volkswagen Passat TDI SEL Turbocharger Kit
    Automatic Dual Clutch FWD Sedan 2.0L L4 CKRA Diesel
  • 2014 Volkswagen Passat TDI SE Turbocharger Kit
    Automatic Dual Clutch FWD Sedan 2.0L L4 CKRA Diesel
  • 2014 Volkswagen Passat TDI SE Turbocharger Kit
    Manual FWD Sedan 2.0L L4 CKRA Diesel
  • 2014 Volkswagen Passat TDI SEL Premium Turbocharger Kit
    Automatic Dual Clutch FWD Sedan 2.0L L4 CKRA Diesel

Product Reviews

There are no reviews yet. Be the first to leave a review.

Questions & Answers

Ask a question
Question Posted by a customer
Hello do these have cores?
Answer (Posted by FCP Euro Products Team)
No these would be new units not rebuilt and would not have cores.
