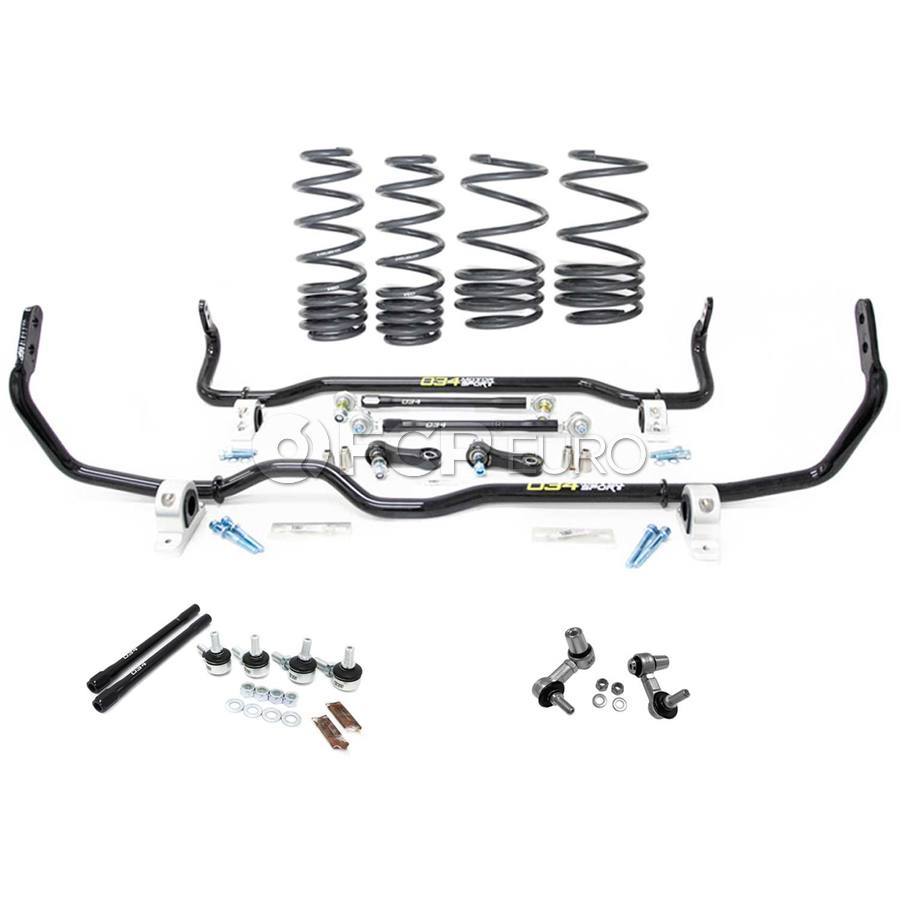

VW Sway Bar Upgrade Kit - 034Motorsport KIT-00964

NOTE:

• Includes 23.8mm 2-Way Adjustable Front Sway Bar
• Includes 25.4mm 2-Way Adjustable Rear Sway Bar
• Includes CNC Machined 6061-T6 Aluminum Front Sway Bar Links w/ Ball Joints
• Includes Dynamic+ Adjustable Rear Sway Bar Links w/ Ball Joints
• Includes Dynamic+ Lowering Spring Set

034Motorsport is proud to offer the ultimate front sway bar upgrade for the MkVII Volkswagen Golf/GTI/R, 8V Audi A3/S3/RS3 & 8S Audi TT/TTS/TTRS! The 034Motorsport Adjustable Solid Front Sway Bar is made from a single piece of high-quality, 23.8mm thick spring steel for maximum rigidity, and is designed to provide more feedback from the front wheels without compromising comfort on the street.

Engineered to further reduce body roll and enhance steering feel, the 034Motorsport Solid Front Sway Bar is the perfect upgrade for those seeking to positively affect turn-in feel and virtually eliminate lean under hard cornering.

Features:

• 23.8mm Diameter
• Solid Spring Steel Construction
• One-Piece Design
• 2-Way Adjustable

What's Included:

• 034Motorsport MQB Adjustable Solid Front Sway Bar Upgrade
• Polyurethane Sway Bar Bushings
• Billet Aluminum Sway Bar Brackets with Integrated Zerk Fittings
• Sway Bar Bracket Installation Hardware Kit

034Motorsport is proud to offer the ultimate rear sway bar upgrade for the MkVII Volkswagen Golf/GTI & 8V Audi A3 FWD! The 034Motorsport Adjustable Solid Rear Sway Bar is made from a single piece of high-quality, 25.4mm thick spring steel for maximum rigidity, and is designed to combat understeer while reducing body roll under hard cornering.

This product was tested thoroughly on the street and track on 034Motorsport's 2015 Volkswagen GTI Development Vehicle and multiple enthusiast-owned MQB Audi/Volkswagen vehicles before release. The 034Motorsport Adjustable Solid Rear Sway Bar substantially reduces understeer and body roll on 8V Audi A3 FWD & Volkswagen Golf/GTI vehicles without compromising comfort on the street.

In addition, the 034Motorsport MQB Rear Sway Bar is engineered to be used effectively with the stock front sway bar. No upgrade in the front is required. The addition of a stiffer front bar can positively affect turn-in feel, but ultimately worsens the platform's tendency to understeer. With the stock front sway bar and upgraded 034Motorsport Solid Rear Sway Bar, body roll is virtually eliminated while turn in and off throttle oversteer are greatly improved.

Features:

• 25.4mm Diameter
• Solid Spring Steel Construction
• One-Piece Design
• 2-Way Adjustable

What's Included:

• 034Motorsport 8V Audi A3 FWD & MkVII Volkswagen Golf/GTI (MQB)
• Adjustable Solid Rear Sway Bar Upgrade
• Polyurethane Sway Bar Bushings
• Billet Aluminum Sway Bar Brackets with Integrated Zerk Fittings
• Sway Bar Bracket Installation Hardware Kit

Sway Bar End Links w/ Ball Joints:

Replace your flimsy, imprecise OEM sway bar end links with these performance engineered adjustable Dynamic+ Billet Adjustable Front Sway Bar End Links from 034Motorsport! 034Motorsport's Dynamic+ Billet Adjustable Front Sway Bar End Links allow for uncompromised transfer of suspension movement to the sway bar, and are adjustable in length, allowing you to eliminate preload on the sway bar. 034Motorsport Dynamic+ Billet Adjustable Front Sway Bar End Links use high-misalignment ball joints, ensuring that the end links do not bind as the suspension articulates.

This 034Motorsport Dynamic+ Adjustable Rear Sway Bar End Link Kit has the features, performance, and maintenance-free operation to make it a winner on the street and the track!

FEATURES:

• CNC Machined 6061-T6 Aluminum Bodies (Anodized Black for Durability)
• Zinc Plated Steel Ball Joints
• OEM+ Quality with Adjustability
• Quieter with Less Maintenance than Spherical Motorsport End Links
• +/- 0.75" of Adjustability (1.5" Total Adjustment Range)
• Sold In Pairs

FUNCTIONS:

• Adjust Sway Bar Preload - Essential When Corner Balancing Lowered Vehicles
• Increased Strength for Stiffer Sway Bars, Heavier Loads and Aggressive Use
• Improved Sway Bar Reaction Time & Accuracy

Dynamic+ Lowering Springs

Dynamic+ Lowering Springs for the MkVII Volkswagen Golf/GTI are the perfect solution for those looking to lower their vehicle and improve handling dynamics while retaining excellent ride quality.

A true no-compromise solution, Dynamic+ Lowering Springs provide an aggressive yet functional stance, and reward drivers with precise vehicle control and OEM+ comfort levels. These springs were engineered in-house and tested extensively on 034Motorsport's MkVII Volkswagen GTI before release to ensure that they deliver the ideal combination of performance, comfort, and reliability.

Dynamic+ Lowering Springs were engineered and tested in-house at 034Motorsport to deliver superb ride quality and optimal handling performance. Designed to as a true no-compromise solution, Dynamic+ Lowering Springs provide an aggressive yet functional stance, and reward drivers with precise vehicle control and OEM+ comfort levels.

Dynamic+ Lowering Springs were thoroughly evaluated on the street and track on 034Motorsport's Mk7 Volkswagen GTI Development Vehicle, and by independent VW enthusiasts before release. The selected spring rates, unique dual-rate spring design, and ride height are the culmination of months testing - thousands of miles of commuting and countless track days - resulting in a lowering kit that is perfectly matched to the factory dampers.

Each set of Dynamic+ Lowering Springs is manufactured in the USA at an ISO 9001 certified facility, and tested to 034Motorsport's exacting specifications to ensure they deliver unmatched levels of handling performance. These springs are the ideal suspension solution for the discerning Golf/GTI owner who desires to lower their vehicle and enhance their driving experience.

Features:

• Approximately 1.1" (GTI) or 1.5" (Golf) of Lowering with Perfect, Functional Stance - No Reverse Rake!
• Improved Handling Performance & Chassis Dynamics
• Reduced Body Roll & Understeer
• Superb Comfort & Ride Quality
• Compatible with Dynamic Chassis Control (DCC)
• Lightweight, High-Strength Construction
• Shot Peened & Powdercoated
• Made in USA at ISO 9001 Certified Facility

Ride Height:

• MkVII Volkswagen GTI
• Front - Approximately 1.0" - 1.1" Lower
• Rear - Approximately 1.0" - 1.1" Lower
• MkVII Volkswagen Golf
• Front - Approximately 1.4" - 1.5" Lower
• Rear - Approximately 1.4" - 1.5" Lower

Effective Spring Rates:

• Front - 210 Pounds/Inch
• Rear - 280 Pounds/Inch

Note: Dynamic+ Lowering Springs are compatible with both Standard Suspension and Dynamic Chassis Control (DCC) equipped vehicles.
