More VW Subframe Hardware Kit - Genuine VW KIT-02340
Genuine VW
SKU: KIT-02340

VW Subframe Hardware Kit - Genuine VW KIT-02340

GTI

Save for later
Available
Ships in 3 business days
Price each: $187.78
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.
QTY
Make sure this fits your car
Validate fitment
To ensure fitment and browse only products that fit, please select a vehicle first.
What does this include?

Description

Details

SKU:
KIT-02340
FCP Euro ID:
Quality:
Genuine

OE Numbers

N10785401, N91200301, N10765801, WHT001761, WHT000232, 1K0501385A, WHT009208, N10883401, N10106402, N10106403, N91197801, 1K0505193, N10401801, WHT009289A, WHT000724, WHT000227, 1K0501387C

MFG Numbers

WHT009208, N10883401, 14392

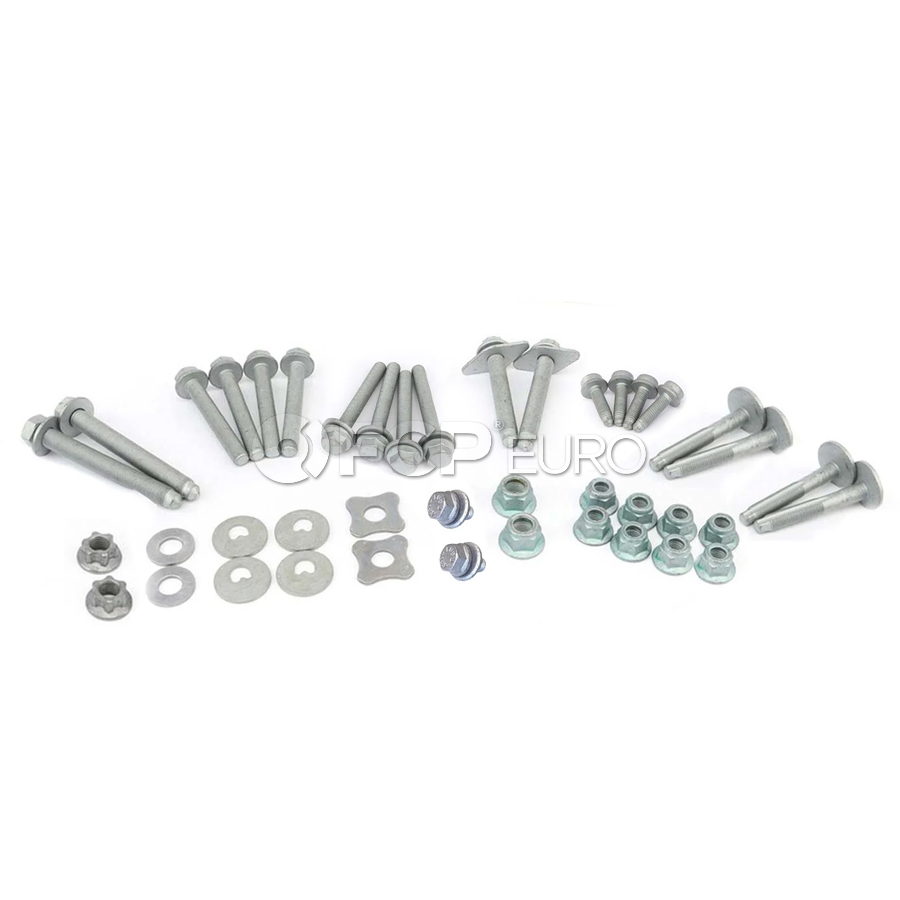

This Kit Includes

Qty Part SKU Brand Price
4 Suspension Subframe Mount Bolt VAG-N10785401 $9.16
2 Suspension Crossmember Bolt VAG-N91200301 $9.78
4 Radiator Support Panel Bolt VAG-N10765801 $5.56
2 Suspension Control Arm Bolt OES-WHT001761 $36.78
4 Alignment Camber Adjusting Eccentric Washer VAG-WHT000232 $7.92
2 Suspension Control Arm Nut VAG-WHT009208 $0.70
4 Suspension Control Arm Bolt VAG-N10883401 $11.16
8 Suspension Strut Nut OES-N10106403 $15.92
2 Suspension Control Arm Bolt VAG-N91197801 $18.36
2 Suspension Control Arm Washer VAG-1K0505193 $15.38
2 Nut VAG-N10401801 $7.58
2 Suspension Control Arm Bolt VAG-WHT009289A $18.38
2 Washer VAG-WHT000724 $9.68
2 Suspension Control Arm Bolt VAG-WHT000227 $21.42

Product Information

This kit includes all of the necessary hardware bolts needed when replacing the rear subframe to include the subframe mounting bolts, stabilizer bar hardware, and control arm hardware bolts

Suspension Subframe Mounting Kit

A subframe mount bushing (also referred to simply as a subframe mount) is a vibration-isolating bushing used to connect the front and rear subframe to the vehicle’s main body or unibody. The subframe itself serves as a structural framework to mount key assemblies such as the suspension, engine, and transmission. Because the drivetrain and suspension are mounted to the subframe, they naturally transmit vibrations to the body of the car. The subframe mount acts as an additional cushion, absorbing vibrations, shocks, and road noise while allowing some flexibility in the subframe’s movement. This helps reduce stress on the vehicle’s body and provides a smoother, more comfortable ride.

There are a few common types of subframe mounts. In an OE application such as a stock vehicle, the mount is typically made of solid rubber, voided rubber (some holes to increase flexibility), or occasionally hydraulic-filled rubber. In performance and race applications, minimizing movement in the subframe is important to maintain correct suspension geometry during high G-loads, so going to polyurethane mounts or reinforcements is a popular upgrade.

Aging or torn subframe mounts can cause several issues, including poor handling or tracking of the wheels, inability to maintain an alignment with abnormal tire wear, and bangs or clunks when transferring load front to back, like when braking or accelerating. Inspect the mounts for cracks or tears, or leaks if the mount is hydraulic.

Suspension Subframe Mounting Kit Failure Symptoms
  • Bangs and Clunks: If you are experiencing clunks or bangs when going over bumps, or when braking or accelerating is a sign that the entire subframe is moving around excessively and the mounts may be bad.
  • Increased Vibration (NVH): Subframe mount bushings are designed to isolate vibrations from the engine and suspension. When they go bad, they will not effectively absorb NVH, and you will feel more vibrations transferred to the cabin.
  • Handling and alignment issues: Since the suspension is connected to the subframe, the mounts must be in good shape. If they aren't, the suspension will have more freedom of movement independent from the car body/frame, and it may also be difficult to maintain an alignment.
  • Excess Movement: With the car securely off the ground, use a lever like a pry bar between the subframe and the body of the car. If there is excess movement and it is easy to shift the subframe, the mounts should be replaced.

About Genuine VW

The Volkswagen Group, also known as “VAG”, consists of Volkswagen, Audi, Lamborghini, Bentley, Bugatti, Porsche, Ducati, MAN, Scania, SEAT, and Skoda. The original parts used by VW to build your car are available as replacement parts under the “Genuine VW” brand. Manufactured under the direction of VW, expect excellent quality and a premium price since these parts are available exclusively through the VW Dealership network.

You may not realize this, but the parts that make up your VW are not necessarily manufactured by VW. No cause for concern, as VW designs the part, hires a manufacturer, and ensures its quality to you. In fact, many of these manufacturers have been making parts for VW for decades. In our industry these manufacturers are called OEM (Original Equipment Manufacturers), and these are often brands you recognize, including Lemforder, ZF, Sachs, Bosch, Valeo, Zimmermann, Siemens VDO, Corteco, and more. Don’t be surprised to open that Genuine VW parts box and find an OEM branded part inside, simply with the addition of a VW logo.

Be sure to keep an eye out for OE tags on our product pages to quickly identify parts coming directly from OE manufacturers. That extra bit of insight could save you some serious money while shopping! Refer to our OE Academy for further information regarding the OE/OEM tags throughout the site.

Fits These Cars

Volkswagen GTI

  • 2022 Volkswagen GTI Autobahn Suspension Subframe Mounting Kit (Rear)
    Automatic Dual Clutch FWD Hatchback 2.0L L4 DRNA Gas
  • 2022 Volkswagen GTI Autobahn Suspension Subframe Mounting Kit (Rear)
    Manual FWD Hatchback 2.0L L4 DRNA Gas
  • 2022 Volkswagen GTI S Suspension Subframe Mounting Kit (Rear)
    Automatic Dual Clutch FWD Hatchback 2.0L L4 DRNA Gas
  • 2022 Volkswagen GTI S Suspension Subframe Mounting Kit (Rear)
    Manual FWD Hatchback 2.0L L4 DRNA Gas
  • 2022 Volkswagen GTI SE Suspension Subframe Mounting Kit (Rear)
    Automatic Dual Clutch FWD Hatchback 2.0L L4 DRNA Gas
  • 2022 Volkswagen GTI SE Suspension Subframe Mounting Kit (Rear)
    Manual FWD Hatchback 2.0L L4 DRNA Gas
  • 2023 Volkswagen GTI 40th Anniversary Edition Suspension Subframe Mounting Kit (Rear)
    Automatic Dual Clutch FWD Hatchback 2.0L L4 DRNA Gas
  • 2023 Volkswagen GTI 40th Anniversary Edition Suspension Subframe Mounting Kit (Rear)
    Manual FWD Hatchback 2.0L L4 DRNA Gas
  • 2023 Volkswagen GTI Autobahn Suspension Subframe Mounting Kit (Rear)
    Automatic Dual Clutch FWD Hatchback 2.0L L4 DRNA Gas
  • 2023 Volkswagen GTI Autobahn Suspension Subframe Mounting Kit (Rear)
    Manual FWD Hatchback 2.0L L4 DRNA Gas
  • 2023 Volkswagen GTI S Suspension Subframe Mounting Kit (Rear)
    Automatic Dual Clutch FWD Hatchback 2.0L L4 DRNA Gas
  • 2023 Volkswagen GTI S Suspension Subframe Mounting Kit (Rear)
    Manual FWD Hatchback 2.0L L4 DRNA Gas
  • 2023 Volkswagen GTI SE Suspension Subframe Mounting Kit (Rear)
    Automatic Dual Clutch FWD Hatchback 2.0L L4 DRNA Gas
  • 2023 Volkswagen GTI SE Suspension Subframe Mounting Kit (Rear)
    Manual FWD Hatchback 2.0L L4 DRNA Gas
  • 2024 Volkswagen GTI Autobahn Suspension Subframe Mounting Kit (Rear)
    Automatic Dual Clutch FWD Hatchback 2.0L L4 DRNA Gas
  • 2024 Volkswagen GTI Autobahn Suspension Subframe Mounting Kit (Rear)
    Manual FWD Hatchback 2.0L L4 DRNA Gas
  • 2024 Volkswagen GTI S Suspension Subframe Mounting Kit (Rear)
    Automatic Dual Clutch FWD Hatchback 2.0L L4 DRNA Gas
  • 2024 Volkswagen GTI S Suspension Subframe Mounting Kit (Rear)
    Manual FWD Hatchback 2.0L L4 DRNA Gas
  • 2024 Volkswagen GTI SE Suspension Subframe Mounting Kit (Rear)
    Automatic Dual Clutch FWD Hatchback 2.0L L4 DRNA Gas
  • 2024 Volkswagen GTI SE Suspension Subframe Mounting Kit (Rear)
    Manual FWD Hatchback 2.0L L4 DRNA Gas
  • 2025 Volkswagen GTI Autobahn Suspension Subframe Mounting Kit (Rear)
    Automatic Dual Clutch FWD Hatchback 2.0L L4 DZMA Gas
  • 2025 Volkswagen GTI S Suspension Subframe Mounting Kit (Rear)
    Automatic Dual Clutch FWD Hatchback 2.0L L4 DZMA Gas
  • 2025 Volkswagen GTI SE Suspension Subframe Mounting Kit (Rear)
    Automatic Dual Clutch FWD Hatchback 2.0L L4 DZMA Gas
