VW Engine Mount Kit - Corteco KIT-02352

NOTE:

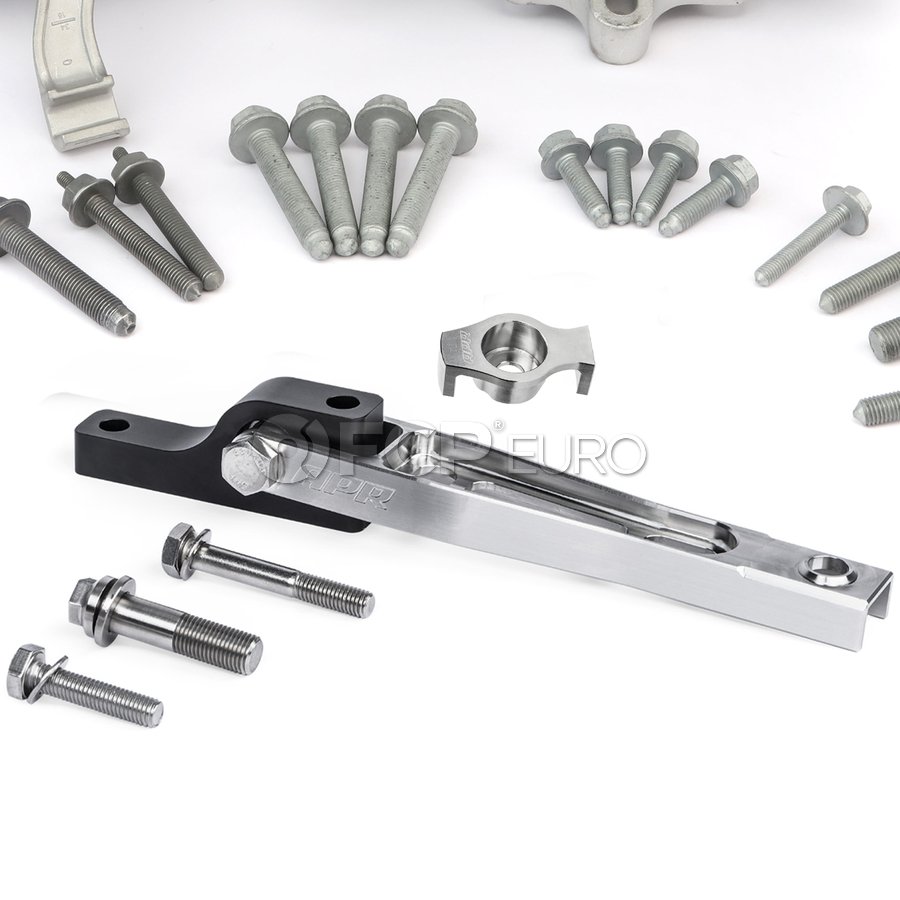

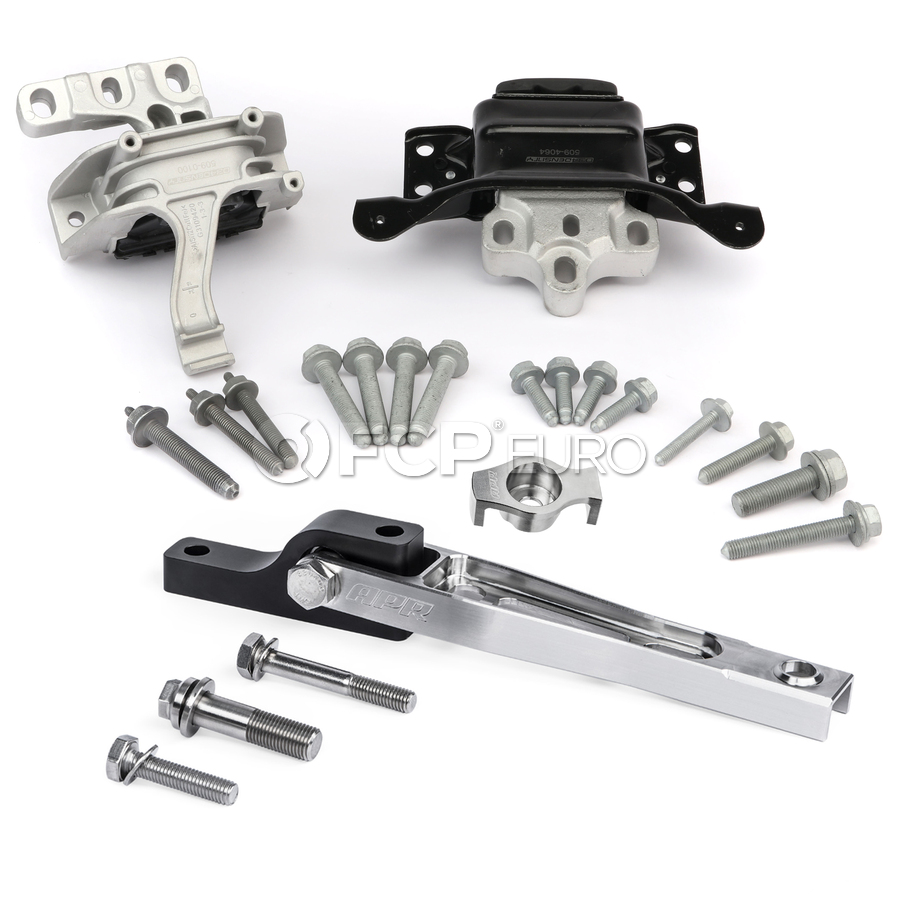

• This kit includes Corteco OEM replacement Engine and Transmission mounts, an APR Billet Pendulum (Dogbone) Mount, Billet Subframe Mount Insert, and all of the associated one-time use hardware needed to replace the mounts.
• The Subframe Mount iInsert in this kit is for version one, please make sure to verify which bushing you have before ordering.
• Version 1 identification can be found HERE
• Version 2 identification can be found HERE

APR Pendulum Mount Upgrade

The APR Pendulum mount replaces the factory mount with a new, thick, billet-aluminum and billet-stainless-steel two-piece design, featuring a PTFE-lined spherical bearing and new bolts. The system stiffens the driveline to improve shift quality and power transition. It is easy to install, addresses all concerns with the factory setup and includes all necessary hardware to bolt on and enjoy!

Reduces transmission movement - By removing the factory rubber bushing, the APR system reduces slop in the driveline to improve shifts, and transmission of power to the ground. Expect a sportier feel during acceleration, deceleration and gear changes without an excessive increase in NVH when paired with the factory sub-frame mount.

Spherical bearing - Spherical bearings offer far less unwanted movement over rubber and polyurethane inserts. As such, the APR mount uses a spherical bearing, made possible by upgrading the rear mounting hardware. The bearing is fully-serviceable, features a heat-treated race and precision-ground ball, with a self-sealing and self-lubricating PTFE lining.

Billet-aluminum and Billet-stainless-steel construction - The front and rear pieces replace the factory cast aluminum and stamped steel pieces with precisely machined, billet-aluminum and billet-stainless-steel pieces that are strong. The aluminum piece is anodized black and the stainless piece is electropolished to provide corrosion resistance and the APR logo is laser etched on each side.

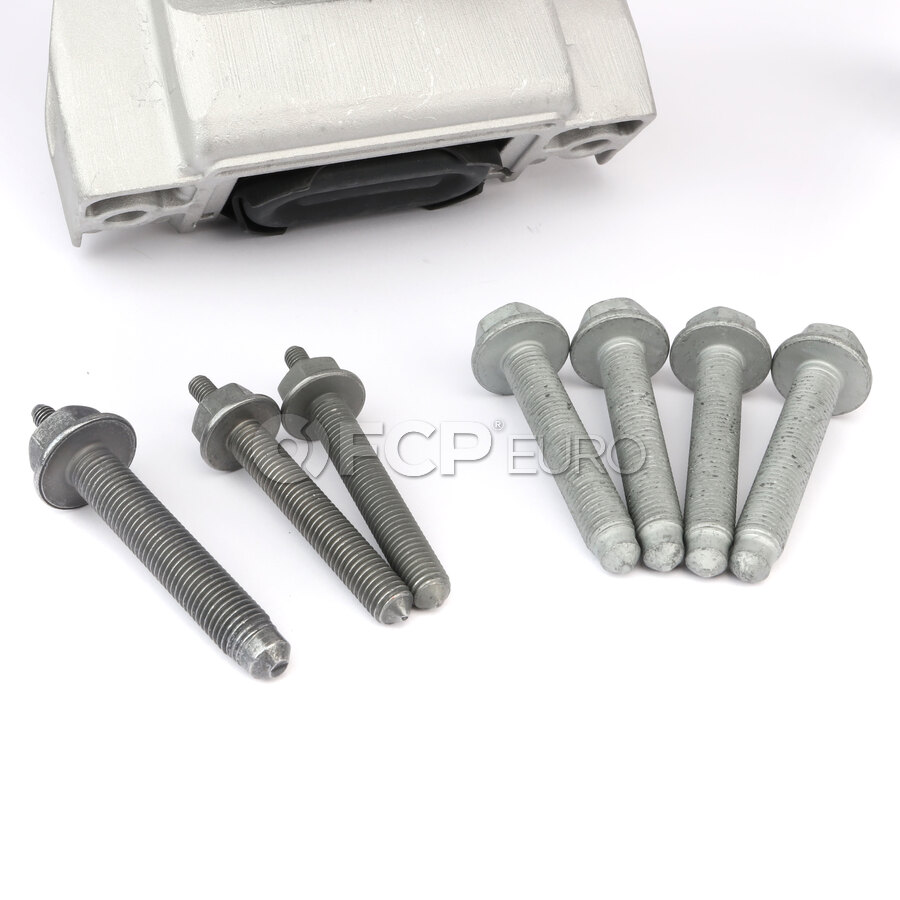

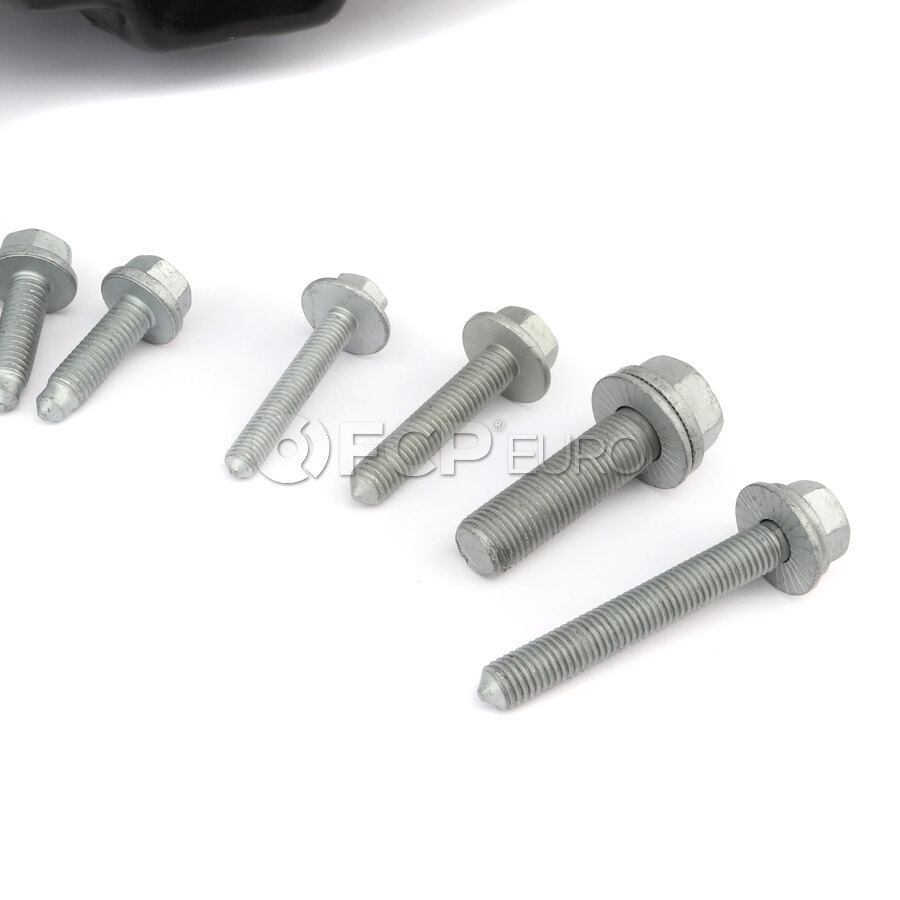

Replacement Bolts - The factory bolts are one-time-use, and must be replaced when installing a new mount. The APR system includes non-one-time-use bolts for their strength, quality and longevity over the factory bolts.

Easy to install - The system is easy to install, doesn’t require dropping the sub-frame and is compatible with the factory and factory-like modified sub-frame mounts. Full install directions are included with each system.

APR Billet Stainless-Steel Dogbone / Subframe Mount Insert

The APR Billet Stainless-Steel Dogbone / Subframe Mount Insert limits driveline movement, which helps to minimize wheel-hop and torque steer. This provides a more direct driving experience by eliminating slop in the driveline and does so without introducing excessive or uncomfortable driveline vibration and noise.

The APR insert is created from thick, billet, stainless-steel. All mounts will slightly deform under use, but unlike all other units created from rubber, polyurethane, and even billet-aluminum, the APR unit will not heavily deform to the point of failure. Rest assured this simple upgrade will last the test of time, unlike others, and packs a limited lifetime warranty against cracking!

We offer the mount in two different configurations depending on the style of your factory mount. Be sure to check your subframe mount before purchase, and remember to always replace your factory 1-time use subframe bolt!
