More VW EGR Cooler Kit - Genuine VW KIT-02831
Genuine VW
SKU: KIT-02831

VW EGR Cooler Kit - Genuine VW KIT-02831

Passat

Save for later
Available
Ships in 3 business days
Price each: $1,033.22
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.
QTY
Make sure this fits your car
Validate fitment
To ensure fitment and browse only products that fit, please select a vehicle first.
What does this include?

Description

Details

SKU:
KIT-02831
FCP Euro ID:
Quality:
Genuine

OE Numbers

03L131512DR, 03L133821, 03L131547C, 3C0253115A, N90587201, N90200201, N91130801, 3C0253725, N91208401, N91143301, N91073401, N10454804, N91167101, N91066101, N10558002, 1K0253115AE, 069131547D, 8D0253115C, 1K0253725, 1K0253725E, 1K0253725B, Q1030005, G013A8J1G, G012A8GM8, G012A8GM1, G012A8FM9, G012A8FM8, G012A8FM1, G012A8FA8, G012A8FA1, G011A8CA1, ZVW237105, TL774C, G013A8JM1, 0009896807090109, 00004330147, 00004330515, 00004330103, 00004330112, 00004320378, 00004330088, 00004330078, 00004330575, 00004330149, 00004330105, 83195B305D6, 03L131547N

MFG Numbers

494.560, 494560, 729970, 643.520, 643520, 259900, 259.900, HWC0044, 861526, LM22074, 0281006082

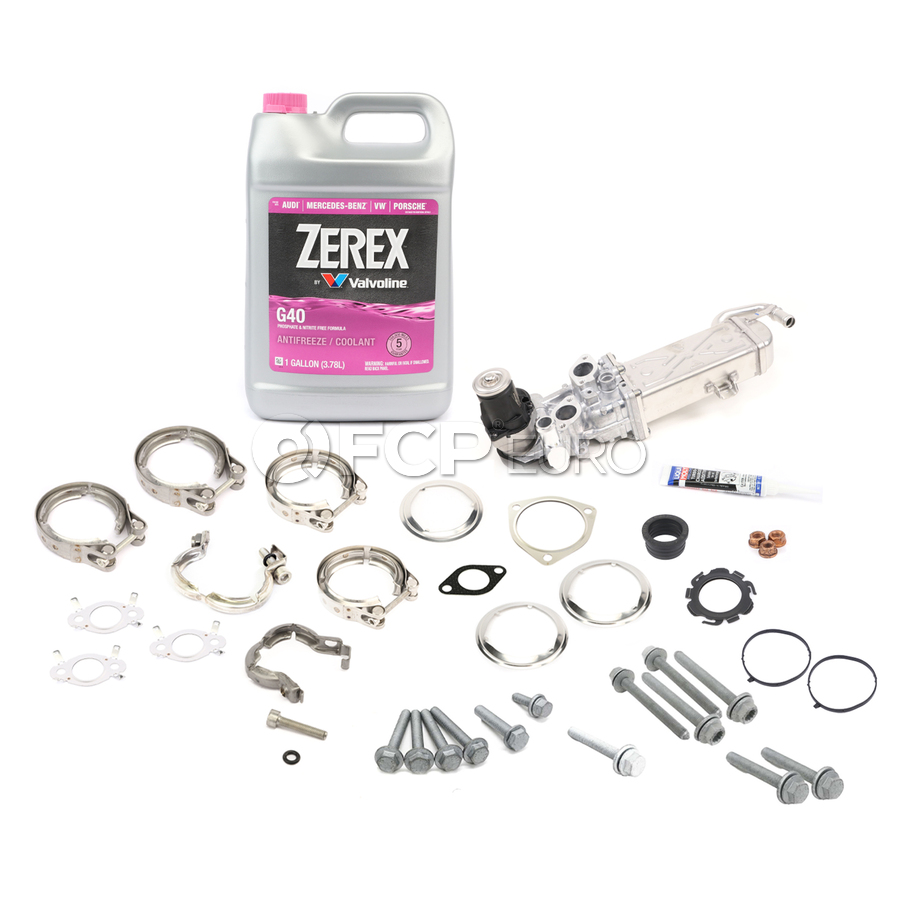

This Kit Includes

Qty Part SKU Brand Price
1 Exhaust Gas Recirculation (EGR) Cooler VAG-03L131512DR $605.99
1 Exhaust Gas Recirculation (EGR) Tube Adapter VAG-03L133821 $11.39
2 Exhaust Gas Recirculation (EGR) Tube Gasket VAG-03L131547C $20.38
1 Diesel Exhaust Fluid (DEF) Injector Gasket VAG-3C0253115A $3.39
3 Exhaust Manifold Nut VAG-N91130801 $3.57
1 Diesel Exhaust Fluid (DEF) Injector Clamp VAG-3C0253725 $16.72
4 Suspension Subframe Mount Bolt VAG-N91208401 $16.36
2 Suspension Subframe Mount Bolt VAG-N91143301 $9.38
4 Bolt VAG-N91073401 $8.76
1 Engine Mount Bolt VAG-N91167101 $2.59
1 Bolt VAG-N91066101 $1.09
1 Suspension Subframe Mount Bolt VAG-N10558002 $4.49
2 Exhaust Pipe Flange Gasket ELR-494560 $11.38
1 Exhaust Gas Recirculation (EGR) Valve Gasket ELR-729970 $3.79
1 Turbocharger Gasket ELR-643520 $7.89
2 Exhaust Clamp ELR-259900 $35.58
1 Exhaust Gas Recirculation (EGR) Tube Clamp CRP-HWC0044 $9.89
2 Exhaust Control Valve Connector OES-1K0253725B $61.58
1 Engine Coolant / Antifreeze ZER-861526 $27.88
1 Turbocharger Additive MOL-LM22074 $12.39
3 Exhaust Gas Recirculation (EGR) Tube Gasket VAG-03L131547N $18.36
1 Turbocharger Outlet Gasket VAG-1K0253115T $5.29
1 Exhaust Gas Recirculation (EGR) Pressure Sensor BOS-0281006082 $37.09
1 Exhaust Gas Recirculation (EGR) Pressure Sensor VAG-561131552A $97.99

Product Information

The Exhaust Gas Recirculation (EGR) Cooler in your Passat TDI with the CKRA engine found in model years 2012-2014 are known to cause mysterious coolant loss, white exhaust smoke, and/or P0401/P2457 codes due to internal leaks which are often confused with water pump or heater core failures which may result in severe coolant loss or in-cylinder issues. This kit includes everything needed to replace the EGR Cooler in your vehicle.

Common Failures:

  • Coolant Loss: Persistent coolant loss with no visible external leaks on the ground.
  • White Smoke: Significant white or gray exhaust smoke caused by coolant entering the exhaust stream
  • DTC's: P0401 (Insufficient Flow), P026A (EGR Cooler Performance), or P2457 (EGR Cooling System Performance).
  • Sludge/Clogging: The EGR cooler is prone to clogging, which can lead to heater core restrictions due to solids precipitating from the coolant
Exhaust Gas Recirculation (EGR) Cooler

The EGR (Exhaust Gas Re-circulation) cooler is an air to liquid heat exchanger that uses engine coolant to reduce exhaust gas temperatures prior to recirculating it back into the engines intake system. This system is intended to reduce NOX emissions but also significantly reduces thermal stress on cylinder head gaskets and intake/exhaust valves. It is recommended to regular inspect EGR coolers to ensure there is no antifreeze leak coming from them.

Exhaust Gas Recirculation (EGR) Cooler Failure Symptoms
  • Engine overheating
  • Exhaust leak
  • Coolant leak
  • CEL illuminated with codes pertaining to insufficient EGR flow

About Genuine VW

The Volkswagen Group, also known as “VAG”, consists of Volkswagen, Audi, Lamborghini, Bentley, Bugatti, Porsche, Ducati, MAN, Scania, SEAT, and Skoda. The original parts used by VW to build your car are available as replacement parts under the “Genuine VW” brand. Manufactured under the direction of VW, expect excellent quality and a premium price since these parts are available exclusively through the VW Dealership network.

You may not realize this, but the parts that make up your VW are not necessarily manufactured by VW. No cause for concern, as VW designs the part, hires a manufacturer, and ensures its quality to you. In fact, many of these manufacturers have been making parts for VW for decades. In our industry these manufacturers are called OEM (Original Equipment Manufacturers), and these are often brands you recognize, including Lemforder, ZF, Sachs, Bosch, Valeo, Zimmermann, Siemens VDO, Corteco, and more. Don’t be surprised to open that Genuine VW parts box and find an OEM branded part inside, simply with the addition of a VW logo.

Be sure to keep an eye out for OE tags on our product pages to quickly identify parts coming directly from OE manufacturers. That extra bit of insight could save you some serious money while shopping! Refer to our OE Academy for further information regarding the OE/OEM tags throughout the site.

Fits These Cars

Volkswagen Passat

  • 2012 Volkswagen Passat TDI SE Exhaust Gas Recirculation (EGR) Cooler
    Automatic Dual Clutch FWD Sedan 2.0L L4 CKRA Diesel
  • 2012 Volkswagen Passat TDI SE Exhaust Gas Recirculation (EGR) Cooler
    Manual FWD Sedan 2.0L L4 CKRA Diesel
  • 2012 Volkswagen Passat TDI SEL Exhaust Gas Recirculation (EGR) Cooler
    Automatic Dual Clutch FWD Sedan 2.0L L4 CKRA Diesel
  • 2013 Volkswagen Passat TDI SE Exhaust Gas Recirculation (EGR) Cooler
    Automatic Dual Clutch FWD Sedan 2.0L L4 CKRA Diesel
  • 2013 Volkswagen Passat TDI SE Exhaust Gas Recirculation (EGR) Cooler
    Manual FWD Sedan 2.0L L4 CKRA Diesel
  • 2013 Volkswagen Passat TDI SEL Exhaust Gas Recirculation (EGR) Cooler
    Automatic Dual Clutch FWD Sedan 2.0L L4 CKRA Diesel
  • 2014 Volkswagen Passat TDI SE Exhaust Gas Recirculation (EGR) Cooler
    Automatic Dual Clutch FWD Sedan 2.0L L4 CKRA Diesel
  • 2014 Volkswagen Passat TDI SE Exhaust Gas Recirculation (EGR) Cooler
    Manual FWD Sedan 2.0L L4 CKRA Diesel
  • 2014 Volkswagen Passat TDI SEL Premium Exhaust Gas Recirculation (EGR) Cooler
    Automatic Dual Clutch FWD Sedan 2.0L L4 CKRA Diesel
