Mahle Behr
SKU: KIT-00096

VW Radiator Kit - Mahle/Behr KIT-00096

Eos, GTI, Jetta

w/ Zerex Coolant



Available
In Stock
Price each: $498.63
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.
QTY
Make sure this fits your car
To ensure fitment and browse only products that fit, please select a vehicle first.

Description

Details

SKU:
KIT-00096
FCP Euro ID:
Quality:
OEM

OE Numbers

06H121119E, 1K0122051GN, 06H121113B, 1K0121407A, 1K0121407F, N90316801, 3B0121321, 95810644700, 1K0121251L, 5K0121251J, 5K0121251AA, 06H121121K, 06H121121L, 1K0122101KS, 1K0122101HB, 1K0122101JM, 06A919501A, 06A919501, 95510612501, 95510612500, 99760641000, 05C919501, 00004330473, G12E100M2, G12E0501GDSP, G12E0501GRTU, 1H0121687A

MFG Numbers

16086000, CHR0530, CTI0010, EPK0030, N90316802, 40722, CR1538000S, 26904289, 4904644, 904683, 939710

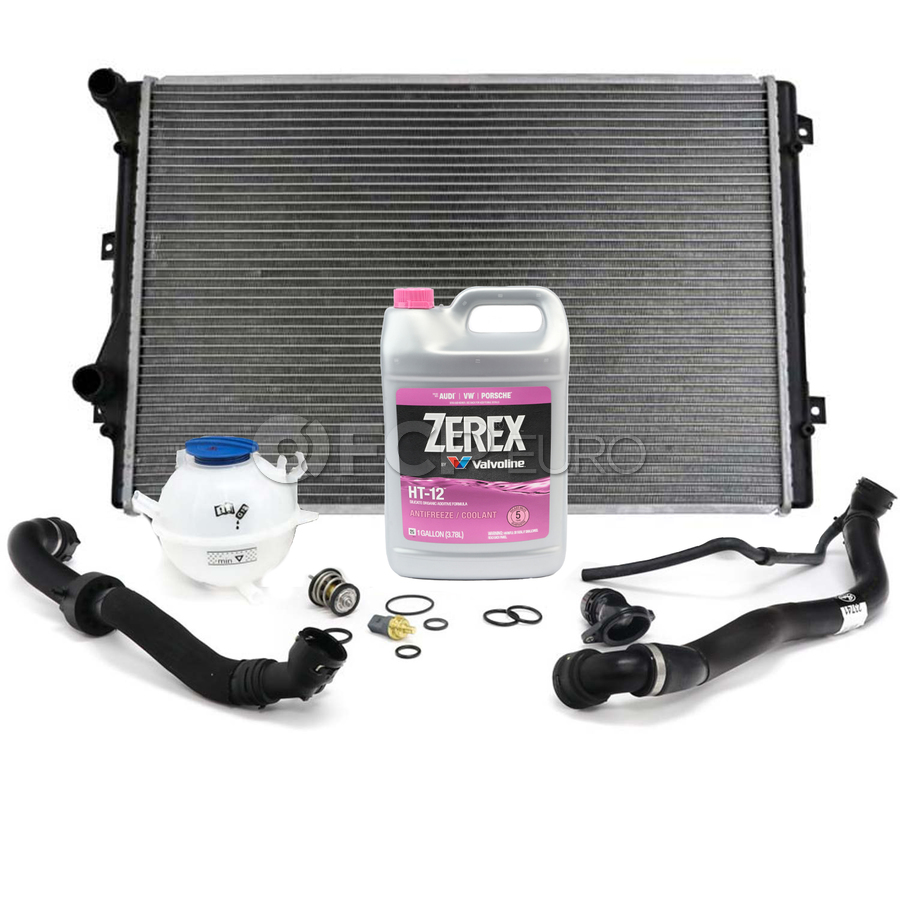

This Kit Includes

Qty Part SKU Brand Price
1 Engine Coolant Thermostat Seal CRP-16086000 $3.09
1 Radiator Coolant Hose CRP-CHR0530 $108.11
1 Engine Coolant Thermostat CRP-CTI0010 $17.20
1 Engine Coolant Reservoir CRP-EPK0030 $24.59
1 Engine Coolant Temperature Sensor O-Ring CRP-N90316802 $0.99
1 Engine Coolant Reservoir Cap FEB-40722 $9.29
1 Radiator MAH-CR1538000S $184.61
1 Engine Coolant Thermostat Housing VAG-06H121121L $27.78
1 Radiator Coolant Hose VAG-1K0122101KS $83.22
1 Engine Coolant Temperature Sensor VNE-26904289 $15.59
1 Engine Coolant / Antifreeze ZER-904683 $19.27
1 Engine Coolant Reservoir O-Ring ELR-939710 $4.89

Product Information

The kit was designed as a refresh for the Volkswagen with 2.0T, CCTA Engine Code, paired with a Manual transmission. The kit includes new hoses, a thermostat, an expansion tank, a coolant flange, and fresh new engine coolant. Over time, the rubber and plastic material that these components are comprised of can degrade due to the constant temperature change and can lead to coolant leaks. Whether your vehicle leaks or if you're looking for preventative maintenance, this kit includes commonly replaced components all in one bundle.

Radiator Kit

Your radiator is an integral, and arguably, the most important part of the cooling system. It is designed to expel heat from the coolant via the small fins. Most radiators fail when the end tanks crack causing leaks, but higher mileage radiators which have missing or bent fins often are clogged up with debris which can also cause overheating issues as the radiator cannot expel heat effectively. If your radiator is in rough shape we recommend replacing it. We also highly recommend inspecting/replacing the upper and lower radiator hose at that time.

Radiator Kit Failure Symptoms
  • Overheating
  • Coolant Leak
  • Cracking
  • Bent Fins
  • Clogged Fins caused by debris

About Mahle Behr

Mahle Behr GmbH & Co. KG is a German corporation active in the automobile industry, headquartered in Stuttgart-Feuerbach. It is a specialist for automotive air conditioning and engine cooling systems. Mahle began in 1920 when pistons made of heavy gray cast iron were being used in internal combustion engines for automobiles and there was a need for a new design. The Mahle brothers countered this trend by producing light-alloy pistons at their small, newly established company however the technology was still finicky and problems come up frequently. They soon determined that they needed to come up with a solution to keep dirt and dust out of the engine so they eventually developed air and oil filters as well. Their perseverance paid off and the light-alloy pistons began to take over the market. Today, half of all automobiles produced worldwide contain MAHLE components. MAHLE offers an extensive range of parts for everyone including pistons, cylinder liners, piston ring sets, bearings, assemblies, valves, valve train components, and air, oil, fuel, and cabin air filters. Their catalog and online database of aftermarket engine components is an indispensable reference.In early 2016, Stuttgart-based MAHLE GmbH increased its holding in the Behr Group from 36.85 percent to approximately 51 percent with the acquisition of all shares in the BWK GmbH holding company. The company now goes by Mahle-Behr.

Fits These Cars

Volkswagen Eos

  • 2009 Volkswagen Eos Komfort Radiator Kit
    Manual FWD Convertible 2.0L L4 CCTA Gas
  • 2010 Volkswagen Eos Komfort Radiator Kit
    Manual FWD Convertible 2.0L L4 CCTA Gas
  • 2011 Volkswagen Eos Komfort Radiator Kit
    Manual FWD Convertible 2.0L L4 CCTA Gas

Volkswagen GTI

  • 2010 Volkswagen GTI Radiator Kit
    Manual FWD Hatchback 2.0L L4 CCTA Gas
  • 2011 Volkswagen GTI Radiator Kit
    Manual FWD Hatchback 2.0L L4 CCTA Gas
  • 2012 Volkswagen GTI Radiator Kit
    Manual FWD Hatchback 2.0L L4 CCTA Gas
  • 2013 Volkswagen GTI Radiator Kit
    Manual FWD Hatchback 2.0L L4 CCTA Gas
  • 2014 Volkswagen GTI Driver's Edition Radiator Kit
    Manual FWD Hatchback 2.0L L4 CCTA Gas
  • 2014 Volkswagen GTI Wolfsburg Edition Radiator Kit
    Manual FWD Hatchback 2.0L L4 CCTA Gas

Volkswagen Jetta

  • 2012 Volkswagen Jetta GLI Radiator Kit
    Manual FWD Sedan 2.0L L4 CCTA Gas
  • 2013 Volkswagen Jetta GLI Radiator Kit
    Manual FWD Sedan 2.0L L4 CCTA Gas
