OE Supplier
SKU: KIT-02698

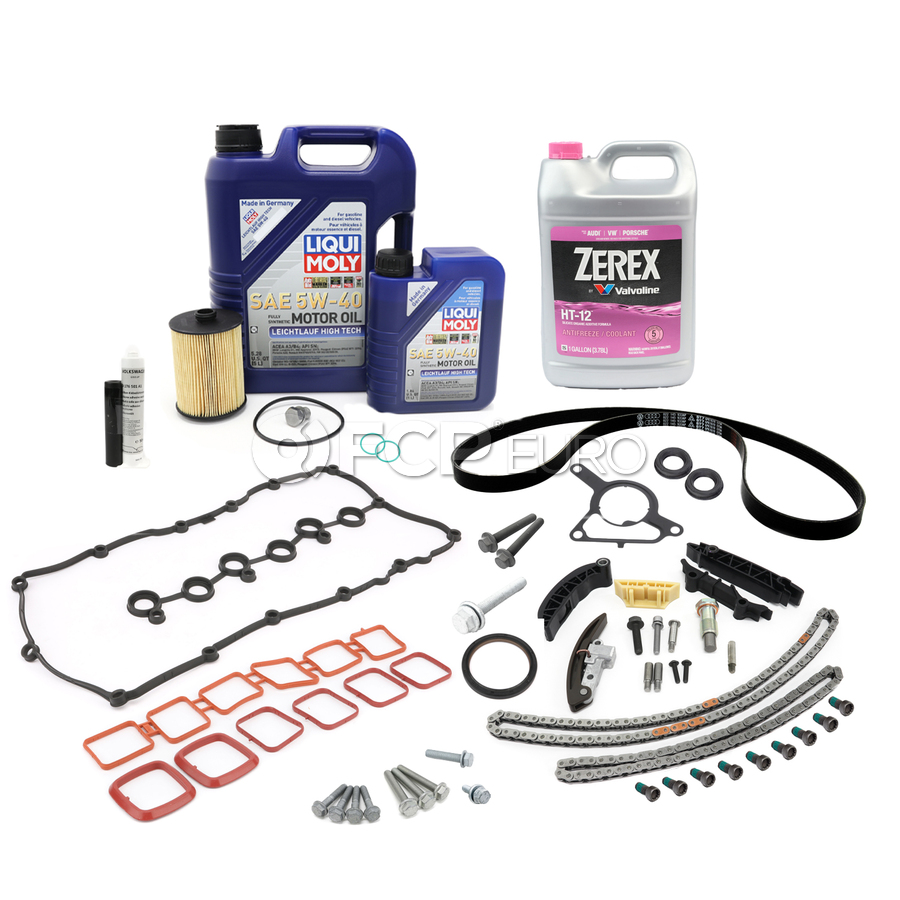

VW Comprehensive Timing Chain Kit - OE Supplier KIT-02698

Passat

Full Comprehensive kit w/ Liqui Moly 5W40 Leichtlauf Engine Oil & Hengst Oil Filter



Available
Ships in 1 business day
Price each: $888.81
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.
QTY
Make sure this fits your car
To ensure fitment and browse only products that fit, please select a vehicle first.

Description

Details

SKU:
KIT-02698
FCP Euro ID:
Quality:
OE

OE Numbers

71109515, WHT008987, N10613901, 066109514A, 066109514, 066109511D, 021109471, N90923801, N10203803, N91118001, D176501A1, 03H145113, 03H145113B, 03H109091, 030906149A, N10552402, N10552401, N90665001, WHT009773, N91158101, N10454804, N91167101, N91066101, N10558002, A0009898301USB6, 0009898301USB6, A0009898301USB7, 0009898301USB7, A0009898301USB8, 0009898301USB8, A0009898301USB9, 0009898301USB9, 83212365950, 83212365946, 07510017866, 07510002545, 07510143829, 07511469399, 83215A2AF99, 83212466454, 83215A2AF83, 83215B34347, 066109503C, 03H109503

MFG Numbers

71109515, WHT008987, 030906149A, 2331, LM2331, 2332, LM2332, 50034334, 50047472, 50039683, 50036087, 0011025784, 001-10-25784, 001-10-25783, 0011025783, 220125S, HWP0053, 15374, 9002009, 278.720, 311190, 311.190, E136HD428, 25222, 904683, 82027584, 71-37556-00, VS50664, 5510025100

This Kit Includes

Qty Part SKU Brand Price
1 Engine Timing Chain Guide Bolt VAG-WHT008987 $12.83
1 Bolt VAG-N10613901 $1.79
1 Engine Timing Chain Guide VAG-066109514A $54.65
1 Engine Timing Chain Guide Bolt VAG-066109511D $18.60
2 Engine Timing Chain Guide Bolt VAG-021109471 $28.50
2 Headlight Mounting Bolt VAG-N90923801 $5.18
1 Bolt VAG-N10203803 $8.10
2 Engine Variable Valve Timing (VVT) Adjuster Bolt VAG-N91118001 $8.98
1 Engine Oil Pan Gasket VAG-D176501A1 $25.99
1 Vacuum Pump Gasket VAG-03H145113B $15.99
2 Engine Camshaft Seal VAG-03H109091 $23.26
2 Engine Camshaft Position Sensor O-ring VAG-030906149A $7.38
3 Engine Mount Bolt OES-N10552402 $14.97
10 Clutch Flywheel Bolt OES-WHT009773 $11.90
1 Engine Mount Bolt VAG-N91167101 $2.59
1 Bolt VAG-N91066101 $1.09
1 Suspension Subframe Mount Bolt VAG-N10558002 $4.49
1 Engine Oil MOL-LM2331 $14.99
1 Engine Oil MOL-LM2332 $66.99
1 Engine Timing Chain IWI-50034334 $80.99
1 Engine Timing Chain IWI-50036087 $62.99
1 Engine Timing Chain Guide BBR-0011025784 $24.89
1 Engine Timing Chain Guide BBR-0011025783 $17.39
1 Engine Oil Drain Plug OES-220125S $1.21
4 Bolt OES-N90596906 $29.56
1 Engine Oil Pump O-Ring ELR-278720 $4.29
1 Engine Intake Manifold Gasket ELR-311190 $50.99
1 Engine Oil Filter HEN-E136HD428 $14.39
1 Engine Timing Chain Guide FEB-25222 $11.57
1 Engine Coolant / Antifreeze ZER-904683 $19.27
1 Engine Crankshaft Seal CTO-82027584 $22.59
1 Engine Valve Cover Gasket REI-713755600 $32.89
1 Engine Timing Chain Guide VAG-03H109467A $99.99
1 Engine Timing Chain Tensioner INA-5510025100 $33.31
1 Accessory Drive Belt VAG-022145933AP $54.22

Product Information

NOTE:

  • Full comprehensive kit to include all one-time use bolts, gaskets, fluids, and hardware.
  • You may be interested in the needed special timing tools found HERE

The timing chain on your VW's engine is responsible for syncing the top half of your engine to the bottom half by linking the camshafts to the crankshaft and may also drive the balance shafts, oil pump, and other components depending on the design. Engines can typically have 3 types of timing design; a timing chain, a timing belt, or timing gears. While a timing belt is made of rubber and can crack and snap over time and high mileage due to normal wear and tear, a timing chain will typically be a more robust design however can stretch over time leading to timing issues. Typical failures of a timing chain system in addition to stretch would be wear and tear on the timing chain guides which are usually made of a plastic composite, and failure of hydraulic tensioners which can cause the chain to lose its tension which can result in catastrophic engine failure. This kit includes all of the necessary components needed to service the timing chain including all of the needed components and hardware.

Engine Timing Chain Kit

An engine timing chain is a crucial component in an internal combustion engine that synchronizes the rotation of the crankshaft and camshafts. It ensures that the engine's valves open and close at the proper times during each cylinder's intake and exhaust strokes, maintaining optimal engine performance. Timing chains are typically made of metal and are designed to last for the life of the engine, though they can wear out or become damaged over time. Damaged or stretched chains can impact the timing on an engine and overwork the tensioner, failures in this system can cause catastrophic engine failure and costly repairs.

Engine Timing Chain Kit Failure Symptoms
  • Noise: A common symptom of a failing timing chain is a rattling or slapping noise coming from the engine, especially during startup or acceleration. This noise may be more pronounced at idle or startup
  • Poor Engine Performance: If the timing chain is stretched, it can lead to decreased power, acceleration problems, or sluggish performance

About OE Supplier

OE Supplier parts are produced by a manufacturer that meets high quality standards and produces at least one part for a vehicle manufacturer. FCP recommends OE & OEM replacement parts as one of the best options in terms of quality and price. Typically all OE manufacturers adhere to stringent quality control and are known to be exceptional quality. OE Supplier parts will often be packaged in a white box with familiar name brand markings and logos on the part itself.

Fits These Cars

Volkswagen Passat

  • 2016 Volkswagen Passat SEL Premium Engine Timing Chain Kit
    Automatic Dual Clutch FWD Sedan 3.6L V6 CDVB Gas
  • 2017 Volkswagen Passat SE Engine Timing Chain Kit
    Automatic Dual Clutch FWD Sedan 3.6L V6 CDVB Gas
  • 2017 Volkswagen Passat SEL Premium Engine Timing Chain Kit
    Automatic Dual Clutch FWD Sedan 3.6L V6 CDVB Gas
  • 2018 Volkswagen Passat GT Engine Timing Chain Kit
    Automatic Dual Clutch FWD Sedan 3.6L V6 CDVB Gas
  • 2018 Volkswagen Passat SEL Premium Engine Timing Chain Kit
    Automatic Dual Clutch FWD Sedan 3.6L V6 CDVB Gas
