Genuine VW
VW Comprehensive Timing Belt Kit - Genuine VW KIT-02681
Passat
Complete Kit Which Includes All Components & One-Time Use Hardware
Description
Details
- SKU:
- KIT-02681
- FCP Euro ID:
- Quality:
- Genuine
OE Numbers
- 06A105229, 05454008280, WHT005322, N90596906, N90596901, N90596902, 038109454A, 038903315AH, 038903315AM, 03L145276, 038903315AN, 03L109119E, 03L109243F, 03L109244D, 058109244, 03L109244G, 03L109244J, 03L109244, 03L109244E, 03L121011P, 03L903137T, 03L903137, 03L903137G, G12E100M2, G12E0501GDSP, G12E0501GRTU, N01950213, N0195022, N0195024, N10082912, N10444702, N10226101, N10451402, N10451405, N10552402, N10552401, N10555702, N10609201, N10675602, N10680203, N10683301, N10699901, N90905502, N90945002, N90703901, N90945001, N91029602, N91029601
MFG Numbers
- 23042, 9002009

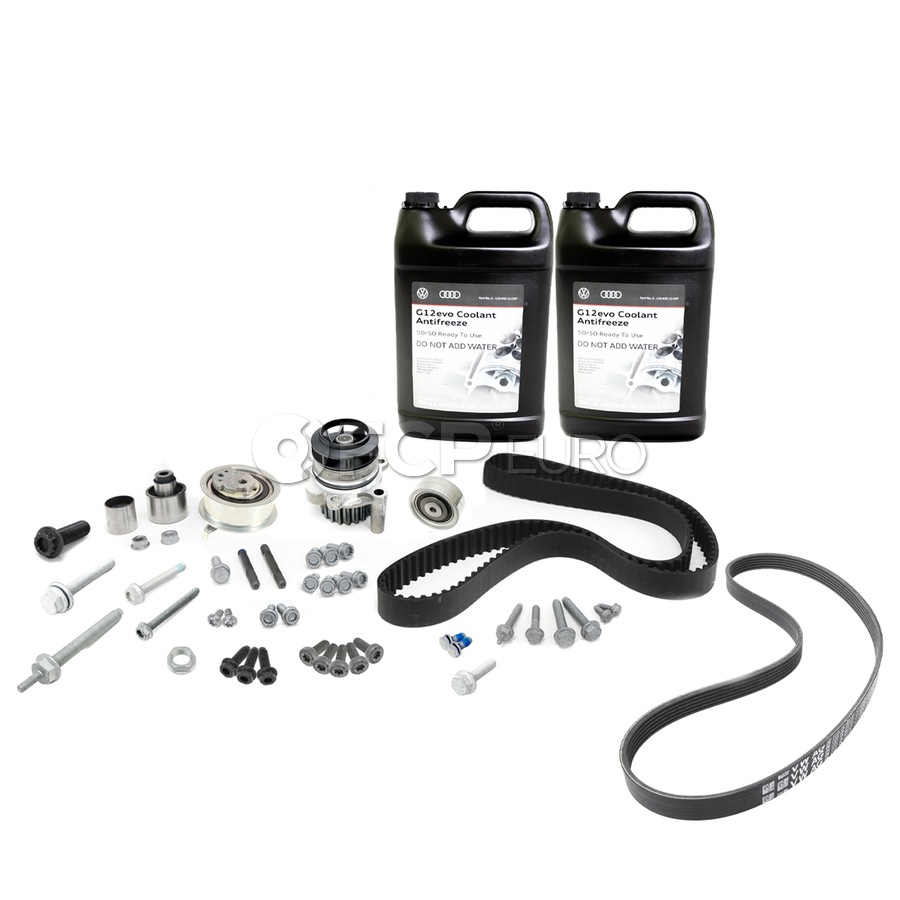

This Kit Includes
| Qty | Part | SKU | Brand | Price |
|---|---|---|---|---|
| 1 | Engine Crankshaft Pulley Bolt | OES-23042 |
OE Supplier
|
$7.79 |
| 1 | Bolt | OES-N90596906 |
OE Supplier
|
$7.39 |
| 1 | Nut | OES-038109454A |
OE Supplier
|
$0.59 |
| 1 | Accessory Drive Belt Tensioner Assembly | VAG-038903315AN |
Genuine VW Audi
|
$152.99 |
| 1 | Engine Timing Belt | VAG-03L109119E |
Genuine VW Audi
|
$193.48 |
| 1 | Engine Timing Belt Tensioner | VAG-03L109243F |
Genuine VW Audi
|
$139.99 |
| 1 | Engine Timing Belt Idler | VAG-03L109244D |
Genuine VW Audi
|
$70.26 |
| 1 | Engine Timing Belt Idler | VAG-03L109244G |
Genuine VW Audi
|
$55.71 |
| 1 | Engine Timing Belt Idler | VAG-03L109244J |
Genuine VW Audi
|
$139.48 |
| 1 | Engine Water Pump | VAG-03L121011P |
Genuine VW Audi
|
$173.24 |
| 1 | Accessory Drive Belt | VAG-03L903137T |
Genuine VW Audi
|
$32.64 |
| 2 | Engine Coolant / Antifreeze | VAG-G12E0501GRTU |
Genuine VW Audi
|
$60.98 |
| 2 | Engine Mount Bolt | VAG-N01950213 |
Genuine VW Audi
|
$8.18 |
| 2 | Bolt | VAG-N10082912 |
Genuine VW Audi
|
$4.82 |
| 1 | Engine Timing Belt Idler Pulley Stud | VAG-N10444702 |
Genuine VW Audi
|
$12.83 |
| 5 | Bolt | VAG-N10451405 |
Genuine VW Audi
|
$3.00 |
| 2 | Engine Mount Bolt | OES-N10552402 |
OE Supplier
|
$9.98 |
| 2 | Exhaust Manifold Heat Shield Bolt | VAG-N10555702 |
Genuine VW Audi
|
$1.18 |
| 1 | Self-Locking Nut | VAG-N10609201 |
Genuine VW Audi
|
$2.33 |
| 1 | Battery Hold Down Bolt | OES-N10675602 |
OE Supplier
|
$1.39 |
| 1 | Bolt | VAG-N10680203 |
Genuine VW Audi
|
$1.29 |
| 1 | Bolt | VAG-N10683301 |
Genuine VW Audi
|
$5.16 |
| 1 | Suspension Stabilizer Bar Bracket Bolt | OES-N10699901 |
OE Supplier
|
$2.79 |
| 1 | Belt Tensioner Stud | OES-N90905502 |
OE Supplier
|
$1.69 |
| 3 | Engine Oil Pump Pickup Tube Bracket Bolt | VAG-N90945002 |
Genuine VW Audi
|
$26.07 |
| 1 | Engine Mount Bolt | VAG-N91029602 |
Genuine VW Audi
|
$2.59 |
| 4 | Bolt | VAG-N91048804 |
Genuine VW Audi
|
$13.48 |
| 1 | Engine Mount Bolt | VAG-N91167101 |
Genuine VW Audi
|
$2.59 |
| 3 | Direct Injection High Pressure Fuel Pump Sprocket | VAG-N91176101 |
Genuine VW Audi
|
$5.97 |
| 1 | Engine Mount Bolt | VAG-N91191601 |
Genuine VW Audi
|
$12.85 |
| 1 | Fuel Injection Pump Drive Pulley Nut | VAG-WHT002244 |
Genuine VW Audi
|
$5.39 |
Product Information
This kit includes everything needed to fully complete the timing belt replacement on your CKRA TDI engine to include all of the major components and necessary one-time use hardware that must be replaced when performing this repair. This kit includes a Genuine VW water pump which features a plastic impeller. This kit also contains all Genuine VW parts which are sourced directly from the VW Dealership network.
NOTE:
- The drive belt tensioner is not included in this kit
- In order to remove the drive belt, the charge air cooler needs to be removed
- We recommend to inspect the drive belt tensioner for wear, and replace as necessary.
- You can find the Drive Belt Tensioner HERE
A timing belt kit is a comprehensive set of components used to maintain or replace the timing belt system in a vehicle. The timing belt itself is a reinforced rubber belt that synchronizes the rotation of the crankshaft and camshaft, ensuring the engine's valves open and close at the proper times.
Engine Timing Belt Kit Failure Symptoms- Engine Misfiring: A worn or damaged timing belt can slip, causing the engine's timing to become inaccurate and leading to misfires
- Ticking or Clicking Noise from the Engine: A failing timing belt or tensioner may produce unusual ticking sounds due to improper tension or wear
- Difficulty Starting or No-Start Condition: If the timing belt breaks, the engine cannot operate, resulting in a no-start condition
About Genuine VW
The Volkswagen Group, also known as “VAG”, consists of Volkswagen, Audi, Lamborghini, Bentley, Bugatti, Porsche, Ducati, MAN, Scania, SEAT, and Skoda. The original parts used by VW to build your car are available as replacement parts under the “Genuine VW” brand. Manufactured under the direction of VW, expect excellent quality and a premium price since these parts are available exclusively through the VW Dealership network.
You may not realize this, but the parts that make up your VW are not necessarily manufactured by VW. No cause for concern, as VW designs the part, hires a manufacturer, and ensures its quality to you. In fact, many of these manufacturers have been making parts for VW for decades. In our industry these manufacturers are called OEM (Original Equipment Manufacturers), and these are often brands you recognize, including Lemforder, ZF, Sachs, Bosch, Valeo, Zimmermann, Siemens VDO, Corteco, and more. Don’t be surprised to open that Genuine VW parts box and find an OEM branded part inside, simply with the addition of a VW logo.
Be sure to keep an eye out for OE tags on our product pages to quickly identify parts coming directly from OE manufacturers. That extra bit of insight could save you some serious money while shopping! Refer to our OE Academy for further information regarding the OE/OEM tags throughout the site.
Fits These Cars
Volkswagen Passat
-
2012 Volkswagen Passat TDI SE Engine Timing Belt KitAutomatic Dual Clutch FWD Sedan 2.0L L4 CKRA Diesel
-
2012 Volkswagen Passat TDI SE Engine Timing Belt KitManual FWD Sedan 2.0L L4 CKRA Diesel
-
2012 Volkswagen Passat TDI SEL Engine Timing Belt KitAutomatic Dual Clutch FWD Sedan 2.0L L4 CKRA Diesel
-
2013 Volkswagen Passat TDI SE Engine Timing Belt KitAutomatic Dual Clutch FWD Sedan 2.0L L4 CKRA Diesel
-
2013 Volkswagen Passat TDI SE Engine Timing Belt KitManual FWD Sedan 2.0L L4 CKRA Diesel
-
2013 Volkswagen Passat TDI SEL Engine Timing Belt KitAutomatic Dual Clutch FWD Sedan 2.0L L4 CKRA Diesel
-
2014 Volkswagen Passat TDI SE Engine Timing Belt KitAutomatic Dual Clutch FWD Sedan 2.0L L4 CKRA Diesel
-
2014 Volkswagen Passat TDI SE Engine Timing Belt KitManual FWD Sedan 2.0L L4 CKRA Diesel
-
2014 Volkswagen Passat TDI SEL Premium Engine Timing Belt KitAutomatic Dual Clutch FWD Sedan 2.0L L4 CKRA Diesel
