More Watch VW Coilover Kit - KW Suspensions Variant 3 3528000Z
Watch
KW
SKU: KWS-3528000Z

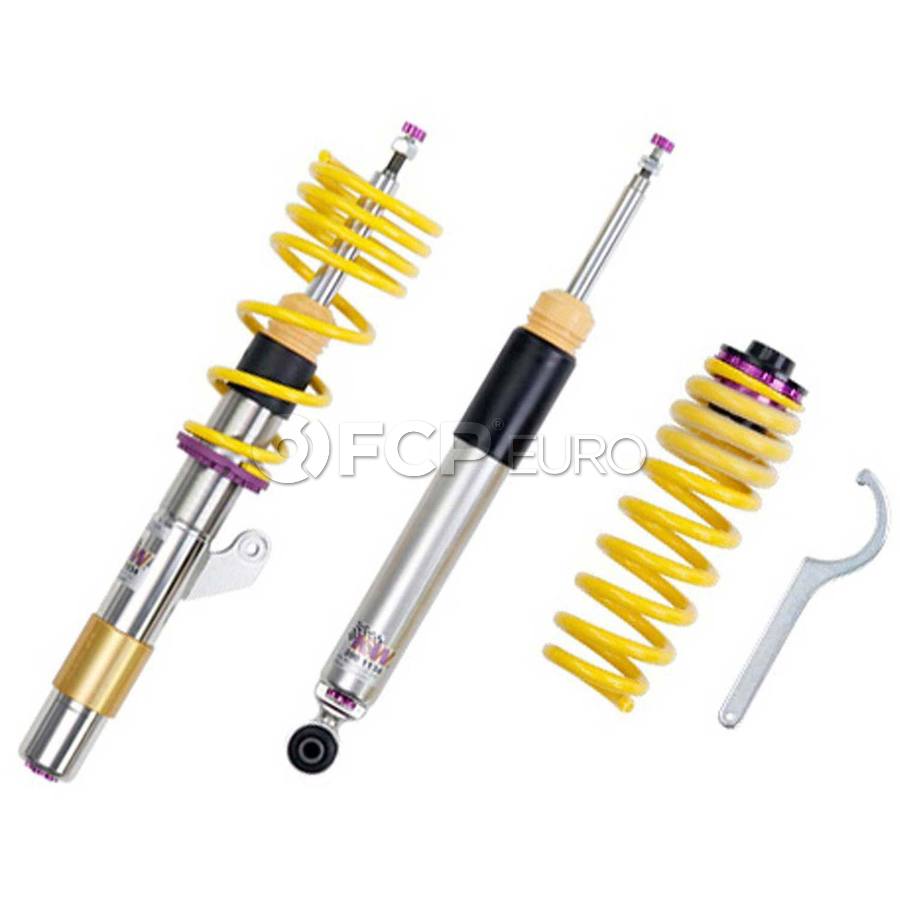

VW Coilover Kit - KW Suspensions Variant 3 3528000Z

Golf SportWagen

Height Adjustable Coilovers with Independent Compression and Rebound Technology

Save for later
Available
Ships in 2-3 weeks
MAP
Price each: $3,094.00
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.
QTY
Make sure this fits your car
Validate fitment
To ensure fitment and browse only products that fit, please select a vehicle first.
What does this include?

Description

Details

SKU:
KWS-3528000Z
FCP Euro ID:
911525
GTIN / UPC:
00847691042861
Made in:
Germany
Quality:
Performance

OE Numbers

N/A

MFG Numbers

3528000Z

Product Information

Cutting-edge motorsports technology for more performance on the road. Like every suspension product developed by KW automotive, the suspension manufacturer, and manufactured in Germany, the KW V3 Coilover suspension kit also provides a significant plus in safety reserves in road traffic. Thanks to the chassis with its high-quality dampers, springs, and elastomer spring elements, pitching and rolling movements during load changes such as evasive maneuvers, cornering, acceleration, and braking are significantly reduced. The braking distances are also shortened. Thanks to improved support and feedback, drivers not only feel safer but driving in everyday life becomes even safer. With compression and rebound stage damping, that can be set separately and independently of each other, the damper setup can be customized to your personal driving preferences or vehicle changes such as weight, tire characteristics, or altered vehicle rigidity. True performance optimization is only possible with this unique, patented system. For example, this allows the compression damping force to be increased and get more grip from the tires, to improve cornering behavior and reduce squat without simultaneously altering the rebound stage damping which is optimally matched to the spring rate, a scenario which results in reduced grip and the associated loss of performance. The KW V3 coilover kit is the ideal tool for performance-oriented drivers and experienced tuning enthusiasts who place a strong emphasis on the overall performance of their suspension. The Variant 3 features patented TVR-A and TVC-A technology that provides separately adjustable rebound and compression damping. The extensive adjustment range of the independently configurable rebound and compression make it easy to directly influence the steering behavior, directional stability, grip and handling characteristics for confident and repeatable results at the limit of driving dynamics.

Features

  • KW suspensions V3 coilovers are hand-built by our expert team and given a uniquely individual serial number at our headquarters in Fichtenberg, Germany.
  • Each damper is dyno-tested to ensure accuracy and preset to our recommended shock settings before being released for delivery.
  • Road legal motorsports technology featuring independent rebound and compression adjustability and application-specific spring and damper tuning resulting in unparalleled street performance.
  • TVR-A (Twin Valve Rebound - Adjustable) technology - allows oil to flow passed an adjustable, conical low-speed bypass during slow damper speeds, while at higher speeds, the main rebound stage valve opens for maximum fluid displacement.
  • TVC-A (Twin Valve Compression - Adjustable) technology - patented compression valve allows fine-tuning of low speed. During sudden high piston speeds, the low-speed needle and main valve blow-off feature open to maximize flow.
  • Composite spring perch made from wear-resistant, friction-optimized polyamide composite encompassing a stainless-steel insert. The polyamide composite prevents oxidation while the stainless-steel insert maximizes strength.
  • Inox-Line Stainless Steel - Truly Permanent Corrosion Resistance. Inox-Line coatings will not wear off while adjusting the suspension making KW coilover struts 100 percent corrosion resistant with an unlimited lifespan.
  • Elastomer Bump stop with integrated dust protection system prevents water and dirt particles from reaching the piston rod and seals. The highly resilient bump stops act as dynamic load limiters while maintaining ride quality and durability.

Range of Lowering:

  • Front: 1.4-2.5"
  • Rear: 1.6-2.5"

NOTE:

  • Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
  • For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW.
  • Only for cars with a clamp diameter of 49.8 mm on the front axle

Additional Information

Installation Instructions

Fits These Cars

Volkswagen Golf SportWagen

  • 2015 Volkswagen Golf SportWagen S Coilover Set
    Automatic FWD Wagon 1.8L L4 CXBA Gas
  • 2015 Volkswagen Golf SportWagen S Coilover Set
    Manual FWD Wagon 1.8L L4 CXBA Gas
  • 2015 Volkswagen Golf SportWagen S Coilover Set
    Automatic FWD Wagon 1.8L L4 CXBB Gas
  • 2015 Volkswagen Golf SportWagen S Coilover Set
    Manual FWD Wagon 1.8L L4 CXBB Gas
  • 2015 Volkswagen Golf SportWagen SE Coilover Set
    Automatic FWD Wagon 1.8L L4 CXBB Gas
  • 2015 Volkswagen Golf SportWagen SEL Coilover Set
    Automatic FWD Wagon 1.8L L4 CXBB Gas
  • 2016 Volkswagen Golf SportWagen Limited Edition Coilover Set
    Automatic FWD Wagon 1.8L L4 CXBB Gas
  • 2016 Volkswagen Golf SportWagen S Coilover Set
    Automatic FWD Wagon 1.8L L4 CXBA Gas
  • 2016 Volkswagen Golf SportWagen S Coilover Set
    Manual FWD Wagon 1.8L L4 CXBA Gas
  • 2016 Volkswagen Golf SportWagen S Coilover Set
    Automatic FWD Wagon 1.8L L4 CXBB Gas
  • 2016 Volkswagen Golf SportWagen S Coilover Set
    Manual FWD Wagon 1.8L L4 CXBB Gas
  • 2016 Volkswagen Golf SportWagen SE Coilover Set
    Automatic FWD Wagon 1.8L L4 CXBB Gas
  • 2016 Volkswagen Golf SportWagen SEL Coilover Set
    Automatic FWD Wagon 1.8L L4 CXBB Gas
  • 2017 Volkswagen Golf SportWagen S Coilover Set
    Automatic AWD Wagon 1.8L L4 CXBA Gas
  • 2017 Volkswagen Golf SportWagen S Coilover Set
    Automatic FWD Wagon 1.8L L4 CXBA Gas
  • 2017 Volkswagen Golf SportWagen S Coilover Set
    Automatic Dual Clutch AWD Wagon 1.8L L4 CXBA Gas
  • 2017 Volkswagen Golf SportWagen S Coilover Set
    Automatic Dual Clutch FWD Wagon 1.8L L4 CXBA Gas
  • 2017 Volkswagen Golf SportWagen S Coilover Set
    Manual AWD Wagon 1.8L L4 CXBA Gas
  • 2017 Volkswagen Golf SportWagen S Coilover Set
    Manual FWD Wagon 1.8L L4 CXBA Gas
  • 2017 Volkswagen Golf SportWagen S Coilover Set
    Automatic AWD Wagon 1.8L L4 CXBB Gas
  • 2017 Volkswagen Golf SportWagen S Coilover Set
    Automatic FWD Wagon 1.8L L4 CXBB Gas
  • 2017 Volkswagen Golf SportWagen S Coilover Set
    Automatic Dual Clutch AWD Wagon 1.8L L4 CXBB Gas
  • 2017 Volkswagen Golf SportWagen S Coilover Set
    Automatic Dual Clutch FWD Wagon 1.8L L4 CXBB Gas
  • 2017 Volkswagen Golf SportWagen S Coilover Set
    Manual AWD Wagon 1.8L L4 CXBB Gas
  • 2017 Volkswagen Golf SportWagen S Coilover Set
    Manual FWD Wagon 1.8L L4 CXBB Gas
  • 2017 Volkswagen Golf SportWagen SE Coilover Set
    Automatic FWD Wagon 1.8L L4 CXBB Gas
  • 2017 Volkswagen Golf SportWagen SEL Coilover Set
    Automatic FWD Wagon 1.8L L4 CXBB Gas
  • 2018 Volkswagen Golf SportWagen S Coilover Set
    Automatic AWD Wagon 1.8L L4 CXBA Gas
  • 2018 Volkswagen Golf SportWagen S Coilover Set
    Automatic FWD Wagon 1.8L L4 CXBA Gas
  • 2018 Volkswagen Golf SportWagen S Coilover Set
    Automatic Dual Clutch AWD Wagon 1.8L L4 CXBA Gas
  • 2018 Volkswagen Golf SportWagen S Coilover Set
    Automatic Dual Clutch FWD Wagon 1.8L L4 CXBA Gas
  • 2018 Volkswagen Golf SportWagen S Coilover Set
    Manual AWD Wagon 1.8L L4 CXBA Gas
  • 2018 Volkswagen Golf SportWagen S Coilover Set
    Manual FWD Wagon 1.8L L4 CXBA Gas
  • 2018 Volkswagen Golf SportWagen S Coilover Set
    Automatic AWD Wagon 1.8L L4 CXBB Gas
  • 2018 Volkswagen Golf SportWagen S Coilover Set
    Automatic FWD Wagon 1.8L L4 CXBB Gas
  • 2018 Volkswagen Golf SportWagen S Coilover Set
    Automatic Dual Clutch AWD Wagon 1.8L L4 CXBB Gas
  • 2018 Volkswagen Golf SportWagen S Coilover Set
    Automatic Dual Clutch FWD Wagon 1.8L L4 CXBB Gas
  • 2018 Volkswagen Golf SportWagen S Coilover Set
    Manual AWD Wagon 1.8L L4 CXBB Gas
  • 2018 Volkswagen Golf SportWagen S Coilover Set
    Manual FWD Wagon 1.8L L4 CXBB Gas
  • 2018 Volkswagen Golf SportWagen SE Coilover Set
    Automatic FWD Wagon 1.8L L4 CXBB Gas
  • 2018 Volkswagen Golf SportWagen SEL Coilover Set
    Automatic FWD Wagon 1.8L L4 CXBB Gas
  • 2019 Volkswagen Golf SportWagen S Coilover Set
    Automatic AWD Wagon 1.4L L4 DGXA Gas
  • 2019 Volkswagen Golf SportWagen S Coilover Set
    Automatic FWD Wagon 1.4L L4 DGXA Gas
  • 2019 Volkswagen Golf SportWagen S Coilover Set
    Automatic Dual Clutch AWD Wagon 1.4L L4 DGXA Gas
  • 2019 Volkswagen Golf SportWagen S Coilover Set
    Automatic Dual Clutch FWD Wagon 1.4L L4 DGXA Gas
  • 2019 Volkswagen Golf SportWagen S Coilover Set
    Manual AWD Wagon 1.4L L4 DGXA Gas
  • 2019 Volkswagen Golf SportWagen S Coilover Set
    Manual FWD Wagon 1.4L L4 DGXA Gas
  • 2019 Volkswagen Golf SportWagen S Coilover Set
    Automatic AWD Wagon 1.8L L4 CXBA Gas
  • 2019 Volkswagen Golf SportWagen S Coilover Set
    Automatic FWD Wagon 1.8L L4 CXBA Gas
  • 2019 Volkswagen Golf SportWagen S Coilover Set
    Automatic Dual Clutch AWD Wagon 1.8L L4 CXBA Gas
  • 2019 Volkswagen Golf SportWagen S Coilover Set
    Automatic Dual Clutch FWD Wagon 1.8L L4 CXBA Gas
  • 2019 Volkswagen Golf SportWagen S Coilover Set
    Manual AWD Wagon 1.8L L4 CXBA Gas
  • 2019 Volkswagen Golf SportWagen S Coilover Set
    Manual FWD Wagon 1.8L L4 CXBA Gas
  • 2019 Volkswagen Golf SportWagen S Coilover Set
    Automatic AWD Wagon 1.8L L4 CXBB Gas
  • 2019 Volkswagen Golf SportWagen S Coilover Set
    Automatic FWD Wagon 1.8L L4 CXBB Gas
  • 2019 Volkswagen Golf SportWagen S Coilover Set
    Automatic Dual Clutch AWD Wagon 1.8L L4 CXBB Gas
  • 2019 Volkswagen Golf SportWagen S Coilover Set
    Automatic Dual Clutch FWD Wagon 1.8L L4 CXBB Gas
  • 2019 Volkswagen Golf SportWagen S Coilover Set
    Manual AWD Wagon 1.8L L4 CXBB Gas
  • 2019 Volkswagen Golf SportWagen S Coilover Set
    Manual FWD Wagon 1.8L L4 CXBB Gas
