More VW Coilover Kit - KW Suspensions Variant 3 352800CW
KW
SKU: KWS-352800CW

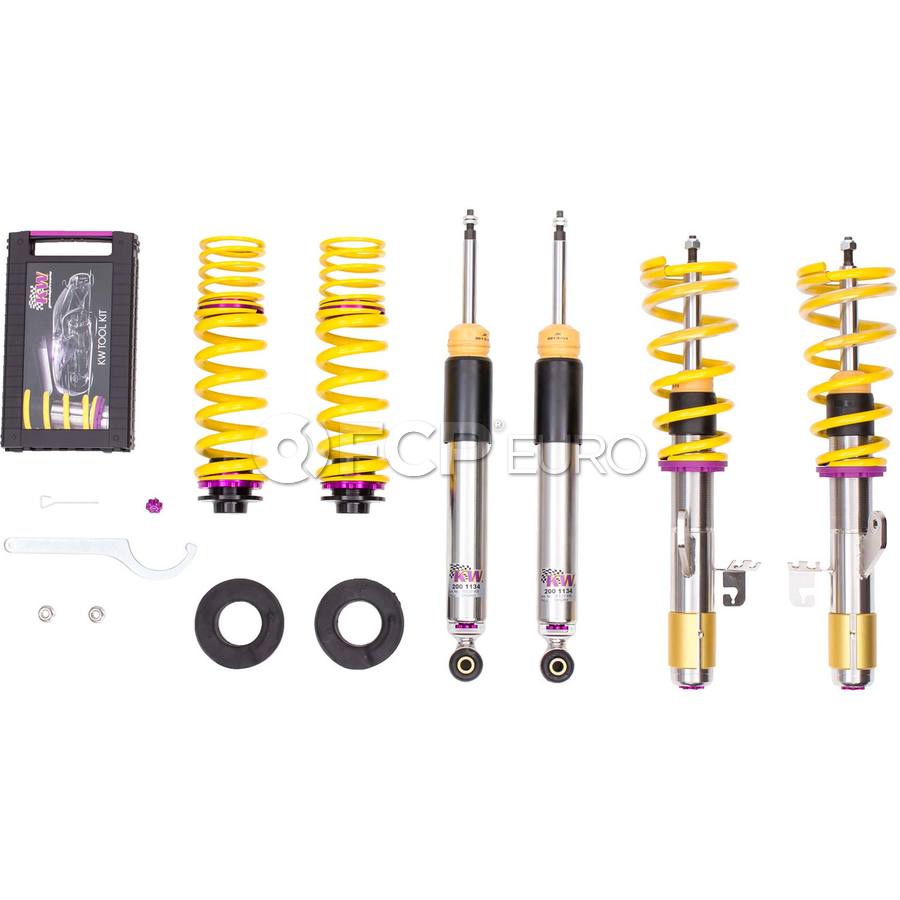

VW Coilover Kit - KW Suspensions Variant 3 352800CW

Golf R

Race Technology For The Road, w/ Adjustable Compression & Rebound Damping.

Save for later
Backordered
No ETA
MAP
Price each: $3,094.00
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.

Thanks for signing up!

We will let you know when this product is back in stock.
Email Me When Available
Make sure this fits your car
Validate fitment
To ensure fitment and browse only products that fit, please select a vehicle first.
What does this include?

Description

Details

SKU:
KWS-352800CW
FCP Euro ID:
911247
Made in:
Germany
Quality:
Performance

OE Numbers

N/A

MFG Numbers

352800CW

Product Information

NOTE:

KW V3: Race technology for the road, with adjustable compression and rebound dampening.

State of the art motorsport technology enables better performance on the streets. The independently adjustable compression and rebound dampening allows for custom driving setups.

The exclusive KW patented system has dual level valves that allow for adjustment of the rebound dampening for your road comfort and the compression dampening that controls the driving dynamics.

Lowering:

  • Front Lowering: 1.0" to 1.8"
  • Rear Lowering: 1.0" to 1.8"

NOTES:

  • Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
  • For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list
  • Only for cars with a clamp diameter of 54,6 mm on the front axle
  • Valving is adjusted by adjustment knobs, rebound is only adjustable if the top of the piston rod is accessible. This will depend on the design of the vehicle.

Installation Instructions:

Coilover Adjustable Spring Lowering Kit

Suspension coilovers are a type of car suspension system that combines a coil spring and a shock absorber (damper) into a single, integrated unit. The name comes from “coil” (the spring) and “over” (meaning the shock is inside or over the spring). Coilovers are typically adjustable, allowing you to change ride height, stiffness, and sometimes damping settings, depending on the model.

Benefits of Coilovers:

  • Adjustable ride height: Coilover suspension typically features a threaded adjustable spring platform, allowing adjustment of ride height for better handling, aesthetics, or clearance.
  • Improved Handling and Stability: Coilovers usually offer better cornering performance and reduced body roll compared to stock suspension.
  • Customizable Ride Comfort: Many coilovers allow you to tune stiffness and damping to balance comfort and performance.
  • Better Weight Distribution: Some coilovers can be adjusted corner-by-corner to fine-tune handling balance.
  • Enhanced Appearance: Lowering the car can improve the stance and overall look.
  • Versatility for Different Driving Conditions: Ideal for street, track, or off-road setups depending on the coilover design.

Fits These Cars

Volkswagen Golf R

  • 2022 Volkswagen Golf R Coilover Adjustable Spring Lowering Kit
    Automatic Dual Clutch AWD Hatchback 2.0L L4 DSFE Gas
    Notes: For Vehicles Without DCC (Electronic Damping)
  • 2022 Volkswagen Golf R Coilover Adjustable Spring Lowering Kit
    Manual AWD Hatchback 2.0L L4 DSFE Gas
    Notes: For Vehicles Without DCC (Electronic Damping)
  • 2022 Volkswagen Golf R Coilover Adjustable Spring Lowering Kit
    Automatic Dual Clutch AWD Hatchback 2.0L L4 DSFF Gas
    Notes: For Vehicles Without DCC (Electronic Damping)
  • 2022 Volkswagen Golf R Coilover Adjustable Spring Lowering Kit
    Manual AWD Hatchback 2.0L L4 DSFF Gas
    Notes: For Vehicles Without DCC (Electronic Damping)
  • 2023 Volkswagen Golf R 20th Anniversary Edition Coilover Adjustable Spring Lowering Kit
    Automatic Dual Clutch AWD Hatchback 2.0L L4 DSFE Gas
    Notes: For Vehicles Without DCC (Electronic Damping)
  • 2023 Volkswagen Golf R 20th Anniversary Edition Coilover Adjustable Spring Lowering Kit
    Manual AWD Hatchback 2.0L L4 DSFE Gas
    Notes: For Vehicles Without DCC (Electronic Damping)
  • 2023 Volkswagen Golf R 20th Anniversary Edition Coilover Adjustable Spring Lowering Kit
    Automatic Dual Clutch AWD Hatchback 2.0L L4 DSFF Gas
    Notes: For Vehicles Without DCC (Electronic Damping)
  • 2023 Volkswagen Golf R 20th Anniversary Edition Coilover Adjustable Spring Lowering Kit
    Manual AWD Hatchback 2.0L L4 DSFF Gas
    Notes: For Vehicles Without DCC (Electronic Damping)
  • 2023 Volkswagen Golf R Coilover Adjustable Spring Lowering Kit
    Automatic Dual Clutch AWD Hatchback 2.0L L4 DSFE Gas
    Notes: For Vehicles Without DCC (Electronic Damping)
  • 2023 Volkswagen Golf R Coilover Adjustable Spring Lowering Kit
    Manual AWD Hatchback 2.0L L4 DSFE Gas
    Notes: For Vehicles Without DCC (Electronic Damping)
  • 2023 Volkswagen Golf R Coilover Adjustable Spring Lowering Kit
    Automatic Dual Clutch AWD Hatchback 2.0L L4 DSFF Gas
    Notes: For Vehicles Without DCC (Electronic Damping)
  • 2023 Volkswagen Golf R Coilover Adjustable Spring Lowering Kit
    Manual AWD Hatchback 2.0L L4 DSFF Gas
    Notes: For Vehicles Without DCC (Electronic Damping)
  • 2024 Volkswagen Golf R Coilover Adjustable Spring Lowering Kit
    Automatic Dual Clutch AWD Hatchback 2.0L L4 DSFE Gas
    Notes: For Vehicles Without DCC (Electronic Damping)
  • 2024 Volkswagen Golf R Coilover Adjustable Spring Lowering Kit
    Manual AWD Hatchback 2.0L L4 DSFE Gas
    Notes: For Vehicles Without DCC (Electronic Damping)
  • 2024 Volkswagen Golf R Coilover Adjustable Spring Lowering Kit
    Automatic Dual Clutch AWD Hatchback 2.0L L4 DSFF Gas
    Notes: For Vehicles Without DCC (Electronic Damping)
  • 2024 Volkswagen Golf R Coilover Adjustable Spring Lowering Kit
    Manual AWD Hatchback 2.0L L4 DSFF Gas
    Notes: For Vehicles Without DCC (Electronic Damping)
  • 2025 Volkswagen Golf R Coilover Adjustable Spring Lowering Kit
    Automatic Dual Clutch AWD Hatchback 2.0L L4 DSFD Gas
    Notes: For Vehicles Without DCC (Electronic Damping)
  • 2025 Volkswagen Golf R Coilover Adjustable Spring Lowering Kit
    Automatic Dual Clutch AWD Hatchback 2.0L L4 DSFE Gas
    Notes: For Vehicles Without DCC (Electronic Damping)
  • 2025 Volkswagen Golf R Black Edition Coilover Adjustable Spring Lowering Kit
    Automatic Dual Clutch AWD Hatchback 2.0L L4 DSFD Gas
    Notes: For Vehicles Without DCC (Electronic Damping)
  • 2025 Volkswagen Golf R Black Edition Coilover Adjustable Spring Lowering Kit
    Automatic Dual Clutch AWD Hatchback 2.0L L4 DSFE Gas
    Notes: For Vehicles Without DCC (Electronic Damping)
