More VW Comprehensive Coilover Kit - AST Suspension KIT-02353
VW Comprehensive Coilover Kit - AST Suspension KIT-02353 VW Comprehensive Coilover Kit - AST Suspension KIT-02353
AST Suspension
SKU: KIT-02353

VW Comprehensive Coilover Kit - AST Suspension KIT-02353

Golf R

5100 Club Racing Suspension w/ Camber Plates, Mounts, & Hardware.

Save for later
Available
Ships in 2-3 weeks
Price each: $5,365.14
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.
QTY
Make sure this fits your car
Validate fitment
To ensure fitment and browse only products that fit, please select a vehicle first.
What does this include?

Description

Details

SKU:
KIT-02353
FCP Euro ID:
Quality:
Performance

OE Numbers

N10286102, N10286110, PAF102861, N000000003275, 000000003275, 000000008270, N000000008270, N10106402, N10106403, 1K0505193, N10205802, N10332002, N10332001, N10776501, N10883401, N90183804, N90648402, N90648401, N90954802, N90954801, N91246401, WHT002528, WHT002795, WHT005437, WHT005437A, WHT005538

MFG Numbers

ACC-V1906SD, ACCV1906SD, 68510342, 971098, 22263, 14392, N10205802, N10883401

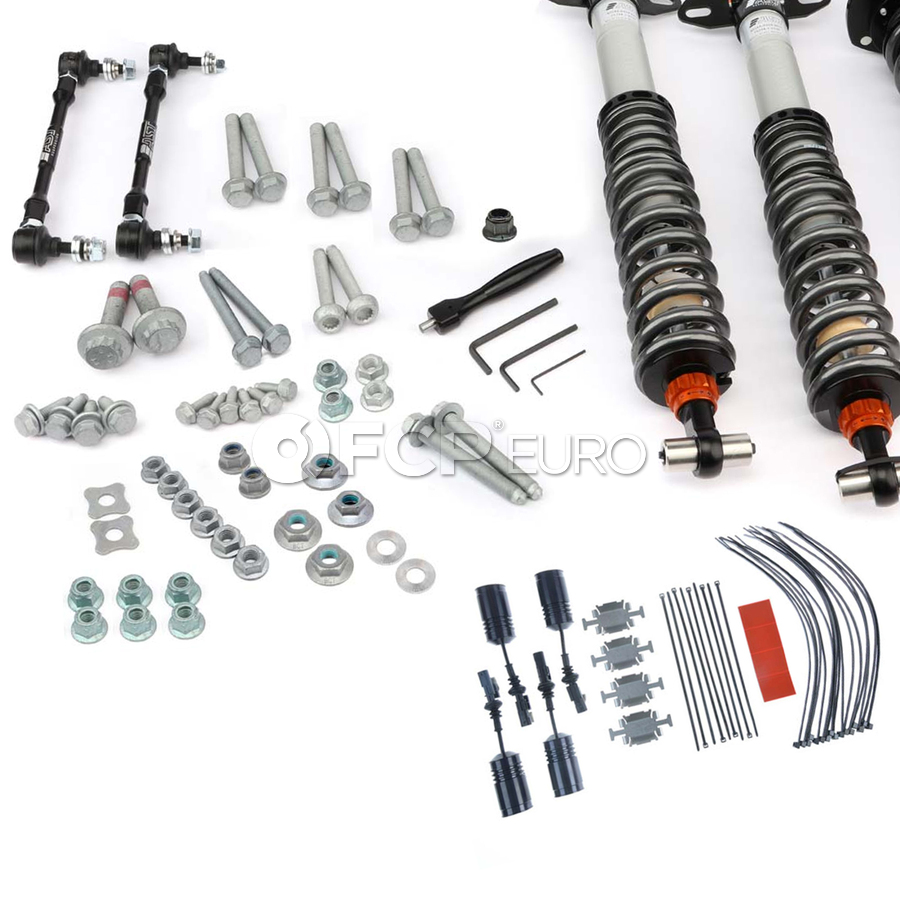

This Kit Includes

Qty Part SKU Brand Price
1 Coilover Set AST-ACCV1906SD $4,752.00
1 Active Suspension Control Module KWS-68510342 $493.95
2 Nut OEM-971098 $5.58
6 Suspension Strut Nut OES-N10106403 $11.94
2 Suspension Control Arm Washer VAG-1K0505193 $15.38
1 Tail Light Nut VAG-N10205802 $0.69
6 Nut VAG-N10332002 $14.70
2 Suspension Stabilizer Bar Link Bolt VAG-N10776501 $5.78
4 Suspension Control Arm Bolt VAG-N10883401 $11.16
2 Suspension Stabilizer Bar Link Nut VAG-N90183804 $2.18
4 Bolt VAG-N90648402 $11.56
2 Suspension Strut Bolt VAG-N90954802 $16.32
6 Suspension Strut Mount Bolt VAG-N91246401 $13.74
2 Axle Bolt VAG-WHT005437A $8.38
2 Steering Tie Rod Nut VAG-WHT005538 $1.78

Product Information

NOTE:

  • This kit includes a DCC Cancelation Kit which is needed to eliminate persistent trouble codes that exist when upgrading a suspension on a vehicle with electronically adaptive dampers.
  • When mounting the rear top mounts, some vehicles may have factory mount locating tabs which will interfere with the AST top mounts. In this scenario, the mounting tabs can be adjusted to accept and install the AST top mounts.

Are you using your vehicle on the track? Or perhaps you’re after a combination of track performance and seeking the ideal road balance for daily driving. In that case, the 5100 CLUBRACING SUSPENSION is the perfect choice for you.

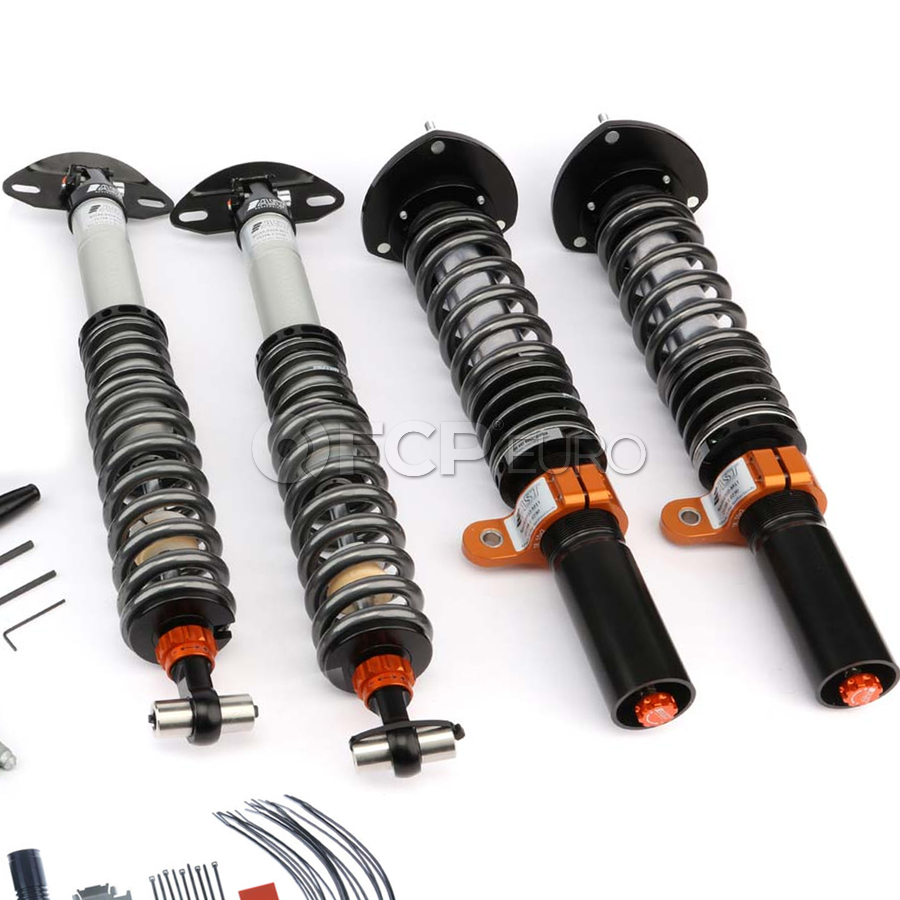

This set of coilovers enables you to optimize grip by managing rebound and ride height. Springs are included and top mounts front and rear. In this set front and rear dampers utilize a coilover design. By choosing this design you prioritize adjustability and the performance of your car. Coilovers which will offer more adjustability for both damping settings and ride height, and typically provide more consistent and predictable handling characteristics. You have the flexibility to adjust spring rates on these dampers. The initial setup for setting and spring rates is rooted in our extensive development and testing process. Individual preferences can easily be fine-tuned by making adjustments to the rebound knob or altering the ride height. You can adjust the rebound, means you can control the return to extension of your dampers, enabling you to attain the ideal road balance tailored to your specific requirements. With 12 distinct positions to choose from, each adjustment delivers distinct feedback and a unique driving experience. This set of suspension also includes, where applicable, camber-adjustable front Top Mounts and solid rear Top Mounts. The camber adjustment will offer you more wheel adjustment and allow this geometry to be altered to transform front -end grip.

AST Suspension is a monotube design. This is a benefit for you because these dampers offer a large piston to control the adjustability of rebound damping. There is no aeration or foaming in monotube dampers, this will result in a more responsive valving. These dampers are rebuildable, which means that if any damage or issues arise, you can have them addressed at a certified AST service center.

Features and Benefits:

  • Monotube dampers offer a large piston to control the adjustability of rebound damping.
  • These dampers can adjust in rebound (return to extension).
  • Front and rear dampers utilize a coilover design, Including (camber)adjustable Top Mounts.
  • Includes Springs, Top Mounts, & Droplinks

Fits These Cars

Volkswagen Golf R

  • 2022 Volkswagen Golf R Coilover Set
    Automatic Dual Clutch AWD Hatchback 2.0L L4 DSFE Gas
  • 2022 Volkswagen Golf R Coilover Set
    Manual AWD Hatchback 2.0L L4 DSFE Gas
  • 2022 Volkswagen Golf R Coilover Set
    Automatic Dual Clutch AWD Hatchback 2.0L L4 DSFF Gas
  • 2022 Volkswagen Golf R Coilover Set
    Manual AWD Hatchback 2.0L L4 DSFF Gas
  • 2023 Volkswagen Golf R 20th Anniversary Edition Coilover Set
    Automatic Dual Clutch AWD Hatchback 2.0L L4 DSFE Gas
  • 2023 Volkswagen Golf R 20th Anniversary Edition Coilover Set
    Manual AWD Hatchback 2.0L L4 DSFE Gas
  • 2023 Volkswagen Golf R 20th Anniversary Edition Coilover Set
    Automatic Dual Clutch AWD Hatchback 2.0L L4 DSFF Gas
  • 2023 Volkswagen Golf R 20th Anniversary Edition Coilover Set
    Manual AWD Hatchback 2.0L L4 DSFF Gas
  • 2023 Volkswagen Golf R Coilover Set
    Automatic Dual Clutch AWD Hatchback 2.0L L4 DSFE Gas
  • 2023 Volkswagen Golf R Coilover Set
    Manual AWD Hatchback 2.0L L4 DSFE Gas
  • 2023 Volkswagen Golf R Coilover Set
    Automatic Dual Clutch AWD Hatchback 2.0L L4 DSFF Gas
  • 2023 Volkswagen Golf R Coilover Set
    Manual AWD Hatchback 2.0L L4 DSFF Gas
  • 2024 Volkswagen Golf R Coilover Set
    Automatic Dual Clutch AWD Hatchback 2.0L L4 DSFE Gas
  • 2024 Volkswagen Golf R Coilover Set
    Manual AWD Hatchback 2.0L L4 DSFE Gas
  • 2024 Volkswagen Golf R Coilover Set
    Automatic Dual Clutch AWD Hatchback 2.0L L4 DSFF Gas
  • 2024 Volkswagen Golf R Coilover Set
    Manual AWD Hatchback 2.0L L4 DSFF Gas
  • 2025 Volkswagen Golf R Coilover Set
    Automatic Dual Clutch AWD Hatchback 2.0L L4 DSFD Gas
  • 2025 Volkswagen Golf R Coilover Set
    Automatic Dual Clutch AWD Hatchback 2.0L L4 DSFE Gas
  • 2025 Volkswagen Golf R Black Edition Coilover Set
    Automatic Dual Clutch AWD Hatchback 2.0L L4 DSFD Gas
  • 2025 Volkswagen Golf R Black Edition Coilover Set
    Automatic Dual Clutch AWD Hatchback 2.0L L4 DSFE Gas
