Be sure to check the fitment guide below for specific details tailored to YOUR model. Your engine serial number is located on your timing cover.

FCP Euro offers this Volvo breather system kit at an affordable price without having to sacrifice the quality that you and your Volvo deserve. If you notice that your Volvo does not operate with the same level of power it once had, or if your exhaust is emanating an unusual odor, this may be related to your Volvo breather system. This kit will replace rubber tubing and fittings that become brittle with age. The tubing can also become restricted due to built up oil deposits and sludge within the hoses. This kit includes a new oil trap, all of the breather hoses, an intake gasket and all of the necessary hose clamps.

What causes my breather system to fail?

  • Wrong oil grade, quality and/or viscosity
  • Vehicles driven too many miles between oil changes
  • Vehicles frequently driven short distances with many cold starts
  • Excessive idling
  • Fuels of low quality or with high alcohol content
  • Additives added to oil or fuel
  • High ambient temperature
  • High air humidity

What are some of the symptom’s I can expect if my breather system is clogged?

  • Illuminated oil pressure lamp. – Due to clogged oil suction strainer to oil pump or oil filter
  • Illuminated Check Engine Lamp- Due to incorrect engine fuel trim level parameters
  • Noise (whistling) – Noise due to high pressure in crankcase. This noise will stop if the oil filler cap is removed.
  • Poor Drivability- Clogged crankcase ventilation can reduce the engine performance
  • Uneven / Oscillating Idling- Caused by clogged crankcase ventilation
  • Oil leak- From engine seals due to restricted crankcase ventilation
  • Noise (knocking)- Low oil pressure can cause premature bearing wear and lead to internal engine component failure
  • High oil consumption/noise from Turbo
  • A damaged bearing or seal in the turbo due to lack of oil as a result of oil consumption.

What can I do to check for it?

  • The first step is to inspect the oil filter to see if it is abnormally dirty. An abnormally dirty filter is easily recognized by its thick, black deposits
  • If the engine has a problem with carbon deposits, the passageways in the engine block and oil trap may be completely or partially clogged. Remove and check the oil trap, hoses and their passageways in the engine block. There should not be any major collections of carbon deposits in the hoses or in the passageways in the block.
  • Drain the engine oil. Remove the oil pan and check the oil pan and crankcase for deposits. Normally, there should not be any deposits. Also check the oil suction strainer on the oil suction line for contaminants and deposits.
  • Use a low caliber Vacuum gauge to check for positive pressure through the dipstick tube

How to Replace your Volvo PCV (Video)

We're here with Ben McNally to show you how to replace the PCV system on a 1996 Volvo 850 Turbo. Don't hesitate to give us a call if you have any questions 1-877-634-0063

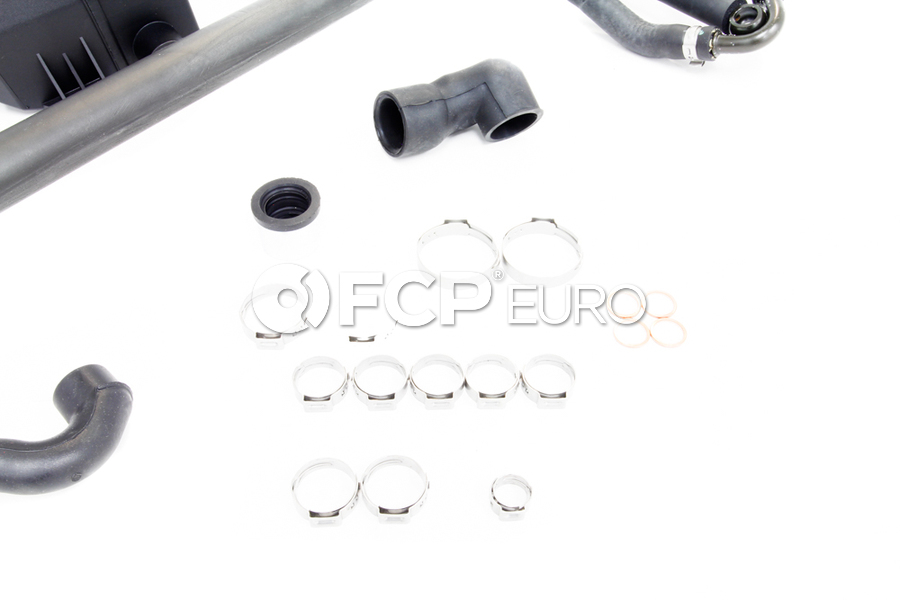

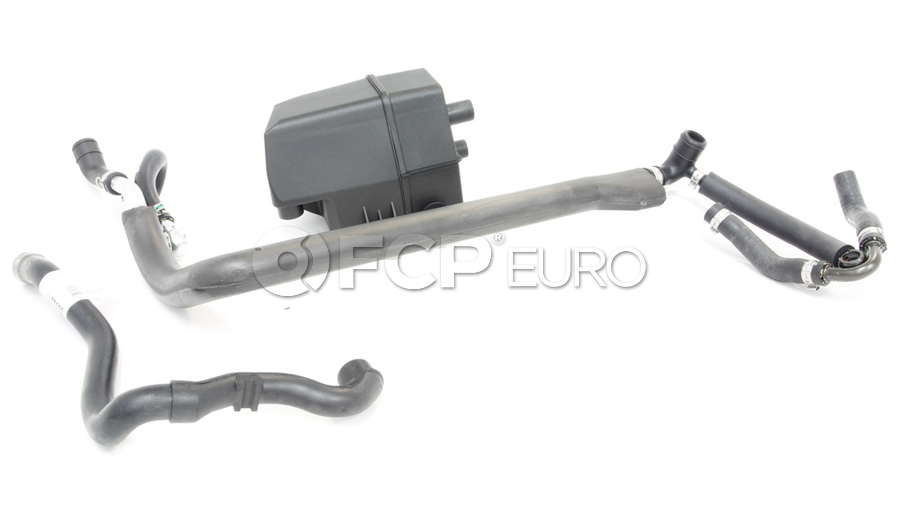

This Kit Includes:

Part SKU Brand MSRP
1x PCV Valve Oil Trap VOL-8692211 Genuine volvo logoGenuine Volvo $48.59
1x Crankcase Vent Hose VOL-1271653 Genuine volvo logoGenuine Volvo $14.27
2x Hose Clamp 977964 Oem supplier logoOEM Supplier $1.99
1x Crankcase Vent Hose VOL-8653339 Genuine volvo logoGenuine Volvo $10.43
1x Crankcase Vent Hose VOL-8692217 Genuine volvo logoGenuine Volvo $34.91
2x Hose Clamp 976561 Oem supplier logoOEM Supplier $1.99
1x Engine Coolant Hose and Crankcase Breather Hose Assembly VOL-30650578 Genuine volvo logoGenuine Volvo $238.55
5x Hose Clamp 978171 Oem supplier logoOEM Supplier $1.99
1x Hose Clamp VOL-978401 Genuine volvo logoGenuine Volvo $4.99
2x Hose Clamp VOL-978173 Genuine volvo logoGenuine Volvo $4.99
4x Metal Seal Ring / Washer OEM-11994 Oem supplier logoOEM Supplier $1.99
MSRP (bought separately): $387.59
Our kit price: $308.99
You save: $78.60

Fits These Cars:

2003 Volvo C70 PCV Valve Oil Trap Kit
Sub model: Base
For Engine serial number 2816210 and Up ( Engine Serial number located on your timing cover)
2004 Volvo C70 PCV Valve Oil Trap Kit
Sub model: Base
For Engine serial number 2816210 and Up ( Engine Serial number located on your timing cover)
Product match fitment

Volvo PCV Breather System Kit (C70) - Genuine Volvo KIT-C70PCV0304KIT1

Genuine volvo logoGenuine Volvo
SKU #:
PCV Valve Oil Trap Kit
$308.99 MSRP: $387.59
Make sure this part fits.
Select your vehicle
Ships within 1 business day
  • Guaranteed to Fit, Guaranteed for Life We guarantee the fit and quality of our parts for life. If it doesn’t meet your expectations send it back for a replacement or refund. Learn more
  • Fitment Verified This product application guide has been tested to ensure it will accurately fit the cars outlined in our fitment guide.
  • Shop With Confidence We respect your privacy; we always keep your information confidential.
  • What If I Need to Return This Item? Not a problem! If you are not happy with your purchase, we will gladly help you exchange or return your items, provided you follow the guidelines outlined in our Returns Policy.
