Volvo Control Arm Kit - Genuine Volvo 30760586KT

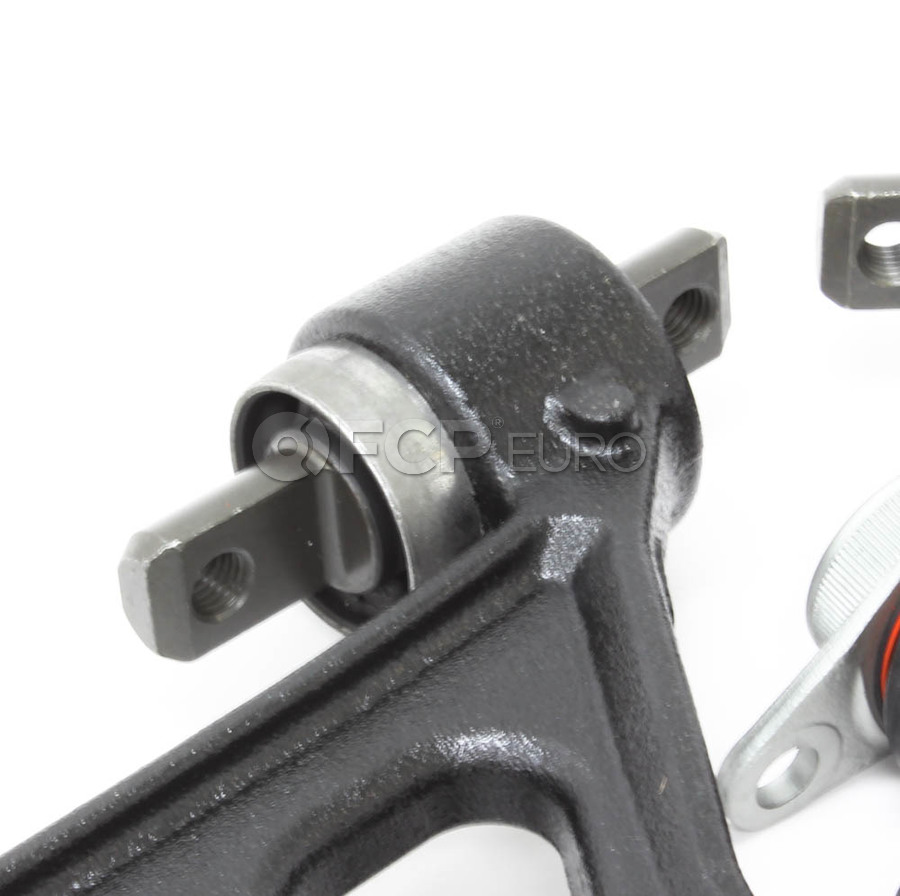

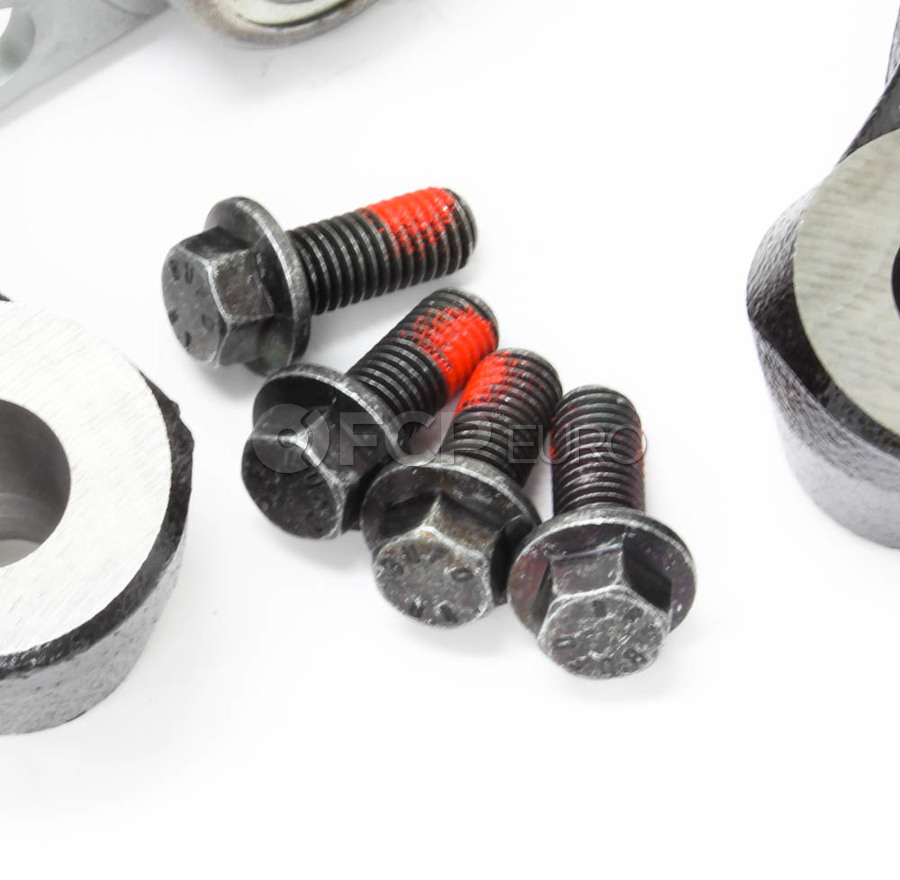

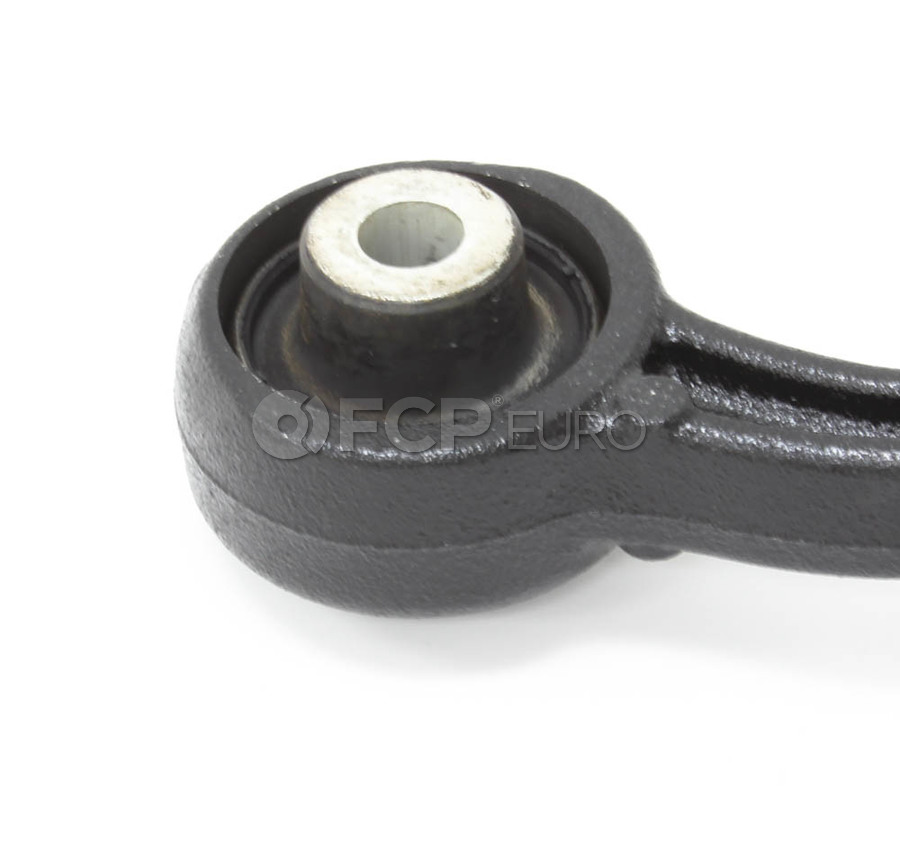

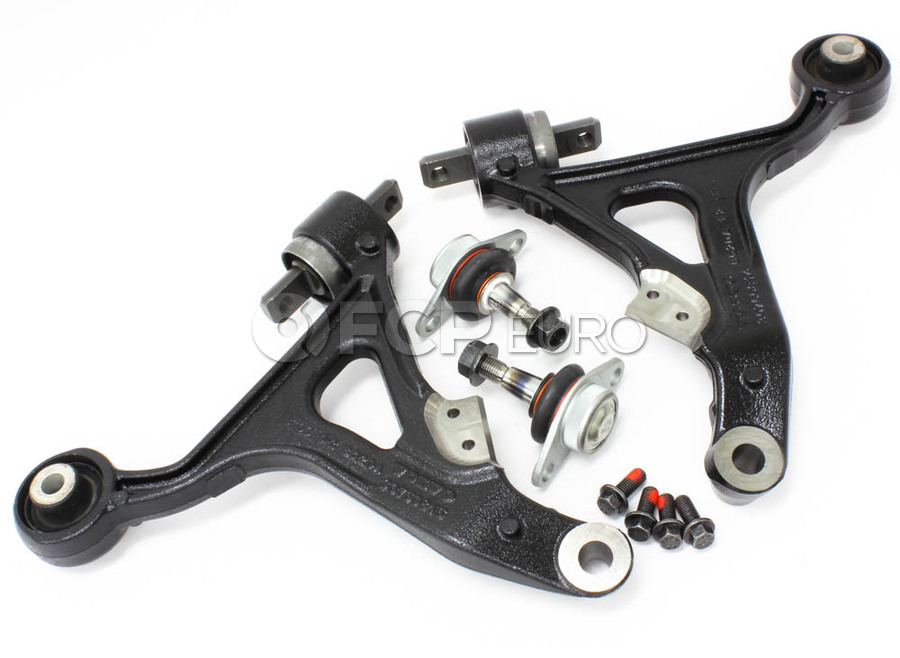

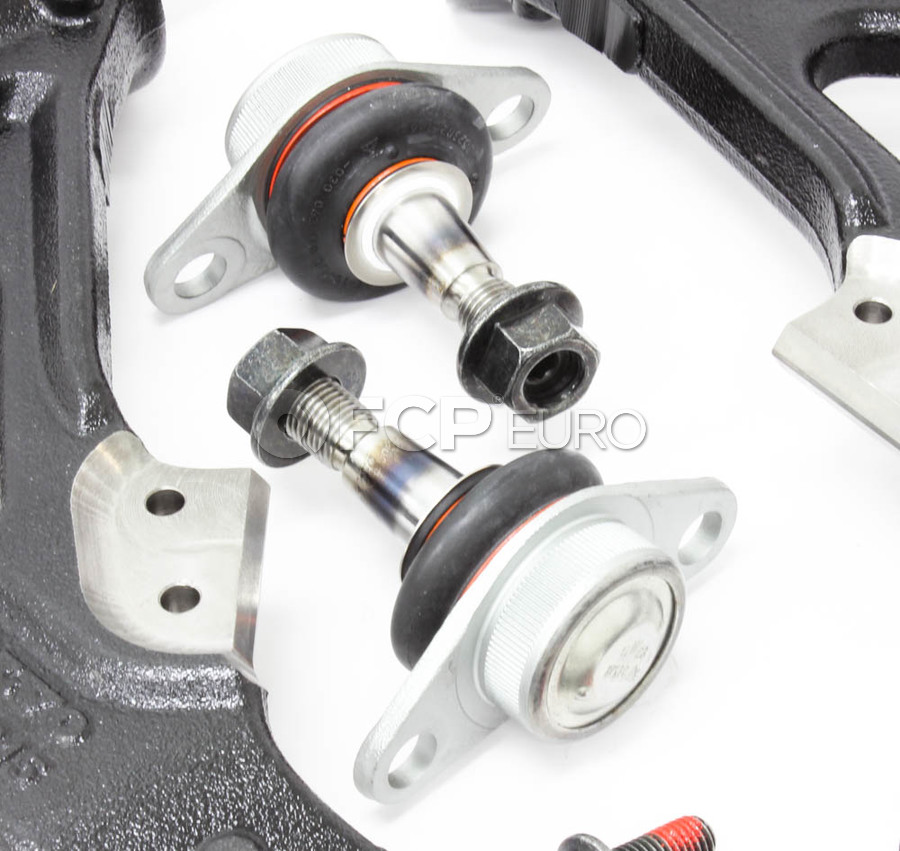

This basic kit includes two Genuine Volvo control arms and two Genuine Volvo ball joints with hardware, to refresh and stabilize the front end of your P2 S60/V70. The control arms come with bushings pre-installed. Ball joints ends come with all required hardware including a new axle nut complete with fresh thread locker.

If you have a 2007, there were two possible styles of control arms installed on the vehicle, aluminum (silver) or steel (black painted). Please see vehicle fitment notes for chassis splits, and double check with visual inspection before ordering.

Special Tools

Due to the design of the ball joint and steering knuckle, special tool [CTA-4019] is highly recommended.

Torque Specs

Link arm front in sub-frame, front mounting (M12):

• 1st step, 65 Nm.
• 2nd step, 105º

Link arm front in sub-frame, rear mounting (M14):

• 1st step, 105 Nm.
• 2nd step, 180º

Bolt drive shaft - wheel hub/bearing:

• Stage 1: 35 Nm
• Stage 2: 90°

Choose Your Steering Rack Stops:

In conjunction with this control arm, it is highly recommended to replace the steering rack stops for to avoid having the tires rub the fender at max steering angle. There are three steering rack stops available, and correspond with the size (width) of the tires mounted on the vehicle.

• For tire sizes 195/65 and 205/55 use 31262495 (Blue).
• For tire size 215/55 use 31262496 (White/Natural).
• For tire sizes 235/45, 225/45, 235/40 use 31262497 (Black).
