3 on diagram

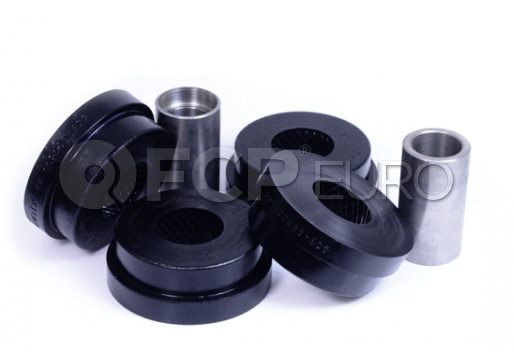

These are the rear two main mounting bushings on the rear subframe for P2 vehicles. Verify fitment before ordering. New bolts must be used, VOL-983402

NOTE

The diagram misrepresents the orientation of these mounting bushings, they are horizontal and the mounting bolt passes through the center in a vertical orientation.

Powerflex Street Purple and Yellow bushings are 10-30% stiffer than OEM rubber in most applications. Powerflex Racing Black bushings are approx. 80% stiffer than OEM and are denoted by BLK at the end of the part number. Both are designed to last the life of the vehicle. Powerflex products feature a proprietary design that does not need to be re-lubed once installed.

For other Powerflex products on the diagram, please see the list below. Check application guide before ordering.

1: Volvo Control Arm Bushing Set - Powerflex PFF88-601 and PFF88-601BLK

2: Volvo Subframe Bushing Set - Powerflex PFR88-602 and PFR88-602BLK

3: Volvo Rear Subframe Bushing Set - Powerflex PFR88-603 and PFR88-603BLK

4: Volvo Control Arm Bushing Set - Powerflex PFR88-604 and PFR88-604BLK

5: Volvo Control Arm Bushing Set - Powerflex PFR88-605 and PFR88-605BLK

6: Volvo Control Arm Bushing Set - Powerflex PFR88-606BLK (Street and Race)

7: Volvo Control Arm Bushing Set - Powerflex PFR88-607 and PFR88-607BLK

8: Volvo Control Arm Bushing Set - Powerflex PFR88-608 and PFR88-608BLK

9: Volvo Control Arm Bushing Set - Powerflex PFR88-609 and PFR88-609BLK

10: Volvo Control Arm Bushing Insert Set - Powerflex PFR88-610 and PFR88-610BLK

11: Volvo Engine Mount Bushing - Powerflex PFF88-611 and PFF88-611BLK

12: Volvo Engine Mount Bushing - Powerflex PFF88-612 and PFF88-612BLK

13: Volvo Strut Brace Engine Mount Bushing - Powerflex PFF88-613

14: Volvo Strut Brace Bushing Set - Powerflex PFF88-614 and PFF88-614BLK

15: Volvo Engine Mount Bushing - Powerflex PFF88-711 and PFF88-711BLK

16: Volvo Lower Control Arm Bushing Set - Powerflex PFF88-600 and PFF88-600BLK

20: Volvo Subframe Mount Insert Set - Powerflex PFF88-120 and PFF88-120BLK
