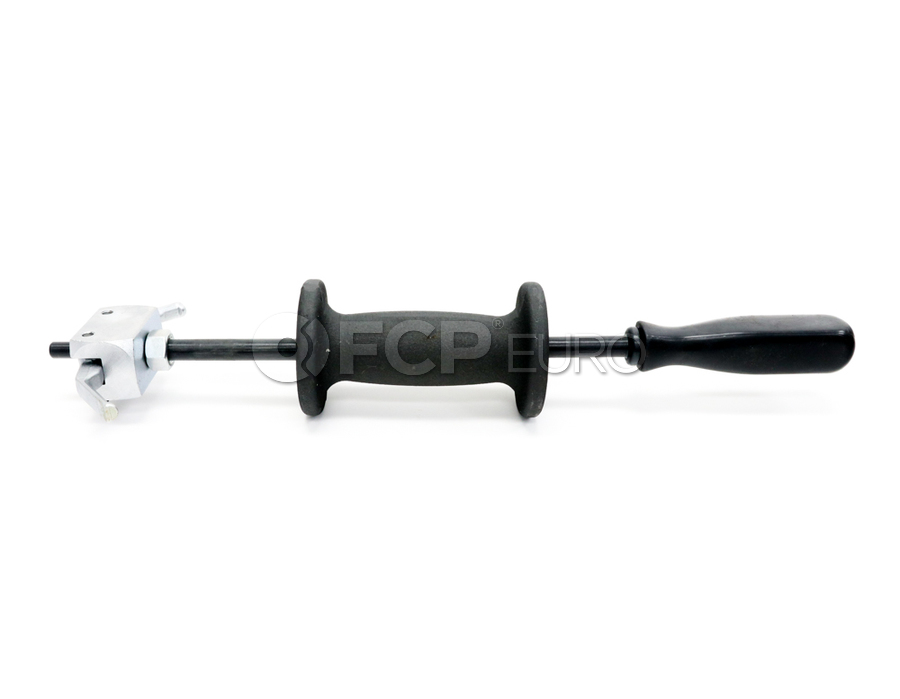

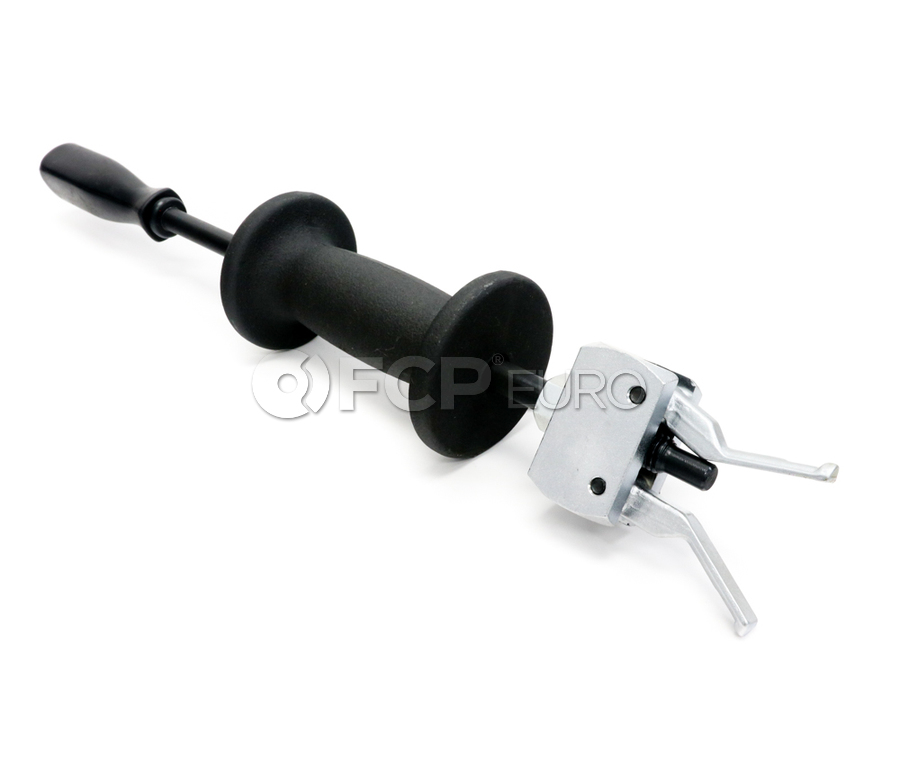

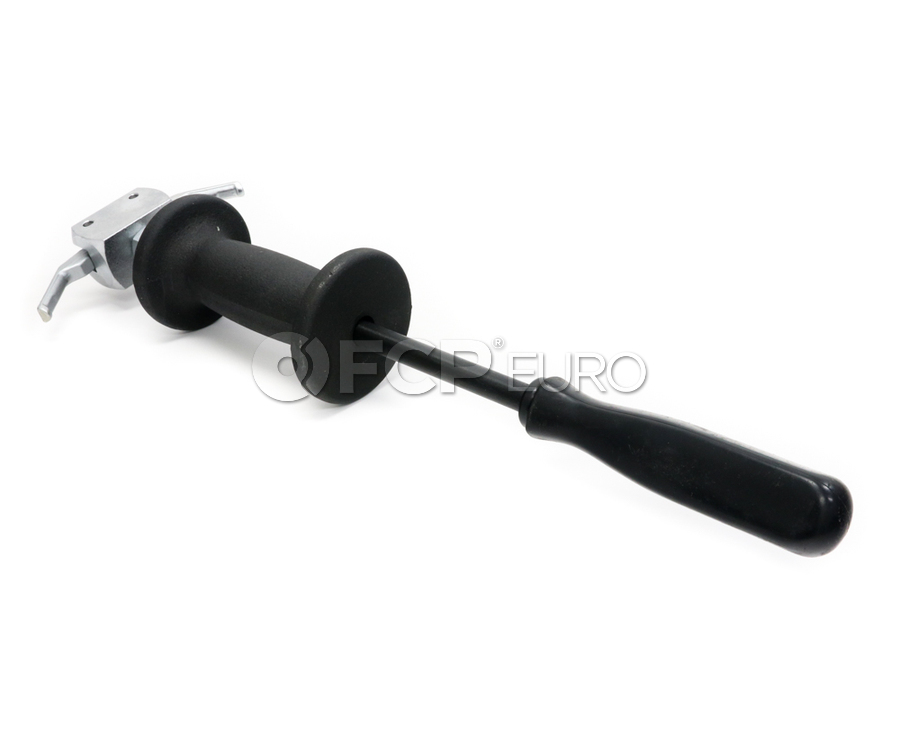

Pilot Bearing Puller Slide Hammer - CTA Manufacturing 8075

NOTE:

• For inside pulling jobs, jaws will remove flywheel pilot and other bearings
• Range: 1/2" to 1-1/2" (13mm to 38mm)
• Replacement Jaws:
  • 8070x06 - Standard Range - 1/2 to 1-1/2" (13 to 38mm I.D.)
  • 8070x07 - Small Range - 3/8/ to 1-3/8" (9.5mm to 35mm I.D.)

INSTRUCTIONS:

Outside Pulling:

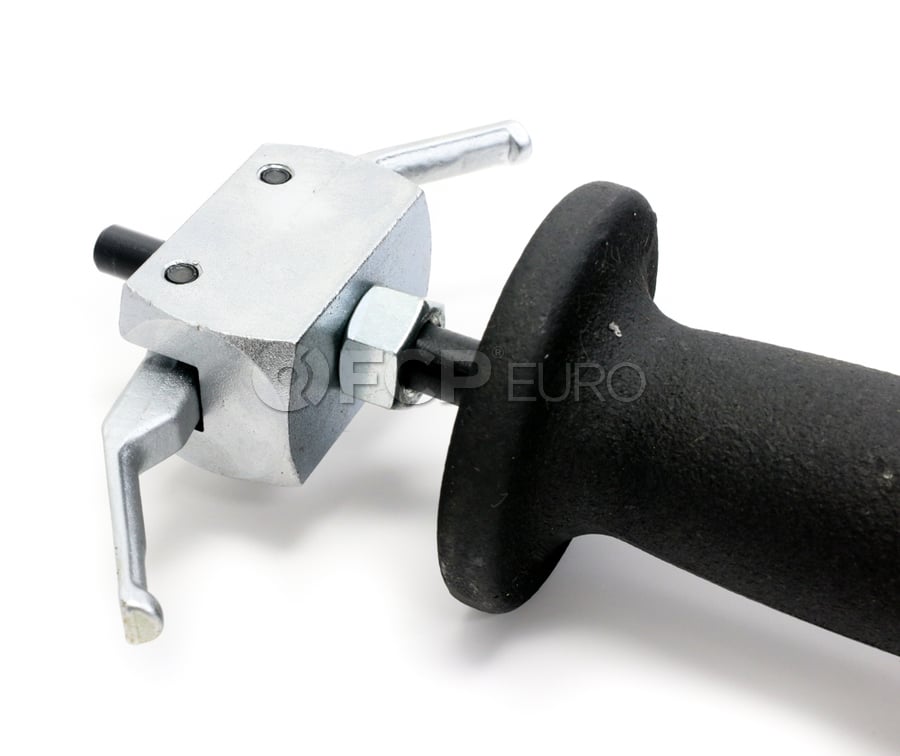

• Using the nuts and bolts provided, assemble the jaws to the yoke with the jaw notches toward each other.
• Thread the adjusting cone on the puller rod concave side first so that the external taper is toward each other.
• Thread the yoke on the rod, then install and tighten the large nut.
• Place the jaws evenly around the component to be pulled, then turn the adjusting cone so its taper forces the jaws tightly against the component.
• Slide the hammer against its stop repeatedly until the component is removed.

Inside Pulling:

• Using the nuts and bolts provided, assemble the jaws to the yoke with the jaw notches facing outward.
• Thread the adjusting cone on the puller rod convex side first so that the internal taper is toward each other.
• Thread the yoke on the rod, then install and tighten the large nut.
• Place the jaws inside the component to be pulled, then turn the adjusting cone so its taper forces the jaws tightly against the inside diameter of the component.
• Slide the hammer against its stop repeatedly until the component is removed.
