More Watch Land Rover Transmission Service Kit - Aisin LR022460KT
Land Rover Transmission Service Kit - Aisin LR022460KT Watch
Aisin
SKU: KIT-LR022460KT

Land Rover Transmission Service Kit - Aisin LR022460KT

LR2, Range Rover Evoque

TF80SC (AWF21) Transmission, JWS 3324 Fluid

Save for later
Backordered
No ETA
Price each: $133.39
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.

Thanks for signing up!

We will let you know when this product is back in stock.
Email Me When Available
Make sure this fits your car
Validate fitment
To ensure fitment and browse only products that fit, please select a vehicle first.
What does this include?

Description

Details

SKU:
KIT-LR022460KT
FCP Euro ID:
Quality:
OEM

OE Numbers

31256774, 31256775, G055540A2, 83222355599, 1233068, LR000869, 30713219, 30713220, LR002461

MFG Numbers

ATF-0WS, AW1, 1233068, 016272, 41433220

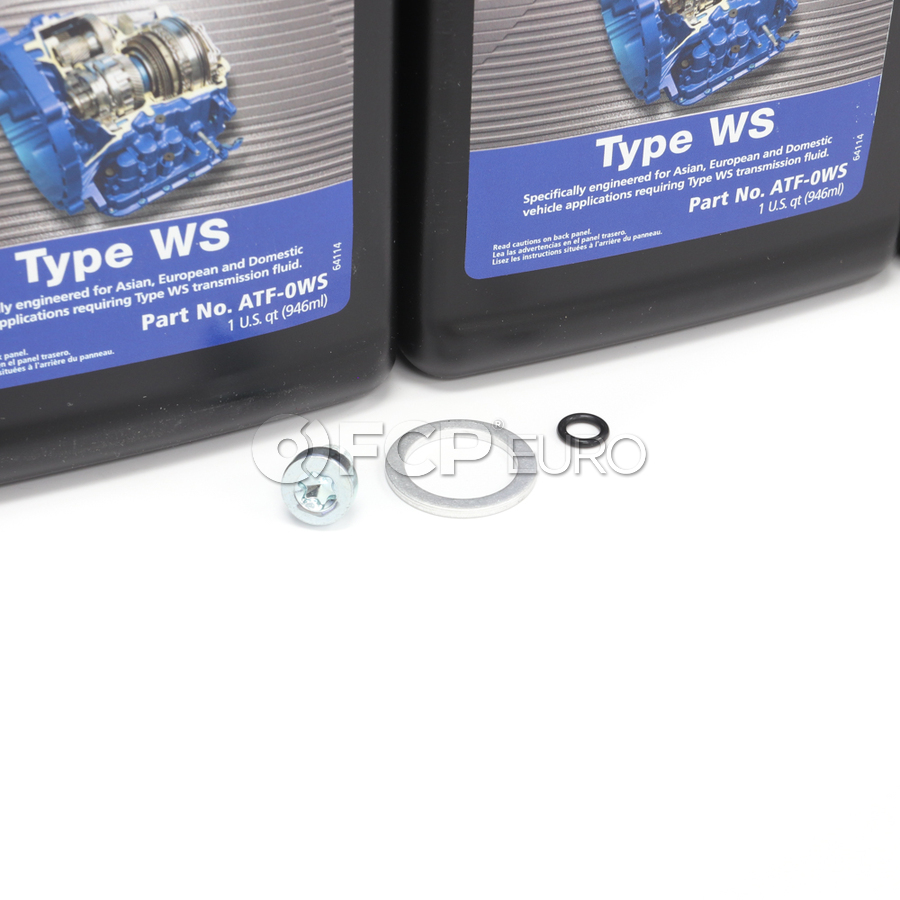

This Kit Includes

Qty Part SKU Brand Price
8 Automatic Transmission Fluid ATF-0WS $121.92
1 Automatic Transmission Drain Plug Gasket OES-1233068 $0.29
1 Transmission Drain Plug URO-016272 $6.19
1 Automatic Transmission Drain Plug Gasket PPS-41433220 Backordered

Product Information

This kit includes 8 liters of Aisin JWS 3324 WS spec fluid which is required for 2 drain and fill on your Land Rover Aisin TF80 (AW21). Total transmission capacity is 7l, each drain will remove around 3.5l. This enough to mix and replace a substantial amount of the existing oil in your transmission. For a more complete service, add an additional 4l for an extra drain and fill.

There is a specific procedure to do this service correctly, failing to follow it correctly may result in transmission damage. Final fluid level should be set while the transmission temperature is warm (50-60C) with engine running on a level surface. An electronic TCM reset is highly recommended after the oil change, especially if it has been awhile since the last service.

The size hex bit on the level tube is 17mm and can be purchased HERE. .

Due to supplier reasons this kit has Genuine Volvo components, as these platforms share the TF80SC transmission

Transmission Service Kit

The transmission oil filter prevents harmful particulate matter from entering the transmission valve body and damaging valve body bores, solenoids, and other fluid passages. Foreign particles in valve body bores, solenoids, or passages will cause shifting issues. Some of these issues include delayed shifts, harsh shifts, or no gear engagement in extreme cases. Clogged filters can reduce fluid volume and flow in the transmission causing starvation of the transmission pump. This can be identified by an RPM-dependent whine from the transmission bell housing area. The transmission oil filter should be changed during any fluid service, and it is critical to replace the filter if major transmission components are replaced such as the torque converter, transmission pump, or transmission valve body.

Transmission Service Kit Failure Symptoms
  • Whining noise from the transmission pump
  • Driveability and shift quality issues including harsh shifts, delayed shifts, or no gear engagement

About Aisin

Located in Japan and established in 1965, Aisin is an OE for BMW, Diamler AG, Volvo, and many more, manufacturing a wide mix of auto parts including water pumps, fan clutches, fan clutch blades, master cylinders, control valves, oil pumps, pulley brackets, electric fuel pumps, friction disks, clutch pressure plates, timing belt kits and timing belt tensioners. Trust Aisin with reliable parts that fit the first time. “Quality First” is Aisin’s philosophy.

Fits These Cars

Land Rover Range Rover Evoque

  • 2012 Land Rover Range Rover Evoque Dynamic
    Automatic AWD Sport Utility 2.0L L4 Gas
  • 2012 Land Rover Range Rover Evoque Prestige
    Automatic AWD Sport Utility 2.0L L4 Gas
  • 2012 Land Rover Range Rover Evoque Pure
    Automatic AWD Sport Utility 2.0L L4 Gas
  • 2013 Land Rover Range Rover Evoque Dynamic
    Automatic AWD Sport Utility 2.0L L4 Gas
  • 2013 Land Rover Range Rover Evoque Prestige
    Automatic AWD Sport Utility 2.0L L4 Gas
  • 2013 Land Rover Range Rover Evoque Pure
    Automatic AWD Sport Utility 2.0L L4 Gas

Land Rover LR2

  • 2013 Land Rover LR2 Transmission Service Kit
    Automatic AWD Sport Utility 2.0L L4 Gas
  • 2013 Land Rover LR2 HSE Transmission Service Kit
    Automatic AWD Sport Utility 2.0L L4 Gas
  • 2013 Land Rover LR2 HSE Lux Transmission Service Kit
    Automatic AWD Sport Utility 2.0L L4 Gas
  • 2014 Land Rover LR2 Transmission Service Kit
    Automatic AWD Sport Utility 2.0L L4 Gas
  • 2014 Land Rover LR2 HSE Transmission Service Kit
    Automatic AWD Sport Utility 2.0L L4 Gas
  • 2014 Land Rover LR2 HSE Lux Transmission Service Kit
    Automatic AWD Sport Utility 2.0L L4 Gas
  • 2015 Land Rover LR2 Transmission Service Kit
    Automatic AWD Sport Utility 2.0L L4 Gas
  • 2015 Land Rover LR2 HSE Transmission Service Kit
    Automatic AWD Sport Utility 2.0L L4 Gas
  • 2015 Land Rover LR2 HSE Lux Transmission Service Kit
    Automatic AWD Sport Utility 2.0L L4 Gas
