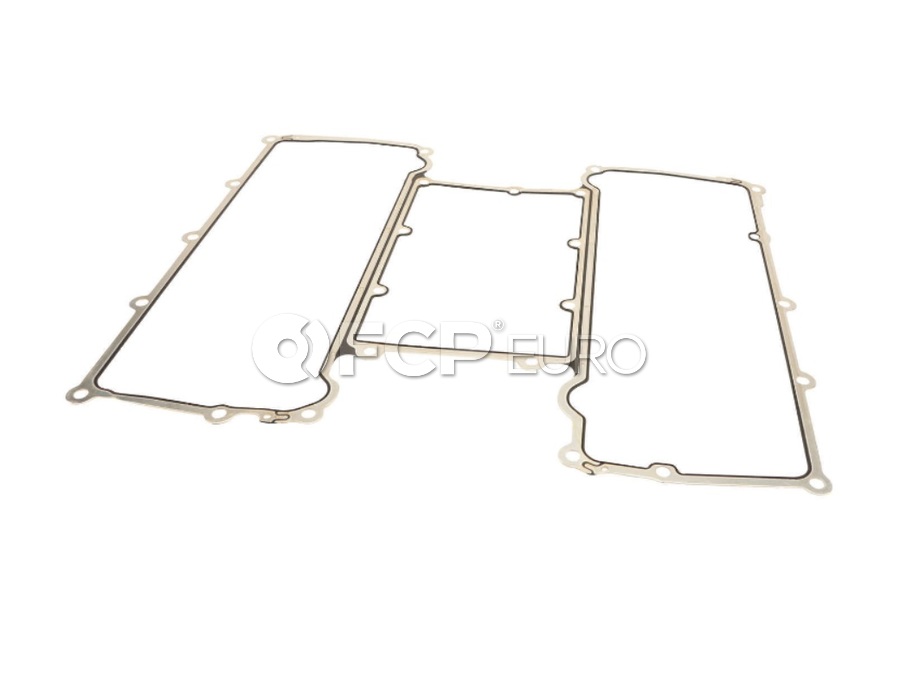

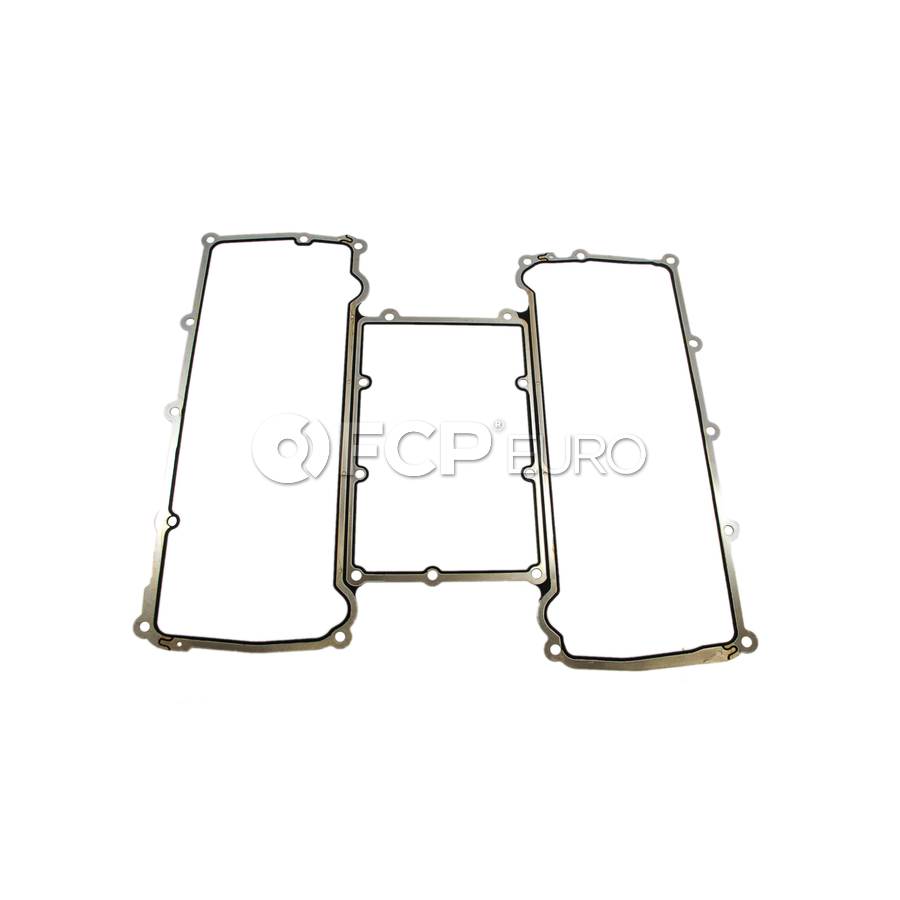

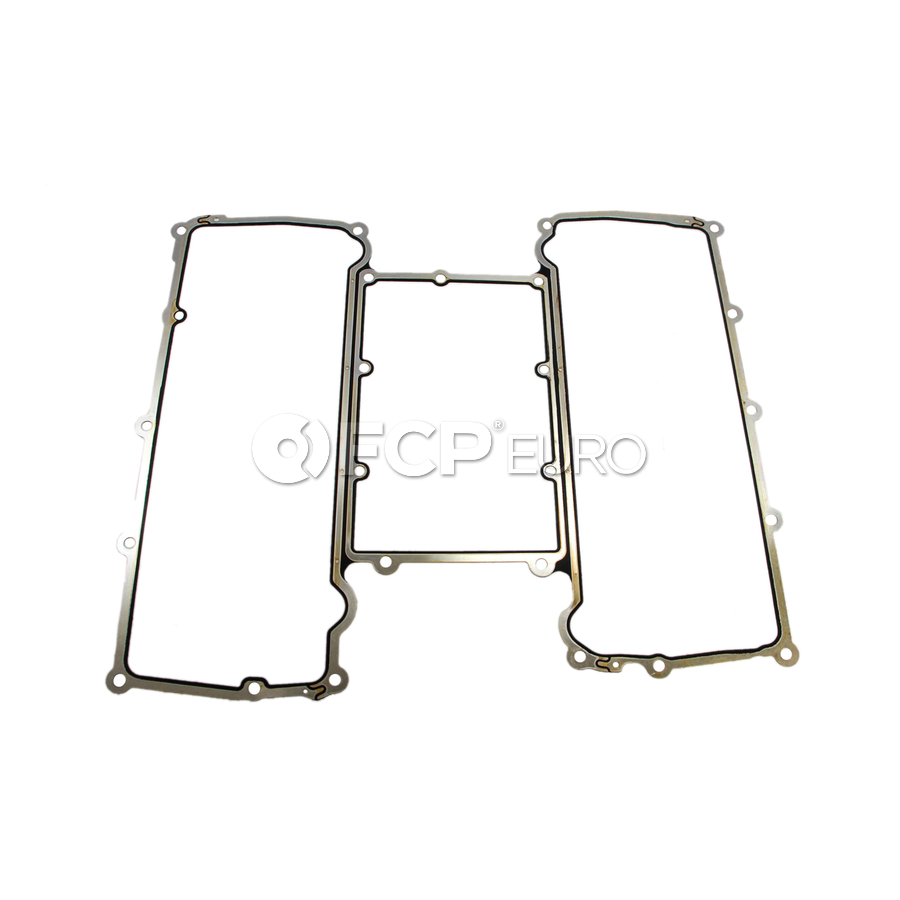

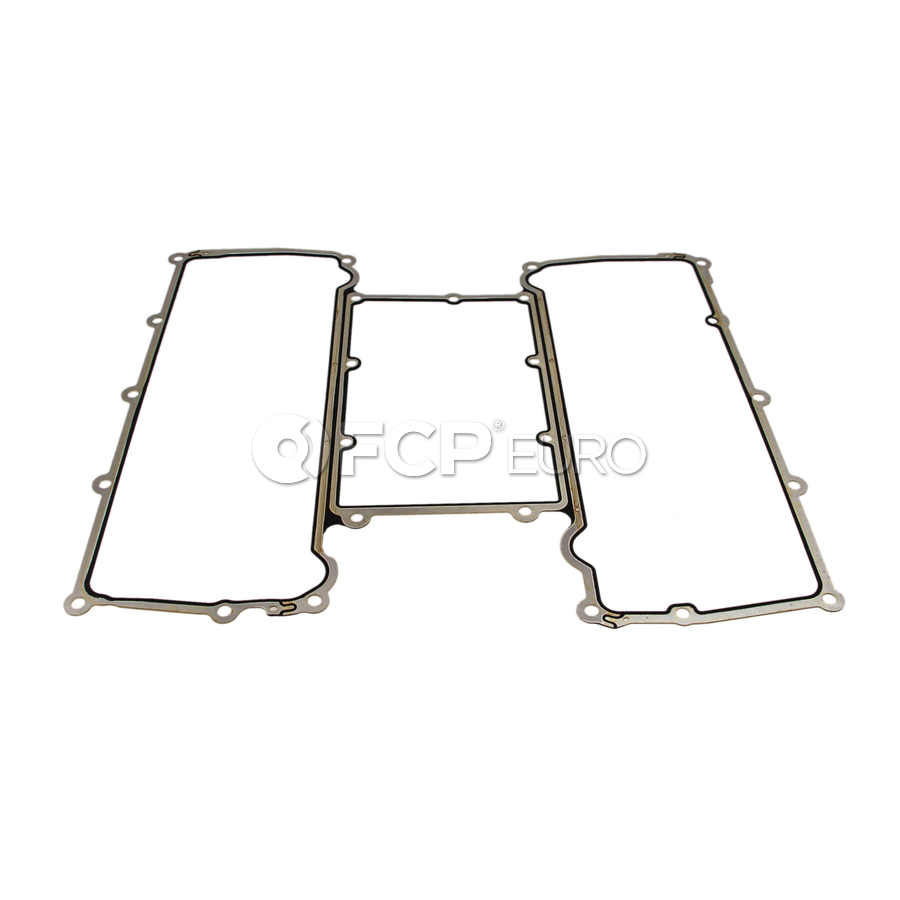

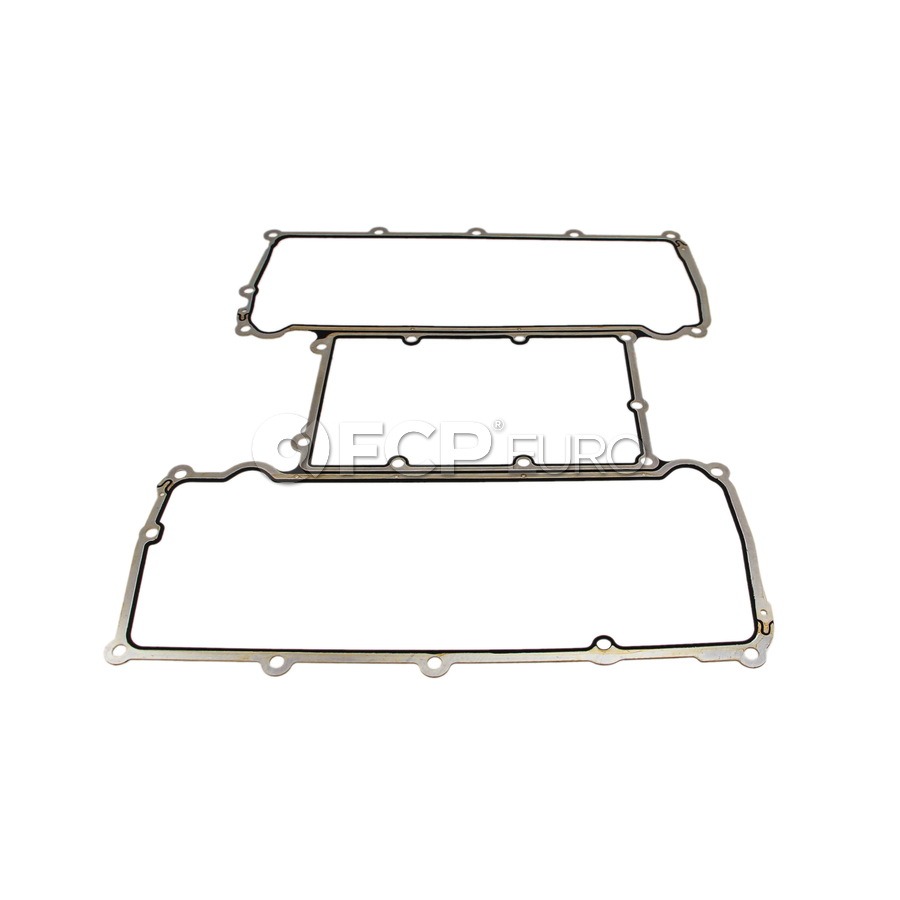

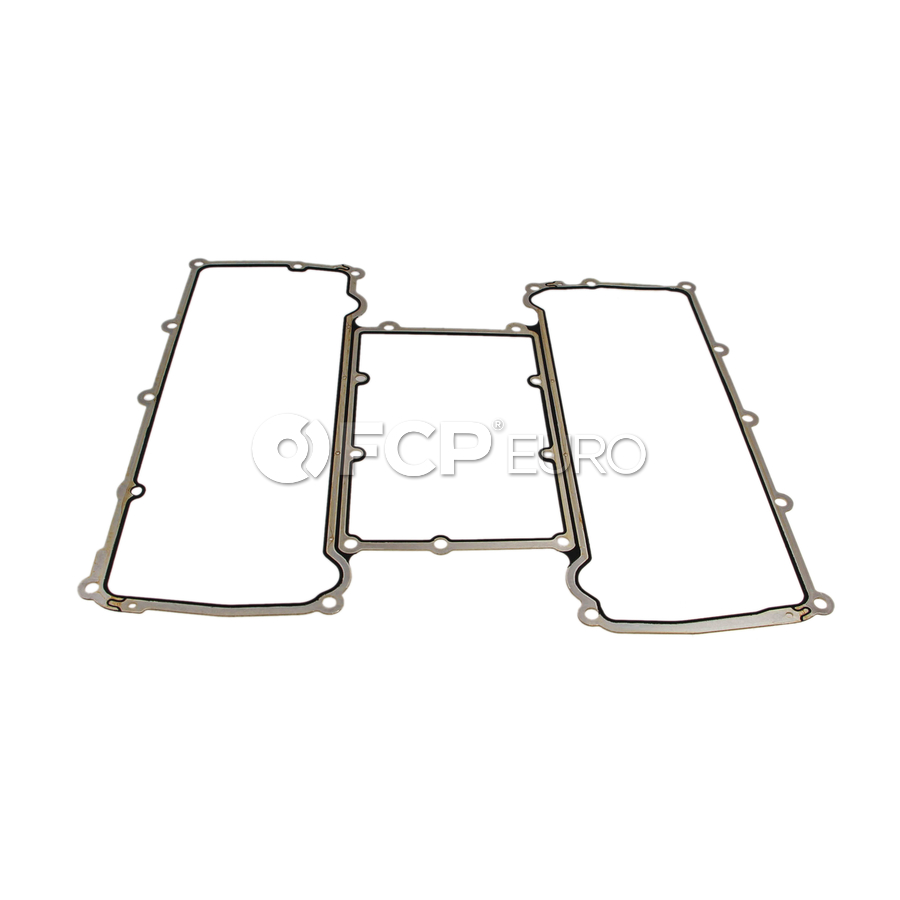

Land Rover Intake Manifold Gasket - Rein 13029750

Product Information

An engine intake manifold gasket seals the intake manifold to the cylinder head. Its primary job is to ensure that all metered air that has been taken in through the air intake system is delivered to the engine without any air being lost through a leak at the manifold to the cylinder head connection. It also keeps any unmetered air, dirt, and debris from entering the intake manifold to the cylinder head connection.

On older vehicles and engines, these are usually flat gaskets made of paper or similar composite materials, or may occasionally be a multi-layer metal gasket. On newer vehicles, they are often made of rubber or similar elastomer materials. An engine intake manifold gasket may be a single-piece part that will seal all of the intake runners to the cylinder head or a singular gasket that is used multiple times on a per-cylinder basis. The color, shape, and materials can vary depending on the brand, manufacturer, and application, but are often orange and orange/brown, or green.

It is common practice to replace the engine intake manifold gasket any time that you have the intake manifold removed from the cylinder head. This ensures that when you assemble the intake system, it is free of leaks or other issues. This is especially important on turbocharged or supercharged engines that have positive manifold pressures above the atmospheric pressure.

• Air leaks: Over time, your intake manifold gasket will degrade because of heat, vibration, and exposure to oils and other solvents. Paper or composite gaskets can begin to break down and chunk apart. Rubber gaskets can become hard and brittle. This can let dirt and debris in but is more likely to cause an air intake flow fault or CEL.
• Swelling / Damage from external sources: Cleaners, solvents, and other chemicals such as brake clean can cause rubber and other elastomers to swell and cause issues.
• Loss of elasticity: Eventually the rubber or material will harden and lose its elasticity, eventually becoming brittle and easily damaged. These gaskets will appear completely flat and will not reseal at all if they are reused.
• Check Engine Light: Excessive unmetered air from a bad intake manifold gasket can result in a CEL for an air intake leak fault or other airflow-related diagnostic trouble codes.
• Misfire: A severe air intake leak can cause rough running and an engine misfire.
• Oil residue: Because the positive crankcase ventilation system feeds air that may oil vapor into the intake to be burned during combustion, it is common for a bad or failed intake manifold gasket to result in oil residue on or around the intake manifold.

About Rein

Founded in 2007, CRP Automotive introduced the Rein Automotive line of OE-quality replacement parts to the aftermarket. And in just two short years, Rein Automotive has become very popular among both warehouse distributors and professional repair technicians. Rein is the German word for “pure”, and has come to be synonymous with quality in the automotive aftermarket. A true dealer alternative.

The Rein brand includes a growing number of “better than OE” parts for selected applications. These parts address known weaknesses and premature failures of factory parts. Many of these replacement and service solutions have been developed with the help of our Innovation Council, a hand-picked group of experienced professional repair technicians and shop owners throughout North America.

All Rein Automotive OE-quality parts are backed by the CRP Automotive standard, and are backed with a ISO 9001:2015 quality management system certification. Each year, CRP Automotive ships thousands of Rein Automotive brand products. And with widespread NAFTA market distribution through strategically placed warehouses in Cranbury, New Jersey and Puebla, Mexico - OE-quality products like Rein Automotive are delivered to customers both faster and more cost-effectively than ever before.

In 2017 Rein partnered with FCP Euro in competing a W204 C300 AER car for the 2017 season. The partnership focused FCP Euro to dive deep into the Rein catalog offering, and hundreds of new products were added and integrated into our catalog. Hundreds of new packages were created not only using the full part pine up of Rein products, but also the entire family of CRP products like Pentosin.

Rein is also an innovative brand, winning numerous trade awards — including multiple new product innovation awards at the annual AAPEX trade show.
