CTA Manufacturing
SKU: CTA-3450

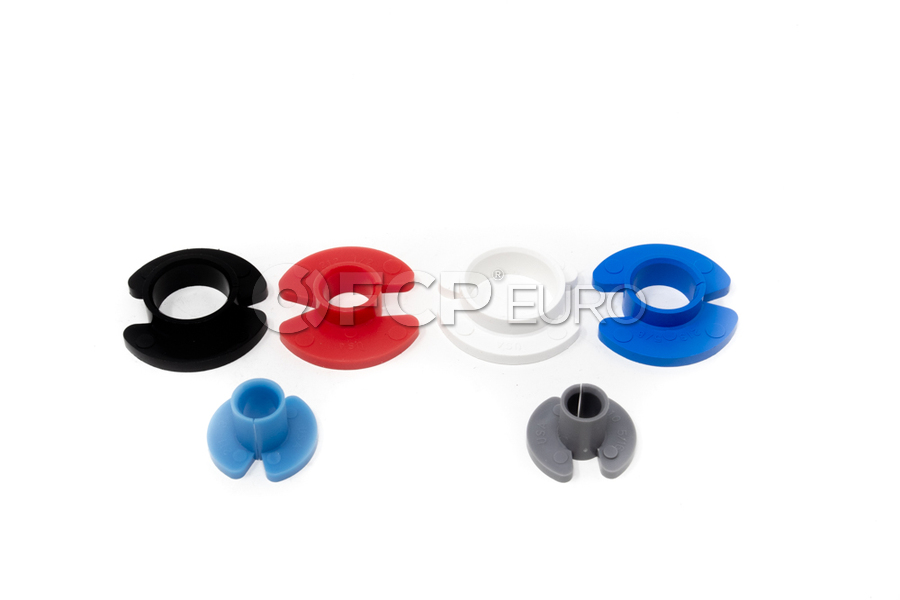

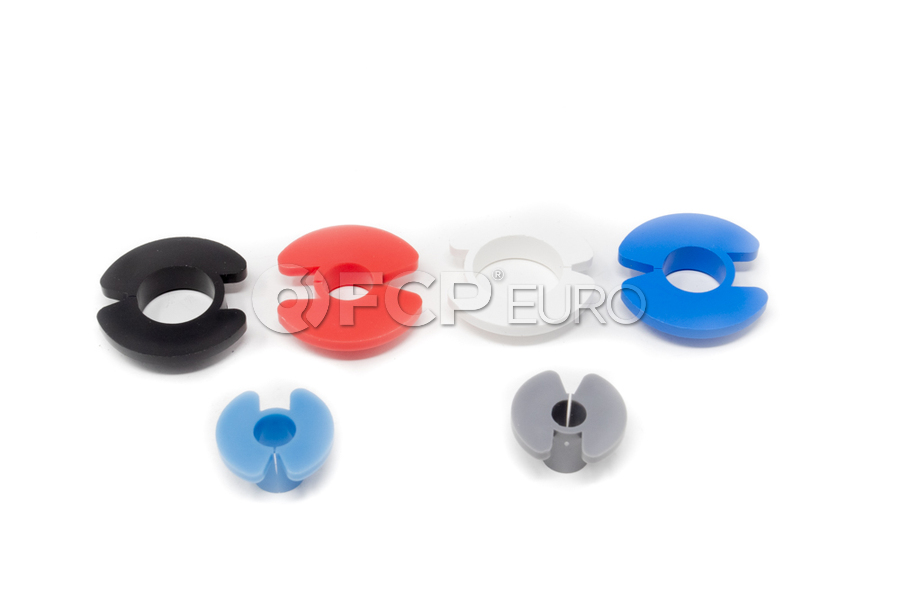

Quick Disconnect Tool - CTA Manufacturing 3450

6 Piece



Available
In Stock
Price each: $4.98
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.
QTY
Make sure this fits your car
This is a universal product.
Some parts may require modification depending on application.

Description

Details

SKU:
CTA-3450
FCP Euro ID:
528813
GTIN / UPC:
00053001034505
Made in:
United States
Quality:
Aftermarket

OE Numbers

3450

MFG Numbers

3450

Product Information

Disconnect fuel, transmission, oil cooler, and A/C lines Tools are flexible injection-molded plastic and color-coded

Components available individually:

  • 3450x01 - size: 5/16”
  • 3450x02 - size: 3/8”
  • 3450x03 - size: 1/2”
  • 3450x04 - size: 5/8”
  • 3450x05 - size: 3/4"
  • 3450x06 - size: 7/8”

INSTRUCTIONS:

To release residual pressure in a typical fuel injection system. Locate the service valve on the fuel rail. Remove the cap, then attach a suitable screw on the drain valve and hose assembly to the Schrader valve. Place the hose in a gasoline-safe container, and open the valve. MAKE SURE THE IGNITION SWITCH IS OFF. NOTE: If a valve and hose assembly is not available, carefully wrap a large cloth or towel around the service valves, and then depress the Schrader valve pin through the cloth allowing the gasoline to be absorbed.

CAUTION: FIRE HAZARD! DO NOT SMOKE. Keep droplights a safe distance away. Eliminate any other possible sources of ignition.

If no service valve is present, locate the fuel line connection closest to the fuel injectors, wrap it with a cloth as in the NOTE above, and open the connection. On air conditioning systems, use only the proper refrigerant recovery procedure and equipment to relieve the pressure and keep the refrigerant from causing environmental damage. Choose the disconnect tool that fits the line.

Spread the tool enough at its split to install it on the hard line with the small diameter side toward the connector. Holding the opposite side of the connector with one hand, insert the disconnect tool firmly into the connector with the other, compressing the locking tabs inside and then separate the connector. Before reassembly, carefully inspect the O-rings.

Fuel Line

A fuel hose is a flexible tube designed to transport fuel from one component of the fuel system to another, such as from the fuel tank to the fuel pump or from the pump to the engine. Made of rubber, synthetic materials, metal pipes, or reinforced rubber, fuel hoses are built to withstand the pressure, temperature, and chemical exposure that comes with handling fuel. Fuel hoses are essential to the proper functioning of the fuel delivery system and the overall performance of the engine.

Fuel Line Failure Symptoms
  • Fuel Leaks: The most obvious and dangerous sign of a failing fuel hose is a fuel leak. Leaking fuel not only causes performance issues but also poses a significant fire hazard.
  • Fuel Pressure Loss: A damaged or leaking fuel hose can cause a drop in fuel pressure, leading to inconsistent fuel delivery to the engine. This may result in hesitation during acceleration, poor fuel economy, or misfires.
  • Decreased Fuel Efficiency: Leaking fuel due to a compromised hose can cause fuel wastage, which will reduce your vehicle’s fuel efficiency.

About CTA Manufacturing

CTA Manufacturing Corp. started in 1978 with a few specialty tools and a lot of great ideas. After spending over 25 years setting up worldwide distribution for the biggest names in the business, the founders of CTA decided to take some of their own ideas to market. Originally named "Classic American Tools", the company expanded from manufacturing about 20 Specialty Tools to over 1000 tools under the CTA name today. Factories are located worldwide, manufacturing Specialty Tools to meet the demands of today’s technicians.

Product Reviews

1 Review

5.0
Average rating
Leave a review
Chris
on Wed, Sep 15 at 02:28PM
I hope they last
These worked great to disconnect the fuel rail on my 2000 V70. Before inserting the tool, press the line deeper into socket. This will move its stopping barb out of the way so the tool can spread the socket clips apart. I hope these last. Their hinges take some stress bending open to fit over the lines.
