CTA Manufacturing
SKU: CTA-4017

Axle Popper Kit - CTA Manufacturing 4017

Save for later
7 Ratings
Available
In Stock
Price each: $56.46
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.
QTY
Make sure this fits your car
This is a universal product.
Some parts may require modification depending on application.
What does this include?

Description

Details

SKU:
CTA-4017
FCP Euro ID:
514439
GTIN / UPC:
00053001040179
Made in:
Taiwan
Quality:
Aftermarket

OE Numbers

4017

MFG Numbers

4017

Product Information

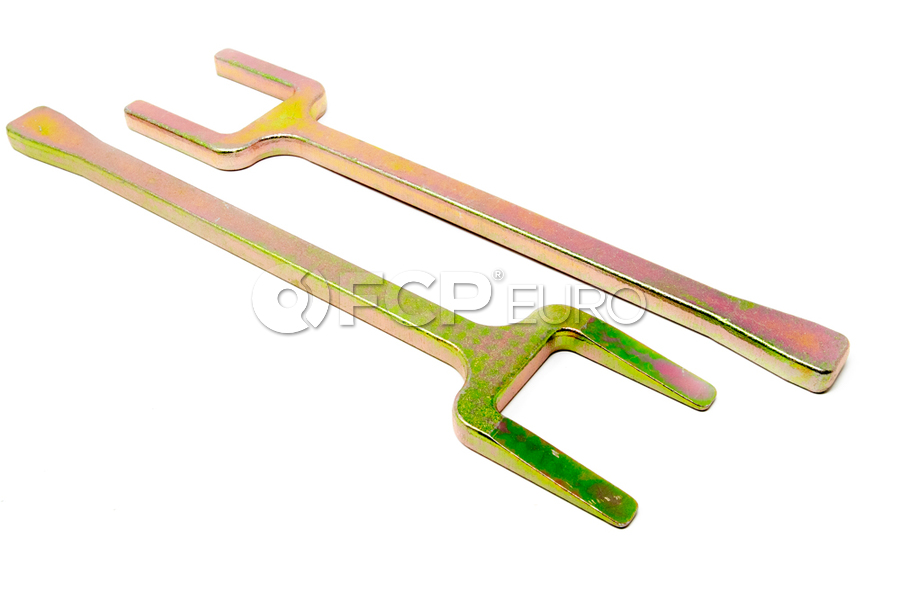

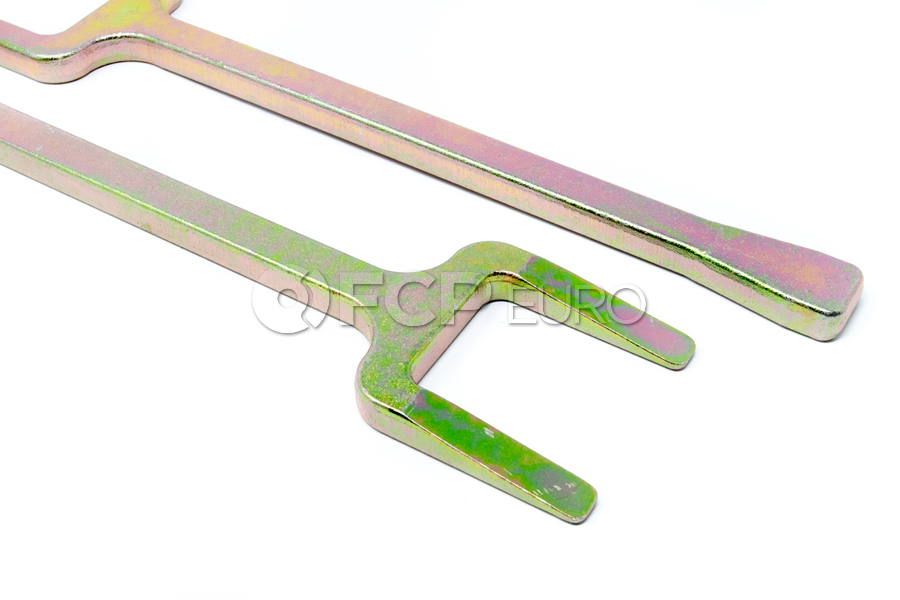

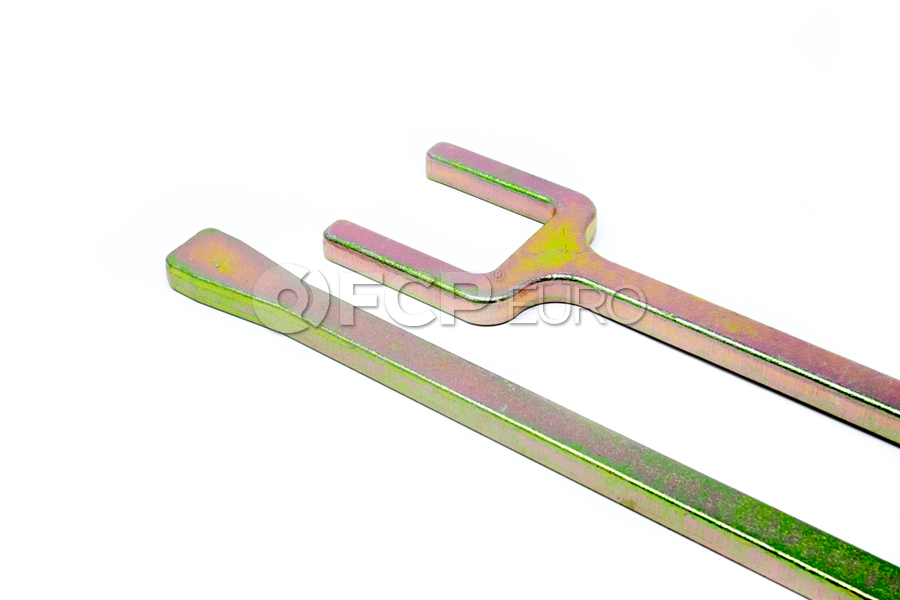

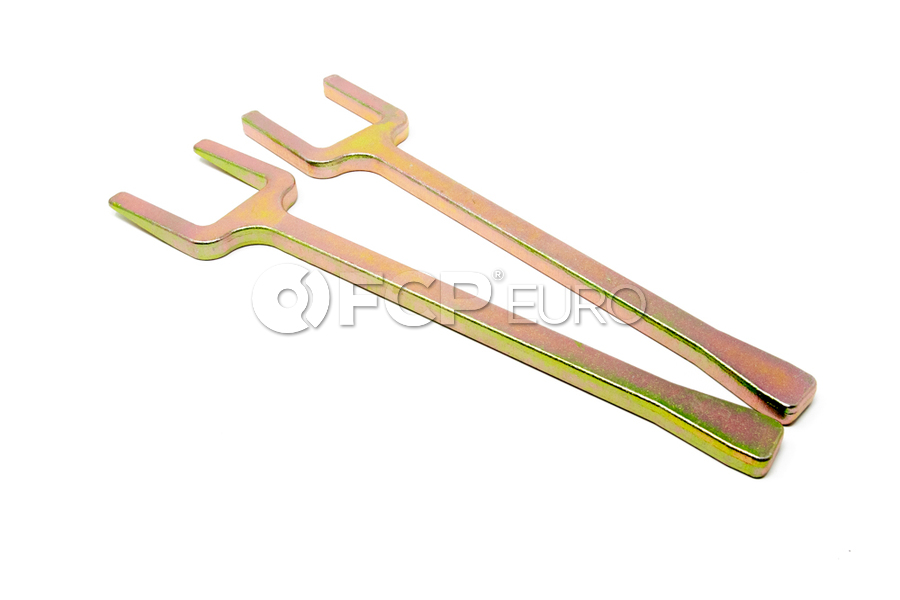

This tool kit is used for easily popping inner CV joint out of the differential where the CV joint is secured internally via a circlip

If you have ever struggled with removing inner CV joints from a differential you know the struggle. This basic tool kit easily and safely removes the inner cv joint just like a pickle fork removes a ball joint from a control arm. This is a must have tool kit if you are doing an axle replacement where the axle is not bolted to the drive flange on the differential.

  • Separates half-shafts from transaxle
  • Shim tool is included to fill gaps on some applications
  • Better and safer than hammer and bar
  • Both are 14" / 36cm long with 2" / 51mm opening
  • Machine forged for strength and durability
  • Attempting to simply pull the axle out may result in a torn CV boot

Please note: This is a universal tool and may not work for all applications. Before ordering inspect the clearance/installation method of your existing axles to ensure this tool will work for you. In certain applications there are more specific specialized tools which will work better.

About CTA Manufacturing

CTA Manufacturing Corp. started in 1978 with a few specialty tools and a lot of great ideas. After spending over 25 years setting up worldwide distribution for the biggest names in the business, the founders of CTA decided to take some of their own ideas to market. Originally named "Classic American Tools", the company expanded from manufacturing about 20 Specialty Tools to over 1000 tools under the CTA name today. Factories are located worldwide, manufacturing Specialty Tools to meet the demands of today’s technicians.

Product Reviews

7 Reviews

3.9
Average rating
Leave a review
Mike
on Mon, May 11 at 05:41PM
Dimensions
It won't work on the passenger side of a 2009 328xi; 2'' opening isn't wide enough for the support bearing that's almost 3".
Max
on Thu, Aug 26 at 07:08PM
Love 'em!
I saw a few lower star reviews and would like to address some of them. The thinner profile popper, while it is good for 90% of axle setups, specifically on BMW, it is a bit too thick to get between the CV axle and the differential assembly, I used an angle grinder to 'sharpen' the end a bit, and now it fits perfectly, I didn't have to remove much material, so I don't expect any loss of strength. These are for axles that use "circlips" to retain the axle, if your axle is held on by a carrier bearing (most Volvo passenger front axles) you won't benefit from this tool, although your driver side axle will benefit. While a pry bar, chisel, hammer, general pulling, will likely get your axle out the same, it is a more time consuming, and apprentice leaves marks on the axle and transmission, these poppers make the process a lot easier, quicker, and cleaner
Jason
on Sat, Nov 09 at 01:27PM
Pop, Drop & Un-Lock It
Made drive axle replacement really on my Volvo rather easy using the included tapered-headed tool. Not sure what the other one ideally used for but definitely will save some time over a pry bar or similar approach.
Chris C.
on Thu, Jul 11 at 04:20PM
Axle Popper Kit - CTA 4017
This tool did not work as I expected it to work, but it did successfully pop both of the front Axles from my Wife's X5
Erick
on Thu, Apr 12 at 07:00PM
Mr
Worked great
Mark
on Sun, Dec 31 at 09:25PM
The thin one helps, the other one is too thick for the application. As long as you get pressure on opposite sides equally they WILL come out!
Volvokid
on Mon, Mar 20 at 03:42AM
Works pretty well
I had to remove my driver's side cv axle recently to replace it. Mine was stuck pretty bad. This tool didn't get it out so I took it to my Volvo mechanic but even he couldn't get it out. I brought it back home and tried some more and I eventually freed it with my impact wrench and a 5/8" cold chisel in a 13 mm socket. Kind of crazy but that's what it took to get it out. I later had to remove the new axle to replace the transmission seal, then this popper tool work well to remove the new axle after a few tries.

Questions & Answers

Ask a question
Question Posted by Mel
How do the width of these compare to the BMW/Baum Tool with part number 315110?
Answer (Posted by FCP Euro Products Team)
This is more of a universal style product. Width wise there is a similarity but it's not neatly as thin as the BMW/Baum special tool which is going to be easier to get between the oil pan and inner CV joint to release the axle from the front differential. On occasion the front axles can be pretty stubborn to get to release and there is little room (especially on the driver side) to get good access.
