Audi VW Control Arm (A4 A6 S4 Passat) - TRW M 4D0407151P

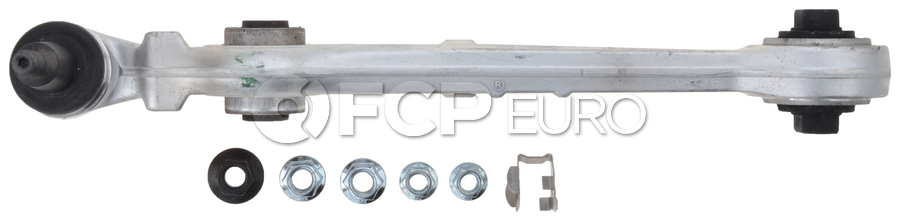

  • Open uri20150219 24808 yrb93f

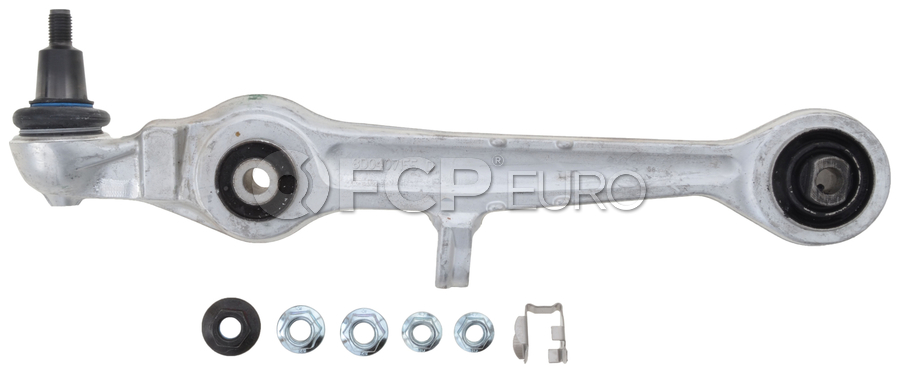

  • Open uri20150219 24808 c2gfa7

Control arm ball joint faces downward, strut assembly attaches to this control arm

This control arm assembly sits in the front lower front of your Audi’s multilink control arm set up. It is the control arm which the strut attaches to. There are three potential points of failure on this control arm. The inner bushing which attaches the control arm to the subframe is a common point of failure which will cause front suspension play and slop. We also commonly see the outer ball joint which attaches the control arm to the wheel spindle develop play which results in poor steering feel and performance loss. In addition to the ball joint developing play from age we also see the ball joint boot tear allowing water and dirt to get inside the joint causing premature failure. We always recommend replacing control arms in pair for best performance and service life.

TRW is the OEM supplier to Audi/Volkswagen for this component.

Fits These Cars:

1996 Audi A4 Suspension Control Arm and Ball Joint Assembly
Position: Front Left Lower
1997 Audi A4 Suspension Control Arm and Ball Joint Assembly
Position: Front Left Lower
1998 Audi A4 Suspension Control Arm and Ball Joint Assembly
Position: Front Left Lower
1999 Audi A4 Suspension Control Arm and Ball Joint Assembly
Position: Front Lower Front
2000 Audi A4 Suspension Control Arm and Ball Joint Assembly
Position: Front Lower Front
2001 Audi A4 Suspension Control Arm and Ball Joint Assembly
Position: Front Lower Front
1996 Audi A4 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Lower Front
1997 Audi A4 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Lower Front
1998 Audi A4 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Lower Front
1999 Audi A4 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Lower Front
2000 Audi A4 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Lower Front
2001 Audi A4 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Lower Front
1997 Audi A8 Suspension Control Arm and Ball Joint Assembly
Position: Front Lower Front
1998 Audi A8 Suspension Control Arm and Ball Joint Assembly
Position: Front Lower Front
1999 Audi A8 Suspension Control Arm and Ball Joint Assembly
Position: Front Lower Front
1997 Audi A8 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Lower Front
1998 Audi A8 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Lower Front
1999 Audi A8 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Lower Front
1998 Audi A6 Suspension Control Arm and Ball Joint Assembly
Position: Front Lower Front
1999 Audi A6 Suspension Control Arm and Ball Joint Assembly
Position: Front Lower Front
2000 Audi A6 Suspension Control Arm and Ball Joint Assembly
Position: Front Lower Front
2001 Audi A6 Suspension Control Arm and Ball Joint Assembly
Position: Front Lower Front
2002 Audi A6 Suspension Control Arm and Ball Joint Assembly
Position: Front Lower Front
Up to chassis # 031500, and for vehicles with 15" or 16" wheels
1998 Audi A6 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Lower Front
From chassis # 000001, with 15" or 16" wheels
1999 Audi A6 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Lower Front
With 15" or 16" wheels
2000 Audi A6 Quattro Suspension Control Arm and Ball Joint Assembly
Engine base: 2.7L V6, Sub model: Base, Position: Front Lower Front
With 15" or 16" wheels
2000 Audi A6 Quattro Suspension Control Arm and Ball Joint Assembly
Engine base: 2.8L V6, Sub model: Base, Position: Front Lower Front
With 15" or 16" wheels
2000 Audi A6 Quattro Suspension Control Arm and Ball Joint Assembly
Engine base: 2.8L V6, Sub model: Avant, Position: Front Lower Front
With 15" or 16" wheels
2001 Audi A6 Quattro Suspension Control Arm and Ball Joint Assembly
Engine base: 2.7L V6, Sub model: Base, Position: Front Lower Front
With 15" or 16" wheels
2001 Audi A6 Quattro Suspension Control Arm and Ball Joint Assembly
Engine base: 2.8L V6, Sub model: Base, Position: Front Lower Front
With 15" or 16" wheels
2001 Audi A6 Quattro Suspension Control Arm and Ball Joint Assembly
Engine base: 2.8L V6, Sub model: Avant, Position: Front Lower Front
With 15" or 16" wheels
2002 Audi A6 Quattro Suspension Control Arm and Ball Joint Assembly
Engine base: 2.7L V6, Sub model: Base, Position: Front Lower Front
Up to chassis # 031500, with 15" or 16" wheels
2002 Audi A6 Quattro Suspension Control Arm and Ball Joint Assembly
Engine base: 3.0L V6, Sub model: Base, Position: Front Lower Front
Up to chassis # 031500, with 15" or 16" wheels
2002 Audi A6 Quattro Suspension Control Arm and Ball Joint Assembly
Engine base: 3.0L V6, Sub model: Avant, Position: Front Lower Front
Up to chassis # 031500, with 15" or 16" wheels
1998 Volkswagen Passat Suspension Control Arm and Ball Joint Assembly
Position: Front Lower Front
1999 Volkswagen Passat Suspension Control Arm and Ball Joint Assembly
Position: Front Lower Front
2000 Volkswagen Passat Suspension Control Arm and Ball Joint Assembly
Position: Front Lower Front
2001 Volkswagen Passat Suspension Control Arm and Ball Joint Assembly
Position: Front Lower Front
2002 Volkswagen Passat Suspension Control Arm and Ball Joint Assembly
Position: Front Lower Front
2003 Volkswagen Passat Suspension Control Arm and Ball Joint Assembly
Position: Front Lower Front
Up to chassis # 072000
2000 Audi S4 Suspension Control Arm and Ball Joint Assembly
Position: Front Lower Front
From chassis # 080001
2001 Audi S4 Suspension Control Arm and Ball Joint Assembly
Position: Front Lower Front
2002 Audi S4 Suspension Control Arm and Ball Joint Assembly
Position: Front Lower Front
Product match fitment

Audi VW Control Arm (A4 A6 S4 Passat) - TRW M 4D0407151P

Brand:
Trw logoTRW
SKU #:
TRW-JTC343
Part:
Suspension Control Arm and Ball Joint Assembly
OE Numbers:
JTC343,4D0407151A,4D0407151B,4D0407151D,4D0407151E,4D0407151G,4D0407151H,4D0407151K,4D0407151P
FCP ID:
51648
$73.22 MSRP: $74.99
