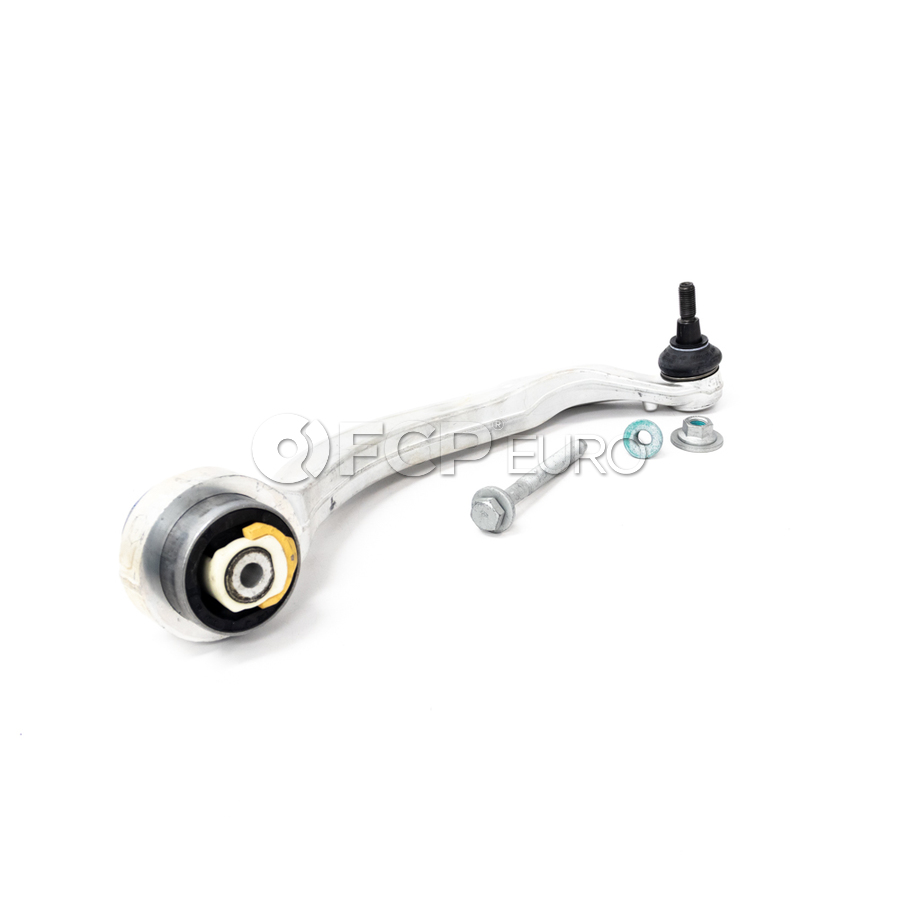

Audi VW Control Arm (A4 A6 S4 Passat) - Lemforder M 8E0407694AG

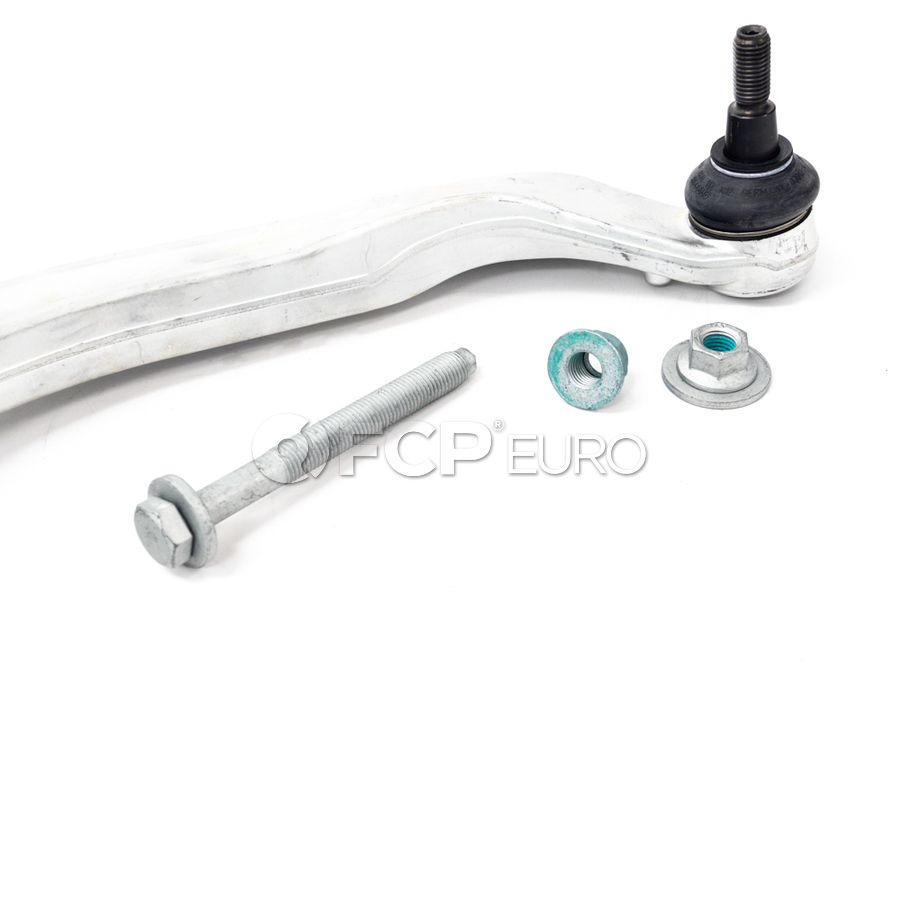

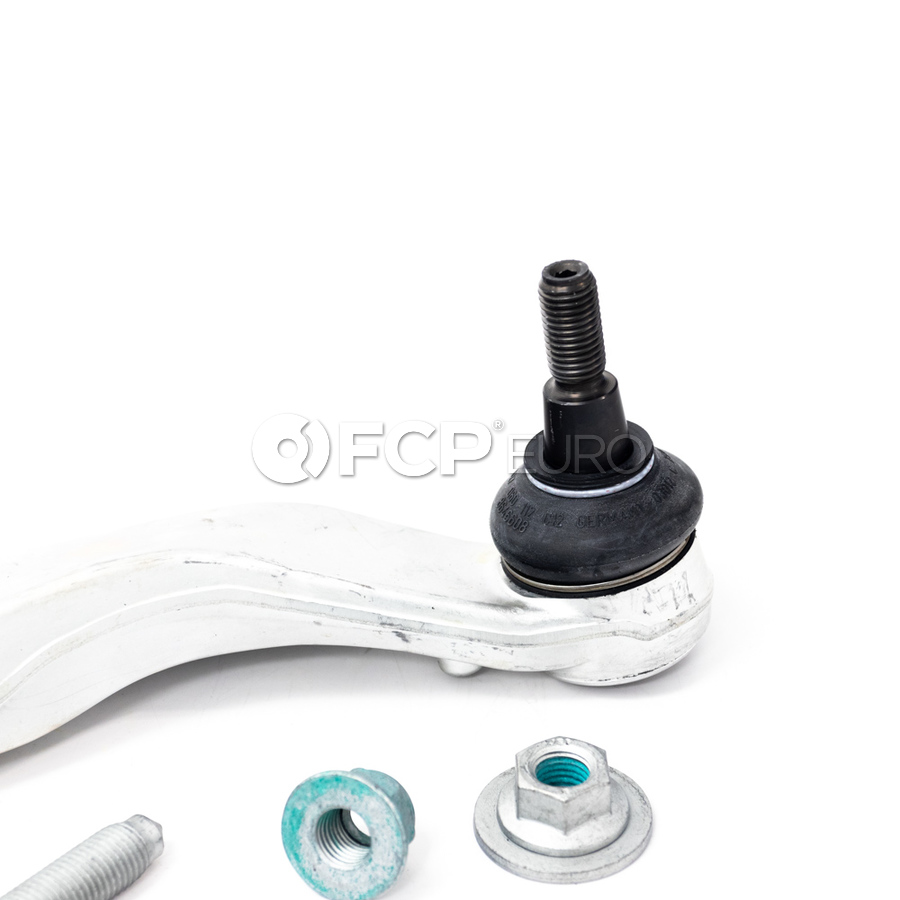

Ball joint faces up

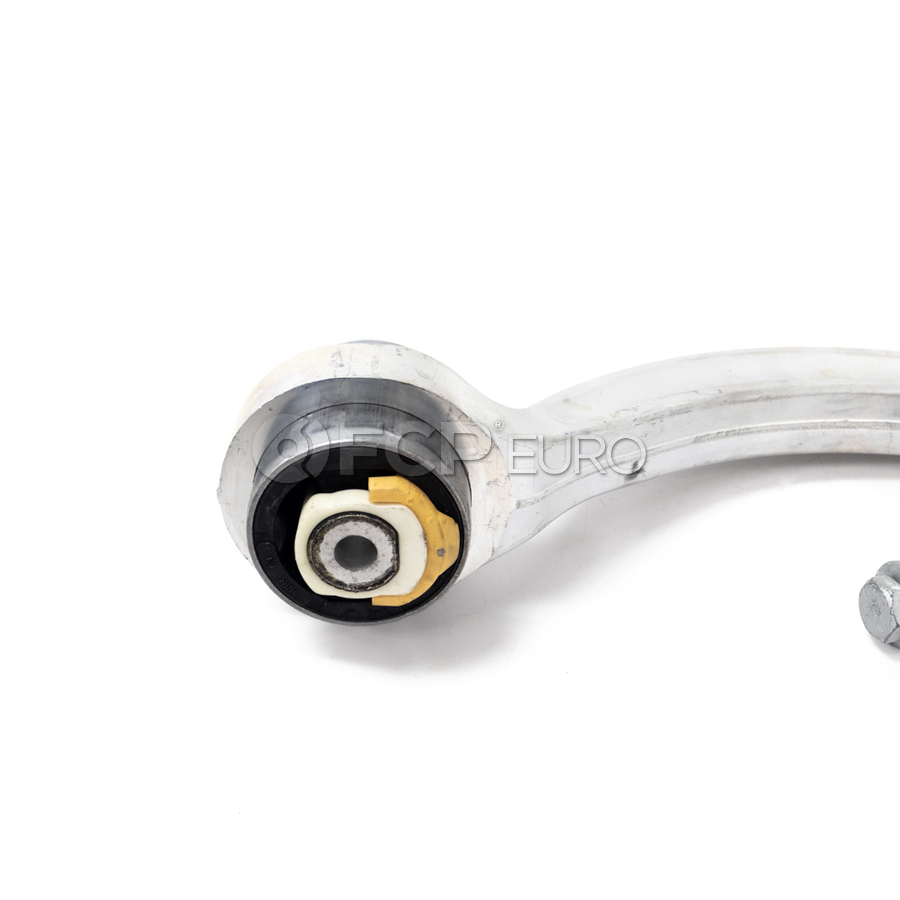

Audi’s and Volkswagen’s with the complicated multilink control arm front suspension design are known to chew through control arm bushings and ball joints. If the front end is making knocking sounds or feels loose there are two places to look. The first wear point to inspect is the inner control arm bushing which can wear out developing play. Any tears or cracks in the rubber bushing are a good sign that it has failed. The second place to look for wear and play is the ball joint. If there is play between the ball joint and ball joint housing the arm will need to be replaced. In addition, if the ball joint rubber boot has torn or is leaking the ball joint will likely fail soon as water and debris are allowed to enter the ball joint. While the control arms can be replaced individually as they wear we believe that it is safer and more convenient to replace components in complimenting pairs. Doing so will ensure proper suspension performance and service life.

Fits These Cars:

1996 Audi A4 Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
1997 Audi A4 Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
1998 Audi A4 Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
1999 Audi A4 Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2000 Audi A4 Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2001 Audi A4 Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2002 Audi A4 Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2003 Audi A4 Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2004 Audi A4 Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2005 Audi A4 Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
Fits Thru Chassis 400000
1996 Audi A4 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
1997 Audi A4 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
1998 Audi A4 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
1999 Audi A4 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2000 Audi A4 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2001 Audi A4 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2002 Audi A4 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2003 Audi A4 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2004 Audi A4 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2005 Audi A4 Quattro Suspension Control Arm and Ball Joint Assembly
Sub model: Base, Position: Front Right Lower Rear
Fits Thru Chassis 400000
2005 Audi A4 Quattro Suspension Control Arm and Ball Joint Assembly
Sub model: Avant, Position: Front Right Lower Rear
Fits Thru Chassis 400000
2005 Audi A4 Quattro Suspension Control Arm and Ball Joint Assembly
Sub model: Cabriolet, Position: Front Right Lower Rear
2006 Audi A4 Quattro Suspension Control Arm and Ball Joint Assembly
Sub model: Cabriolet, Position: Front Right Lower Rear
1997 Audi A8 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
1998 Audi A8 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
1999 Audi A8 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2000 Audi A8 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2001 Audi A8 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2002 Audi A8 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2003 Audi A8 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
1998 Audi A6 Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
1999 Audi A6 Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2000 Audi A6 Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2001 Audi A6 Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2002 Audi A6 Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2003 Audi A6 Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2004 Audi A6 Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
1998 Audi A6 Quattro Suspension Control Arm and Ball Joint Assembly
Engine designation: AHA, Position: Front Right Lower Rear
1999 Audi A6 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2000 Audi A6 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2001 Audi A6 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2002 Audi A6 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2003 Audi A6 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2004 Audi A6 Quattro Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
1998 Volkswagen Passat Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
1999 Volkswagen Passat Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2000 Volkswagen Passat Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2001 Volkswagen Passat Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2002 Volkswagen Passat Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2003 Volkswagen Passat Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2004 Volkswagen Passat Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2005 Volkswagen Passat Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2000 Audi S4 Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2001 Audi S4 Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2002 Audi S4 Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2004 Audi S4 Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2005 Audi S4 Suspension Control Arm and Ball Joint Assembly
Sub model: Base, Position: Front Right Lower Rear
Fits Thru Chassis 400000
2005 Audi S4 Suspension Control Arm and Ball Joint Assembly
Sub model: Avant, Position: Front Right Lower Rear
Fits Thru Chassis 400000
2005 Audi S4 Suspension Control Arm and Ball Joint Assembly
Sub model: Cabriolet, Position: Front Right Lower Rear
2006 Audi S4 Suspension Control Arm and Ball Joint Assembly
Sub model: Cabriolet, Position: Front Right Lower Rear
2007 Audi S4 Suspension Control Arm and Ball Joint Assembly
Sub model: Cabriolet, Position: Front Right Lower Rear
2008 Audi S4 Suspension Control Arm and Ball Joint Assembly
Sub model: Cabriolet, Position: Front Right Lower Rear
2001 Audi S8 Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2002 Audi S8 Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2003 Audi S8 Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2002 Audi S6 Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2003 Audi S6 Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2003 Audi RS6 Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
2004 Audi RS6 Suspension Control Arm and Ball Joint Assembly
Position: Front Right Lower Rear
Product match fitment

Audi VW Control Arm (A4 A6 S4 Passat) - Lemforder M 8E0407694AG

Brand:
Lemforder logoLemforder
SKU #:
LEM-1367702
Part:
Suspension Control Arm and Ball Joint Assembly
OE Numbers:
1367702,4D0407694AC,8E0407694AG,8E0407694K,4D0407694AD,4D0407694E,4D0407694G,4D0407694H,4D0407694K,4D0407694M,8E0407694E,8E0407694H,8E0407694P, 8E0407694P
FCP ID:
68358
$133.99 MSRP: $161.99
