Genuine VW Audi
SKU: KIT-06K109158ADKT2

Audi Timing Chain Kit - Genuine Audi 06K109158ADKT2

A4 Quattro, A5 Quattro, allroad, Q5



Available
Ships in 1 business day
Price each: $1,100.87
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.
QTY
Make sure this fits your car
To ensure fitment and browse only products that fit, please select a vehicle first.

Description

Details

SKU:
KIT-06K109158ADKT2
FCP Euro ID:
Quality:
Genuine

OE Numbers

06K109210, 06K109210AF, 06K109210AE, 510031, 06J115403C, 06J115403M, 06J115403J, 06J115403Q, A0009898301USB6, 0009898301USB6, A0009898301USB7, 0009898301USB7, A0009898301USB8, 0009898301USB8, A0009898301USB9, 0009898301USB9, 83212365950, 83212365946, 07510017866, 07510002545, 07510143829, 07511469399, 83215A2AF99, 83212466454, 83215A2AF83, 83215B34347, N0160276, N0138157, N0138498, PAF013849, PAF016027, PAF013815, 06H103144J, 06H103144F, 06H103144G, 06H103144H, 06H103144K, 06H103483C, 06H109469AP, 06H109469AJ, 06H109469T, 06H109509AA, 06H109509Q

MFG Numbers

TCV0158, 510031, W71945, 2332, LM2332, 220150S, 982340, N/A, 861526

This Kit Includes

Qty Part SKU Brand Price
1 Engine Timing Cover CRP-TCV0158 $269.42
1 Gasket Maker ELR-510031 $10.05
1 Engine Oil Filter MAN-W71945 $16.60
1 Engine Oil MOL-LM2332 $66.99
1 Engine Oil Drain Plug OES-N0160276 $5.91
1 Engine Camshaft Bracket VAG-06H103144K $292.54
1 Engine Timing Cover Gasket VAG-06H103483C $36.71
1 Engine Timing Chain Guide VAG-06H109469AP $23.83
1 Engine Timing Chain Guide VAG-06H109469T $12.55
1 Engine Timing Chain Guide VAG-06H109509Q $27.23
1 Engine Timing Chain VAG-06K109158BP $195.10
1 Engine Timing Chain Tensioner VAG-06K109467K $77.30
6 Engine Water Pump Bolt OES-N10470705 $13.74
2 Torx Bolt OES-N10554005 $4.88
1 Seat Belt Height Adjuster Screw VAG-N10572403 $1.88
1 Engine Timing Chain Guide Bolt VAG-N91130301 $5.79
2 Engine Timing Chain Guide Bolt OES-N91130401 $4.18
1 Engine Crankshaft Pulley Bolt VAG-WHT009475 $8.29
1 Engine Coolant / Antifreeze ZER-861526 $27.88

Product Information

This kit is designed for the infamous P0016 Cam/Crank Correlation Code.

If you are experiencing slow crank or no start we recommend you to scan the vehicle for faults first. If fault P0016 Cam/Crank Correlation fault shows its more then likely its time to replace your timing chain. We recommend you to check base timing, perform cylinder compression, and performed cylinder leak down. If you find low compression or cylinder leak we recommend you to use a bore-scope to check intake & exhaust valves for damage. If the valves are bent you will need to replace them as well.

Diagnosis Procedures To Check Before Repairing Your Timing Chain:

  • Scan Vehicle For Faults
  • Check Base Timing
  • Cylinder Compression Test
  • Cylinder Leak Down Test

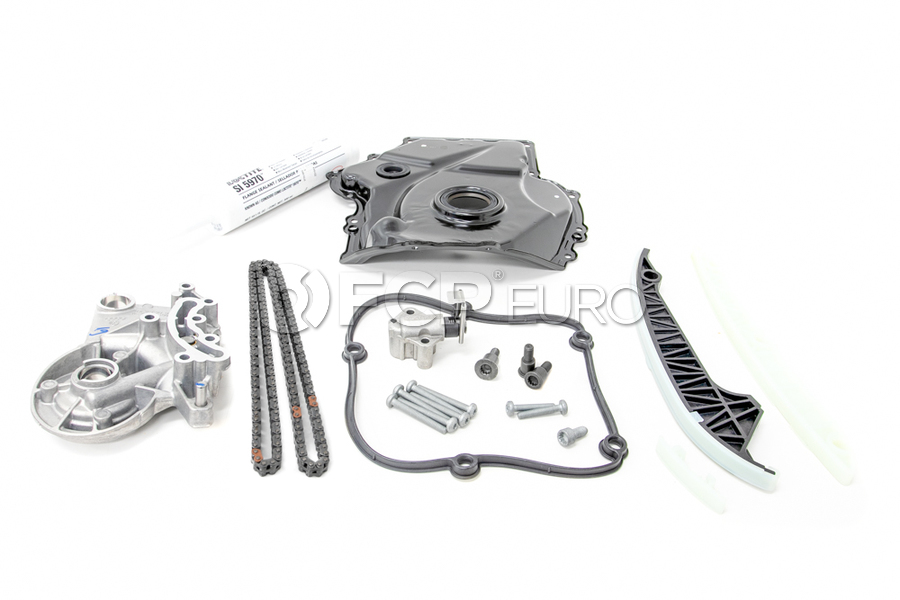

This Timing Chain Kit Includes:

  • Timing Chain (Camshafts To Crank Shaft)

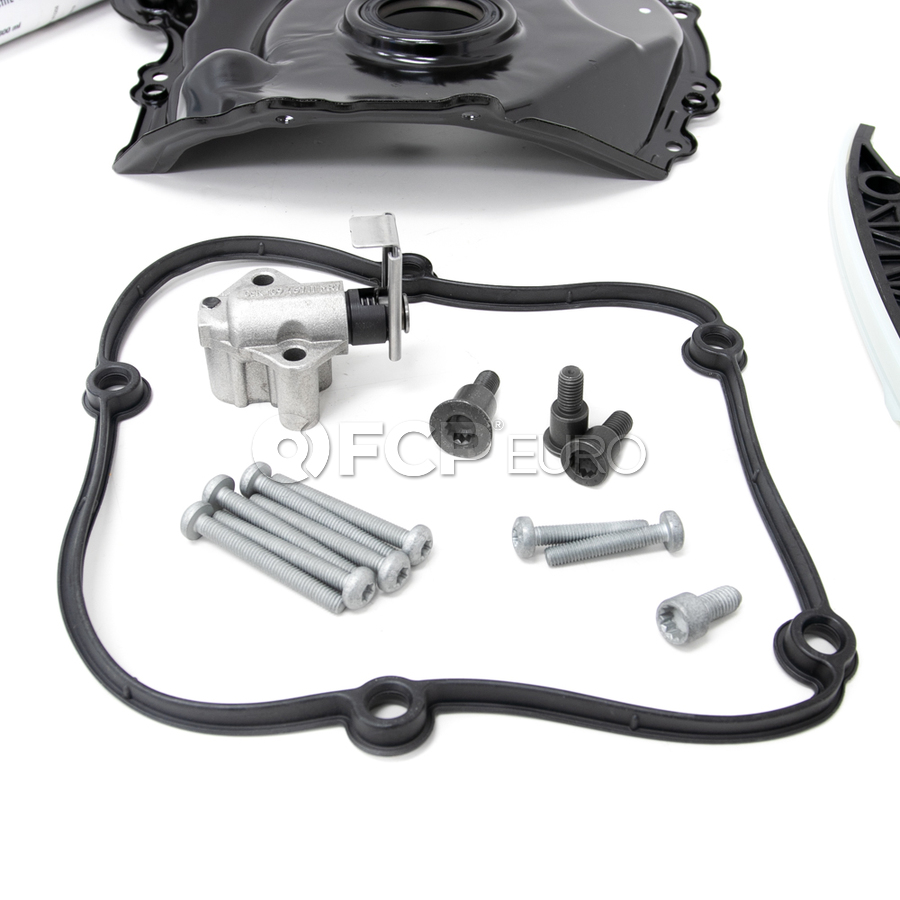

  • Timing Chain Tensioner (Updated Version)

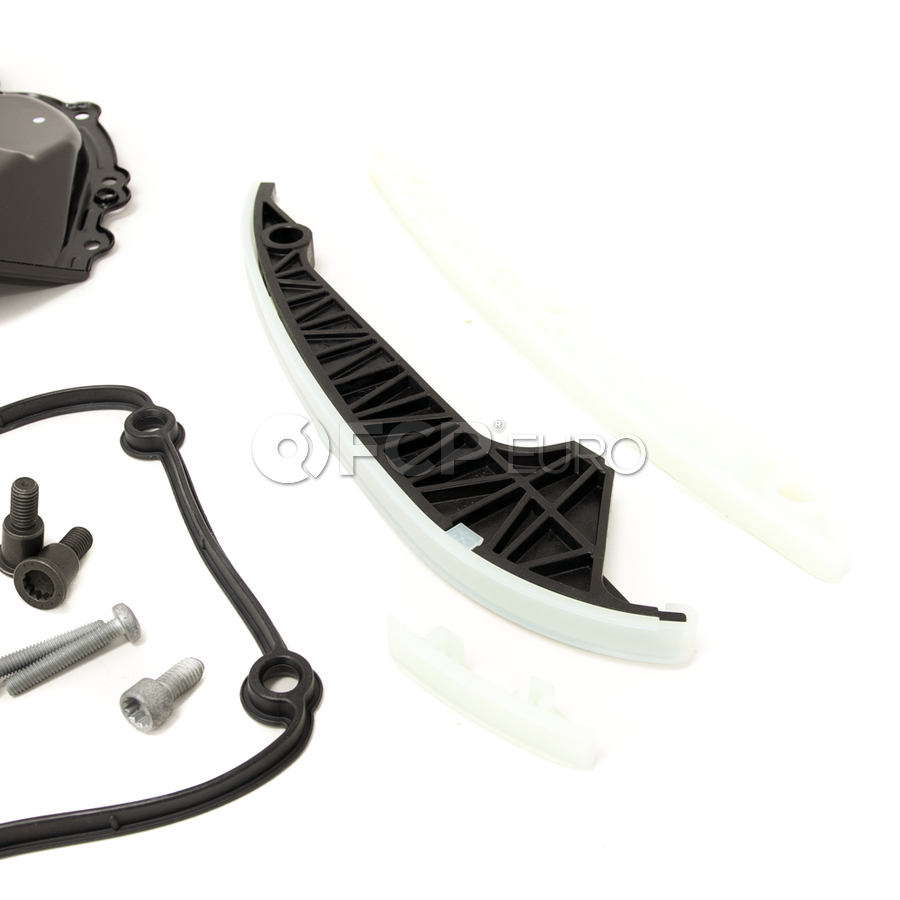

  • Guide Rails

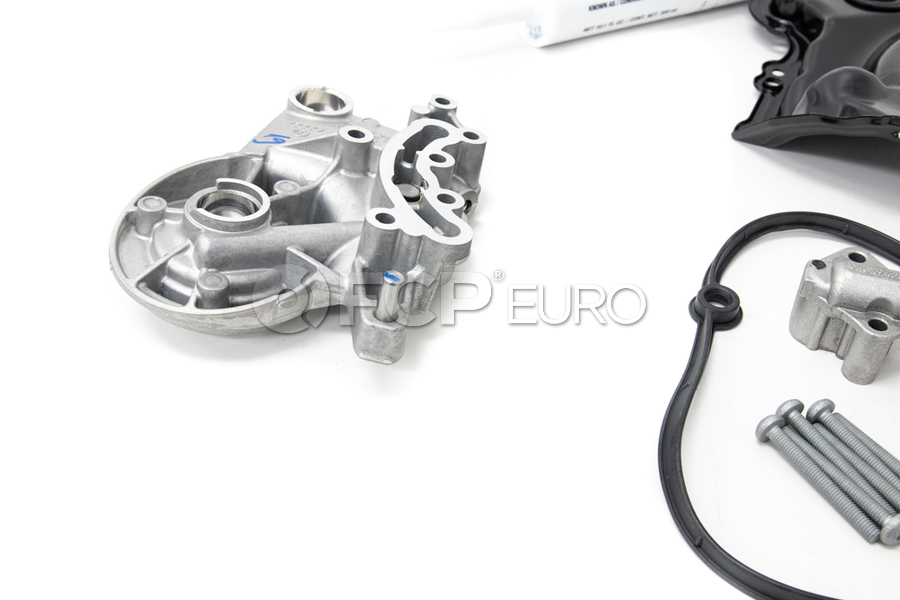

  • Cambridge
  • Upper Timing Chain Cover Gasket

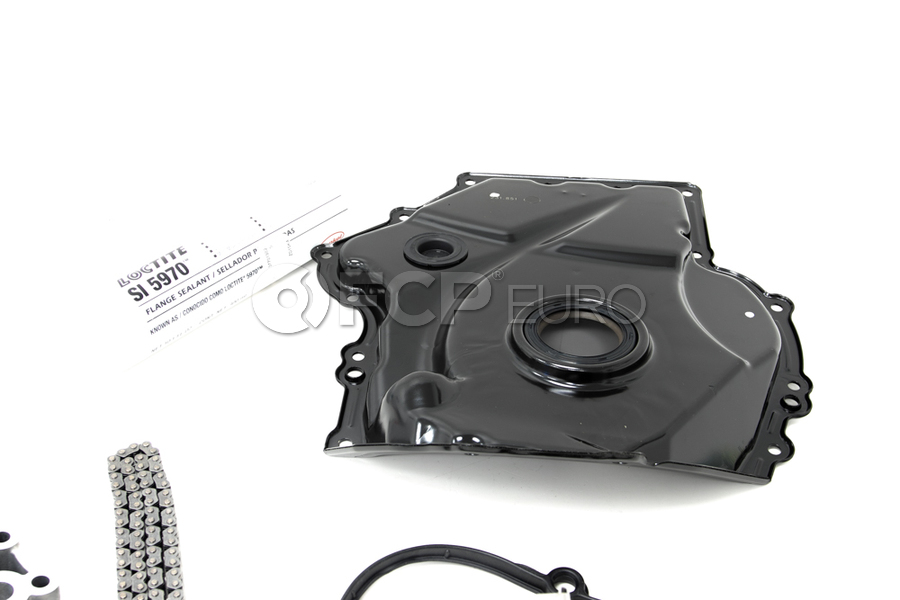

  • Lower Timing Chain Cover
  • New Hardware To Complete Timing Chain Service

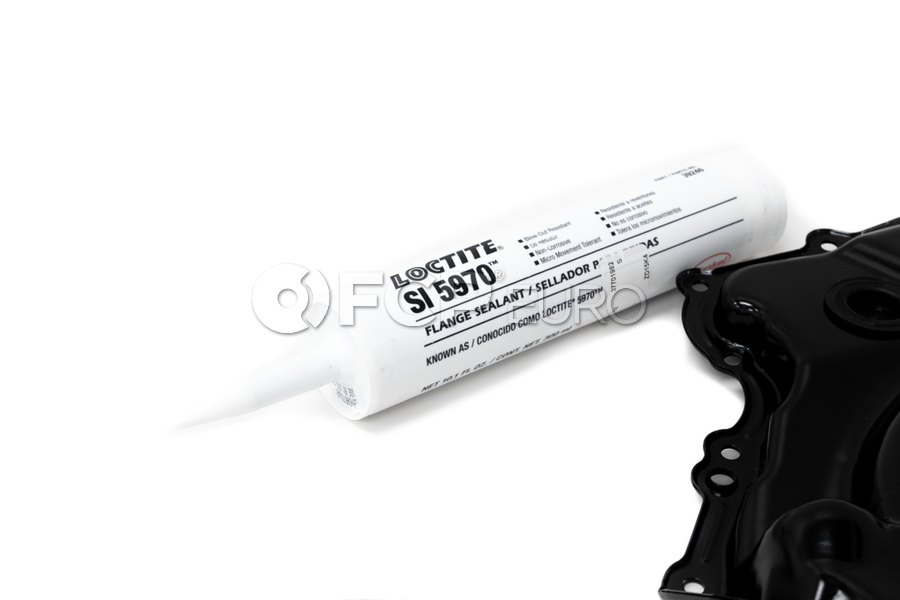

  • Sealant To Seal Lower Timing Chain Cover
  • 5W-40 Liqui Moly Oil Change Kit
  • G13 Coolant

Torque Specs:

  • Timing Chain Tensioner Bolts (9 Nm)
  • Timing Chain Tensioner Guide Bolt (20 Nm)
  • Timing Chain Guide Bolts (20 Nm)
  • Cambridge Bolts T30 (9 Nm)
  • Cambridge Bolt Triple Square M6 (8 Nm + 90°) M8 (20 Nm + 90°)
  • Cambridge Bolt That Requires Special Tool Camshaft Adjusting Socket LEFT HAND THREAD (35 Nm)
  • Lower Timing Chain Cover Bolts (8 Nm)
  • Crankshaft Bolt (150 Nm + 90°)

Engine Timing Chain Kit

An engine timing chain is a crucial component in an internal combustion engine that synchronizes the rotation of the crankshaft and camshafts. It ensures that the engine's valves open and close at the proper times during each cylinder's intake and exhaust strokes, maintaining optimal engine performance. Timing chains are typically made of metal and are designed to last for the life of the engine, though they can wear out or become damaged over time. Damaged or stretched chains can impact the timing on an engine and overwork the tensioner, failures in this system can cause catastrophic engine failure and costly repairs.

Engine Timing Chain Kit Failure Symptoms
  • Noise: A common symptom of a failing timing chain is a rattling or slapping noise coming from the engine, especially during startup or acceleration. This noise may be more pronounced at idle or startup
  • Poor Engine Performance: If the timing chain is stretched, it can lead to decreased power, acceleration problems, or sluggish performance

About Genuine VW Audi

The Volkswagen Group, also known as “VAG”, consists of Volkswagen, Audi, Lamborghini, Bentley, Bugatti, Porsche, Ducati, MAN, Scania, SEAT, and Skoda. The original parts used by VAG to build your car are available as replacement parts under the “Genuine VAG” brand. Manufactured under the direction of VAG, expect excellent quality and a premium price since these parts are available exclusively through the VAG Dealership network.

You may not realize this, but the parts that make up your VAG are not necessarily manufactured by VAG. No cause for concern, as VAG designs the part, hires a manufacturer, and ensures its quality to you. In fact, many of these manufacturers have been making parts for VAG for decades. In our industry these manufacturers are called OEM (Original Equipment Manufacturers), and these are often brands you recognize, including Lemforder, ZF, Sachs, Bosch, Valeo, Zimmermann, Siemens VDO, Corteco, and more. Don’t be surprised to open that Genuine VAG parts box and find an OEM branded part inside, simply with the addition of a VAG logo.

Be sure to keep an eye out for OE tags on our product pages to quickly identify parts coming direct from OE manufacturers. That extra bit of insight could save you some serious money while shopping! Refer to our OE Academy for further information regarding the OE/OEM tags throughout the site.

Fits These Cars

Audi A4 Quattro

  • 2013 Audi A4 Quattro Engine Timing Chain Kit
    Automatic AWD Sedan 2.0L L4 CPMA Flex
  • 2013 Audi A4 Quattro Engine Timing Chain Kit
    Manual AWD Sedan 2.0L L4 CPMA Flex

Audi A5 Quattro

  • 2013 Audi A5 Quattro Engine Timing Chain Kit
    Automatic AWD Coupe 2.0L L4 CPMA Flex
  • 2013 Audi A5 Quattro Engine Timing Chain Kit
    Manual AWD Coupe 2.0L L4 CPMA Flex
  • 2013 Audi A5 Quattro Cabriolet Engine Timing Chain Kit
    Automatic AWD Convertible 2.0L L4 CPMA Flex

Audi allroad

  • 2013 Audi allroad Premium Engine Timing Chain Kit
    Automatic AWD Wagon 2.0L L4 CPMA Flex
  • 2013 Audi allroad Premium Plus Engine Timing Chain Kit
    Automatic AWD Wagon 2.0L L4 CPMA Flex
  • 2013 Audi allroad Prestige Engine Timing Chain Kit
    Automatic AWD Wagon 2.0L L4 CPMA Flex

Audi Q5

  • 2013 Audi Q5 Premium Engine Timing Chain Kit
    Automatic AWD Sport Utility 2.0L L4 CPMA Flex
  • 2013 Audi Q5 Premium Plus Engine Timing Chain Kit
    Automatic AWD Sport Utility 2.0L L4 CPMA Flex

Product Reviews

There are no reviews yet. Be the first to leave a review.

Questions & Answers

Ask a question
Question Posted by Riccardo
The video guide on YouTube mentions it will this kit will work for a 2017 Audi Q5 with a CPMB engine code?
Answer (Posted by FCP Euro Products Team)
No, for that application you would need the below kit. https://www.fcpeuro.com/products/audi-timing-chain-kit-genuine-audi-06k109158adkt24
Question Posted by matthew
this wont fit the 2012 audi a4? but when i click every link on this it shows that it will separately
Answer (Posted by FCP Euro Products Team)
Looking at the fitment guide, this kit should fit the CAEB engine code as well. I will see about having the application guides updated.
