More Watch Audi Timing Chain Kit - Genuine Audi 06K109158ADKT
Audi Timing Chain Kit - Genuine Audi 06K109158ADKT Audi Timing Chain Kit - Genuine Audi 06K109158ADKT Audi Timing Chain Kit - Genuine Audi 06K109158ADKT Audi Timing Chain Kit - Genuine Audi 06K109158ADKT Audi Timing Chain Kit - Genuine Audi 06K109158ADKT Audi Timing Chain Kit - Genuine Audi 06K109158ADKT Audi Timing Chain Kit - Genuine Audi 06K109158ADKT Audi Timing Chain Kit - Genuine Audi 06K109158ADKT Audi Timing Chain Kit - Genuine Audi 06K109158ADKT Watch
Genuine VW Audi
SKU: KIT-06K109158ADKT

Audi Timing Chain Kit - Genuine Audi 06K109158ADKT

A4, A4 Quattro, A5, A5 Quattro, A6

For Models W/ CAEB Engine Code

Save for later
1 Rating
Available
Ships in 1 business day
Price each: $1,304.71
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.
QTY
Make sure this fits your car
Validate fitment
To ensure fitment and browse only products that fit, please select a vehicle first.
What does this include?

Description

Details

SKU:
KIT-06K109158ADKT
FCP Euro ID:
Quality:
Genuine

OE Numbers

06H109467N, 06H109467T, 06H109467AB, 06K109467K, 06H109469AP, 06H109469AJ, 06H109509AA, 06H109509Q, 06H109469T, 06H103144J, 06H103144F, 06H103144G, 06H103144H, 06H103144K, 06H109210Q, 06H109210AG, 06H103483C, WHT009475, 4L1955425C, WHT001760, PAF009475, N10554001, N10554005, N91130301, PAF008944, N91130401, N01473910, N10572403, D174003M2, 1J0611763R, 06H109469N, 06H109469AQ, 06H109469AH, 06H109509P, 06H109467AJ, 06H109467AF, 06H109467AR, 06H109467BA, 06K109158A, 06H109158H, 06H109158D, 06K109158BS, 06K109158AM, 06K109158, 06K109158AA, 06K109158AD

MFG Numbers

N/A, 46276, 101796, 51006003, 50052405

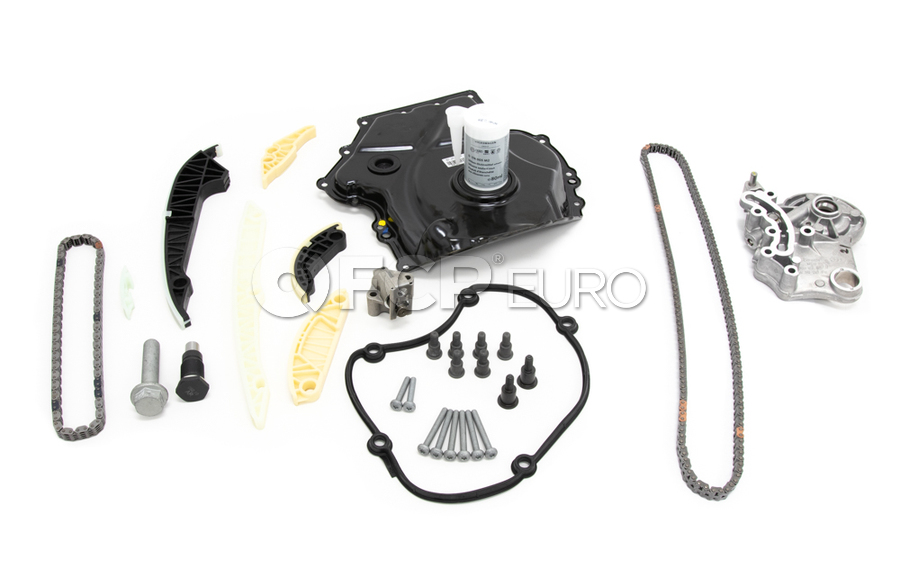

This Kit Includes

Qty Part SKU Brand Price
1 Engine Timing Chain Tensioner VAG-06K109467K $77.30
1 Engine Timing Chain Guide VAG-06H109469AP $23.83
1 Engine Timing Chain Guide VAG-06H109509Q $27.23
1 Engine Timing Chain Guide VAG-06H109469T $12.55
1 Engine Camshaft Bracket VAG-06H103144K $292.54
1 Engine Timing Cover VAG-06H109210AG $213.82
1 Engine Timing Cover Gasket VAG-06H103483C $36.71
1 Engine Crankshaft Pulley Bolt VAG-WHT009475 $8.29
2 Torx Bolt OES-N10554005 $4.88
2 Engine Timing Chain Guide Bolt VAG-N91130301 $11.58
6 Engine Timing Chain Guide Bolt OES-N91130401 $12.54
1 Seat Belt Height Adjuster Screw VAG-N10572403 $1.88
1 Engine Sealant VAG-D174003M2 $41.29
1 Engine Balance Shaft Chain Guide VAG-06H109469AQ $28.13
1 Engine Balance Shaft Chain Guide VAG-06H109469AH $20.54
1 Engine Balance Shaft Chain Guide VAG-06H109509P $25.41
1 Engine Balance Shaft Chain Tensioner FEB-101796 $98.99
1 Engine Balance Shaft Chain IWI-50052405 $140.51
1 Engine Timing Chain VAG-06K109158BP $195.10
6 Engine Water Pump Bolt OES-N10470705 $13.74
15 Bolt OES-N91096702 $17.85

Product Information

This kit is designed for the infamous P0016 Cam/Crank Correlation Code.

If you are experiencing a slow crank or no start we recommend you to scan the vehicle for faults first. If fault P0016 Cam/Crank Correlation fault shows its more than likely time to replace your timing chain. We recommend you to check base timing, perform cylinder compression and performed cylinder leak down. If you find low compression or cylinder leak we recommend you to use a bore-scope to check intake & exhaust valves for damage. If the valves are bent you will need to replace them as well.

Diagnosis Procedures To Check Before Repairing Your Timing Chain:

  • Scan Vehicle For Faults
  • Check Base Timing
  • Cylinder Compression Test
  • Cylinder Leak Down Test

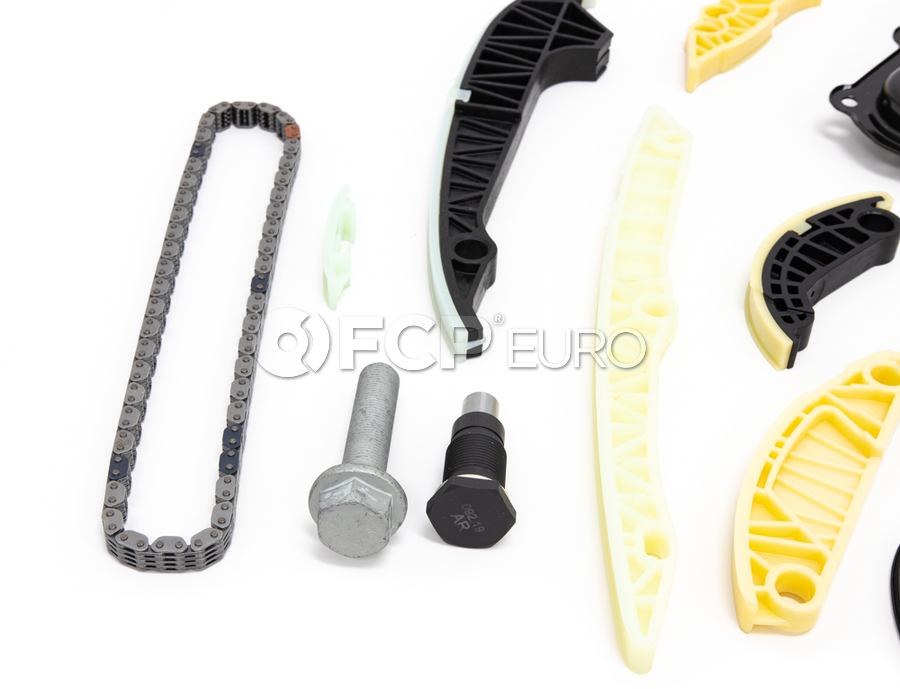

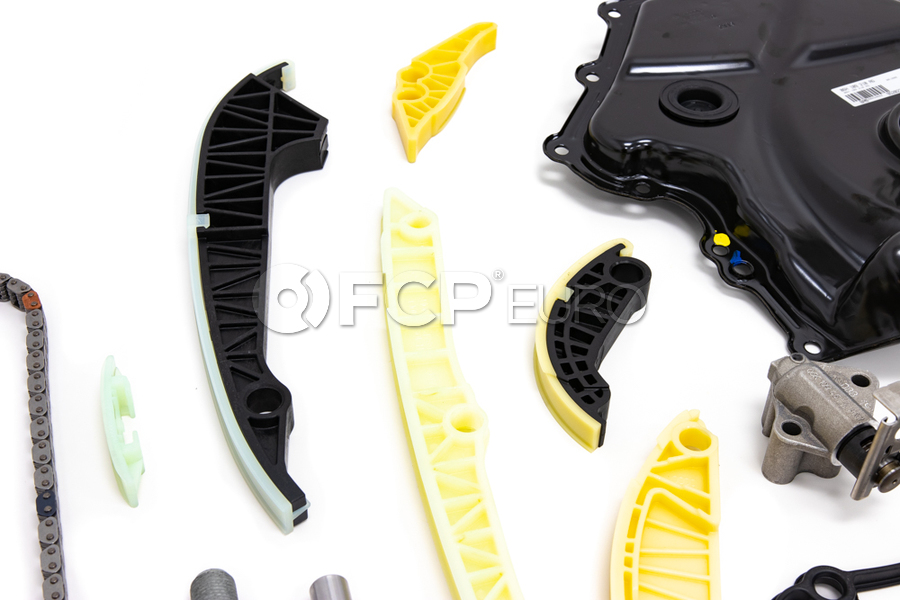

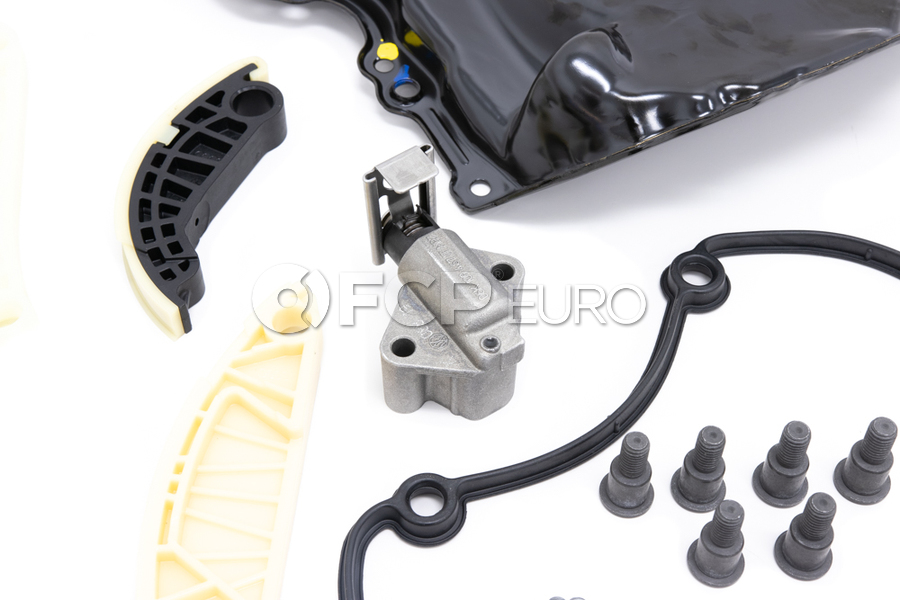

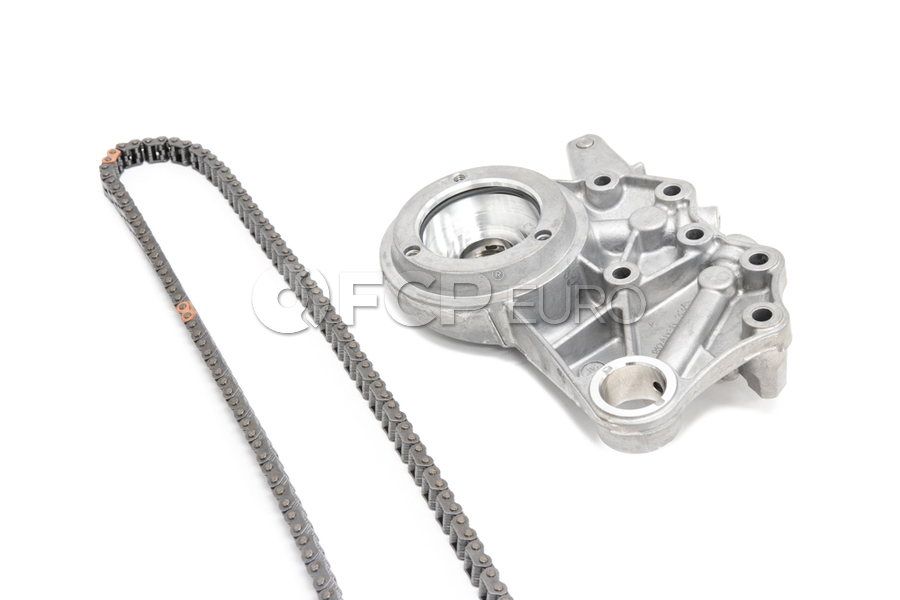

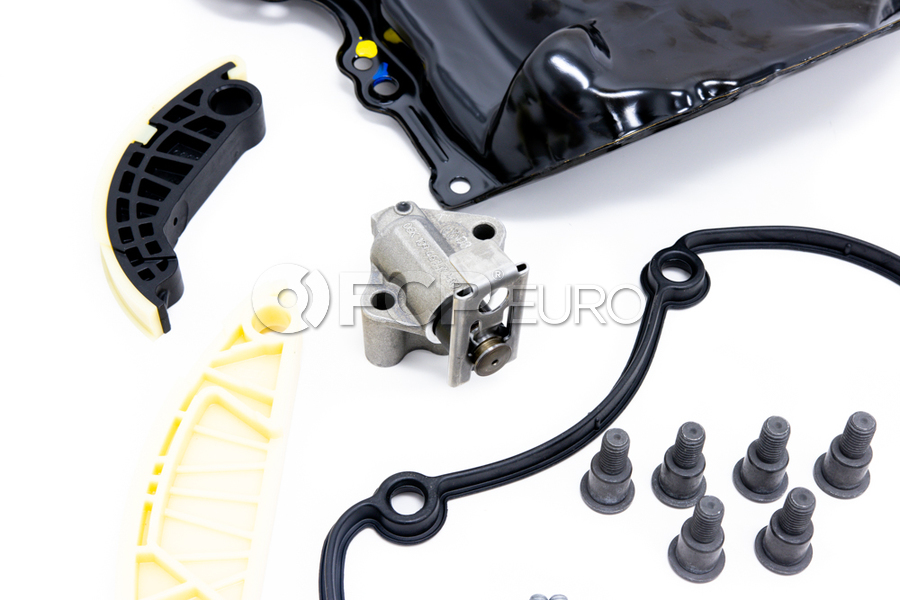

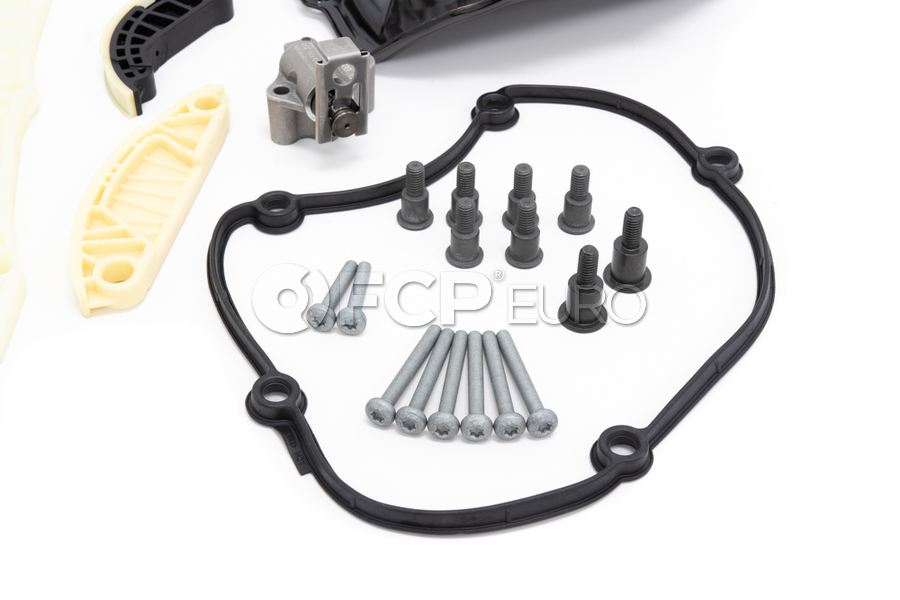

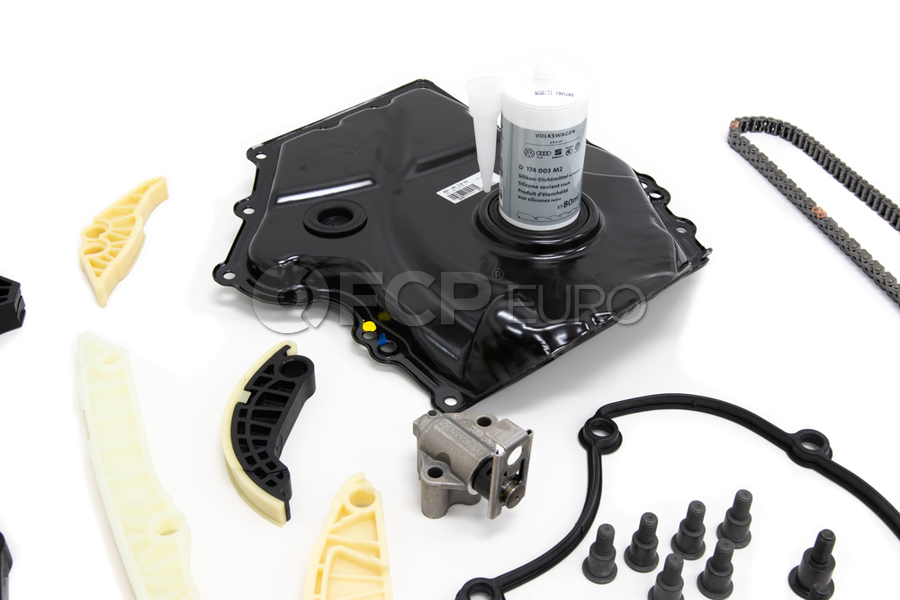

This Timing Chain Kit Includes:

  • Timing Chain (Camshafts To Crank Shaft)
  • Timing Chain Tensioner (Updated Version)
  • Timing Chain For Balanceshafts
  • Guide Rails
  • Cambridge
  • Upper Timing Chain Cover Gasket
  • Lower Timing Chain Cover
  • New Hardware To Complete Timing Chain Service
  • Sealant To Seal Lower Timing Chain Cover

Torque Specs:

  • Timing Chain Tensioner Bolts (9 Nm)
  • Timing Chain Tensioner Guide Bolt (20 Nm)
  • Timing Chain Guide Bolts (20 Nm)
  • Cambridge Bolts T30 (9 Nm)
  • Cambridge Bolt Triple Square M6 (8 Nm + 90°) M8 (20 Nm + 90°)
  • Cambridge Bolt That Requires Special Tool Camshaft Adjusting Socket LEFT HAND THREAD (35 Nm)
  • Lower Timing Chain Cover Bolts (8 Nm)
  • Crankshaft Bolt (150 Nm + 90°)
  • Balanceshaft Timing Chain Guides (20 Nm)
  • Balanceshaft Timing Chain Tensioner (85 Nm)
Engine Timing Chain Kit

An engine timing chain is a crucial component in an internal combustion engine that synchronizes the rotation of the crankshaft and camshafts. It ensures that the engine's valves open and close at the proper times during each cylinder's intake and exhaust strokes, maintaining optimal engine performance. Timing chains are typically made of metal and are designed to last for the life of the engine, though they can wear out or become damaged over time. Damaged or stretched chains can impact the timing on an engine and overwork the tensioner, failures in this system can cause catastrophic engine failure and costly repairs.

Engine Timing Chain Kit Failure Symptoms
  • Noise: A common symptom of a failing timing chain is a rattling or slapping noise coming from the engine, especially during startup or acceleration. This noise may be more pronounced at idle or startup
  • Poor Engine Performance: If the timing chain is stretched, it can lead to decreased power, acceleration problems, or sluggish performance

Additional Information

About Genuine VW Audi

The Volkswagen Group, also known as “VAG”, consists of Volkswagen, Audi, Lamborghini, Bentley, Bugatti, Porsche, Ducati, MAN, Scania, SEAT, and Skoda. The original parts used by VAG to build your car are available as replacement parts under the “Genuine VAG” brand. Manufactured under the direction of VAG, expect excellent quality and a premium price since these parts are available exclusively through the VAG Dealership network.

You may not realize this, but the parts that make up your VAG are not necessarily manufactured by VAG. No cause for concern, as VAG designs the part, hires a manufacturer, and ensures its quality to you. In fact, many of these manufacturers have been making parts for VAG for decades. In our industry these manufacturers are called OEM (Original Equipment Manufacturers), and these are often brands you recognize, including Lemforder, ZF, Sachs, Bosch, Valeo, Zimmermann, Siemens VDO, Corteco, and more. Don’t be surprised to open that Genuine VAG parts box and find an OEM branded part inside, simply with the addition of a VAG logo.

Be sure to keep an eye out for OE tags on our product pages to quickly identify parts coming direct from OE manufacturers. That extra bit of insight could save you some serious money while shopping! Refer to our OE Academy for further information regarding the OE/OEM tags throughout the site.

Fits These Cars

Audi A4

  • 2009 Audi A4 Engine Timing Chain Kit
    Automatic CVT FWD Sedan 2.0L L4 CAEB Gas
  • 2010 Audi A4 Engine Timing Chain Kit
    Automatic CVT FWD Sedan 2.0L L4 CAEB Gas
  • 2011 Audi A4 Engine Timing Chain Kit
    Automatic CVT FWD Sedan 2.0L L4 CAEB Gas
  • 2012 Audi A4 Engine Timing Chain Kit
    Automatic CVT FWD Sedan 2.0L L4 CAEB Gas
    Notes: For Models To Prodution Date 01-15-2012

Audi A4 Quattro

  • 2009 Audi A4 Quattro Avant Engine Timing Chain Kit
    Automatic AWD Wagon 2.0L L4 CAEB Gas
  • 2009 Audi A4 Quattro Engine Timing Chain Kit
    Automatic AWD Sedan 2.0L L4 CAEB Gas
  • 2009 Audi A4 Quattro Engine Timing Chain Kit
    Manual AWD Sedan 2.0L L4 CAEB Gas
  • 2010 Audi A4 Quattro Avant Engine Timing Chain Kit
    Automatic AWD Wagon 2.0L L4 CAEB Gas
  • 2010 Audi A4 Quattro Engine Timing Chain Kit
    Automatic AWD Sedan 2.0L L4 CAEB Gas
  • 2010 Audi A4 Quattro Engine Timing Chain Kit
    Manual AWD Sedan 2.0L L4 CAEB Gas
  • 2011 Audi A4 Quattro Avant Engine Timing Chain Kit
    Automatic AWD Wagon 2.0L L4 CAEB Gas
  • 2011 Audi A4 Quattro Engine Timing Chain Kit
    Automatic AWD Sedan 2.0L L4 CAEB Gas
  • 2011 Audi A4 Quattro Engine Timing Chain Kit
    Manual AWD Sedan 2.0L L4 CAEB Gas
  • 2012 Audi A4 Quattro Avant Engine Timing Chain Kit
    Automatic AWD Wagon 2.0L L4 CAEB Gas
    Notes: For Models To Prodution Date 01-15-2012
  • 2012 Audi A4 Quattro Engine Timing Chain Kit
    Automatic AWD Sedan 2.0L L4 CAEB Gas
    Notes: For Models To Prodution Date 01-15-2012
  • 2012 Audi A4 Quattro Engine Timing Chain Kit
    Manual AWD Sedan 2.0L L4 CAEB Gas
    Notes: For Models To Prodution Date 01-15-2012

Audi A5

  • 2010 Audi A5 Cabriolet Engine Timing Chain Kit
    Automatic CVT FWD Convertible 2.0L L4 CAEB Gas
  • 2011 Audi A5 Cabriolet Engine Timing Chain Kit
    Automatic CVT FWD Convertible 2.0L L4 CAEB Gas
  • 2012 Audi A5 Cabriolet Engine Timing Chain Kit
    Automatic CVT FWD Convertible 2.0L L4 CAEB Gas
    Notes: For Models To Prodution Date 01-15-2012

Audi A5 Quattro

  • 2010 Audi A5 Quattro Engine Timing Chain Kit
    Automatic AWD Coupe 2.0L L4 CAEB Gas
  • 2010 Audi A5 Quattro Engine Timing Chain Kit
    Manual AWD Coupe 2.0L L4 CAEB Gas
  • 2010 Audi A5 Quattro Cabriolet Engine Timing Chain Kit
    Automatic AWD Convertible 2.0L L4 CAEB Gas
  • 2011 Audi A5 Quattro Engine Timing Chain Kit
    Automatic AWD Coupe 2.0L L4 CAEB Gas
  • 2011 Audi A5 Quattro Engine Timing Chain Kit
    Manual AWD Coupe 2.0L L4 CAEB Gas
  • 2011 Audi A5 Quattro Cabriolet Engine Timing Chain Kit
    Automatic AWD Convertible 2.0L L4 CAEB Gas
  • 2012 Audi A5 Quattro Engine Timing Chain Kit
    Automatic AWD Coupe 2.0L L4 CAEB Gas
    Notes: For Models To Prodution Date 01-15-2012
  • 2012 Audi A5 Quattro Engine Timing Chain Kit
    Manual AWD Coupe 2.0L L4 CAEB Gas
    Notes: For Models To Prodution Date 01-15-2012
  • 2012 Audi A5 Quattro Cabriolet Engine Timing Chain Kit
    Automatic AWD Convertible 2.0L L4 CAEB Gas
    Notes: For Models To Prodution Date 01-15-2012

Audi A6

  • 2012 Audi A6 Premium Engine Timing Chain Kit
    Automatic CVT FWD Sedan 2.0L L4 CAEB Gas
    Notes: For Models To Production Date 1-16-2012
  • 2012 Audi A6 Premium Plus Engine Timing Chain Kit
    Automatic CVT FWD Sedan 2.0L L4 CAEB Gas
    Notes: For Models To Production Date 1-16-2012

Product Reviews

1 Review

5.0
Average rating
Leave a review
Planekiller_1
on Fri, Aug 19 at 10:14PM
Perfect
So your doing timing finally... What took you so long? Well that's ok you came to the right place this kit has been great for 10k and everything needed was included. I would note if your doing timing go ahead and get the valve cover gasket reseal kit as well. Might as well solve all the leaks in one go. Also consider getting the timing tool kit. It really helped me with the process. Then hop on YT and make sure you only need to do the job once.

Questions & Answers

Ask a question
Question Posted by a customer
Would this also be compatible with CDNB engines as well?
Answer (Posted by FCP Euro Products Team)
We can not verify fitment for non US models.
Question Posted by Tara
Is this tensioner update lasting? asking because i'm hearing the updated tensioners audi made are still failing?
Answer (Posted by FCP Euro Products Team)
This includes the updated tensioner. This is the latest part number from Audi.
