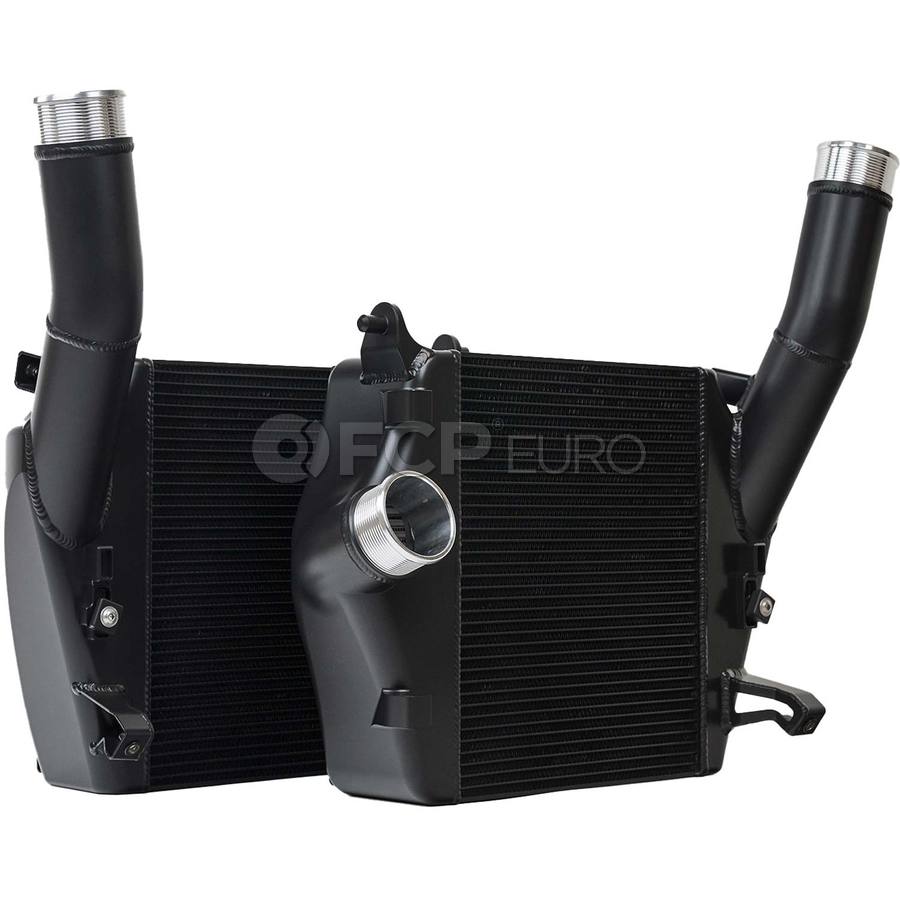

Audi Porsche Intercooler Set - CSF Racing 8211
Cayenne, RSQ8
Performance version, full aluminum construction. Sold as a pair - Black
Description
Details
- SKU:
- CSF-8211
- FCP Euro ID:
- 701323
- GTIN / UPC:
- 00710353082119
- Made in:
- United States
- Quality:
- Performance
OE Numbers
- PAB145803B, PAB145804B, PAB145803E, PAB145804D, 4M0145803BT, 4M0145804BT, 4M0145803BM, 4M0145804BM
MFG Numbers
- 8211
Product Information
Design and Engineering
The Urus/RS Q8 Intercoolers have been meticulously designed and engineered to fit exactly like the OEM units they replace. Utilizing all factory mounting points, the installation is straightforward with a “drop-in fit” design. No cutting or modifications are required, and there is no need for aftermarket shrouds or hoses. All mating OEM components can be reused and reinstalled.
A Thermal Dispersion Black finish is used to further the cooling efficiency of these Intercoolers. Once the intercoolers have been delivered to CSF from PWR, they are then sent to a special aerospace company where they are finished with this special ceramic coating. This unique coating rapidly disperses heat away from the intercoolers at an increased rate of about 15% compared to non-coated parts.
OEM vs CSF
CSF has integrated the charge pipe into the design of the top end tank with an aluminum welded pipe replacing the factory bolt-on plastic part which is sealed with an inner O-Ring. The head technician at Pacific German stated that the OEM O-Rings may be a factory design flaw as they’ve had to replace them on several stock systems already. This failure causes boost leaks and triggers a check engine light which is quite surprising on such a new vehicle. The O-Rings on the Pacific German’s Urus had already started showing signs of failure with only a few thousand miles on the odometer.
PWR Intercooler Core Technology
The same intercooler cores used in this application are the same style used in other CSF air-to-air systems previously developed for the Audi RS6/RS7, Porsche 992 Turbo/S, and 991 GT2RS with incredible results. These cores eliminate heat soak and lower Intake Air Temperatures (IATs) much more efficiently than traditional Bar & Plate designs. This gives us maximum performance for extended periods of time under demanding driving conditions and in vehicles with increased power levels through modifications and tuning.
The 4.0L twin-turbo V8 in the Urus & RS Q8 starts to experience debilitating heat soak and progressively increasing IATs with the OEM intercoolers. This results in the ECU pulling engine timing and drastically decreasing power output. The CSF by PWR Intercoolers solve this issue and allow vehicles to perform at optimal levels consistently and for prolonged periods of time.
Performance gains should be very similar to the results seen on the Audi C8 RS6/RS7. CSF recorded gains of 20 WHP and 18 WTQ with a stock tune and 10 WHP and 20 WTQ with a high-performance tune during dyno tests of the CSF #8194 (Audi RS6/RS7 High-Performance Intercooler System). Also, Intake Air Temperatures (IAT) were much more stable after multiple hard pulls resulting in more consistent dyno numbers.
CNC Machined Billet End Tanks
As with CSF’s other products produced through our PWR partnership, the new Urus/RS Q8 Intercoolers feature 100% TIG-welded machined billet aluminum end tanks. This is a very important upgrade compared to the OEM crimped plastic composite end tanks.
This feature is not only aesthetically pleasing, but is also stronger offering longevity and durability on high-performance vehicles. The CNC machined billet end tanks are ready to withstand increased boost pressures from bolt-on modifications, higher performance tunes, as well as upgraded turbochargers.
Features and Specs
- Sold as a pair (Left & Right Intercoolers)
- Eliminates Heat Soak and Lower Intake Air Temperatures (IAT) for Maximum Performance in High-Performance and Race Conditions
- Formula-1 Performance Grade Cores by PWR (2-Row Cores features Rolled Tubes w/ Inner Fins)
- CNC Machined Billet End Tanks
- 100% TIG Welded vs OEM Crimped Plastic End Tanks for Maximum Strength & Durability
- Made in the USA at PWR North America
- Integrated 1/8th NPT Port with plug on lower outlet tank for Water-Methanol Injection
- OEM Style Inlet/Outlet Connections for Precise Fitment With All OEM Components
- Finished in CSF’s Thermal Dispersion Ceramic Coating (CSF #8211)
- True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
- R&D and Performance Testing by Pacific German & VF Engineering
- 1-Piece Welded Charge Pipe vs OEM Bolt-On Pipe w/ O-Ring (known failure point)
Performance Gains:
- Stage 1 (Stock Tune) – Approx. +20 WHP / +18 WTQ*
Fits These Cars
Porsche Cayenne
-
2019 Porsche Cayenne Turbo IntercoolerAutomatic AWD Sport Utility 4.0L V8 Gas
-
2020 Porsche Cayenne Turbo IntercoolerAutomatic AWD Sport Utility 4.0L V8 DCUA Gas
-
2020 Porsche Cayenne Turbo Coupe IntercoolerAutomatic AWD Sport Utility Coupe 4.0L V8 DCUA Gas
-
2020 Porsche Cayenne Turbo S E-Hybrid IntercoolerAutomatic AWD Sport Utility 4.0L V8 DCUA Plug-in hybrid ev-gas (phev)
-
2020 Porsche Cayenne Turbo S E-Hybrid Coupe IntercoolerAutomatic AWD Sport Utility Coupe 4.0L V8 DCUA Plug-in hybrid ev-gas (phev)
-
2021 Porsche Cayenne GTS IntercoolerAutomatic AWD Sport Utility 4.0L V8 DCUD Gas
-
2021 Porsche Cayenne GTS Coupe IntercoolerAutomatic AWD Sport Utility Coupe 4.0L V8 DCUD Gas
-
2021 Porsche Cayenne Turbo IntercoolerAutomatic AWD Sport Utility 4.0L V8 DCUA Gas
-
2021 Porsche Cayenne Turbo Coupe IntercoolerAutomatic AWD Sport Utility Coupe 4.0L V8 DCUA Gas
-
2021 Porsche Cayenne Turbo S E-Hybrid IntercoolerAutomatic AWD Sport Utility 4.0L V8 DCUA Plug-in hybrid ev-gas (phev)
-
2021 Porsche Cayenne Turbo S E-Hybrid Coupe IntercoolerAutomatic AWD Sport Utility Coupe 4.0L V8 DCUA Plug-in hybrid ev-gas (phev)
Audi RS Q8
-
2020 Audi RS Q8 IntercoolerAutomatic AWD Sport Utility 4.0L V8 DHUB Mild hybrid ev-gas (mhev)
-
2021 Audi RS Q8 IntercoolerAutomatic AWD Sport Utility 4.0L V8 DHUB Mild hybrid ev-gas (mhev)
