Schaeffler
SKU: SCF-101640

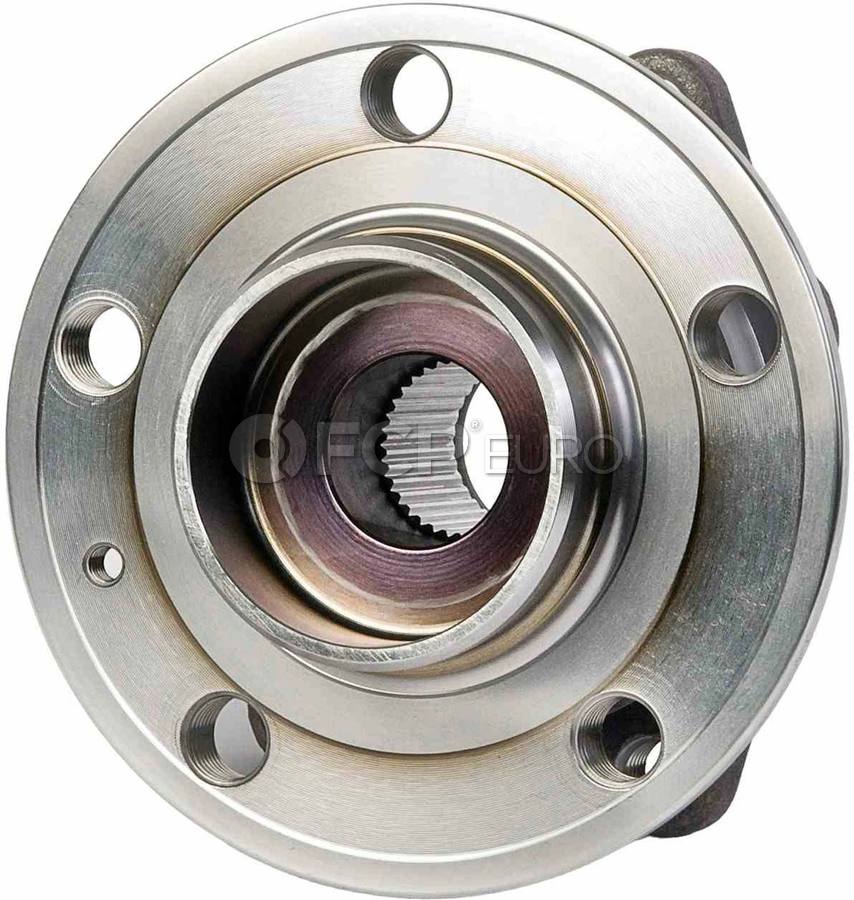

Volvo Wheel Bearing and Hub Assembly - Schaeffler 31658084

S60, S80, V70, XC70



Backordered
No ETA
Price each: $155.99
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.

Thanks for signing up!

We will let you know when this product is back in stock.
Make sure this fits your car
To ensure fitment and browse only products that fit, please select a vehicle first.

Description

Details

SKU:
SCF-101640
FCP Euro ID:
683470
GTIN / UPC:
0670774135538
Made in:
Italy
Quality:
OEM

OE Numbers

31658084, 8624647, 30639877, 31201010, 31658085, 31340689

MFG Numbers

101640

Product Information

Use a mobile jack to raise the wheel suspension until there is approx. 400 mm between the fender edge and the center of the wheel hub to provide the best accessibility to the wheel hub screws.

It is advised by Volvo to apply a 3-4mm bead of grease on the back of the bearing seal lip and make sure all mating surfaces are clean from rust or debris.

Torque Specs

Rear wheel hub in wheel bearing housing (M12):

  • Step 1: 20 Nm
  • Step 2: 45 Nm
  • Step 3: Angle-tighten 60°

Rear drive shaft bolt (M10):

  • 50nm
Wheel Bearing and Hub Assembly

Typically a wheel bearing is a set of steel balls within a metal ring, which is called a race. At the center of your wheels, there is a hollow piece of metal, called a hub. The wheel bearings resides inside the hub and helps to reduce friction when the wheel spins.

Wheel Bearing and Hub Assembly Failure Symptoms
  • Howling from the bearing
  • Play found within the bearing
  • Leaking Grease

About Schaeffler

The Schaeffler Group is a global automotive and industrial supplier whose enduring success is built upon unsurpassed quality, outstanding technology and a singular innovative ability. Schaeffler manufactures high-precision components and systems for engine, transmission and chassis applications as well as rolling and plain bearing solutions for a wide range of industrial applications. With innovative technologies, products and services for CO₂-efficient drives, electric mobility, Industry 4.0, digitalization and renewable energies, Schaeffler is a trusted partner for making motion and mobility more efficient, intelligent and sustainable. One of the world’s largest family companies, Schaeffler’s global network of manufacturing locations, R&D facilities and sales offices encompasses approximately 170 locations in over 50 countries.

Please Note: The FAG brand name has transitioned over to the Schaeffler brand.

Fits These Cars

Volvo V70

  • 2001 Volvo V70 X/C Wheel Bearing and Hub Assembly (Rear)
    Automatic AWD Wagon 2.4L L5 B5244T3 Gas
  • 2002 Volvo V70 AWD Wheel Bearing and Hub Assembly (Rear)
    Automatic AWD Wagon 2.4L L5 B5244T3 Gas
  • 2002 Volvo V70 X/C Wheel Bearing and Hub Assembly (Rear)
    Automatic AWD Wagon 2.4L L5 B5244T3 Gas
  • 2003 Volvo V70 AWD Wheel Bearing and Hub Assembly (Rear)
    Automatic AWD Wagon 2.5L L5 B5254T2 Gas
  • 2004 Volvo V70 2.5T AWD Wheel Bearing and Hub Assembly (Rear)
    Automatic AWD Wagon 2.5L L5 B5254T2 Gas
  • 2004 Volvo V70 R Wheel Bearing and Hub Assembly (Rear)
    Automatic AWD Wagon 2.5L L5 B5254T4 Gas
  • 2004 Volvo V70 R Wheel Bearing and Hub Assembly (Rear)
    Manual AWD Wagon 2.5L L5 B5254T4 Gas
  • 2005 Volvo V70 R Wheel Bearing and Hub Assembly (Rear)
    Automatic AWD Wagon 2.5L L5 B5254T4 Gas
  • 2005 Volvo V70 R Wheel Bearing and Hub Assembly (Rear)
    Manual AWD Wagon 2.5L L5 B5254T4 Gas
  • 2006 Volvo V70 R Wheel Bearing and Hub Assembly (Rear)
    Automatic AWD Wagon 2.5L L5 B5254T4 Gas
  • 2006 Volvo V70 R Wheel Bearing and Hub Assembly (Rear)
    Manual AWD Wagon 2.5L L5 B5254T4 Gas
  • 2007 Volvo V70 R Wheel Bearing and Hub Assembly (Rear)
    Automatic AWD Wagon 2.5L L5 B5254T4 Gas
  • 2007 Volvo V70 R Wheel Bearing and Hub Assembly (Rear)
    Manual AWD Wagon 2.5L L5 B5254T4 Gas

Volvo S60

  • 2002 Volvo S60 AWD Wheel Bearing and Hub Assembly (Rear)
    Automatic AWD Sedan 2.4L L5 B5244T3 Gas
  • 2003 Volvo S60 AWD Wheel Bearing and Hub Assembly (Rear)
    Automatic AWD Sedan 2.5L L5 B5254T2 Gas
  • 2004 Volvo S60 2.5T AWD Wheel Bearing and Hub Assembly (Rear)
    Automatic AWD Sedan 2.5L L5 B5254T2 Gas
  • 2004 Volvo S60 R Wheel Bearing and Hub Assembly (Rear)
    Automatic AWD Sedan 2.5L L5 B5254T4 Gas
  • 2004 Volvo S60 R Wheel Bearing and Hub Assembly (Rear)
    Manual AWD Sedan 2.5L L5 B5254T4 Gas
  • 2005 Volvo S60 2.5T AWD Wheel Bearing and Hub Assembly (Rear)
    Automatic AWD Sedan 2.5L L5 B5254T2 Gas
  • 2005 Volvo S60 R Wheel Bearing and Hub Assembly (Rear)
    Automatic AWD Sedan 2.5L L5 B5254T4 Gas
  • 2005 Volvo S60 R Wheel Bearing and Hub Assembly (Rear)
    Manual AWD Sedan 2.5L L5 B5254T4 Gas
  • 2006 Volvo S60 2.5T Wheel Bearing and Hub Assembly (Rear)
    Automatic AWD Sedan 2.5L L5 B5254T2 Gas
  • 2006 Volvo S60 R Wheel Bearing and Hub Assembly (Rear)
    Automatic AWD Sedan 2.5L L5 B5254T4 Gas
  • 2006 Volvo S60 R Wheel Bearing and Hub Assembly (Rear)
    Manual AWD Sedan 2.5L L5 B5254T4 Gas
  • 2007 Volvo S60 2.5T Wheel Bearing and Hub Assembly (Rear)
    Automatic AWD Sedan 2.5L L5 B5254T2 Gas
  • 2007 Volvo S60 R Wheel Bearing and Hub Assembly (Rear)
    Automatic AWD Sedan 2.5L L5 B5254T4 Gas
  • 2007 Volvo S60 R Wheel Bearing and Hub Assembly (Rear)
    Manual AWD Sedan 2.5L L5 B5254T4 Gas
  • 2008 Volvo S60 2.5T Wheel Bearing and Hub Assembly (Rear)
    Automatic AWD Sedan 2.5L L5 B5254T2 Gas
  • 2009 Volvo S60 2.5T Wheel Bearing and Hub Assembly (Rear)
    Automatic AWD Sedan 2.5L L5 B5254T2 Gas

Volvo XC70

  • 2003 Volvo XC70 X/C Wheel Bearing and Hub Assembly (Rear)
    Automatic AWD Wagon 2.5L L5 B5254T2 Gas
  • 2004 Volvo XC70 Wheel Bearing and Hub Assembly (Rear)
    Automatic AWD Wagon 2.5L L5 B5254T2 Gas
  • 2005 Volvo XC70 Wheel Bearing and Hub Assembly (Rear)
    Automatic AWD Wagon 2.5L L5 B5254T2 Gas
  • 2006 Volvo XC70 Wheel Bearing and Hub Assembly (Rear)
    Automatic AWD Wagon 2.5L L5 B5254T2 Gas
  • 2006 Volvo XC70 Ocean Race Wheel Bearing and Hub Assembly (Rear)
    Automatic AWD Wagon 2.5L L5 B5254T2 Gas
  • 2007 Volvo XC70 Wheel Bearing and Hub Assembly (Rear)
    Automatic AWD Wagon 2.5L L5 B5254T2 Gas

Volvo S80

  • 2004 Volvo S80 2.5T AWD Wheel Bearing and Hub Assembly (Rear)
    Automatic AWD Sedan 2.5L L5 B5254T2 Gas
  • 2005 Volvo S80 2.5T AWD Wheel Bearing and Hub Assembly (Rear)
    Automatic AWD Sedan 2.5L L5 B5254T2 Gas
  • 2006 Volvo S80 2.5T AWD Wheel Bearing and Hub Assembly (Rear)
    Automatic AWD Sedan 2.5L L5 B5254T2 Gas
