More Watch Volvo Automatic Transmission Fluid Change Kit - Aisin KIT-521830
Volvo Automatic Transmission Fluid Change Kit - Aisin KIT-521830 Watch
Aisin
SKU: KIT-521830

Volvo Automatic Transmission Fluid Change Kit - Aisin KIT-521830

S60, XC60, V70, XC70, S80, XC90

TF80SC Transmission, JWS 3309 Fluid

Save for later
6 Ratings
Available
In Stock
Price each: $130.81
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.
QTY
Make sure this fits your car
Validate fitment
To ensure fitment and browse only products that fit, please select a vehicle first.
What does this include?

Description

Details

SKU:
KIT-521830
FCP Euro ID:
Quality:
OEM

OE Numbers

83227542290, 93160393, 1161540, 92530090100, 83222220438, 1161640, G055025A2, 00004320528, 95830090100, 00004330554, 1233068, LR000869, 30713220, 30713219

MFG Numbers

ATF0T4, 1233068

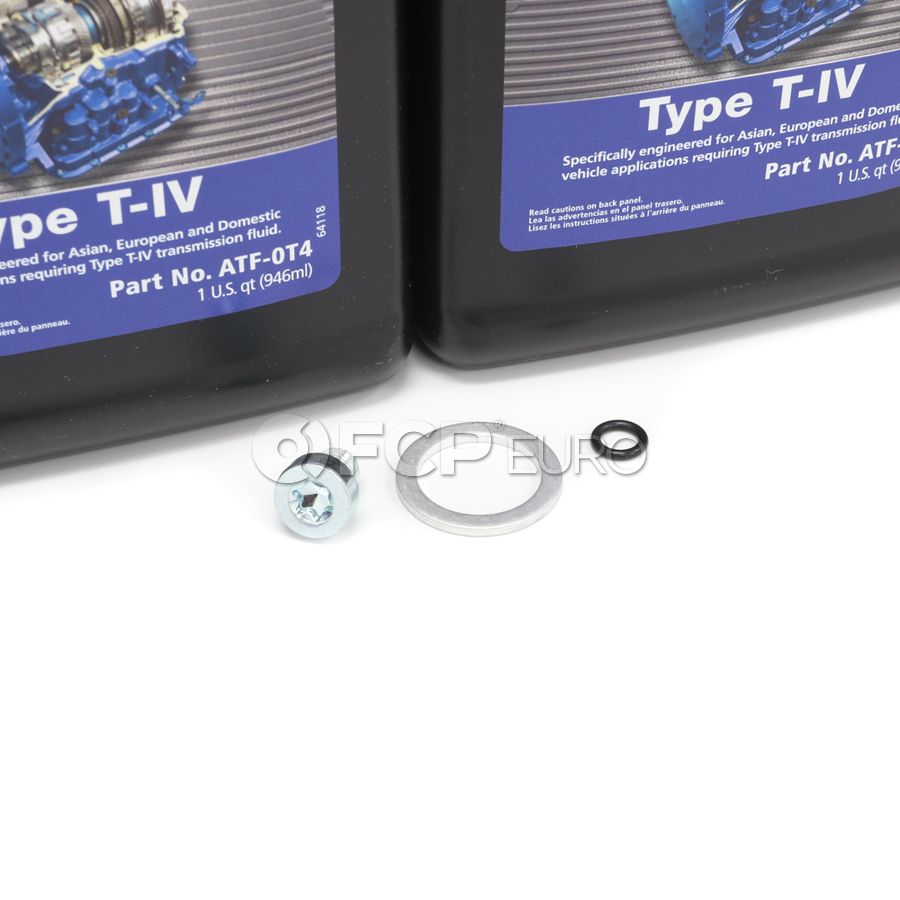

This Kit Includes

Qty Part SKU Brand Price
8 Automatic Transmission Fluid ATF-0T4 $101.04
1 Automatic Transmission Drain Plug Gasket OES-1233068 $0.29
1 Automatic Transmission Drain Plug Gasket VOL-30713220 $16.49
1 Transmission Drain Plug VOL-30713219 $12.99

Product Information

This kit includes 8 liters of Aisin JWS 3309 spec fluid which is required for 2 drain and fills on your Aisin TF80-SC. Total transmission capacity is 7l, each drain will remove around 3l. This enough to mix and replace a substantial amount of the existing oil in your transmission. For a more complete service, add an additional 4l for an extra drain and fill.

There is a specific procedure to do this service correctly, failing to follow it correctly may result in transmission damage. Final fluid level should be set while the transmission temperature is warm (50-60C) with engine running on a level surface. An electronic TCM reset is highly recommended after the oil change, especially if it has been awhile since the last service.

The size hex bit on the level tube is 17mm and can be purchased HERE..

Transmission Service Kit

The transmission oil filter prevents harmful particulate matter from entering the transmission valve body and damaging valve body bores, solenoids, and other fluid passages. Foreign particles in valve body bores, solenoids, or passages will cause shifting issues. Some of these issues include delayed shifts, harsh shifts, or no gear engagement in extreme cases. Clogged filters can reduce fluid volume and flow in the transmission causing starvation of the transmission pump. This can be identified by an RPM-dependent whine from the transmission bell housing area. The transmission oil filter should be changed during any fluid service, and it is critical to replace the filter if major transmission components are replaced such as the torque converter, transmission pump, or transmission valve body.

Transmission Service Kit Failure Symptoms
  • Whining noise from the transmission pump
  • Driveability and shift quality issues including harsh shifts, delayed shifts, or no gear engagement

About Aisin

Located in Japan and established in 1965, Aisin is an OE for BMW, Diamler AG, Volvo, and many more, manufacturing a wide mix of auto parts including water pumps, fan clutches, fan clutch blades, master cylinders, control valves, oil pumps, pulley brackets, electric fuel pumps, friction disks, clutch pressure plates, timing belt kits and timing belt tensioners. Trust Aisin with reliable parts that fit the first time. “Quality First” is Aisin’s philosophy.

Fits These Cars

Volvo XC90

  • 2005 Volvo XC90 V8 Transmission Service Kit
    Automatic AWD Sport Utility 4.4L V8 B8444S Gas
  • 2006 Volvo XC90 V8 Transmission Service Kit
    Automatic AWD Sport Utility 4.4L V8 B8444S Gas
  • 2006 Volvo XC90 V8 Ocean Race Transmission Service Kit
    Automatic AWD Sport Utility 4.4L V8 B8444S Gas
  • 2007 Volvo XC90 3.2 Transmission Service Kit
    Automatic AWD Sport Utility 3.2L L6 B6324S Gas
  • 2007 Volvo XC90 3.2 Transmission Service Kit
    Automatic FWD Sport Utility 3.2L L6 B6324S Gas
  • 2007 Volvo XC90 V8 Transmission Service Kit
    Automatic AWD Sport Utility 4.4L V8 B8444S Gas
  • 2007 Volvo XC90 V8 Sport Transmission Service Kit
    Automatic AWD Sport Utility 4.4L V8 B8444S Gas
  • 2008 Volvo XC90 3.2 Transmission Service Kit
    Automatic AWD Sport Utility 3.2L L6 B6324S Gas
  • 2008 Volvo XC90 3.2 Transmission Service Kit
    Automatic FWD Sport Utility 3.2L L6 B6324S Gas
  • 2008 Volvo XC90 V8 Transmission Service Kit
    Automatic AWD Sport Utility 4.4L V8 B8444S Gas
  • 2008 Volvo XC90 V8 Sport Transmission Service Kit
    Automatic AWD Sport Utility 4.4L V8 B8444S Gas
  • 2009 Volvo XC90 3.2 Transmission Service Kit
    Automatic AWD Sport Utility 3.2L L6 B6324S Gas
  • 2009 Volvo XC90 3.2 Transmission Service Kit
    Automatic FWD Sport Utility 3.2L L6 B6324S Gas
  • 2009 Volvo XC90 V8 Transmission Service Kit
    Automatic AWD Sport Utility 4.4L V8 B8444S Gas
  • 2010 Volvo XC90 3.2 Transmission Service Kit
    Automatic AWD Sport Utility 3.2L L6 B6324S Gas
    Notes: Up to chassis -568000 (Last 6 of VIN)
  • 2010 Volvo XC90 3.2 Transmission Service Kit
    Automatic FWD Sport Utility 3.2L L6 B6324S Gas
    Notes: Up to chassis -568000 (Last 6 of VIN)
  • 2010 Volvo XC90 V8 Transmission Service Kit
    Automatic AWD Sport Utility 4.4L V8 B8444S Gas
    Notes: Up to chassis -568000 (Last 6 of VIN)
  • 2011 Volvo XC90 3.2 Transmission Service Kit
    Automatic AWD Sport Utility 3.2L L6 B6324S5 Gas
    Notes: Up to chassis -568000 (Last 6 of VIN)
  • 2011 Volvo XC90 3.2 Transmission Service Kit
    Automatic FWD Sport Utility 3.2L L6 B6324S5 Gas
    Notes: Up to chassis -568000 (Last 6 of VIN)
  • 2011 Volvo XC90 V8 Transmission Service Kit
    Automatic AWD Sport Utility 4.4L V8 B8444S Gas
    Notes: Up to chassis -568000 (Last 6 of VIN)

Volvo S60

  • 2006 Volvo S60 R Transmission Service Kit
    Automatic AWD Sedan 2.5L L5 B5254T4 Gas
  • 2007 Volvo S60 R Transmission Service Kit
    Automatic AWD Sedan 2.5L L5 B5254T4 Gas

Volvo V70

  • 2006 Volvo V70 R Transmission Service Kit
    Automatic AWD Wagon 2.5L L5 B5254T4 Gas
  • 2007 Volvo V70 R Transmission Service Kit
    Automatic AWD Wagon 2.5L L5 B5254T4 Gas
  • 2008 Volvo V70 3.2 Transmission Service Kit
    Automatic FWD Wagon 3.2L L6 B6324S Gas
  • 2009 Volvo V70 3.2 Transmission Service Kit
    Automatic FWD Wagon 3.2L L6 B6324S Gas
  • 2010 Volvo V70 3.2 Transmission Service Kit
    Automatic FWD Wagon 3.2L L6 B6324S Gas
  • 2010 Volvo V70 3.2 Transmission Service Kit
    Automatic FWD Wagon 3.2L L6 B6324S2 Gas

Volvo S80

  • 2007 Volvo S80 3.2 Transmission Service Kit
    Automatic FWD Sedan 3.2L L6 B6324S Gas
  • 2007 Volvo S80 V8 Transmission Service Kit
    Automatic AWD Sedan 4.4L V8 B8444S Gas
  • 2008 Volvo S80 3.2 Transmission Service Kit
    Automatic FWD Sedan 3.2L L6 B6324S Gas
  • 2008 Volvo S80 T6 Transmission Service Kit
    Automatic AWD Sedan 3.0L L6 B6304T2 Gas
  • 2008 Volvo S80 V8 Transmission Service Kit
    Automatic AWD Sedan 4.4L V8 B8444S Gas
  • 2009 Volvo S80 3.2 Transmission Service Kit
    Automatic FWD Sedan 3.2L L6 B6324S Gas
  • 2009 Volvo S80 T6 Transmission Service Kit
    Automatic AWD Sedan 3.0L L6 B6304T2 Gas
  • 2009 Volvo S80 V8 Transmission Service Kit
    Automatic AWD Sedan 4.4L V8 B8444S Gas
  • 2010 Volvo S80 3.2 Transmission Service Kit
    Automatic FWD Sedan 3.2L L6 B6324S Gas
  • 2010 Volvo S80 3.2 Transmission Service Kit
    Automatic FWD Sedan 3.2L L6 B6324S2 Gas
  • 2010 Volvo S80 T6 Transmission Service Kit
    Automatic AWD Sedan 3.0L L6 B6304T2 Gas
  • 2010 Volvo S80 V8 Transmission Service Kit
    Automatic AWD Sedan 4.4L V8 B8444S Gas

Volvo XC70

  • 2008 Volvo XC70 3.2 Transmission Service Kit
    Automatic AWD Wagon 3.2L L6 B6324S Gas
  • 2009 Volvo XC70 3.2 Transmission Service Kit
    Automatic AWD Wagon 3.2L L6 B6324S Gas
  • 2009 Volvo XC70 T6 Transmission Service Kit
    Automatic AWD Wagon 3.0L L6 B6304T2 Gas
  • 2010 Volvo XC70 3.2 Transmission Service Kit
    Automatic AWD Wagon 3.2L L6 B6324S Gas
  • 2010 Volvo XC70 3.2 Transmission Service Kit
    Automatic AWD Wagon 3.2L L6 B6324S2 Gas
  • 2010 Volvo XC70 T6 Transmission Service Kit
    Automatic AWD Wagon 3.0L L6 B6304T2 Gas

Volvo XC60

  • 2010 Volvo XC60 3.2 Transmission Service Kit
    Automatic AWD Sport Utility 3.2L L6 B6324S Gas
  • 2010 Volvo XC60 3.2 Transmission Service Kit
    Automatic FWD Sport Utility 3.2L L6 B6324S Gas
  • 2010 Volvo XC60 3.2 Transmission Service Kit
    Automatic AWD Sport Utility 3.2L L6 B6324S2 Gas
  • 2010 Volvo XC60 3.2 Transmission Service Kit
    Automatic FWD Sport Utility 3.2L L6 B6324S2 Gas
  • 2010 Volvo XC60 T6 Transmission Service Kit
    Automatic AWD Sport Utility 3.0L L6 B6304T2 Gas
  • 2010 Volvo XC60 T6 R-Design Transmission Service Kit
    Automatic AWD Sport Utility 3.0L L6 B6304T2 Gas

Product Reviews

6 Reviews

4.3
Average rating
Leave a review
2006 V70R Owner
on Fri, Sep 18 at 06:48AM
Also Order the Volvo Transmission Drain Plug Tube - Genuine Volvo 30713218
A good kit but missing ONE VITAL PART - see subject line above. Our experience was the small screw inside the Transmission Drain Plug Tube was unable to be removed and the hex head was stripped. Luckily, we removed the transmission drain tube using vise grips and drained the fluid but were unable to set the correct level until receiving the drain tube a few days later, meaning a second job where one should have sufficed. Note to FCP Euro: add the Volvo Transmission Drain Plug Tube - Genuine Volvo 30713218 to this kit.
Brian
on Sun, Oct 26 at 03:14PM
2007 Volvo XC90
Great kit. Fantastic price. Dealer wanted $33 + tax for 1 QT of Volvo (rebranded) fluid! I will order this kit again, although I did not replace the check bolt and tiny washer, and had no leaks by reusing the one I had. But nice to have a backup. You will definitely want to use the aluminum crush washer that this kit includes.
Simon
on Mon, Jun 17 at 02:44PM
Great Kit for Volvo TF80 Change
Convenient, fairly priced kit. I did order 8 more quarts separately (for a total of 16) because the transmission fluid had not ever been changed, and at 130,000 miles, I figured it would be pretty gnarly. 12L in and 12L out (measured by refilling the bottles with the flushed fluid), and I still have a working transmission. The first change was black as midnight and not quite shiny red after the second change, but I didn't want to take any chances completely shocking the poor thing. I'll let that circulate a while and then change it again in 10,000 miles. Even though it wasn't shifting poorly to begin with, I do have a little peace (piece?) of mind with a bit of fresh fluid in there. This kit and the associated FCP DIY video made this whole process a snap.
brian
on Sun, Mar 31 at 02:36PM
trans flush
eight quarts is really not enough if it hasn't been changed before- you'll want ten or twelve. basically you're getting the plug and gaskets free otherwise there is other fluid for the same price (at least at my local stores).
Aaron
on Wed, Feb 17 at 08:11PM
Kit is fantastic!
Great kit with necessary hardware to do a proper service. Thanks!
Nicole
on Thu, Mar 28 at 11:41AM
Transmission Service kit
I'm very pleased with the price and product.
