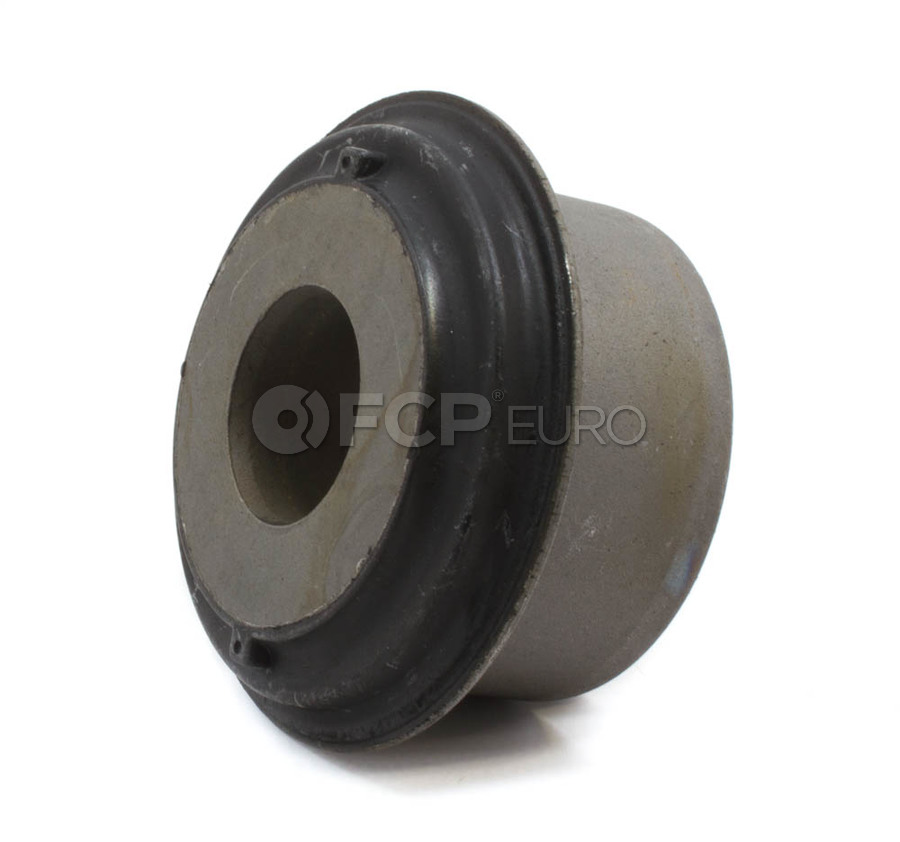

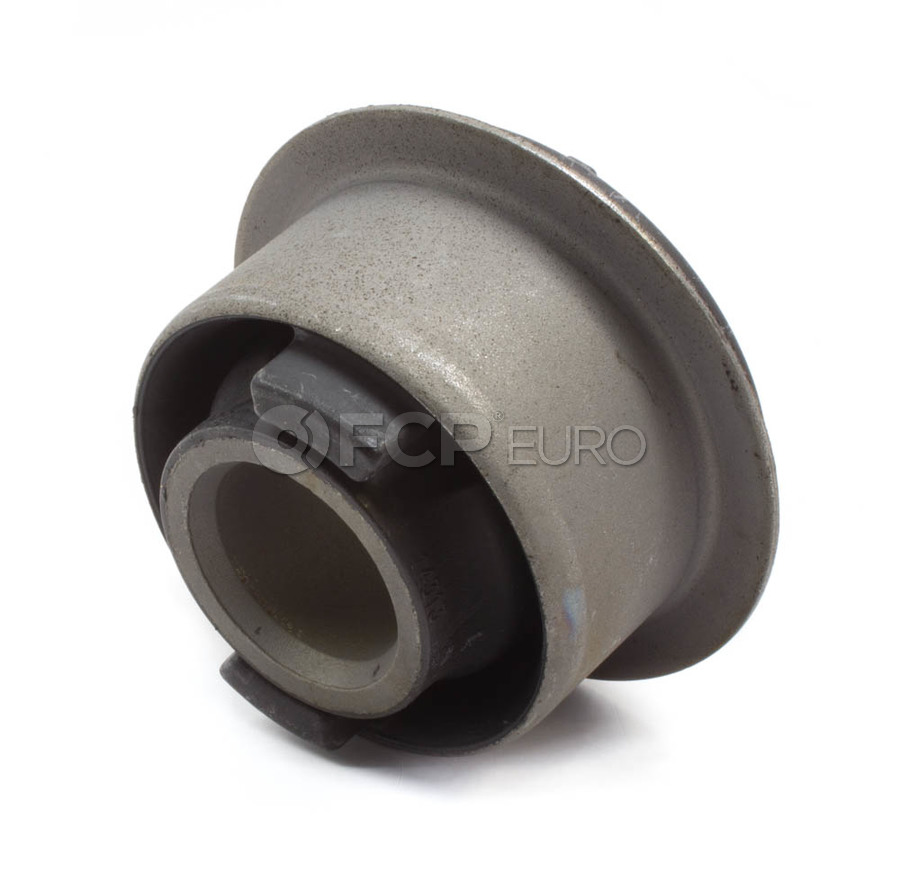

More Volvo Subframe Mount Bushing - Genuine Volvo 30760984
Volvo Subframe Mount Bushing - Genuine Volvo 30760984
Genuine Volvo
SKU: VOL-30760984

Volvo Subframe Mount Bushing - Genuine Volvo 30760984

XC90

Save for later
1 Rating
Available
Ships in 3 business days
Price each: $88.99
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.
QTY
Make sure this fits your car
Validate fitment
To ensure fitment and browse only products that fit, please select a vehicle first.
What does this include?

Description

Details

SKU:
VOL-30760984
FCP Euro ID:
107894
Made in:
Poland
Quality:
Genuine

OE Numbers

30760984, 30760344

MFG Numbers

N/A

Product Information

Suspension Subframe Mount

A subframe mount bushing (also referred to simply as a subframe mount) is a vibration-isolating bushing used to connect the front and rear subframe to the vehicle’s main body or unibody. The subframe itself serves as a structural framework to mount key assemblies such as the suspension, engine, and transmission. Because the drivetrain and suspension are mounted to the subframe, they naturally transmit vibrations to the body of the car. The subframe mount acts as an additional cushion, absorbing vibrations, shocks, and road noise while allowing some flexibility in the subframe’s movement. This helps reduce stress on the vehicle’s body and provides a smoother, more comfortable ride.

There are a few common types of subframe mounts. In an OE application such as a stock vehicle, the mount is typically made of solid rubber, voided rubber (some holes to increase flexibility), or occasionally hydraulic-filled rubber. In performance and race applications, minimizing movement in the subframe is important to maintain correct suspension geometry during high G-loads, so going to polyurethane mounts or reinforcements is a popular upgrade.

Aging or torn subframe mounts can cause several issues, including poor handling or tracking of the wheels, inability to maintain an alignment with abnormal tire wear, and bangs or clunks when transferring load front to back, like when braking or accelerating. Inspect the mounts for cracks or tears, or leaks if the mount is hydraulic.

Suspension Subframe Mount Failure Symptoms
  • Bangs and Clunks: If you are experiencing clunks or bangs when going over bumps, or when braking or accelerating is a sign that the entire subframe is moving around excessively and the mounts may be bad.
  • Increased Vibration (NVH): Subframe mount bushings are designed to isolate vibrations from the engine and suspension. When they go bad, they will not effectively absorb NVH, and you will feel more vibrations transferred to the cabin.
  • Handling and alignment issues: Since the suspension is connected to the subframe, the mounts must be in good shape. If they aren't, the suspension will have more freedom of movement independent from the car body/frame, and it may also be difficult to maintain an alignment.
  • Excess Movement: With the car securely off the ground, use a lever like a pry bar between the subframe and the body of the car. If there is excess movement and it is easy to shift the subframe, the mounts should be replaced.

About Genuine Volvo

The original parts used by Volvo to build your car are available as replacement parts under the “Genuine Volvo” brand. Manufactured under the direction of Volvo, expect excellent quality and a premium price since these parts are exclusively available through the Volvo Dealership network.

You may not realize this, but the parts that make up your Volvo are not necessarily manufactured by Volvo. No cause for concern, as Volvo designs the part, hires a manufacturer, and ensures its quality to you. In fact, many of these manufacturers have been making parts for Volvo for decades. In our industry these manufacturers are called OEM (Original Equipment Manufacturers), and these are often brands you recognize, including Lemforder, ZF, Sachs, Bosch, Valeo, Zimmermann, Siemens VDO, Corteco, and more. Don’t be surprised to open that Genuine Volvo parts box and find an OEM branded part inside, simply with the addition of a Volvo logo.

Be sure to keep an eye out for OE tags on our product pages to quickly identify parts coming direct from OE manufacturers. That extra bit of insight could save you some serious money while shopping! Refer to our OE Academy for further information regarding the OE/OEM tags throughout the site.

Fits These Cars

Volvo XC90

  • 2003 Volvo XC90 Suspension Subframe Mount (Rear Rearward)
    Automatic AWD Sport Utility 2.5L L5 B5254T2 Gas
  • 2003 Volvo XC90 Suspension Subframe Mount (Rear Rearward)
    Automatic FWD Sport Utility 2.5L L5 B5254T2 Gas
  • 2003 Volvo XC90 T6 Suspension Subframe Mount (Rear Rearward)
    Automatic AWD Sport Utility 2.9L L6 B6294T Gas
  • 2004 Volvo XC90 2.5T Suspension Subframe Mount (Rear Rearward)
    Automatic AWD Sport Utility 2.5L L5 B5254T2 Gas
  • 2004 Volvo XC90 2.5T Suspension Subframe Mount (Rear Rearward)
    Automatic FWD Sport Utility 2.5L L5 B5254T2 Gas
  • 2004 Volvo XC90 T6 Suspension Subframe Mount (Rear Rearward)
    Automatic AWD Sport Utility 2.9L L6 B6294T Gas
  • 2005 Volvo XC90 2.5T Suspension Subframe Mount (Rear Rearward)
    Automatic AWD Sport Utility 2.5L L5 B5254T2 Gas
  • 2005 Volvo XC90 2.5T Suspension Subframe Mount (Rear Rearward)
    Automatic FWD Sport Utility 2.5L L5 B5254T2 Gas
  • 2005 Volvo XC90 T6 Suspension Subframe Mount (Rear Rearward)
    Automatic AWD Sport Utility 2.9L L6 B6294T Gas
  • 2005 Volvo XC90 V8 Suspension Subframe Mount (Rear Rearward)
    Automatic AWD Sport Utility 4.4L V8 B8444S Gas
  • 2006 Volvo XC90 2.5T Suspension Subframe Mount (Rear Rearward)
    Automatic AWD Sport Utility 2.5L L5 B5254T2 Gas
  • 2006 Volvo XC90 2.5T Suspension Subframe Mount (Rear Rearward)
    Automatic FWD Sport Utility 2.5L L5 B5254T2 Gas
  • 2006 Volvo XC90 V8 Suspension Subframe Mount (Rear Rearward)
    Automatic AWD Sport Utility 4.4L V8 B8444S Gas
  • 2006 Volvo XC90 V8 Ocean Race Suspension Subframe Mount (Rear Rearward)
    Automatic AWD Sport Utility 4.4L V8 B8444S Gas
  • 2007 Volvo XC90 3.2 Suspension Subframe Mount (Rear Rearward)
    Automatic AWD Sport Utility 3.2L L6 B6324S Gas
  • 2007 Volvo XC90 3.2 Suspension Subframe Mount (Rear Rearward)
    Automatic FWD Sport Utility 3.2L L6 B6324S Gas
  • 2007 Volvo XC90 V8 Suspension Subframe Mount (Rear Rearward)
    Automatic AWD Sport Utility 4.4L V8 B8444S Gas
  • 2007 Volvo XC90 V8 Sport Suspension Subframe Mount (Rear Rearward)
    Automatic AWD Sport Utility 4.4L V8 B8444S Gas
  • 2008 Volvo XC90 3.2 Suspension Subframe Mount (Rear Rearward)
    Automatic AWD Sport Utility 3.2L L6 B6324S Gas
  • 2008 Volvo XC90 3.2 Suspension Subframe Mount (Rear Rearward)
    Automatic FWD Sport Utility 3.2L L6 B6324S Gas
  • 2008 Volvo XC90 V8 Suspension Subframe Mount (Rear Rearward)
    Automatic AWD Sport Utility 4.4L V8 B8444S Gas
  • 2008 Volvo XC90 V8 Sport Suspension Subframe Mount (Rear Rearward)
    Automatic AWD Sport Utility 4.4L V8 B8444S Gas
  • 2009 Volvo XC90 3.2 Suspension Subframe Mount (Rear Rearward)
    Automatic AWD Sport Utility 3.2L L6 B6324S Gas
  • 2009 Volvo XC90 3.2 Suspension Subframe Mount (Rear Rearward)
    Automatic FWD Sport Utility 3.2L L6 B6324S Gas
  • 2009 Volvo XC90 V8 Suspension Subframe Mount (Rear Rearward)
    Automatic AWD Sport Utility 4.4L V8 B8444S Gas
  • 2010 Volvo XC90 3.2 Suspension Subframe Mount (Rear Rearward)
    Automatic AWD Sport Utility 3.2L L6 B6324S Gas
  • 2010 Volvo XC90 3.2 Suspension Subframe Mount (Rear Rearward)
    Automatic FWD Sport Utility 3.2L L6 B6324S Gas
  • 2010 Volvo XC90 V8 Suspension Subframe Mount (Rear Rearward)
    Automatic AWD Sport Utility 4.4L V8 B8444S Gas
  • 2011 Volvo XC90 3.2 Suspension Subframe Mount (Rear Rearward)
    Automatic AWD Sport Utility 3.2L L6 B6324S5 Gas
  • 2011 Volvo XC90 3.2 Suspension Subframe Mount (Rear Rearward)
    Automatic FWD Sport Utility 3.2L L6 B6324S5 Gas
  • 2011 Volvo XC90 V8 Suspension Subframe Mount (Rear Rearward)
    Automatic AWD Sport Utility 4.4L V8 B8444S Gas
  • 2012 Volvo XC90 3.2 Suspension Subframe Mount (Rear Rearward)
    Automatic AWD Sport Utility 3.2L L6 B6324S5 Gas
  • 2012 Volvo XC90 3.2 Suspension Subframe Mount (Rear Rearward)
    Automatic FWD Sport Utility 3.2L L6 B6324S5 Gas

Product Reviews

1 Review

5.0
Average rating
Leave a review
Andy
on Mon, May 25 at 12:30AM
WOW!
If it wasn't for COVID-19, I would NOT have done this job... but I'm still getting paid... sort of... and wanted my 16 year old car to ride like a 1 year old car. Did the whole subframe and the car is a dream... this is the rear subframe bushing, which is rather easy to R&I. The fronts are another story.
