Volvo Intercooler Kit - do88 Performance BIG850S63

This BigPack includes both do88 performance intercooler and reverse intercooler pipe kit.

This performance intercooler is developed by do88 to replace the original / OEM intercooler, and gives true bolt-on performance without the need of extensive engine modification. Our pressure pipes has considerably better airflow than the stock pipes, which has been tested and verified with several tests both in car and in do88's SuperFlow SF-1020 flow bench.

Significant advantages with do88 BigPack (OEM intercooler/pipes):

• Core volume: 12302m3 (7255cm3), do88 is 70% larger!
• Air flow at 0,15bar/2,18psi pressure drop: 347CFM (204CFM), do88 70% higher! See diagram below!
• Post intercooler air temperature at same conditions: 28°C (41°C), do88 13°C lower! See diagram below.

This kit includes a full aluminum performance intercooler and a complete 2.5” pipe kit and silicone hoses. It replaces everything between the turbo outlet and the throttle body; this why it drastically improves the airflow / cooling performance compared to the original.

This do88 performance intercooler features an all aluminum construction with cad designed, flow optimized cast end tanks and core design to achieve the best possible cooling efficiency combined with lowest possible pressure drop!

The pressure pipes are manufactured in 2.5” mandrel bent seamless aluminum pipes. These pipes reverse the flow through the intercooler, the air that goes to the throttle body is taken from the bottom of the intercooler. This makes the total length of the do88 pipes 550mm shorter than the OEM pipes.

Custom made high quality silicone hoses with 4 layers of polyester/aramid reinforcement. These hoses can handle very high temperature and pressure!

Comes with all hardware necessary for installation.

NOTE The air guide to the air filter box will not fit together with these intercooler pipes. It can be fitted if you cut the hose end against the throttle body about 25mm (1 inch). Click here to see how to cut a silicone hose.

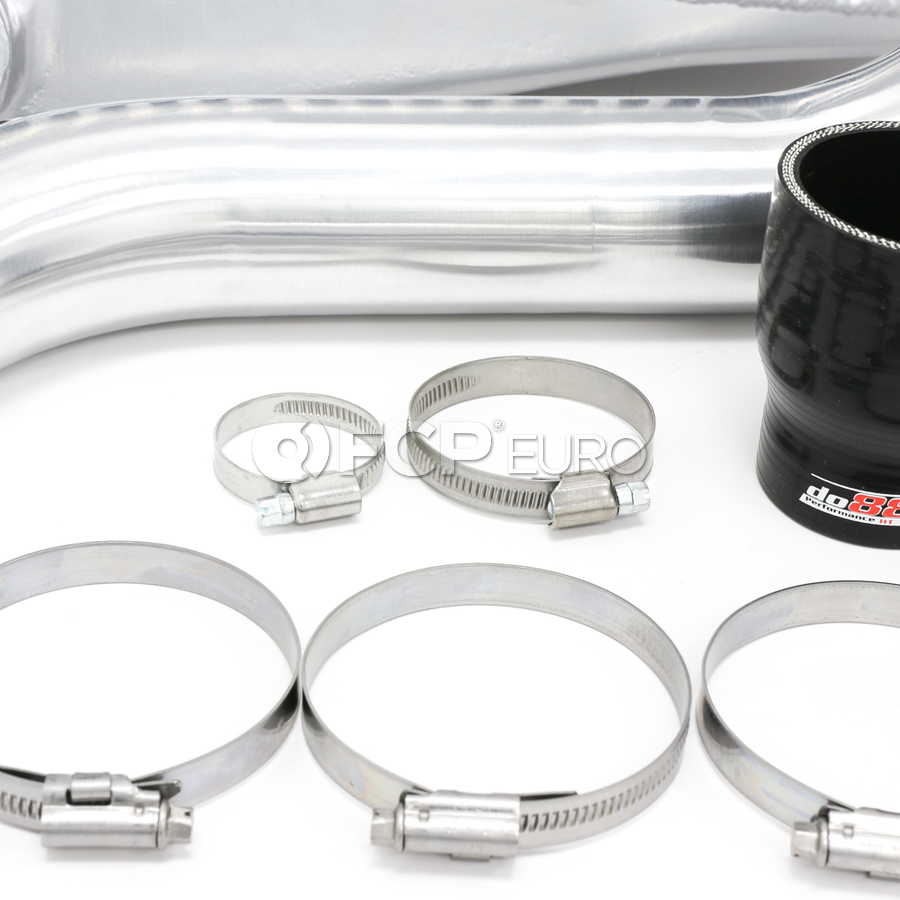

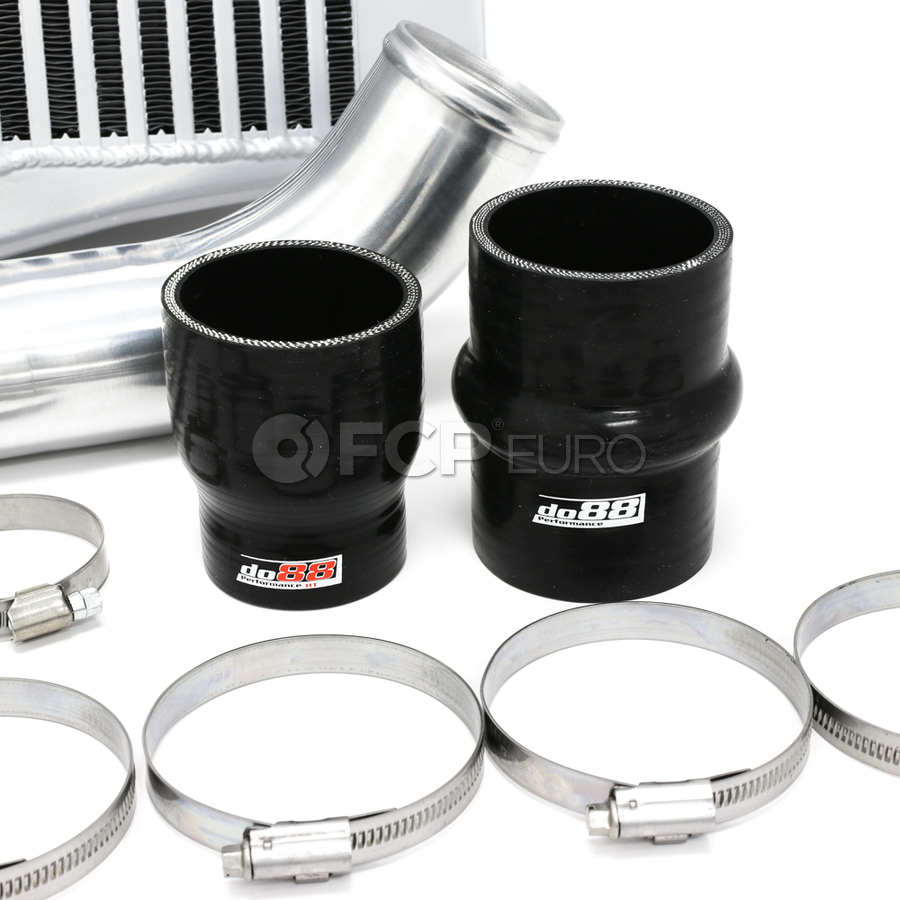

Included parts in this BigPack:

• Performance intercooler
• Intercooler installation accessories
• Two pressure pipes
• Four silicone hoses
• Six T-bolt hose clamps
• Three standard hose clamps
