Volvo Intercooler - do88 Performance ICM160

This performance intercooler is developed by do88 to replace the original / OEM intercooler, and gives true bolt-on performance without the need of extensive engine modification.

Significant advantages with do88 performance intercooler (OEM intercooler):

• Core volume: 13068cm3 (8659cm3), do88 is 51% larger!
• Air flow at 0,15bar/2,18psi pressure drop: 319CFM (272CFM), do88 17% higher! See diagram below!
• Post intercooler air temperature at same conditions: 30°C (54°C), do88 24°C lower! See diagram below!
• CLICK FOR INSTALLATION INSTRUCTIONS

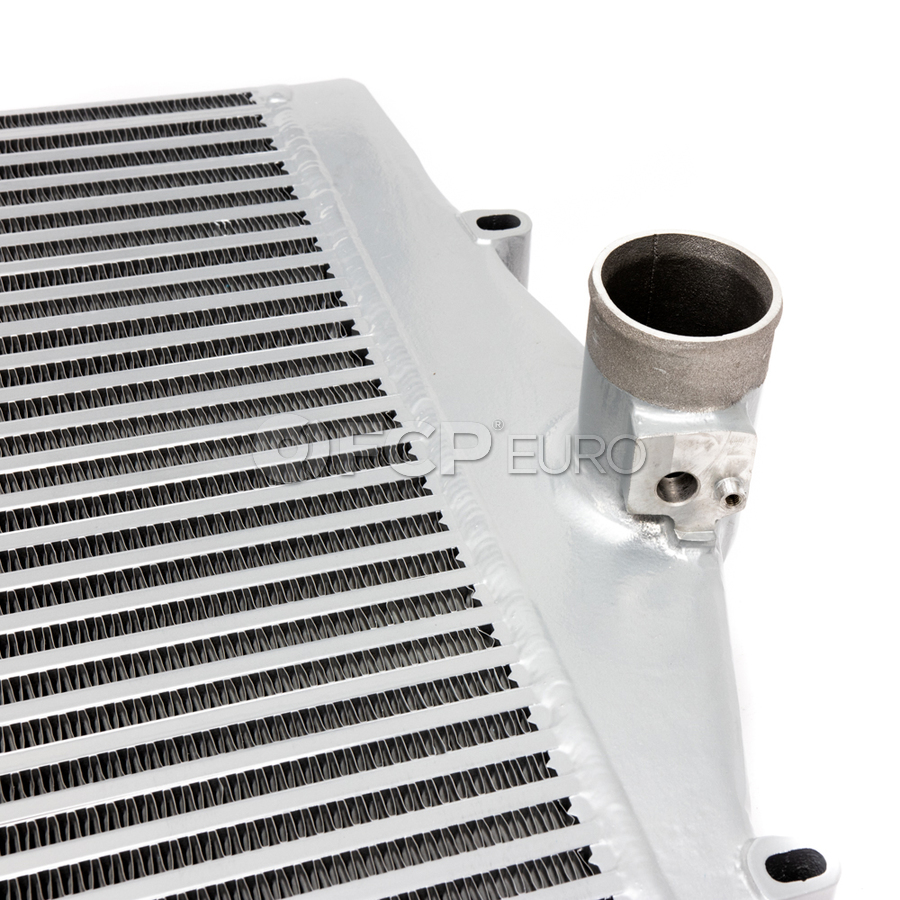

This do88 performance intercooler features an all aluminum construction with CAD designed, flow optimized cast end tanks and core design to achieve the best possible cooling efficiency combined with lowest possible pressure drop!

The OEM intercooler have plastic tanks that don’t keep up with higher boost levels very well so the do88 performance intercooler will also add reliability!

A common misunderstanding is that an intercooler installed in this position cannot provide good performance and a front mounted intercooler / FMIC would be much better. Actually the do88 performance intercooler are far better than most FMIC installations where only a core with small front surface are possible to install and often also installed partially behind the bumper beam which will reduce cooling capacity even further and often cooling below the OEM intercooler are achieved.

do88 performance intercooler comes with all hardware necessary for installation. This intercooler includes additional hardware to fit all Volvo S60 / V70 / XC70 / S80 turbo models with or without sensor on the intercooler outlet.

This do88 performance intercooler installs in original position with original fastenings.

NOTE! When installing this intercooler on a S60 R / V70 R the small auxiliary intercooler needs to be removed as it no longer will be used. On R-models the grille is a part of this auxiliary intercooler. This means when you remove this intercooler you will have to install a new mesh (if you which to have a grille / mesh in this opening). You don't have to install a mesh, if you don't do this the bumper intake hole will just be open into the AC-condenser.
