Volvo Intercooler - do88 Performance ICM-150

This is the best Volvo 740 940 performance intercooler on the market!

This performance intercooler is developed by do88 to replace the original / OEM intercooler and gives true performance without the need of rebuilding the whole car!

Significant advantages with do88 performance intercooler (OEM intercooler):

• Core volume: 13945cm3 (8465cm3), do88 is 65% larger!
• Air flow at 0,15bar/2,18psi pressure drop: 334CFM (278CFM), do88 20% higher!
• Post intercooler air temperature at same conditions: 28°C (49°C), do88 21°C lower! See the diagram below.
• NOTE: The OEM intercooler rubber supports in the top brackets need to be trimmed slightly because of the increased thickness. There are no predrilled holes for the AC-condenser, these holes need to be drilled (easy to do).

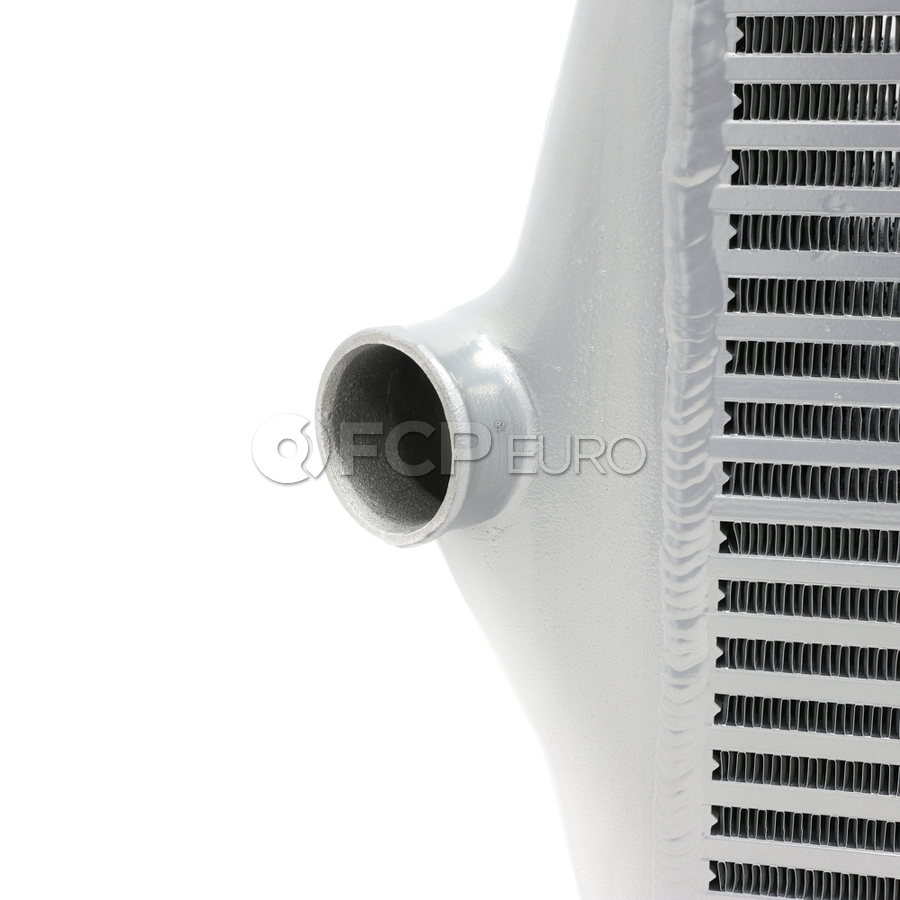

do88 performance intercoolers are an all-aluminum construction with CAD designed, flow optimized cast end tanks and optimized core design (60mm thick) to achieve the best possible cooling efficiency combined with the lowest possible pressure drop!

A common misunderstanding is that an intercooler installed in this position cannot provide good performance and a front-mounted intercooler / FMIC would be much better. But actually, the do88 performance intercooler is far better than most FMIC installations where only a core with a small front surface is possible to install, and often also installed partially behind the bumper beam which will reduce cooling capacity even further and often cooling below the OEM intercooler are achieved.
