GKN
SKU: GKN-305664

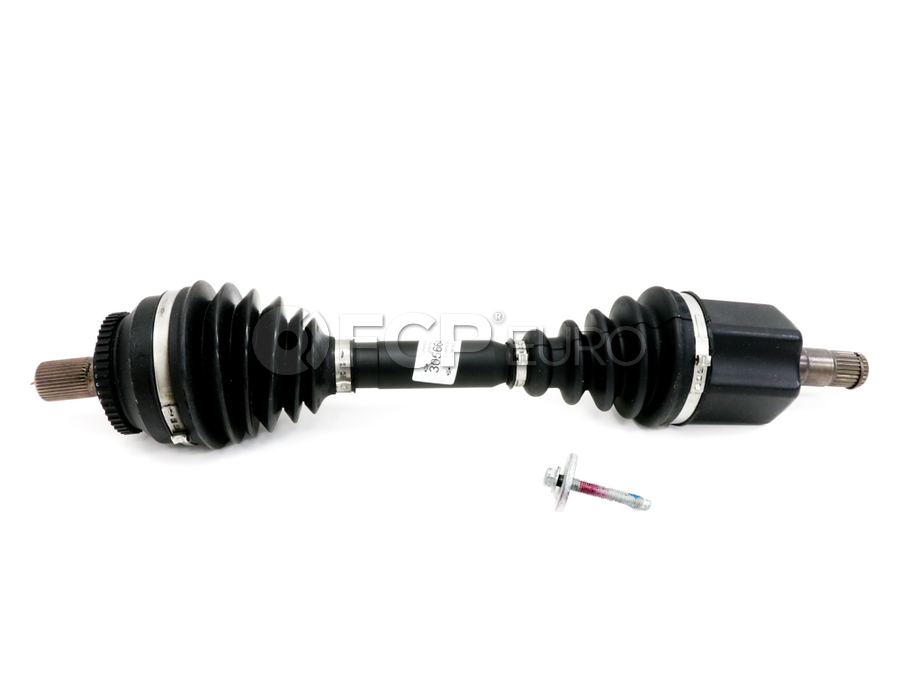

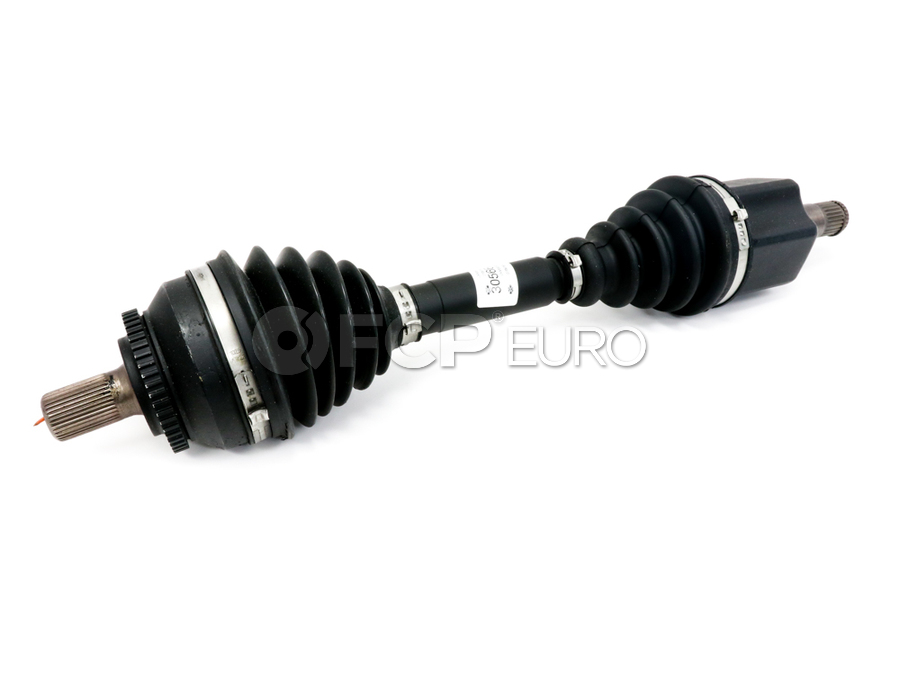

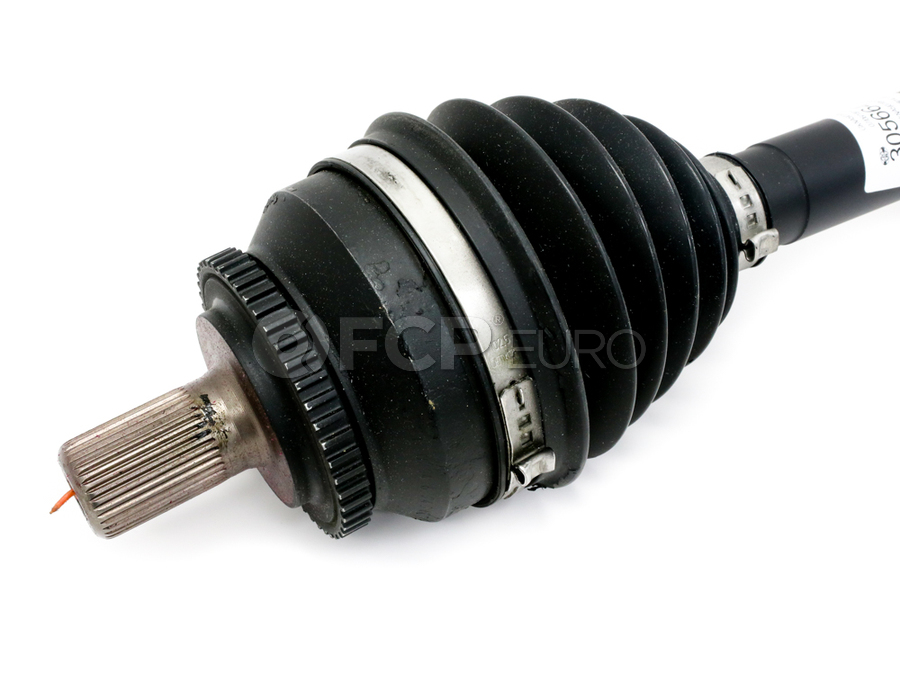

Volvo CV Axle Shaft - GKN 8252038

V70, XC70



Available
In Stock
Price each: $398.99
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.
QTY
Make sure this fits your car
To ensure fitment and browse only products that fit, please select a vehicle first.

Description

Details

SKU:
GKN-305664
FCP Euro ID:
509619
GTIN / UPC:
04019064156802
Made in:
Spain
Quality:
OE

OE Numbers

36000522, 8252038

MFG Numbers

305664

Product Information

  • External Toothing wheel side 36
  • External Toothing differential side 26
  • Length 556 mm
  • Number of Teeth, ABS ring 48
  • ABS ring Ø 82 mm
  • Seal diam. 57 mm
  • Wheel Side Joint Ø 98 mm
  • Transmission-sided Joint Ø 86 mm
  • Thread Size M10x1.5
  • New part

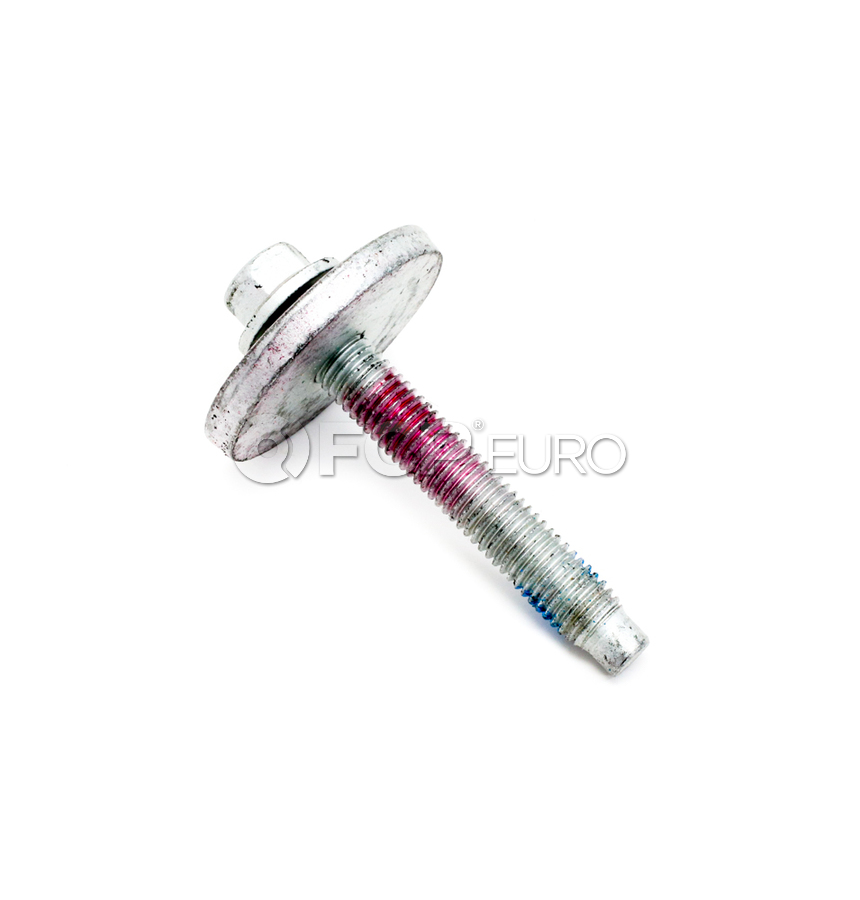

  • With bolt
CV Axle Assembly

The CV (Constant Velocity) axle assembly is responsible for transferring torque and rotational power from the transmission to the wheels while allowing for suspension movement and steering articulation. The CV axle consists of a shaft with joints at both ends: a CV joint that connects the axle to the transmission and another CV joint that connects the axle to the wheel hub. This design allows the axle to handle changes in angle and length as the vehicle moves, especially when turning or going over bumps.

CV Axle Assembly Failure Symptoms
  • Clicking or Popping Noises: One of the most common signs of a failing CV axle is a clicking or popping noise when turning the vehicle. This noise typically occurs when the CV joint is damaged or worn out, especially during sharp turns.
  • Vibration While Driving: A failing CV axle can cause noticeable vibrations while driving, especially at higher speeds. This vibration may indicate that the axle is bent, or damaged, or that the CV joints are worn out.
  • Grease Leaks: If the CV axle boot tears or cracks, grease can leak out. You may notice grease on the inside of the wheel or around the CV joint. This can lead to increased wear on the joint due to a lack of lubrication.

About GKN

We've all heard of so many horror stories of sub-par aftermarket axle shafts that just don't hold up to the quality standards of today's vehicles. Why do the OE axles last so long? Who makes them? GKN Driveline is the world’s leading supplier of automotive driveline systems and solutions and in most cases, you'll find them as the OE supplier on your European vehicle. As a global business serving the leading vehicle manufacturers, GKN Driveline develops, builds and supplies an extensive range of automotive driveline products and systems – for use in the smallest ultra low-cost car to the most sophisticated premium vehicle demanding the most complex driving dynamics.​ When you see the GKN option available while shopping for your next axle, be sure not to hesitate. Stay original, go with the OE GKN.

Fits These Cars

Volvo V70

  • 2001 Volvo V70 X/C CV Axle Assembly (Front Left)
    Automatic AWD Wagon 2.4L L5 B5244T3 Gas
  • 2002 Volvo V70 X/C CV Axle Assembly (Front Left)
    Automatic AWD Wagon 2.4L L5 B5244T3 Gas

Volvo XC70

  • 2003 Volvo XC70 X/C CV Axle Assembly (Front Left)
    Automatic AWD Wagon 2.5L L5 B5254T2 Gas
  • 2004 Volvo XC70 CV Axle Assembly (Front Left)
    Automatic AWD Wagon 2.5L L5 B5254T2 Gas
  • 2005 Volvo XC70 CV Axle Assembly (Front Left)
    Automatic AWD Wagon 2.5L L5 B5254T2 Gas
  • 2006 Volvo XC70 CV Axle Assembly (Front Left)
    Automatic AWD Wagon 2.5L L5 B5254T2 Gas
  • 2006 Volvo XC70 Ocean Race CV Axle Assembly (Front Left)
    Automatic AWD Wagon 2.5L L5 B5254T2 Gas
  • 2007 Volvo XC70 CV Axle Assembly (Front Left)
    Automatic AWD Wagon 2.5L L5 B5254T2 Gas

Product Reviews

4 Reviews

5.0
Average rating
Leave a review
Jason
on Sun, Jul 26 at 05:32PM
Excellent Part
Still going strong after thousands of miles. Installation in less than an hour with axle popper tool.
Andy
on Wed, Mar 13 at 01:41PM
CV Axle Shaft Replacement
Great Quality OE replacement. I highly recommend you bring the driver side CV to a mechanic to replace it. This side is typically way harder to remove than the passenger side for some reason.
Andy
on Wed, Sep 19 at 11:35PM
Volvo
Axle is good, definitely better than the cheap ones from other places. My new cheap axle had play in the inner joint out of the box.
Tom Dalton
on Mon, May 21 at 01:35PM
Tom
worked perfectly

Questions & Answers

Ask a question
Question Posted by a customer
My original CV axle has a big weight between the boots and this replacement (and others) does not. Why not and does it make any difference?
Answer (Posted by FCP Euro Products Team)
The weight was originally added as a method to try and dampen vibrations, but OE manufacturers stopped installing these dampers because they trap water and promote rust potentially leading to failure.
Question Posted by a customer
I just got one today but it does not have the dampener, which is in the picture and also on the original axle my car came with. Im a little worried about that. Thanks
Answer (Posted by FCP Euro Products Team)
Unfortunately this replacement unit does not incorporate the dampener.
