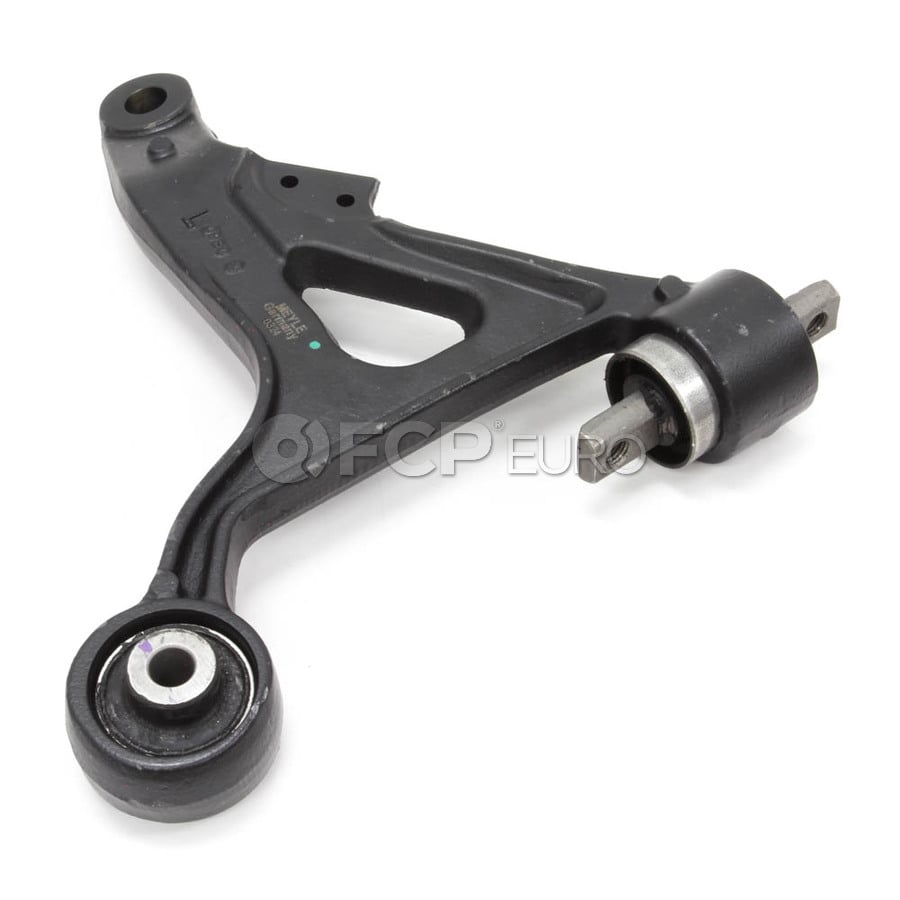

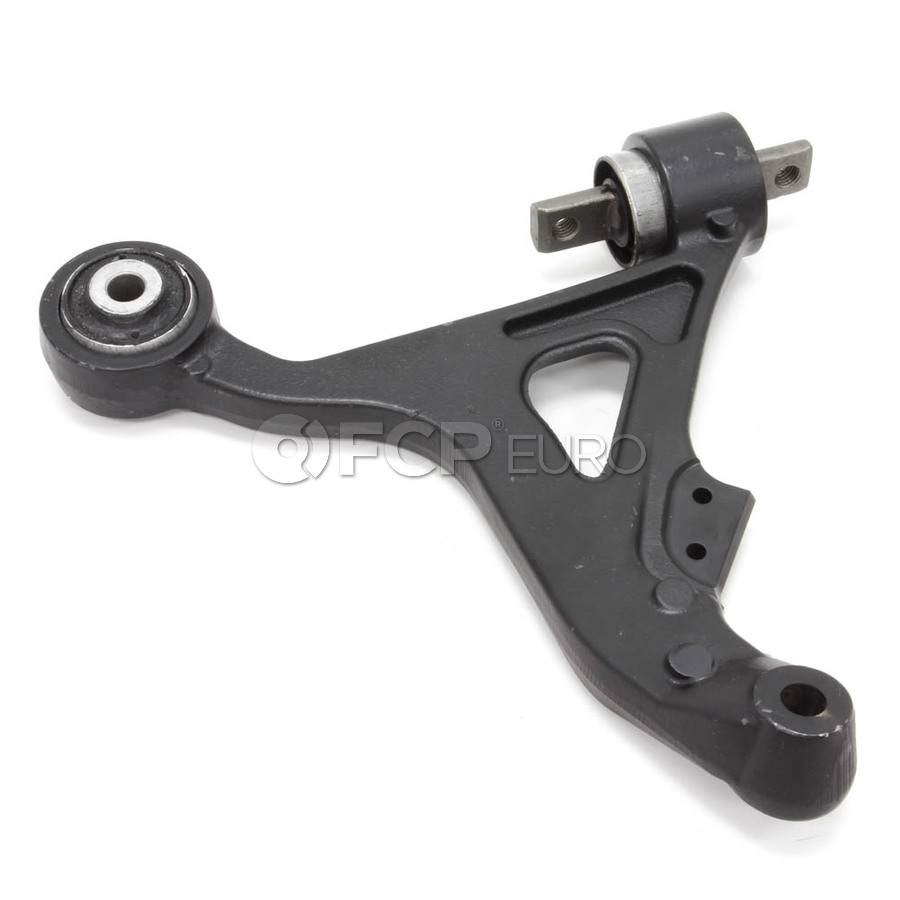

Volvo Control Arm - Meyle HD 30760586

If you have a 2007, there were two possible styles of control arms installed on the vehicle, aluminum (silver) or steel (black painted). Please see vehicle fitment notes for chassis splits, and double check with visual inspection before ordering.

Mounting Bolts

Volvo uses one-time-use stretch bolts to fasten the lower control arms as well as the CV axle bolt. It is required to buy new hardware when removing these components.

• Front bolts (left) x2: [987455]
• Front bolts (Right) x2: [987456]
• Rear bolts x4: [985226]
• Axle Bolts x2: [30640878]

Torque Specs

Link arm front in sub-frame, front mounting (M12):

• 1st step, 65 Nm.
• 2nd step, 105º

Link arm front in sub-frame, rear mounting (M14):

• 1st step, 105 Nm.
• 2nd step, 180º

Bolt drive shaft - wheel hub/bearing:

• Stage 1: 35 Nm
• Stage 2: 90°

Choose Your Steering Rack Stops:

In conjunction with this control arm, it is highly recommended to replace the steering rack stops for to avoid having the tires rub the fender at max steering angle. There are three steering rack stops available, and correspond with the size (width) of the tires mounted on the vehicle.

• For tire sizes 195/65 and 205/55 use 31262495 (Blue).
• For tire size 215/55 use 31262496 (White/Natural).
• For tire sizes 235/45, 225/45, 235/40 use 31262497 (Black).
