Spec
Volvo Clutch Upgrade Kit - Spec SO60S0KT
S60, V70

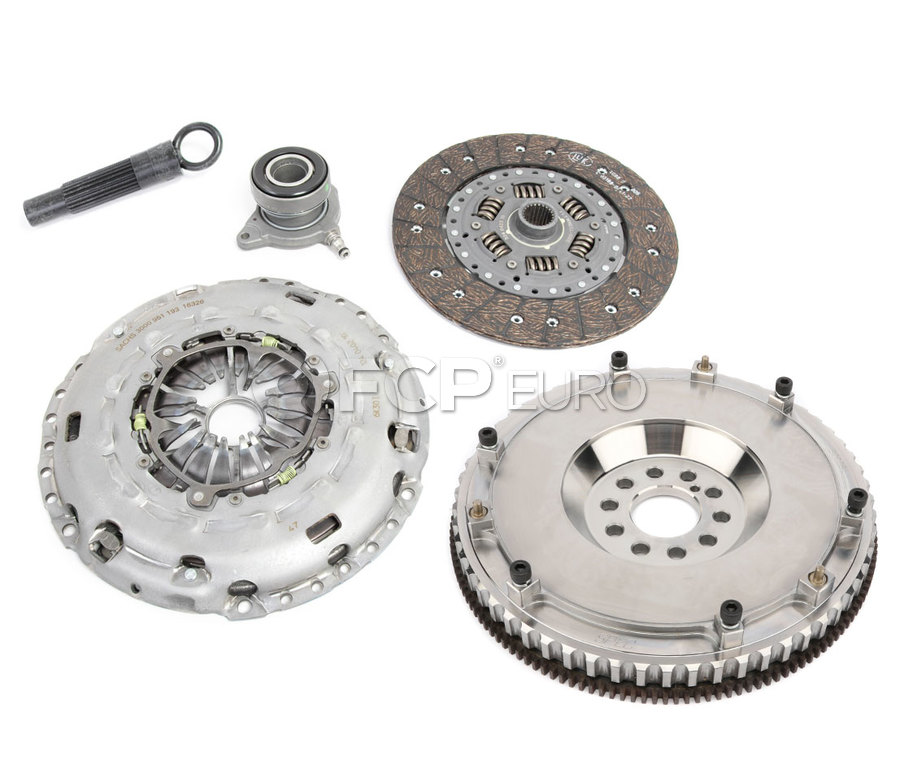

Comes with an OE P2R clutch pressure plate and friction disc, as well as a lightened SPEC single mass flywheel.
Description
Details
- SKU:
- KIT-SO60S0KT
- FCP Euro ID:
- Quality:
- Performance
OE Numbers
- 30783258
MFG Numbers
- SO60S-0, K7040101
This Kit Includes
| Qty | Part | SKU | Brand | Price |
|---|---|---|---|---|
| 1 | Single Mass Flywheel | SPE-SO60S0 |
Spec
|
$575.10 |
| 1 | Transmission Clutch Kit | SAC-K7040101 |
Sachs
|
$468.99 |
Product Information
OE friction disc and pressure plate for early P2R models. The flywheel in this kit comes in under 18lbs, which is about 8lbs lighter than the stock dual mass flywheel found in the P2R. If installing in an M56 5-speed car, you will also need the slave cylinder specific to that transmission: [CLICK HERE]. You will end up with an extra slave cylinder because the Sachs clutch comes with one for the M66, we cannot remove it.
This flywheel is lightened, resulting in a difference in RPM response. Be aware that because the single mass flywheel lacks the damping springs of a dual mass flywheel and the style of clutch disc, this kit WILL result in clutch chatter at idle. This is normal and will not damage any components, nor will it effect the life of any related part.
This kit can be used as an upgrade for any 23 spline Volvo.
Clutch kits are made up of two main components, the clutch friction disc and the clutch pressure plate. Both of these components transfer torque from the flywheel to the transmission. There are several different types of manual transmission clutches in terms of operation but they all perform the same basic function.
Clutches are a pure wear item. In some cases you may have the option to replace a pressure plate or clutch disc separately but its always best to replace both at the same time along with other component such as the rear main seal, pilot bearing, release bearing, and shifter parts.
Transmission Clutch Kit Failure Symptoms- Slipping under acceleration
- Engine revs freely but the vehicle does not accelerate
- Difficulty shifting gears
- Squeaking noises while the clutch pedal is pressed
- Sticky or spongy clutch pedal feel when the clutch pedal is pressed
- Burning smell from slipping clutch
Fits These Cars
Volvo V70
-
2001 Volvo V70 Transmission Clutch KitManual FWD Wagon 2.4L L5 B5244S Gas
-
2001 Volvo V70 T5 Transmission Clutch KitManual FWD Wagon 2.3L L5 B5234T3 Gas
-
2002 Volvo V70 Transmission Clutch KitManual FWD Wagon 2.4L L5 B5244S Gas
-
2002 Volvo V70 T5 Transmission Clutch KitManual FWD Wagon 2.3L L5 B5234T3 Gas
-
2003 Volvo V70 Transmission Clutch KitManual FWD Wagon 2.4L L5 B5244S Gas
-
2003 Volvo V70 Transmission Clutch KitManual FWD Wagon 2.4L L5 B5244S6 Gas
-
2003 Volvo V70 T5 Transmission Clutch KitManual FWD Wagon 2.3L L5 B5234T3 Gas
-
2004 Volvo V70 2.4 Transmission Clutch KitManual FWD Wagon 2.4L L5 B5244S Gas
-
2004 Volvo V70 2.4 Transmission Clutch KitManual FWD Wagon 2.4L L5 B5244S6 Gas
-
2004 Volvo V70 R Transmission Clutch KitManual AWD Wagon 2.5L L5 B5254T4 Gas
-
2004 Volvo V70 T5 Transmission Clutch KitManual FWD Wagon 2.3L L5 B5234T3 Gas
-
2005 Volvo V70 2.4 Transmission Clutch KitManual FWD Wagon 2.4L L5 B5244S Gas
-
2005 Volvo V70 2.4 Transmission Clutch KitManual FWD Wagon 2.4L L5 B5244S6 Gas
-
2005 Volvo V70 R Transmission Clutch KitManual AWD Wagon 2.5L L5 B5254T4 Gas
-
2005 Volvo V70 T5 Transmission Clutch KitManual FWD Wagon 2.4L L5 B5244T5 Gas
-
2006 Volvo V70 2.4 Transmission Clutch KitManual FWD Wagon 2.4L L5 B5244S Gas
-
2006 Volvo V70 2.4 Transmission Clutch KitManual FWD Wagon 2.4L L5 B5244S6 Gas
-
2006 Volvo V70 R Transmission Clutch KitManual AWD Wagon 2.5L L5 B5254T4 Gas
-
2007 Volvo V70 2.4 Transmission Clutch KitManual FWD Wagon 2.4L L5 B5244S Gas
-
2007 Volvo V70 R Transmission Clutch KitManual AWD Wagon 2.5L L5 B5254T4 Gas
Volvo S60
-
2003 Volvo S60 Transmission Clutch KitManual FWD Sedan 2.4L L5 B5244S Gas
-
2003 Volvo S60 Transmission Clutch KitManual FWD Sedan 2.4L L5 B5244S6 Gas
-
2003 Volvo S60 T5 Transmission Clutch KitManual FWD Sedan 2.3L L5 B5234T3 Gas
-
2004 Volvo S60 2.4 Transmission Clutch KitManual FWD Sedan 2.4L L5 B5244S Gas
-
2004 Volvo S60 2.4 Transmission Clutch KitManual FWD Sedan 2.4L L5 B5244S6 Gas
-
2004 Volvo S60 R Transmission Clutch KitManual AWD Sedan 2.5L L5 B5254T4 Gas
-
2004 Volvo S60 T5 Transmission Clutch KitManual FWD Sedan 2.3L L5 B5234T3 Gas
-
2005 Volvo S60 2.4 Transmission Clutch KitManual FWD Sedan 2.4L L5 B5244S Gas
-
2005 Volvo S60 2.4 Transmission Clutch KitManual FWD Sedan 2.4L L5 B5244S6 Gas
-
2005 Volvo S60 R Transmission Clutch KitManual AWD Sedan 2.5L L5 B5254T4 Gas
-
2005 Volvo S60 T5 Transmission Clutch KitManual FWD Sedan 2.4L L5 B5244T5 Gas
-
2006 Volvo S60 R Transmission Clutch KitManual AWD Sedan 2.5L L5 B5254T4 Gas
-
2006 Volvo S60 T5 Transmission Clutch KitManual FWD Sedan 2.4L L5 B5244T5 Gas
-
2007 Volvo S60 R Transmission Clutch KitManual AWD Sedan 2.5L L5 B5254T4 Gas
-
2007 Volvo S60 T5 Transmission Clutch KitManual FWD Sedan 2.4L L5 B5244T5 Gas
