BC Racing
SKU:
BCR-ZG-08BR
Volvo BR Series Coilover Kit - BC Racing ZG-08BR
S60, V70
AWD. Offers a complete suspension upgrade for the AWD P2 S60 and V70. Contains adjustable springs and dampers, camber plates, and shock mounts.
Price each:
$1,195.00
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order.
Note: The customer is responsible for the cost of return shipping.
QTY
Make sure this fits your car
To ensure fitment and browse only products that fit, please select a vehicle first.
Description
Details
- SKU:
- BCR-ZG-08BR
- FCP Euro ID:
- 425706
- Made in:
- Taiwan
- Quality:
- Performance
OE Numbers
- N/A
MFG Numbers
- ZG-08
Product Information
NOTE
- This kit is not 'active' and does not utilize the Volvo Four-C system. If you have Four-C active suspension you will have an error on your dash regarding an active suspension fault. Please do your research before purchasing.
- Does not come with rear top mounts, please use 8646101

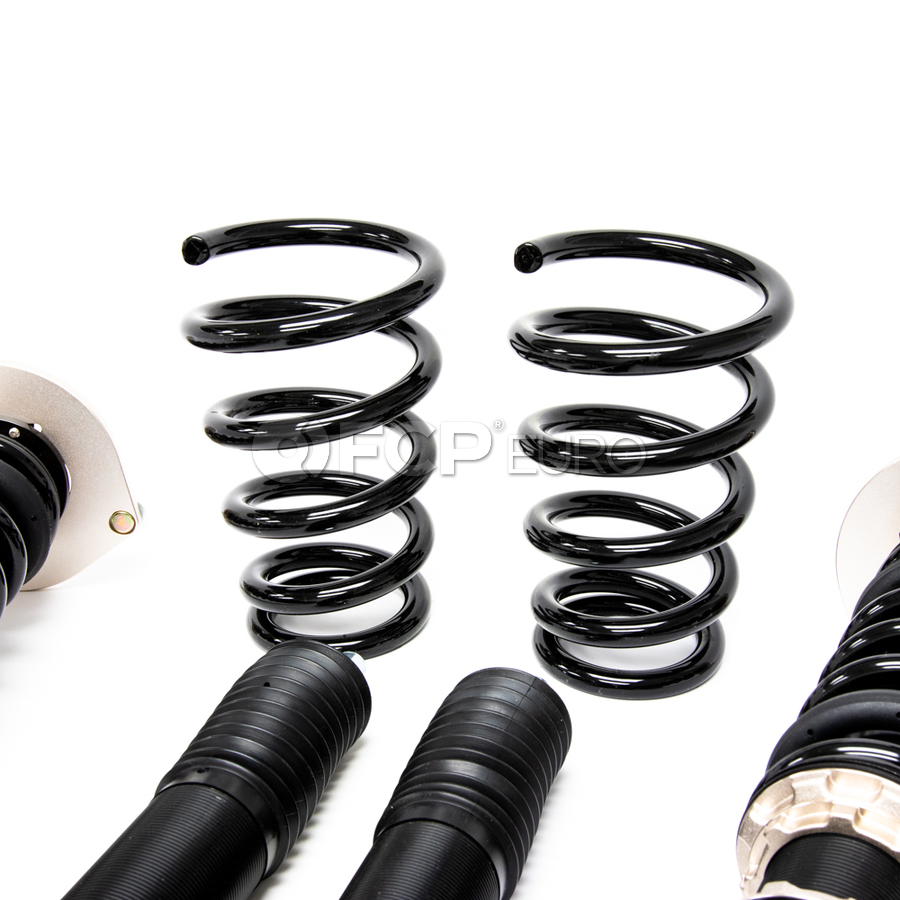

This adjustable coilover kit is perfect for owners of the Volvo P2 chassis S60 and V70 looking for a complete suspension update, with adjustable springs, dampers, camber plates, and ability for comprehensive lowering on each corner for great balance and stance without affecting pre-load. The BR series offers 30 clicks of adjustable compression and rebound, and custom spring rates and valving chosen specifically for the AWD S60 and V70. This is helpful as many other kits use off the shelf components and adapters. BC ensures that the spring rates and damper valving perfectly match the car they are chosen for through extensive testing before product launch.
Over the years, the ZG-08 kit has proven to be a mainstay among avid Volvo enthusiasts and new performance modders alike. Don't be fooled by the budget price, BC owners agree that they achieve everything they need to be the best option available factoring in price, adjustability, ride quality, and performance.
Features for the ZG-08 coil over kit for the AWD Volvo S60 and V70 turbo or non-turbo:
- Default spring rates: Front - 5KG | Rear - 12KG
- Highly Customizable
- Includes tools required to adjust
- Mono-Tube Shock Design
- Linear Piston And Damping Curve
- Height Adjustment Independent Of Spring Compression
- 30-Clicks Of Simultaneous Compression/Rebound Adjustment
- Front Camber Plates
- Fully Rebuildable
Fits These Cars
Volvo V70
-
2001 Volvo V70 X/C Coilover SetAutomatic AWD Wagon 2.4L L5 B5244T3 Gas
-
2002 Volvo V70 AWD Coilover SetAutomatic AWD Wagon 2.4L L5 B5244T3 Gas
-
2002 Volvo V70 X/C Coilover SetAutomatic AWD Wagon 2.4L L5 B5244T3 Gas
-
2003 Volvo V70 AWD Coilover SetAutomatic AWD Wagon 2.5L L5 B5254T2 Gas
-
2004 Volvo V70 2.5T AWD Coilover SetAutomatic AWD Wagon 2.5L L5 B5254T2 Gas
-
2004 Volvo V70 R Coilover SetAutomatic AWD Wagon 2.5L L5 B5254T4 Gas
Notes: Does not utilize the 4C system, will trigger a warning light. Do your research before ordering. -
2004 Volvo V70 R Coilover SetManual AWD Wagon 2.5L L5 B5254T4 Gas
Notes: Does not utilize the 4C system, will trigger a warning light. Do your research before ordering. -
2005 Volvo V70 R Coilover SetAutomatic AWD Wagon 2.5L L5 B5254T4 Gas
Notes: Does not utilize the 4C system, will trigger a warning light. Do your research before ordering. -
2005 Volvo V70 R Coilover SetManual AWD Wagon 2.5L L5 B5254T4 Gas
Notes: Does not utilize the 4C system, will trigger a warning light. Do your research before ordering. -
2006 Volvo V70 2.5T Coilover SetAutomatic FWD Wagon 2.5L L5 B5254T2 Gas
-
2006 Volvo V70 R Coilover SetAutomatic AWD Wagon 2.5L L5 B5254T4 Gas
Notes: Does not utilize the 4C system, will trigger a warning light. Do your research before ordering. -
2006 Volvo V70 R Coilover SetManual AWD Wagon 2.5L L5 B5254T4 Gas
Notes: Does not utilize the 4C system, will trigger a warning light. Do your research before ordering. -
2007 Volvo V70 R Coilover SetAutomatic AWD Wagon 2.5L L5 B5254T4 Gas
Notes: Does not utilize the 4C system, will trigger a warning light. Do your research before ordering. -
2007 Volvo V70 R Coilover SetManual AWD Wagon 2.5L L5 B5254T4 Gas
Notes: Does not utilize the 4C system, will trigger a warning light. Do your research before ordering.
Volvo S60
-
2002 Volvo S60 AWD Coilover SetAutomatic AWD Sedan 2.4L L5 B5244T3 Gas
-
2003 Volvo S60 AWD Coilover SetAutomatic AWD Sedan 2.5L L5 B5254T2 Gas
-
2004 Volvo S60 2.5T AWD Coilover SetAutomatic AWD Sedan 2.5L L5 B5254T2 Gas
-
2004 Volvo S60 R Coilover SetAutomatic AWD Sedan 2.5L L5 B5254T4 Gas
Notes: Does not utilize the 4C system, will trigger a warning light. Do your research before ordering. -
2004 Volvo S60 R Coilover SetManual AWD Sedan 2.5L L5 B5254T4 Gas
Notes: Does not utilize the 4C system, will trigger a warning light. Do your research before ordering. -
2005 Volvo S60 2.5T AWD Coilover SetAutomatic AWD Sedan 2.5L L5 B5254T2 Gas
-
2005 Volvo S60 R Coilover SetAutomatic AWD Sedan 2.5L L5 B5254T4 Gas
Notes: Does not utilize the 4C system, will trigger a warning light. Do your research before ordering. -
2005 Volvo S60 R Coilover SetManual AWD Sedan 2.5L L5 B5254T4 Gas
Notes: Does not utilize the 4C system, will trigger a warning light. Do your research before ordering. -
2006 Volvo S60 2.5T Coilover SetAutomatic AWD Sedan 2.5L L5 B5254T2 Gas
-
2006 Volvo S60 2.5T Coilover SetAutomatic FWD Sedan 2.5L L5 B5254T2 Gas
-
2006 Volvo S60 R Coilover SetAutomatic AWD Sedan 2.5L L5 B5254T4 Gas
Notes: Does not utilize the 4C system, will trigger a warning light. Do your research before ordering. -
2006 Volvo S60 R Coilover SetManual AWD Sedan 2.5L L5 B5254T4 Gas
Notes: Does not utilize the 4C system, will trigger a warning light. Do your research before ordering. -
2007 Volvo S60 2.5T Coilover SetAutomatic AWD Sedan 2.5L L5 B5254T2 Gas
-
2007 Volvo S60 2.5T Coilover SetAutomatic FWD Sedan 2.5L L5 B5254T2 Gas
-
2007 Volvo S60 R Coilover SetAutomatic AWD Sedan 2.5L L5 B5254T4 Gas
Notes: Does not utilize the 4C system, will trigger a warning light. Do your research before ordering. -
2007 Volvo S60 R Coilover SetManual AWD Sedan 2.5L L5 B5254T4 Gas
Notes: Does not utilize the 4C system, will trigger a warning light. Do your research before ordering. -
2008 Volvo S60 2.5T Coilover SetAutomatic AWD Sedan 2.5L L5 B5254T2 Gas
-
2008 Volvo S60 2.5T Coilover SetAutomatic FWD Sedan 2.5L L5 B5254T2 Gas
-
2009 Volvo S60 2.5T Coilover SetAutomatic AWD Sedan 2.5L L5 B5254T2 Gas
-
2009 Volvo S60 2.5T Coilover SetAutomatic FWD Sedan 2.5L L5 B5254T2 Gas
Product Reviews
8 Reviews
4.9
Average rating
Ditched the 4C System and haven’t looked back. The BC Racing BR ride quality is fantastic and highly adjustable with just a few easy clicks under the hood. 10/10 product.
I ran these for a year before i got rear ended and my car got totaled, for the time they were on they were amazing, I had a 2006 Volvo 2.5t AWD, they fit perfectly, allowed for easy adjustability, and the drove amazing, close to stock comfort with the aggressiveness and sturdiness for coil overs, some say these are the cheap option, I don't care what they say I would buy these over and over again. the ride height is super easy to adjust, and the 30 settings of soft or hard driving is amazing.
Overall, extremely impressed. These don't 'crash' or have the harshness my 4C had with Elevate springs. Dampening I played around with a good bit and found a happy place for smoothness, but firm enough for good handling. BCs are often regarded as 'budget coilovers', but after running them, I am actually very pleased! Should have done it sooner.
Very easy install, you reuse the old mounts in the rear so you will need a spring compressor to take them off the old ones, although I have seen some people just zip em off while still on the car, up to you. Inspect your old mounts prior to installation to make sure they're good to go. The ride is perfect with the adjustable dampening, Instructions are pretty easy to follow. Ride is great, not too stiff for a daily driver, I am happy.
Great product. Pretty easy to install compared to other vehicles. I like how it feels with the springs it comes with. Way better ride than the blown 4c that was on it. 2004 Volvo V70R
Great and easy install. Remember to do the 4C delete process to eliminate any codes. Don't go to low or else it can rub against you CV Boots and you'll have to replace those as well. Very simplistic install and damper controls.
I bought these for my R. I've had them on a couple of weeks now. The install was very straightforward (getting the old ones off was the trickiest part). I contacted FCP before ordering and asked for 7kg front springs, which I think was a good choice. The ride is firm but not harsh. I have the "Chassis settings service required" light on because I have not finished cutting out the 4C sensors and plugging them back in. But other than the light, no negative consequences from that. I'm glad I made the switch. The car feels so much more planted now, and the rear end does not get unsettled over bumps the way it used to.
ditch the 4C and go with these. they ride and handle much better. make sure to ask for the 7kg swift spring upgrade for the fronts.
Questions & Answers
Ask a question
Question
Posted by Casey
I read the reviews that suggest swapping the front springs out for 7kg, how do we do that?
Answer
(Posted by FCP Euro Products Team)
After ordering, you will have to reach out to our service team and request a spring weight change after checkout.
Question
Posted by Dominic
For the rear, will it have a specific mount since the rear awd models have a 1 bolt up top and 2 bolts facing upwards and one bolt for the shock mount underneath. Would these coilovers mount the same way?
Answer
(Posted by FCP Euro Products Team)
These should install out of the box with no additional pieces required for any of the components. There is no indication a different rear upper mount is required.
Question
Posted by Mark
I live in California where rural roads are poorly maintained. Will these soften the ride quality in my 2003 S60 2.4L Base model?
Answer
(Posted by FCP Euro Products Team)
No, these will offer a firmer, sporty ride. We suggest Sachs which will be the best product we offer for a good ride poorly maintained roads. Use KIT-522036KT and rear shock SAC-317339
Question
Posted by Cville Imports
Would these not fit a P2 non-4C XC70 as well?
Answer
(Posted by FCP Euro Products Team)
BC does not list these as fitting XC70s, and advise that even though they may fit they have not tested them on a vehicle. Although all P2 V70 variants have similar suspension, there are key suspension differences such as control arms when it comes to the XC version. Officially we advise this product will not work on your XC70.
Question
Posted by a customer
So I just got mine in the mail today. The rears showed pillowball mounts in the rears but I didnt get those in my package. Anyway I can get those? Or will I have to use my old ones?
Answer
(Posted by FCP Euro Products Team)
Please contact customer service and we will get you all set up. You may have received an incomplete kit from BC since these are shipped factory direct, and we will work to get you what you need.
Question
Posted by Gregory
The image for the S60R kit shows the rears with upper pillow ball mounts. Is this the case or will I need to reuse my strut mounts with new spring seats?
Answer
(Posted by FCP Euro Products Team)
This kit contains everything pictured.
Question
Posted by a customer
When replacing the 4C struts with coilovers, what steps should I take to avoid codes and/or warning lights that result from the 4C removal?
Answer
(Posted by FCP Euro Products Team)
Several DIY'ers have come up with homemade solutions to defeat the 4C electronics, but right now there's nothing we can officially recommend or sell to achieve these results.
Question
Posted by Austin
Planning on purchasing this kit for my 07 S60R, I know it will give me an error message for the 4C struts, but will my modes still work? (Comfort, sport, advanced)of coure not the strut stiffness, will sport and andvanced still increase throttle response?
Answer
(Posted by FCP Euro Products Team)
Unfortunately the system will be disabled and none of the features will work.
Question
Posted by bryce
These are height adjustable. Currently have a ride height of 1.5 lower than stock from lowering springs. Will this be able to give me the same distance in lowering. Love the stance - hate the springs - need an alternative.
Answer
(Posted by FCP Euro Products Team)
Yes, these will give you up to 2.5 inches of adjustment.
Question
Posted by a customer
Do these allow any room to go up in height and do they bring the maximum ride height down from stock or is it adjustable from stock height
Answer
(Posted by FCP Euro Products Team)
This kit does allow room to go up in height.
