GKN
SKU:
GKN-305561

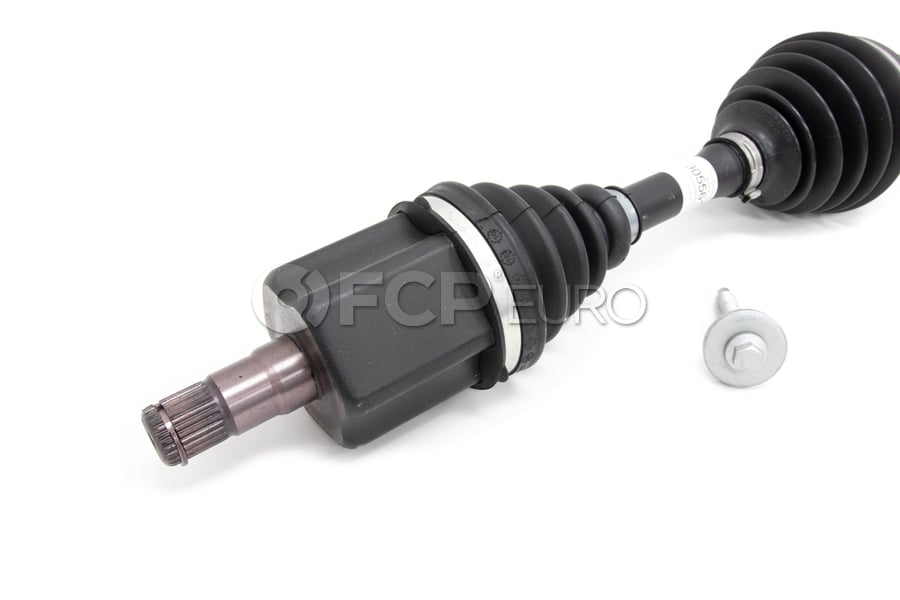

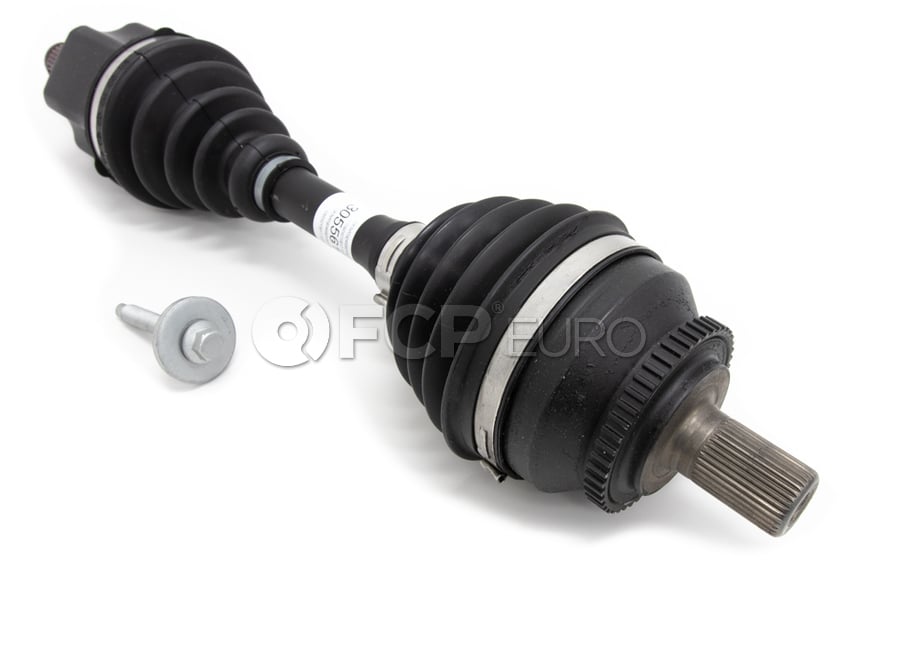

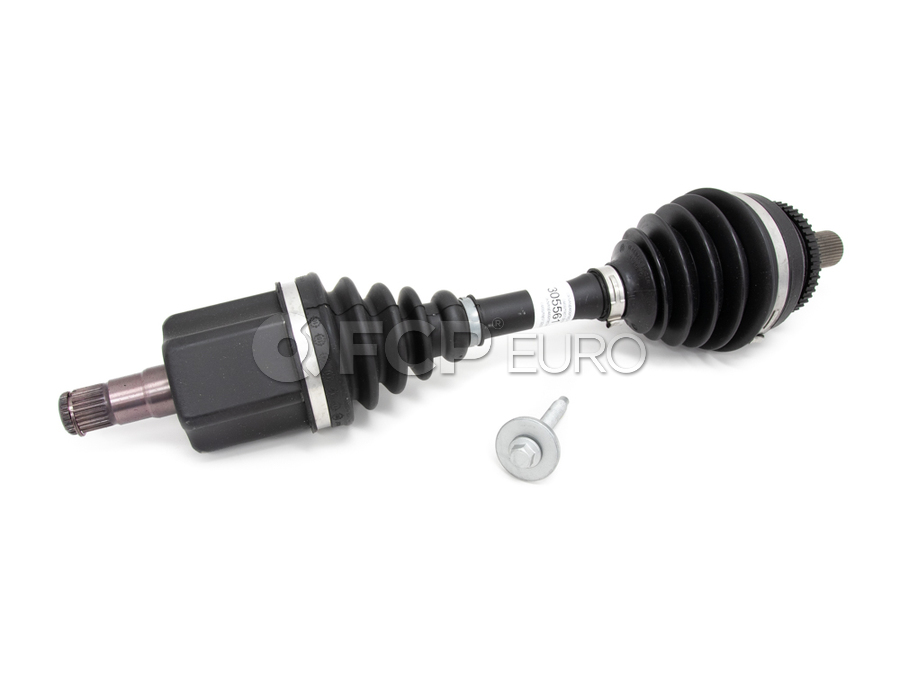

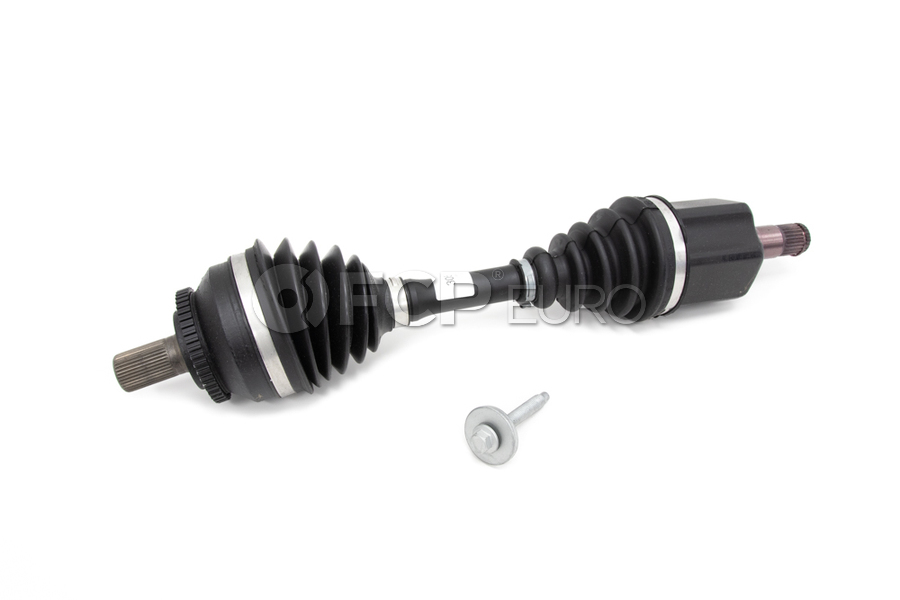

Volvo Axle Assembly - GKN 305561
S60, V70
Price each:
$304.99
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order.
Note: The customer is responsible for the cost of return shipping.
Thanks for signing up!
We will let you know when this product is back in stock.
Make sure this fits your car
To ensure fitment and browse only products that fit, please select a vehicle first.
Description
Details
- SKU:
- GKN-305561
- FCP Euro ID:
- 536279
- GTIN / UPC:
- 04019064155775
- Made in:
- Spain
- Quality:
- OE
OE Numbers
- 8252033, 8601853, 8601857, 8602574, 8602580, 8603789, 8603796, 36000521
MFG Numbers
- 305561
Product Information
- Outer teething wheel side 36
- Outer teething differential side 26
- Length 527 mm
- Teeth number , ABS ring 48
- ABS ring Ø 81.5 mm
- Seal diam. 56.6 mm
- Wheel Side Joint Ø 98 mm
- Transmission Side Joint Ø 86 mm
- Thread Size M10x1,5F
The CV (Constant Velocity) axle assembly is responsible for transferring torque and rotational power from the transmission to the wheels while allowing for suspension movement and steering articulation. The CV axle consists of a shaft with joints at both ends: a CV joint that connects the axle to the transmission and another CV joint that connects the axle to the wheel hub. This design allows the axle to handle changes in angle and length as the vehicle moves, especially when turning or going over bumps.
CV Axle Assembly Failure Symptoms- Clicking or Popping Noises: One of the most common signs of a failing CV axle is a clicking or popping noise when turning the vehicle. This noise typically occurs when the CV joint is damaged or worn out, especially during sharp turns.
- Vibration While Driving: A failing CV axle can cause noticeable vibrations while driving, especially at higher speeds. This vibration may indicate that the axle is bent, or damaged, or that the CV joints are worn out.
- Grease Leaks: If the CV axle boot tears or cracks, grease can leak out. You may notice grease on the inside of the wheel or around the CV joint. This can lead to increased wear on the joint due to a lack of lubrication.
About GKN
We've all heard of so many horror stories of sub-par aftermarket axle shafts that just don't hold up to the quality standards of today's vehicles. Why do the OE axles last so long? Who makes them? GKN Driveline is the world’s leading supplier of automotive driveline systems and solutions and in most cases, you'll find them as the OE supplier on your European vehicle. As a global business serving the leading vehicle manufacturers, GKN Driveline develops, builds and supplies an extensive range of automotive driveline products and systems – for use in the smallest ultra low-cost car to the most sophisticated premium vehicle demanding the most complex driving dynamics. When you see the GKN option available while shopping for your next axle, be sure not to hesitate. Stay original, go with the OE GKN.
Fits These Cars
Volvo S60
-
2001 Volvo S60 2.4T CV Axle Assembly (Front Left)Automatic FWD Sedan 2.4L L5 B5244T3 Gas
-
2001 Volvo S60 CV Axle Assembly (Front Left)Automatic FWD Sedan 2.4L L5 B5244S Gas
-
2001 Volvo S60 T5 CV Axle Assembly (Front Left)Automatic FWD Sedan 2.3L L5 B5234T3 Gas
-
2002 Volvo S60 2.4T CV Axle Assembly (Front Left)Automatic FWD Sedan 2.4L L5 B5244T3 Gas
-
2002 Volvo S60 AWD CV Axle Assembly (Front Left)Automatic AWD Sedan 2.4L L5 B5244T3 Gas
-
2002 Volvo S60 CV Axle Assembly (Front Left)Automatic FWD Sedan 2.4L L5 B5244S Gas
-
2002 Volvo S60 T5 CV Axle Assembly (Front Left)Automatic FWD Sedan 2.3L L5 B5234T3 Gas
-
2003 Volvo S60 2.4T CV Axle Assembly (Front Left)Automatic FWD Sedan 2.4L L5 B5244T3 Gas
-
2003 Volvo S60 AWD CV Axle Assembly (Front Left)Automatic AWD Sedan 2.5L L5 B5254T2 Gas
-
2003 Volvo S60 CV Axle Assembly (Front Left)Automatic FWD Sedan 2.4L L5 B5244S Gas
-
2003 Volvo S60 CV Axle Assembly (Front Left)Automatic FWD Sedan 2.4L L5 B5244S6 Gas
-
2003 Volvo S60 T5 CV Axle Assembly (Front Left)Automatic FWD Sedan 2.3L L5 B5234T3 Gas
-
2003 Volvo S60 T5 CV Axle Assembly (Front Left)Manual FWD Sedan 2.3L L5 B5234T3 Gas
-
2004 Volvo S60 2.4 CV Axle Assembly (Front Left)Automatic FWD Sedan 2.4L L5 B5244S Gas
-
2004 Volvo S60 2.4 CV Axle Assembly (Front Left)Automatic FWD Sedan 2.4L L5 B5244S6 Gas
-
2004 Volvo S60 2.5T CV Axle Assembly (Front Left)Automatic FWD Sedan 2.5L L5 B5254T2 Gas
-
2004 Volvo S60 2.5T AWD CV Axle Assembly (Front Left)Automatic AWD Sedan 2.5L L5 B5254T2 Gas
-
2004 Volvo S60 R CV Axle Assembly (Front Left)Automatic AWD Sedan 2.5L L5 B5254T4 Gas
-
2004 Volvo S60 T5 CV Axle Assembly (Front Left)Automatic FWD Sedan 2.3L L5 B5234T3 Gas
-
2005 Volvo S60 2.4 CV Axle Assembly (Front Left)Automatic FWD Sedan 2.4L L5 B5244S Gas
-
2005 Volvo S60 2.4 CV Axle Assembly (Front Left)Automatic FWD Sedan 2.4L L5 B5244S6 Gas
-
2005 Volvo S60 2.5T CV Axle Assembly (Front Left)Automatic FWD Sedan 2.5L L5 B5254T2 Gas
-
2005 Volvo S60 2.5T AWD CV Axle Assembly (Front Left)Automatic AWD Sedan 2.5L L5 B5254T2 Gas
-
2005 Volvo S60 R CV Axle Assembly (Front Left)Automatic AWD Sedan 2.5L L5 B5254T4 Gas
-
2005 Volvo S60 T5 CV Axle Assembly (Front Left)Automatic FWD Sedan 2.4L L5 B5244T5 Gas
-
2006 Volvo S60 2.5T CV Axle Assembly (Front Left)Automatic AWD Sedan 2.5L L5 B5254T2 Gas
-
2006 Volvo S60 2.5T CV Axle Assembly (Front Left)Automatic FWD Sedan 2.5L L5 B5254T2 Gas
-
2006 Volvo S60 R CV Axle Assembly (Front Left)Automatic AWD Sedan 2.5L L5 B5254T4 Gas
-
2006 Volvo S60 T5 CV Axle Assembly (Front Left)Automatic FWD Sedan 2.4L L5 B5244T5 Gas
-
2006 Volvo S60 T5 CV Axle Assembly (Front Left)Manual FWD Sedan 2.4L L5 B5244T5 Gas
-
2007 Volvo S60 2.5T CV Axle Assembly (Front Left)Automatic AWD Sedan 2.5L L5 B5254T2 Gas
-
2007 Volvo S60 2.5T CV Axle Assembly (Front Left)Automatic FWD Sedan 2.5L L5 B5254T2 Gas
-
2007 Volvo S60 T5 CV Axle Assembly (Front Left)Automatic FWD Sedan 2.4L L5 B5244T5 Gas
-
2008 Volvo S60 2.5T CV Axle Assembly (Front Left)Automatic AWD Sedan 2.5L L5 B5254T2 Gas
-
2008 Volvo S60 2.5T CV Axle Assembly (Front Left)Automatic FWD Sedan 2.5L L5 B5254T2 Gas
-
2008 Volvo S60 T5 CV Axle Assembly (Front Left)Automatic FWD Sedan 2.4L L5 B5244T5 Gas
-
2009 Volvo S60 2.5T CV Axle Assembly (Front Left)Automatic AWD Sedan 2.5L L5 B5254T2 Gas
-
2009 Volvo S60 2.5T CV Axle Assembly (Front Left)Automatic FWD Sedan 2.5L L5 B5254T2 Gas
-
2009 Volvo S60 T5 CV Axle Assembly (Front Left)Automatic FWD Sedan 2.4L L5 B5244T5 Gas
Volvo V70
-
2001 Volvo V70 2.4T CV Axle Assembly (Front Left)Automatic FWD Wagon 2.4L L5 B5244T3 Gas
-
2001 Volvo V70 CV Axle Assembly (Front Left)Automatic FWD Wagon 2.4L L5 B5244S Gas
-
2001 Volvo V70 T5 CV Axle Assembly (Front Left)Automatic FWD Wagon 2.3L L5 B5234T3 Gas
-
2002 Volvo V70 2.4T CV Axle Assembly (Front Left)Automatic FWD Wagon 2.4L L5 B5244T3 Gas
-
2002 Volvo V70 AWD CV Axle Assembly (Front Left)Automatic AWD Wagon 2.4L L5 B5244T3 Gas
-
2002 Volvo V70 CV Axle Assembly (Front Left)Automatic FWD Wagon 2.4L L5 B5244S Gas
-
2002 Volvo V70 T5 CV Axle Assembly (Front Left)Automatic FWD Wagon 2.3L L5 B5234T3 Gas
-
2003 Volvo V70 2.4T CV Axle Assembly (Front Left)Automatic FWD Wagon 2.4L L5 B5244T3 Gas
-
2003 Volvo V70 AWD CV Axle Assembly (Front Left)Automatic AWD Wagon 2.5L L5 B5254T2 Gas
-
2003 Volvo V70 CV Axle Assembly (Front Left)Automatic FWD Wagon 2.4L L5 B5244S Gas
-
2003 Volvo V70 CV Axle Assembly (Front Left)Automatic FWD Wagon 2.4L L5 B5244S6 Gas
-
2003 Volvo V70 T5 CV Axle Assembly (Front Left)Automatic FWD Wagon 2.3L L5 B5234T3 Gas
-
2004 Volvo V70 2.4 CV Axle Assembly (Front Left)Automatic FWD Wagon 2.4L L5 B5244S Gas
-
2004 Volvo V70 2.4 CV Axle Assembly (Front Left)Automatic FWD Wagon 2.4L L5 B5244S6 Gas
-
2004 Volvo V70 2.5T CV Axle Assembly (Front Left)Automatic FWD Wagon 2.5L L5 B5254T2 Gas
-
2004 Volvo V70 2.5T AWD CV Axle Assembly (Front Left)Automatic AWD Wagon 2.5L L5 B5254T2 Gas
-
2004 Volvo V70 R CV Axle Assembly (Front Left)Automatic AWD Wagon 2.5L L5 B5254T4 Gas
-
2004 Volvo V70 T5 CV Axle Assembly (Front Left)Automatic FWD Wagon 2.3L L5 B5234T3 Gas
-
2005 Volvo V70 2.4 CV Axle Assembly (Front Left)Automatic FWD Wagon 2.4L L5 B5244S Gas
-
2005 Volvo V70 2.4 CV Axle Assembly (Front Left)Automatic FWD Wagon 2.4L L5 B5244S6 Gas
-
2005 Volvo V70 2.5T CV Axle Assembly (Front Left)Automatic FWD Wagon 2.5L L5 B5254T2 Gas
-
2005 Volvo V70 R CV Axle Assembly (Front Left)Automatic AWD Wagon 2.5L L5 B5254T4 Gas
-
2005 Volvo V70 T5 CV Axle Assembly (Front Left)Automatic FWD Wagon 2.4L L5 B5244T5 Gas
-
2006 Volvo V70 2.4 CV Axle Assembly (Front Left)Automatic FWD Wagon 2.4L L5 B5244S Gas
-
2006 Volvo V70 2.4 CV Axle Assembly (Front Left)Automatic FWD Wagon 2.4L L5 B5244S6 Gas
-
2006 Volvo V70 2.5T CV Axle Assembly (Front Left)Automatic FWD Wagon 2.5L L5 B5254T2 Gas
-
2007 Volvo V70 2.4 CV Axle Assembly (Front Left)Automatic FWD Wagon 2.4L L5 B5244S Gas
-
2007 Volvo V70 2.5T CV Axle Assembly (Front Left)Automatic FWD Wagon 2.5L L5 B5254T2 Gas
Product Reviews
7 Reviews
4.4
Average rating
I put this in 3.5 years and 30k miles ago, still holding up great. Nice and smooth. It was tough putting enough force on it so that it snapped into place in the transmission, but I got it eventually. I just had to change the passenger side today, and went with GKN for that also.
Unfortunately this is my second one. I replaced my last axle about 20,000 miles ago but it started clunking too much when driving. This time it clunks when turning. Volvo v70 2.5t 2007
Definitely didn't have steak dinner after buying this thing, but with certain parts I take "you get what you pay for" to heart. As expected from an OEM part the quality looks great, This one didn't have the rubber donut? on the shaft like the one that came on the car but, they both certainly had GKN stamped on them.
The axle has been clicking since installation in my Volvo S60 2.5T AWD, it's already installed so i have no choice but to continue driving it while it clicks, other than that the Axle seems to be holding up.
Put this and a passenger side axle in my wife's 220K miles V70 R. Smooth as silk.
One of my boots ripped so decided to replace both of them might as well instead of replacing them they were gonna charge me what one cost pretty much so why not. I replaced the original one with this one pretty much the identical only difference is the rubber piece this one doesn't have other than that they are the same. really great part rubber feels thick pieces and joints feel solid and tight freely moving no hesitation. The packaging was not the best I'm surprised but they arrived the bolt was great as well if you're gonna tackle this job just know it might take half or a whole day and a lot of elbow grease taking or popping this out. There's a lot to mention if you're about to replace this but if it's the only thing you plan then go for it great part great price knowing you'll have a warranty and lifetime replacement!
Worked like a treat. Bought both sides and although a bit more expensive an option than FEQ, but cheaper than a tow truck, I feel safer and I only wanted to do the job once. My tripod rollers on the passenger side and just about all the boots were toast. The axle bolts don't match, they are black and the washer is a bit smaller in diameter I had some extra OEM Volvo axle bolts, but they felt tight so I didn't swap them in.
Questions & Answers
Ask a question
Question
Posted by Harrison
Is it normal for these to have some lateral play?
Answer
(Posted by FCP Euro Products Team)
Yes, there will some very small amount of play but that would be normal.
Question
Posted by Richard
would this fit the right side front too?
Answer
(Posted by FCP Euro Products Team)
No, this is driver side only.
Question
Posted by a customer
Will this fit my 2001 Volvo S60 Base Sedan 2.4L L5 B5244S Automatic? It is a Front Wheel Drive non-turbo model. Thanks!
Answer
(Posted by FCP Euro Products Team)
Yes, that car is included on the fitment tab.
Question
Posted by a customer
will this fit to the front right side for right hand drive version?
Answer
(Posted by FCP Euro Products Team)
I'm sorry this is intended for LHD vehicles. Please contact service@fcpeuro.com with your VIN and we will take a look for you.
Question
Posted by a customer
Will this fit my 2006 Volvo S60R automatic if not what are my options looking for both front axles thanks
Answer
(Posted by FCP Euro Products Team)
The numbers for the front axles on your R are 8252057 and 8252040, does not look like any quality aftermarket axles are currently available due to the rarity of this chassis/drivetrain combination.
Question
Posted by William
Is this a new or remanufactured unit?
Answer
(Posted by FCP Euro Products Team)
Because of the way the Genuine Volvo and GKN supply chain works, these may be new or remanufactured. New genuine Volvo axles may also be rebuilds from GKN since both aftermarket and genuine product streams go to the same place. New or Reman these will still be the highest quality CV axles on the market and we stand behind GKN quality.
Question
Posted by a customer
How many splines on the transmission side? I don't believe that this fits a 2006 S60R with Automatic Transmission (28 spline count). The 2006 S60 Auto (non-R) has 26 spline count.
Answer
(Posted by FCP Euro Products Team)
Thanks for the comment, you are correct there was a change for 06 when they went to the TF80SC. The fitments have been updated. The correct axle for your car is 8252040
Question
Posted by Jett
Will this fit AWD cars or just FWD?
Answer
(Posted by FCP Euro Products Team)
These will fit both FWD and AWD cars.
