Borg Warner
SKU: BOR-DS120526

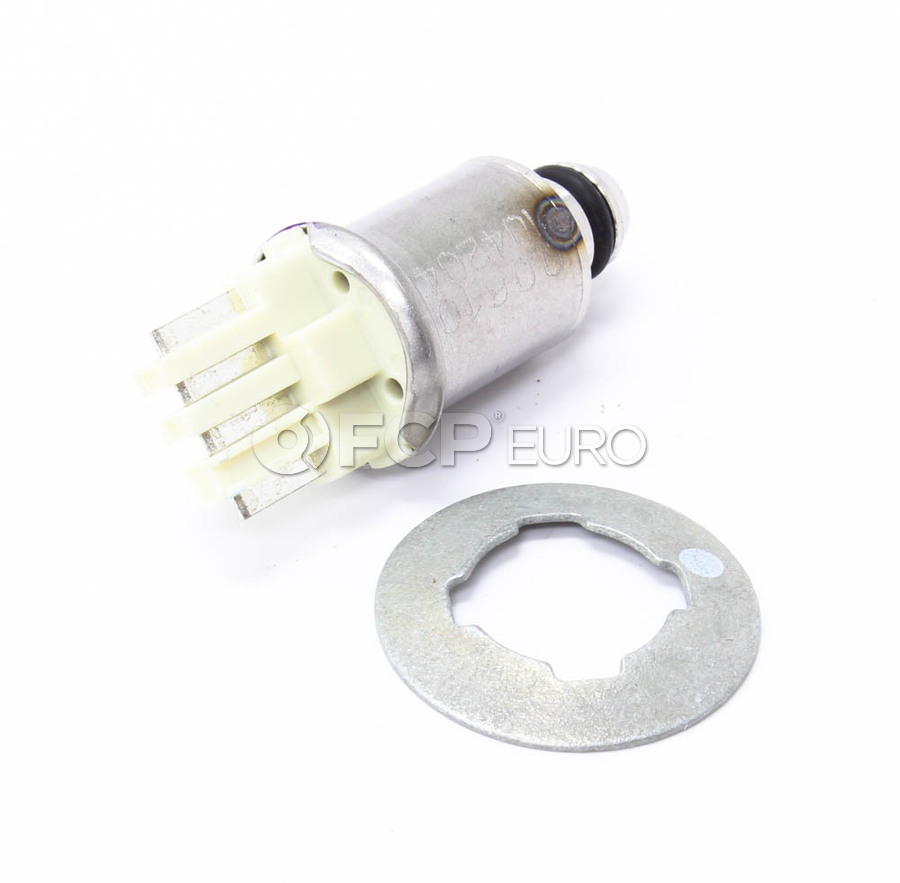

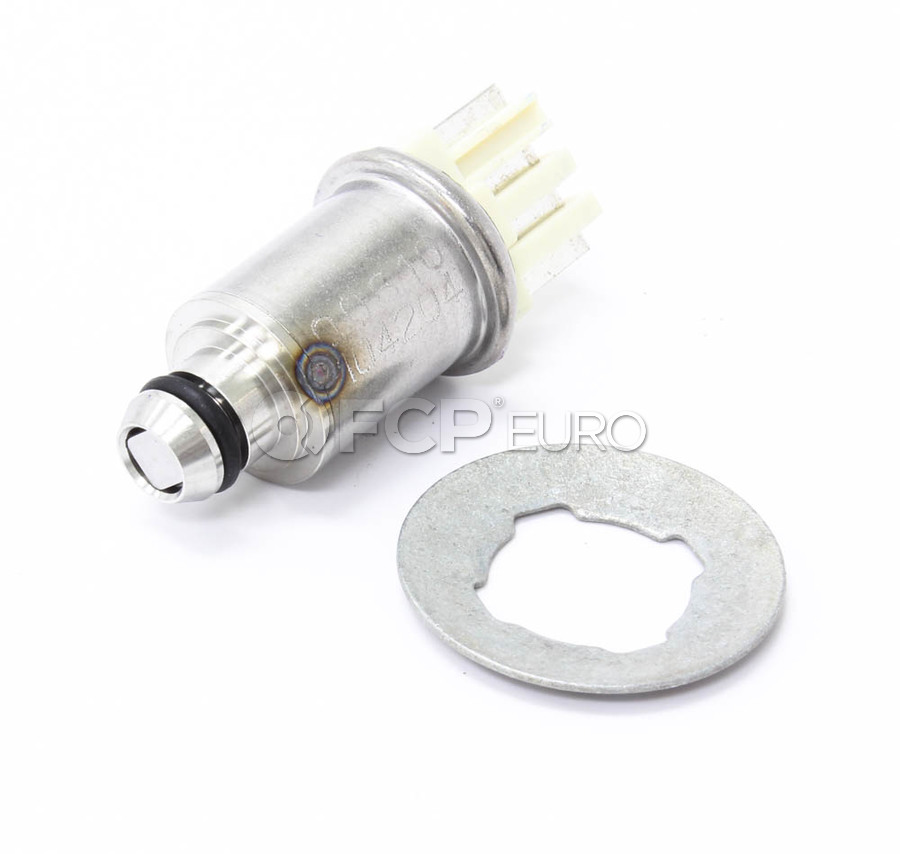

Volvo AOC Haldex Pressure Sensor - Borg Warner 30759668

S60, S80, V70, XC70, XC90

80 BAR



Available
In Stock
Price each: $125.65
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.
QTY
Make sure this fits your car
To ensure fitment and browse only products that fit, please select a vehicle first.

Description

Details

SKU:
BOR-DS120526
FCP Euro ID:
607015
GTIN / UPC:
04063984900786
Made in:
United States
Quality:
OE

OE Numbers

30759668

MFG Numbers

DS120526

Product Information

This OE Borg Warner pressure sensor aids in monitoring correct function of the Haldex oil pump and solenoid for 3rd generation Haldex AWD units. If it fails, the AWD system will go into a failsafe mode and stop working completely to avoid internal damage. This is the 80bar version. For the early 40 bar version, use [30651694]. This sensor is located underneath the Haldex unit's solenoid cover. If replacing, also buy [Seal Kit 30783288].

About Borg Warner

BorgWarner Turbo Systems provides aftermarket customers worldwide with a comprehensive range of BorgWarner, 3K and Schwitzer replacement turbochargers and spare parts. They also provide the full range of EFR series and Airwerks performance products.

The world’s largest vehicle makers rely on the products made by BorgWarner. Their turbochargers are manufactured in line with stringent, globally acknowledged quality standards and meet the highest expectations.

Their products not only prove their above-average performance, reliability and long service life in the tough tests performed by the automotive industry, but also every day on streets across the globe. You can find these resilient qualities both in their OEM products and in all original spare parts and Reman turbochargers.

With their dense global network of authorized distributors throughout the world, they are available everywhere you need them. In 2014, Borg Warner, the supplier of automotive parts and systems had acquired Wahler, and as such is acquiring their inventory.

Fits These Cars

Volvo S60

  • 2006 Volvo S60 2.5T AWD Coupling Temperature / Pressure Sensor
    Automatic AWD Sedan 2.5L L5 B5254T2 Gas
    Notes: From Chassis: 522547- and up (Last 6 digits of VIN)
  • 2006 Volvo S60 2.5T AWD Coupling Temperature / Pressure Sensor
    Automatic FWD Sedan 2.5L L5 B5254T2 Gas
    Notes: From Chassis: 522547- and up (Last 6 digits of VIN)
  • 2006 Volvo S60 R AWD Coupling Temperature / Pressure Sensor
    Automatic AWD Sedan 2.5L L5 B5254T4 Gas
    Notes: From Chassis: 522547- and up (Last 6 digits of VIN)
  • 2006 Volvo S60 R AWD Coupling Temperature / Pressure Sensor
    Manual AWD Sedan 2.5L L5 B5254T4 Gas
    Notes: From Chassis: 522547- and up (Last 6 digits of VIN)
  • 2006 Volvo S60 T5 AWD Coupling Temperature / Pressure Sensor
    Automatic FWD Sedan 2.4L L5 B5244T5 Gas
    Notes: From Chassis: 522547- and up (Last 6 digits of VIN)
  • 2006 Volvo S60 T5 AWD Coupling Temperature / Pressure Sensor
    Manual FWD Sedan 2.4L L5 B5244T5 Gas
    Notes: From Chassis: 522547- and up (Last 6 digits of VIN)
  • 2007 Volvo S60 2.5T AWD Coupling Temperature / Pressure Sensor
    Automatic AWD Sedan 2.5L L5 B5254T2 Gas
    Notes: From Chassis: 522547- (Last 6 digits of VIN)
  • 2007 Volvo S60 2.5T AWD Coupling Temperature / Pressure Sensor
    Automatic FWD Sedan 2.5L L5 B5254T2 Gas
    Notes: From Chassis: 522547- (Last 6 digits of VIN)
  • 2007 Volvo S60 R AWD Coupling Temperature / Pressure Sensor
    Automatic AWD Sedan 2.5L L5 B5254T4 Gas
    Notes: From Chassis: 522547- (Last 6 digits of VIN)
  • 2007 Volvo S60 R AWD Coupling Temperature / Pressure Sensor
    Manual AWD Sedan 2.5L L5 B5254T4 Gas
    Notes: From Chassis: 522547- (Last 6 digits of VIN)
  • 2007 Volvo S60 T5 AWD Coupling Temperature / Pressure Sensor
    Automatic FWD Sedan 2.4L L5 B5244T5 Gas
    Notes: From Chassis: 522547- (Last 6 digits of VIN)
  • 2007 Volvo S60 T5 AWD Coupling Temperature / Pressure Sensor
    Manual FWD Sedan 2.4L L5 B5244T5 Gas
    Notes: From Chassis: 522547- (Last 6 digits of VIN)
  • 2008 Volvo S60 2.5T AWD Coupling Temperature / Pressure Sensor
    Automatic AWD Sedan 2.5L L5 B5254T2 Gas
    Notes: From Chassis: 522547- (Last 6 digits of VIN)
  • 2008 Volvo S60 2.5T AWD Coupling Temperature / Pressure Sensor
    Automatic FWD Sedan 2.5L L5 B5254T2 Gas
    Notes: From Chassis: 522547- (Last 6 digits of VIN)
  • 2008 Volvo S60 T5 AWD Coupling Temperature / Pressure Sensor
    Automatic FWD Sedan 2.4L L5 B5244T5 Gas
    Notes: From Chassis: 522547- (Last 6 digits of VIN)
  • 2009 Volvo S60 2.5T AWD Coupling Temperature / Pressure Sensor
    Automatic AWD Sedan 2.5L L5 B5254T2 Gas
    Notes: From Chassis: 522547- (Last 6 digits of VIN)
  • 2009 Volvo S60 2.5T AWD Coupling Temperature / Pressure Sensor
    Automatic FWD Sedan 2.5L L5 B5254T2 Gas
    Notes: From Chassis: 522547- (Last 6 digits of VIN)
  • 2009 Volvo S60 T5 AWD Coupling Temperature / Pressure Sensor
    Automatic FWD Sedan 2.4L L5 B5244T5 Gas
    Notes: From Chassis: 522547- (Last 6 digits of VIN)

Volvo S80

  • 2006 Volvo S80 2.5T AWD AWD Coupling Temperature / Pressure Sensor
    Automatic AWD Sedan 2.5L L5 B5254T2 Gas
    Notes: From Chassis: 435569- and up (Last 6 digits of VIN)
  • 2007 Volvo S80 3.2 AWD Coupling Temperature / Pressure Sensor
    Automatic FWD Sedan 3.2L L6 B6324S Gas
  • 2007 Volvo S80 V8 AWD Coupling Temperature / Pressure Sensor
    Automatic AWD Sedan 4.4L V8 B8444S Gas
  • 2008 Volvo S80 3.2 AWD Coupling Temperature / Pressure Sensor
    Automatic FWD Sedan 3.2L L6 B6324S Gas
  • 2008 Volvo S80 T6 AWD Coupling Temperature / Pressure Sensor
    Automatic AWD Sedan 3.0L L6 B6304T2 Gas
  • 2008 Volvo S80 V8 AWD Coupling Temperature / Pressure Sensor
    Automatic AWD Sedan 4.4L V8 B8444S Gas

Volvo V70

  • 2006 Volvo V70 R AWD Coupling Temperature / Pressure Sensor
    Automatic AWD Wagon 2.5L L5 B5254T4 Gas
    Notes: From Chassis: 554317- and up (Last 6 digits of VIN)
  • 2006 Volvo V70 R AWD Coupling Temperature / Pressure Sensor
    Manual AWD Wagon 2.5L L5 B5254T4 Gas
    Notes: From Chassis: 554317- and up (Last 6 digits of VIN)
  • 2007 Volvo V70 R AWD Coupling Temperature / Pressure Sensor
    Automatic AWD Wagon 2.5L L5 B5254T4 Gas
    Notes: From Chassis: 554317- (Last 6 digits of VIN)
  • 2007 Volvo V70 R AWD Coupling Temperature / Pressure Sensor
    Manual AWD Wagon 2.5L L5 B5254T4 Gas
    Notes: From Chassis: 554317- (Last 6 digits of VIN)
  • 2008 Volvo V70 3.2 AWD Coupling Temperature / Pressure Sensor
    Automatic FWD Wagon 3.2L L6 B6324S Gas

Volvo XC70

  • 2006 Volvo XC70 AWD Coupling Temperature / Pressure Sensor
    Automatic AWD Wagon 2.5L L5 B5254T2 Gas
    Notes: From Chassis: 220977- and up (Last 6 digits of VIN)
  • 2006 Volvo XC70 Ocean Race AWD Coupling Temperature / Pressure Sensor
    Automatic AWD Wagon 2.5L L5 B5254T2 Gas
    Notes: From Chassis: 220977- and up (Last 6 digits of VIN)
  • 2007 Volvo XC70 AWD Coupling Temperature / Pressure Sensor
    Automatic AWD Wagon 2.5L L5 B5254T2 Gas
  • 2008 Volvo XC70 3.2 AWD Coupling Temperature / Pressure Sensor
    Automatic AWD Wagon 3.2L L6 B6324S Gas

Volvo XC90

  • 2006 Volvo XC90 2.5T AWD Coupling Temperature / Pressure Sensor
    Automatic AWD Sport Utility 2.5L L5 B5254T2 Gas
    Notes: From Chassis: 265519- (Last 6 digits of VIN)
  • 2006 Volvo XC90 2.5T AWD Coupling Temperature / Pressure Sensor
    Automatic FWD Sport Utility 2.5L L5 B5254T2 Gas
    Notes: From Chassis: 265519- (Last 6 digits of VIN)
  • 2006 Volvo XC90 V8 AWD Coupling Temperature / Pressure Sensor
    Automatic AWD Sport Utility 4.4L V8 B8444S Gas
    Notes: From Chassis: 265519- (Last 6 digits of VIN)
  • 2006 Volvo XC90 V8 Ocean Race AWD Coupling Temperature / Pressure Sensor
    Automatic AWD Sport Utility 4.4L V8 B8444S Gas
    Notes: From Chassis: 265519- (Last 6 digits of VIN)
  • 2007 Volvo XC90 3.2 AWD Coupling Temperature / Pressure Sensor
    Automatic AWD Sport Utility 3.2L L6 B6324S Gas
  • 2007 Volvo XC90 3.2 AWD Coupling Temperature / Pressure Sensor
    Automatic FWD Sport Utility 3.2L L6 B6324S Gas
  • 2007 Volvo XC90 V8 AWD Coupling Temperature / Pressure Sensor
    Automatic AWD Sport Utility 4.4L V8 B8444S Gas
  • 2007 Volvo XC90 V8 Sport AWD Coupling Temperature / Pressure Sensor
    Automatic AWD Sport Utility 4.4L V8 B8444S Gas
  • 2008 Volvo XC90 3.2 AWD Coupling Temperature / Pressure Sensor
    Automatic AWD Sport Utility 3.2L L6 B6324S Gas
  • 2008 Volvo XC90 3.2 AWD Coupling Temperature / Pressure Sensor
    Automatic FWD Sport Utility 3.2L L6 B6324S Gas
  • 2008 Volvo XC90 V8 AWD Coupling Temperature / Pressure Sensor
    Automatic AWD Sport Utility 4.4L V8 B8444S Gas
  • 2008 Volvo XC90 V8 Sport AWD Coupling Temperature / Pressure Sensor
    Automatic AWD Sport Utility 4.4L V8 B8444S Gas
