Volvo Angle Gear Resealing Kit (S60 V70 XC70 S80 XC90) - AngleGearKit
  • Anglegearkit 2
  • Anglegearkit 3
  • Anglegearkit 4
  • Anglegearkit 5
  • Anglegearkit 6
  • Anglegearkit 7

Overtime oil Leakage and moisture from the angle gear halves can be resolved be resealing the housing and replacing the seals. The angle gear itself does not normally need to be replaced.

There Two reasons the angle gear should NOT be resealed and instead replaced:

  1. There is angle gear noise/binding while driving.

  2. There is angle gear backlash, bearing damage, or excessive pinion shaft play found during dis-assembly.

This kit comes with the 39mm Outer Diameter sealing ring part number 9183891 along with the 45mm sealing ring 30684243. Only one of these gaskets will be needed during install, we included both in this kit because the exact measurements are usually unknown.

  • If the leak is only form the angle gear vent, only replace the vent the the new style vent.
  • If the leak is from the angle gear halves, separate and reseal the angle gear housing according to the following procedure in conjunction with the removal and replacement procedures in VIDA.

Oil leakage from the angle gear halves can be resolved by resealing and/or replacing the seals- . Read More..

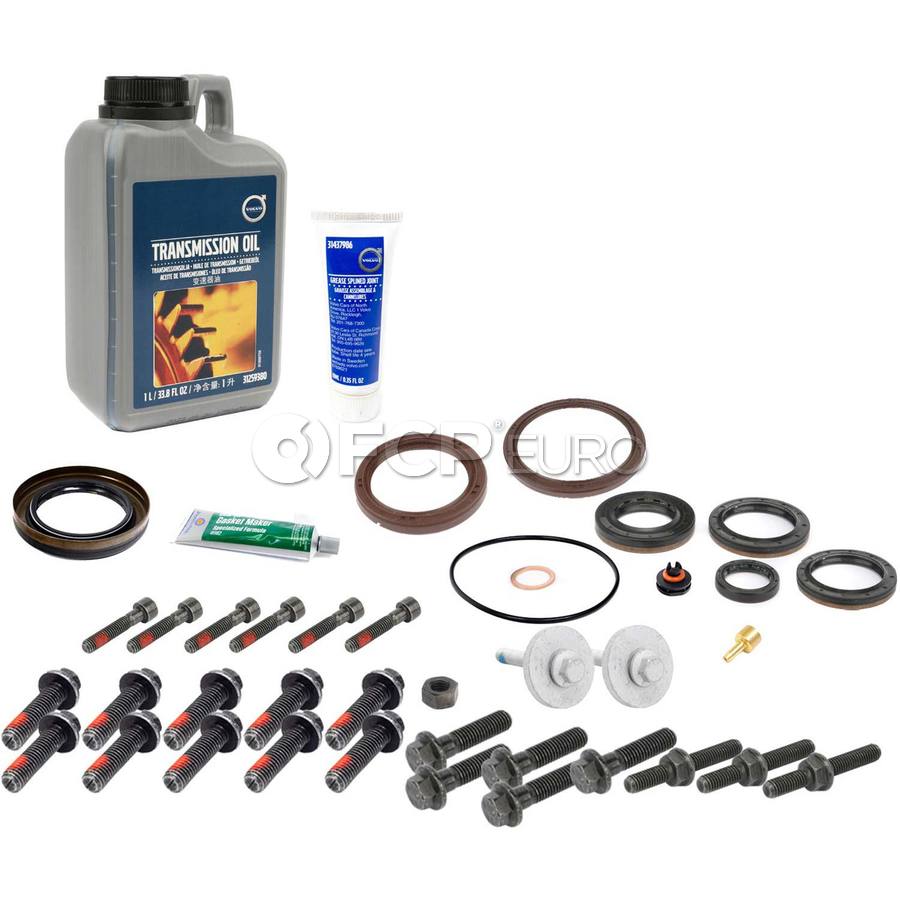

This Kit Includes:

Part SKU Brand MSRP
10x screw VOL-985039 Genuine volvo logoGenuine Volvo $3.99
5x Flange Screw VOL-987985 Genuine volvo logoGenuine Volvo $3.99
3x hardware VOL-986701 Genuine volvo logoGenuine Volvo $10.99
1x Drive Shaft Center Support Bearing Spacer VOL-30748388 Genuine volvo logoGenuine Volvo $14.99
1x Hexagon Nut VOL-985878 Genuine volvo logoGenuine Volvo $4.99
2x Axle Bolt VOL-30640878 Genuine volvo logoGenuine Volvo $8.99
1x Suspension Control Arm Nut VOL-31201020 Genuine volvo logoGenuine Volvo $7.99
6x Hex Socket Screw VOL-988143 Genuine volvo logoGenuine Volvo $3.99
1x CV Joint Grease VOL-31437986 Genuine volvo logoGenuine Volvo $7.99
1x Sealant VOL-30644517 Genuine volvo logoGenuine Volvo $47.99
1x Auto Trans Output Shaft Bearing and Seal Kit 01034110B Corteco logoCorteco $12.99
2x Drive Axle Seal 30735126 Corteco logoCorteco $13.99
1x Manual Trans Drive Axle Seal 9143885 Corteco logoCorteco $8.99
1x o-ring VOL-977023 Genuine volvo logoGenuine Volvo $8.99
1x Engine Oil Drain Plug Gasket 11998 Oem supplier logoOEM Supplier $0.99
1x Differential Filter VOL-30681138 Genuine volvo logoGenuine Volvo $11.99
1x Bleeder Nipple VOL-8689527 Genuine volvo logoGenuine Volvo $6.99
1x Gear Oil VOL-31259380 Genuine volvo logoGenuine Volvo $34.99
1x Transfer Case Output Shaft Seal VOL-30684243 Genuine volvo logoGenuine Volvo $20.99
MSRP (bought separately): $353.59
Our kit price: $265.99
You save: $87.60

Fits These Cars:

2002 Volvo S60 Angle Gear Reseal Kit
Engine base: 2.4L L5, Sub model: AWD
Chassis Range : 315000 - 502866
2003 Volvo S60 Angle Gear Reseal Kit
Engine base: 2.5L L5, Sub model: AWD
Chassis Range : 315000 - 502866
2004 Volvo S60 Angle Gear Reseal Kit
Engine base: 2.5L L5, Sub model: R
Chassis Range : 315000 - 502866
2004 Volvo S60 Angle Gear Reseal Kit
Engine base: 2.5L L5, Sub model: 2.5T AWD
Chassis Range : 315000 - 502866
2005 Volvo S60 Angle Gear Reseal Kit
Engine base: 2.5L L5, Sub model: R
Chassis Range : 315000 - 502866
2005 Volvo S60 Angle Gear Reseal Kit
Engine base: 2.5L L5, Sub model: 2.5T AWD
Chassis Range : 315000 - 502866
2006 Volvo S60 Angle Gear Reseal Kit
Engine base: 2.5L L5, Sub model: R
Chassis Range : 315000 - 502866
2001 Volvo V70 Angle Gear Reseal Kit
Engine base: 2.4L L5, Sub model: X/C
Chassis Range : 000000 - 533030
2003 Volvo V70 Angle Gear Reseal Kit
Engine base: 2.5L L5, Sub model: AWD
Chassis Range : 000000 - 533030
2002 Volvo V70 Angle Gear Reseal Kit
Engine base: 2.4L L5, Sub model: AWD
Chassis Range : 000000 - 533030
2002 Volvo V70 Angle Gear Reseal Kit
Engine base: 2.4L L5, Sub model: X/C
Chassis Range : 000000 - 533030
2004 Volvo V70 Angle Gear Reseal Kit
Engine base: 2.5L L5, Sub model: R
Chassis Range : 000000 - 533030
2004 Volvo V70 Angle Gear Reseal Kit
Engine base: 2.5L L5, Sub model: 2.5T AWD
Chassis Range : 000000 - 533030
2005 Volvo V70 Angle Gear Reseal Kit
Engine base: 2.5L L5, Sub model: R
Chassis Range : 000000 - 533030
2006 Volvo V70 Angle Gear Reseal Kit
Engine base: 2.5L L5, Sub model: R
Chassis Range : 000000 - 533030
2003 Volvo XC70 Angle Gear Reseal Kit
Engine base: 2.5L L5, Sub model: X/C
Chassis Range : 000000 - 209852
2004 Volvo XC70 Angle Gear Reseal Kit
Engine base: 2.5L L5, Sub model: Base
Chassis Range : 000000 - 209852
2005 Volvo XC70 Angle Gear Reseal Kit
Engine base: 2.5L L5, Sub model: Base
Chassis Range : 000000 - 209852
2006 Volvo XC70 Angle Gear Reseal Kit
Engine base: 2.5L L5, Sub model: Base
Chassis Range : 000000 - 209852
2006 Volvo XC70 Angle Gear Reseal Kit
Engine base: 2.5L L5, Sub model: Ocean Race
Chassis Range : 000000 - 209852
2004 Volvo S80 Angle Gear Reseal Kit
Engine base: 2.5L L5, Sub model: 2.5T AWD
Chassis Range : 335000 - 427792
2005 Volvo S80 Angle Gear Reseal Kit
Engine base: 2.5L L5, Sub model: 2.5T AWD
Chassis Range : 335000 - 427792
2006 Volvo S80 Angle Gear Reseal Kit
Engine base: 2.5L L5, Sub model: 2.5T AWD
Chassis Range : 335000 - 427792
2004 Volvo XC90 Angle Gear Reseal Kit
Sub model: 2.5T
Chassis 0000000-0228445 (Last 7 digits of VIN)
2005 Volvo XC90 Angle Gear Reseal Kit
Sub model: 2.5T
Chassis 0000000-0228445 (Last 7 digits of VIN)
2006 Volvo XC90 Angle Gear Reseal Kit
Sub model: 2.5T
Chassis 0000000-0228445 (Last 7 digits of VIN)
Product match fitment

Volvo Angle Gear Resealing Kit (S60 V70 XC70 S80 XC90) - AngleGearKit

Brand:
Genuine volvo logoGenuine Volvo
SKU #:
KIT-AngleGearKit
Part:
Angle Gear Reseal Kit
OE Numbers:
985039,987985,986701,30714142,30748388,985878,30776055,30741287,31201020,988143,1161748,1161771,1161847,1161721,9511024,9183891,30735126,9143885,977023,11998,1161689,8689527,30684243,31259380
FCP ID:
504257
$265.99 MSRP: $292.99
Make sure this part fits.
Select your vehicle
Qty:
Available
Ships within 1 business day
  • Guaranteed to Fit, Guaranteed for Life We guarantee the fit and quality of our parts for life. If it doesn’t meet your expectations send it back for a replacement or refund. Learn more
  • Fitment Verified This product application guide has been tested to ensure it will accurately fit the cars outlined in our fitment guide.
  • Shop With Confidence We respect your privacy; we always keep your information confidential.
  • What If I Need to Return This Item? Not a problem! If you are not happy with your purchase, we will gladly help you exchange or return your items, provided you follow the guidelines outlined in our Returns Policy.
Give Us a Call
(877) 634-0063
Whether you have technical questions for our ASE certified staff or you need help fulfilling an order, we're here to help you.
Email Us Live Chat

Customer Reviews

Write a Review Average rating:
3.0 based on 1 review(s)
By: Justin
Tue, Sep 23 at 10:58PM

Great kit, has everything except for the exhaust gaskets. Would be five stars but the sealant from the kit didn't work. I ended up using Permatex gear oil gasket maker the second time without any leaking. The kit is still worth the price for all the hardware and seals together.
