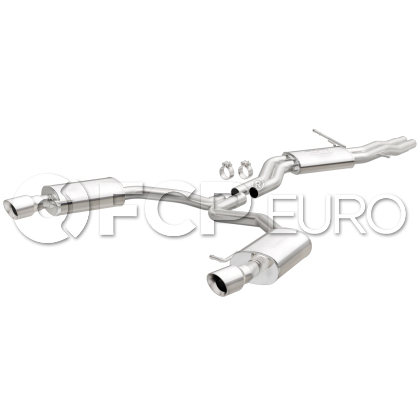

Audi Exhaust System Kit - MagnaFlow 19159

MagnaFlow Exhaust System Kit - Cat-Back

The MagnaFlow Audi Touring Series 19159 brings enhanced engine sound and dyno-proven performance to your 3.0L 2012-2015 Audi with a healthy helping of our deep, resonant signature exhaust note at Moderate exterior and Mild interior sound levels. Thanks to its durable, corrosion resistant stainless steel design, this Audi exhaust system will handle whatever tarmac you decide to leave your mark on. This performance exhaust kit features a crossmember-back layout designed to replace your Audi’s exhaust system from the crossmember on back. With its fast-flowing, mandrel bent 2.5in. main piping and 3 Straight-Through muffler ending in a Dual Split Rear exit with 4 Polished Welded-Double Wall-Angle Cut-Folded Edge tips, your muscle car will be sounding as awesome as it looks. Extensive 3D scanning during development has resulted in a direct-fit design that you can easily install yourself. 19159 is produced using CNC precision robotic manufacturing techniques and is backed by MagnaFlow’s limited lifetime construction warranty.

Specifications

• TYPE - Cat-Back
• MOUNTING BRACKET INCLUDED - No
• GASKET OR SEAL INCLUDED - No
• INLET TYPE - Clamp-On
• EXHAUST TIP QUANTITY - 2
• EXHAUST TIP DIAMETER - 4IN
• EXHAUST TIP FINISH - Polished
• EXHAUST TIP MATERIAL - Stainless Steel
• MUFFLER TYPE - Straight-Through
• CLAMPS INCLUDED - Yes
• PIPE MATERIAL - Stainless Steel
• CLAMPING TYPE - Round Band
• HANGERS INCLUDED - Yes
• MUFFLER BODY MATERIAL - Stainless Steel
• MUFFLER QUANTITY - 3
• VALVE INCLUDED - No
• EXIT STYLE - Dual Split Rear
• MAIN PIPING DIAMETER - 2.5IN
• EXHAUST TIP CONNECTION - Welded-On
• EXHAUST TIP WALL - Double Wall
• EXHAUST TIP CUT - Angle Cut
• EXHAUST TIP EDGE - Folded Edge
• EXHAUST TIP RESONATED - No
• EXHAUST TIP INTERCOOLED - No
• MUFFLER FINISH - Brushed
• EXHAUST TIP LENGTH - 7IN
• EXHAUST TIP SHAPE - Round
• SERIES - Touring
• MUFFLER (FRONT) BODY HEIGHT - 4IN
• MUFFLER (FRONT) BODY LENGTH - 14IN
• MUFFLER (FRONT) BODY WIDTH - 9IN
• MUFFLER (REAR) BODY HEIGHT - 5IN
• MUFFLER (REAR) BODY LENGTH - 14IN
• MUFFLER (REAR) BODY WIDTH - 8IN
• CATALYTIC CONVERTER INCLUDED - No

Hardware Kit

• 2.5IN. BAND CLAMPS - 2

Installation Documentation:

19159
