More Porsche Hydraulic Lift System - KW Suspension 30971427
KW
SKU: KWS-30971427

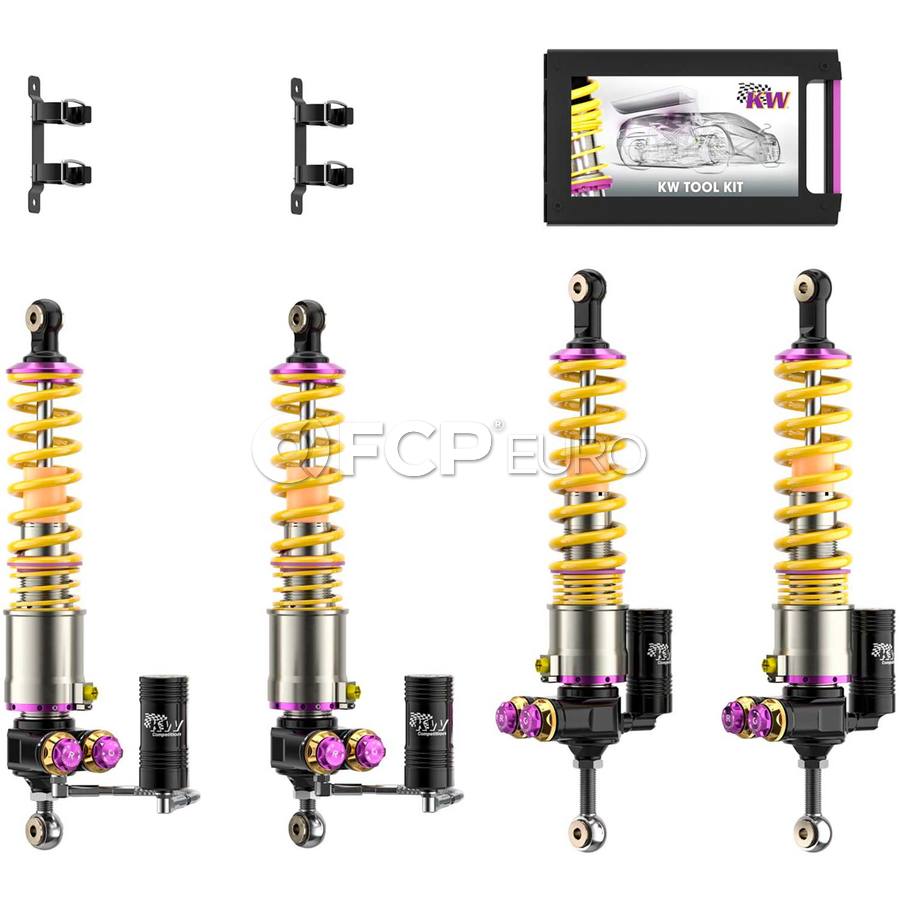

Porsche Hydraulic Lift System - KW Suspension 30971427

Carrera GT

Adjustable coilover suspension with hydraulic front axle noselift system, HLS 4 is a 4 piece kit fitted to both front and rear axles

Save for later
Backordered
No ETA
MAP
Price each: $26,694.00
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.

Thanks for signing up!

We will let you know when this product is back in stock.
Email Me When Available
Make sure this fits your car
Validate fitment
To ensure fitment and browse only products that fit, please select a vehicle first.
What does this include?

Description

Details

SKU:
KWS-30971427
FCP Euro ID:
215955
GTIN / UPC:
00840134908229
Made in:
Germany
Quality:
Performance

OE Numbers

N/A

MFG Numbers

30971427

Product Information

Provides additional road clearance for lowered cars

KW Suspensions Hydraulic Lift System (HLS) for Sports Cars equipped with KW coilovers provides additional road clearance for lowered vehicles. A hydraulic cylinder unit is installed between the spring perch and the main spring. When expanded, a range of 30mm to 45mm of lift is produced, thereby helping sport cars avoid road clearance difficulties. KW offers two versions of the HLS kit; HLS 2 which enables only the front axles to be lifted and lowered and the HLS 4 which covers both the front and rear axles of the vehicle.

The HLS pump is installed in or near the spare tire location. Change in height is activated remotely by a small keychain transmitter avoiding the need to run additional wires through the vehicle. Height changes can be done while the vehicle is stationary or moving, up to speeds of 80km/h. When traveling speeds over 80km/h the vehicle returns to its original height to avoid any interruption in vehicle aerodynamics. The electronic unit of the HLS automatically lowers the vehicle when parked and switches to �sleep mode� to save battery life.

Features - For vehicles with minimal road clearance - Vehicle specific applications - Height change activated by keychain transmitter - Automatic lowering of vehicle - Height changes can be done while the vehicle is moving, up to speeds of 80km/h - Includes TUV certificate - Rubber bellow protect hydraulic cylinder, thereby providing long term durability

Coilover Set

Suspension coilovers are a type of car suspension system that combines a coil spring and a shock absorber (damper) into a single, integrated unit. The name comes from “coil” (the spring) and “over” (meaning the shock is inside or over the spring). Coilovers are typically adjustable, allowing you to change ride height, stiffness, and sometimes damping settings, depending on the model.

Benefits of Coilovers:

  • Adjustable ride height: Coilover suspension typically features a threaded adjustable spring platform, allowing adjustment of ride height for better handling, aesthetics, or clearance.
  • Improved Handling and Stability: Coilovers usually offer better cornering performance and reduced body roll compared to stock suspension.
  • Customizable Ride Comfort: Many coilovers allow you to tune stiffness and damping to balance comfort and performance.
  • Better Weight Distribution: Some coilovers can be adjusted corner-by-corner to fine-tune handling balance.
  • Enhanced Appearance: Lowering the car can improve the stance and overall look.
  • Versatility for Different Driving Conditions: Ideal for street, track, or off-road setups depending on the coilover design.

Fits These Cars

Porsche Carrera GT

  • 2004 Porsche Carrera GT Coilover Set
    Manual RWD Convertible 5.7L V10 8001 Gas
    Notes: 1: Height adjustable on the front and rear axles (threaded strut housings), 411: Variant 4 struts / dampers made of aluminum or kit is a combination of aluminum and stainless steel per axle, 67: Valving is adjusted by adjustment knobs, rebound is only adjustable if the top of the piston rod is accessible. This will depend on the design of the vehicle., Lowering Rate: F: 0.0-0.4, ", / R: 0.0-0.4
  • 2005 Porsche Carrera GT Coilover Set
    Manual RWD Convertible 5.7L V10 8001 Gas
    Notes: 1: Height adjustable on the front and rear axles (threaded strut housings), 411: Variant 4 struts / dampers made of aluminum or kit is a combination of aluminum and stainless steel per axle, 67: Valving is adjusted by adjustment knobs, rebound is only adjustable if the top of the piston rod is accessible. This will depend on the design of the vehicle., Lowering Rate: F: 0.0-0.4, ", / R: 0.0-0.4
