More Porsche Direct Injection High Pressure Fuel Pump Kit - Hitachi HPP0013KT
Porsche Direct Injection High Pressure Fuel Pump Kit - Hitachi HPP0013KT Porsche Direct Injection High Pressure Fuel Pump Kit - Hitachi HPP0013KT Porsche Direct Injection High Pressure Fuel Pump Kit - Hitachi HPP0013KT 3D part diagram for 95511031600,95511031601,03H127025C,N10438201,N10622101,03H127307A,95511030100
Hitachi
SKU: KIT-HPP0013KT

Porsche Direct Injection High Pressure Fuel Pump Kit - Hitachi HPP0013KT

Cayenne

Save for later
Available
In Stock
Price each: $1,087.85
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.
QTY
Make sure this fits your car
Validate fitment
To ensure fitment and browse only products that fit, please select a vehicle first.
What does this include?

Description

Details

SKU:
KIT-HPP0013KT
FCP Euro ID:
Quality:
OE

OE Numbers

95511031600, 95511031601, 03H127025C, N10438201, N10622101, 03H127307A, 95511030100

MFG Numbers

HPP0013

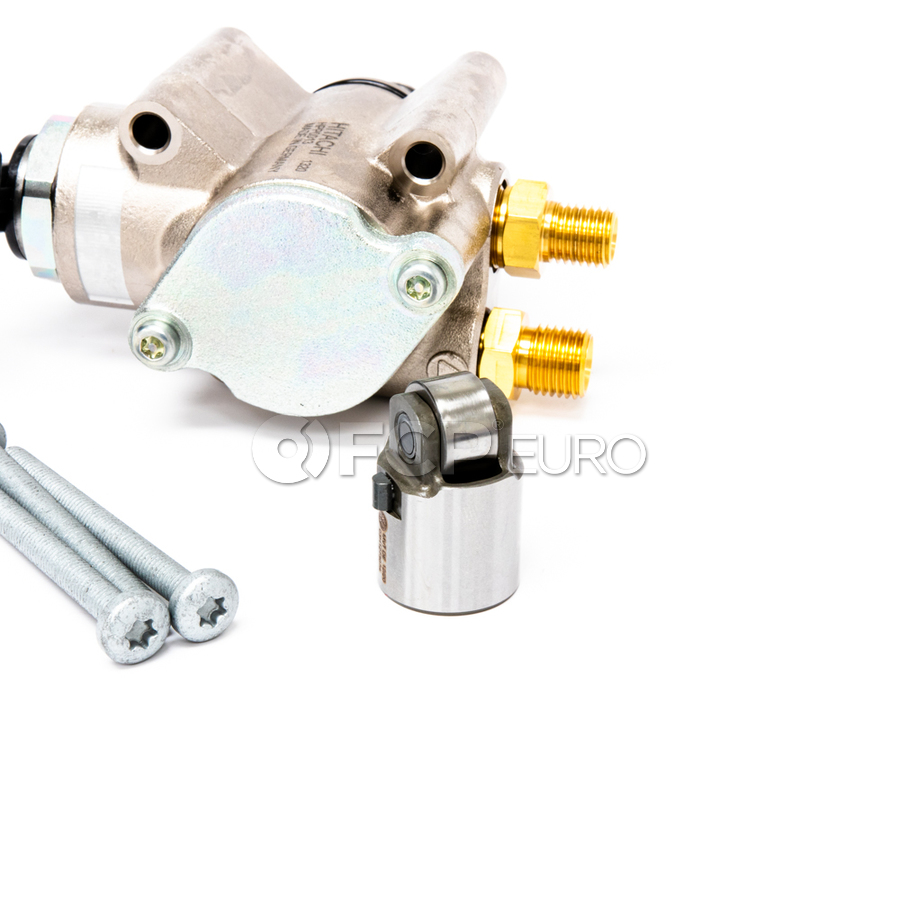

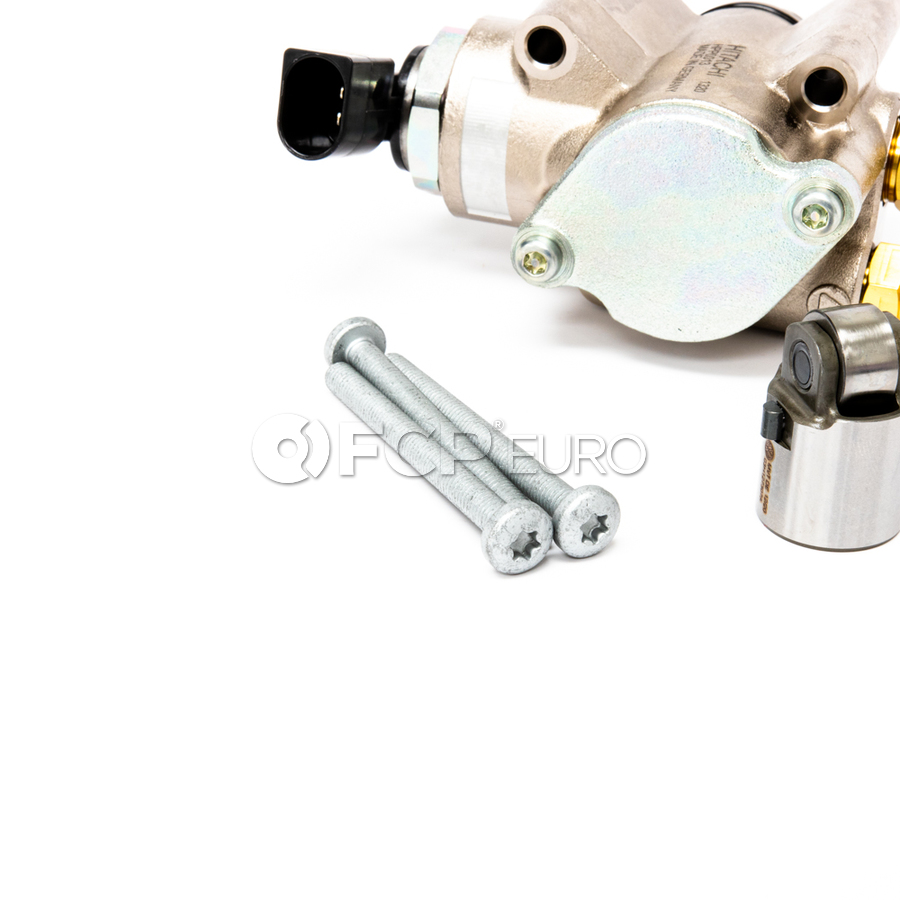

This Kit Includes

Qty Part SKU Brand Price
1 Direct Injection High Pressure Fuel Pump HIT-HPP0013 $733.99
3 Direct Injection High Pressure Fuel Pump Bolt VAG-N10622101 $3.87
1 Fuel Pump Camshaft Follower VAG-03H127307A $349.99

Product Information

The high pressure fuel pump provides fuel for the fuel injectors and is located on the engine and is driven by the camshaft and camshaft follower. When this fuel pump fails it will affect engine performce and will likely illuminate the check engine light for a lean or rich air/fuel mixture and maybe a cylinder misfire as well. The camshaft follower is a common failure point and through extreme wear will cause damage to the fuel pump. We've created a solution based High Pressure Fuel Pump Kit that includes the high pressure fuel pump, camshaft follower, and new hardware since the bolts are made of aluminum and should be replaced anytime the fuel pump is removed.

Porsche High Pressure Fuel Pumps diagram for Cayenne

1 POR-95511011500

2 Fuel Injection Fuel Rail Pressure Relief Valve - 95811021700

3 Fuel Line Banjo Bolt - WHT000435A

4 POR-95511011510

5 BOS-0261545059

6 Fuel Injector - 95560523201

7 Fuel Injector - 95560523300

8 Fuel Injector Seal Kit - 95511091000

9 Fuel Injector Seal Kit - 95511091100

10 Bolt - N10544903

11 Fuel Line - 95511031400

12 Fuel Line - 95511012500

13 Fuel Line - 95511012600

14 Fuel Line - 95511023501

15 POR-95511072230

16 Direct Injection High Pressure Fuel Pump - 95511031600

17 Direct Injection High Pressure Fuel Pump O-Ring - 03C127311

18 Fuel Pump Camshaft Follower - 03H127307A

19 Direct Injection High Pressure Fuel Pump Bolt - N10438201

20 Washer - N0138062

21 Engine Expansion Plug Insert - N91119401

Direct Injection High Pressure Fuel Pump

A direct injection high pressure fuel pump (HPFP) is a critical component in modern gasoline direct injection (GDI) engines. Unlike traditional fuel pumps, it boosts fuel pressure to extremely high levels (often over 2,000 psi) so fuel can be directly injected into the combustion chamber. This enables better fuel atomization, improved efficiency, and higher power output. The HPFP is typically driven by the camshaft and works in tandem with a low-pressure fuel pump. Over time, wear, contamination, or internal failure can lead to drivability issues.

Direct Injection High Pressure Fuel Pump Failure Symptoms
  • Engine performance problems – hard starting, hesitation, misfires, or loss of power under load.
  • Fuel-related issues – check engine light, lean/rich codes, or reduced fuel economy.
  • Noises or leaks – ticking/whining sounds from the pump or visible fuel leakage at the pump area.

About Hitachi

As a Tier 1 supplier to some of the world’s greatest automotive brands, Hitachi provides a range of electromechanical and electronic auto parts for OEMs (Original Equipment Manufacturer), and they manufacture their aftermarket parts to OEM specifications as well. Hitachi manufactures its products in three ISO/TS 16949 certified plants in the United States.

Drive control systems, rotating electrical components, Tokico branded performance shocks, and engine management systems are among the items that Hitachi manufactures to OEM specifications. Since Hitachi manufactures many of the same items for the OEMs, you can be certain of the quality, fit and performance when you buy Hitachi aftermarket products.

Fits These Cars

Porsche Cayenne

  • 2008 Porsche Cayenne Direct Injection High Pressure Fuel Pump
    Automatic AWD Sport Utility 3.6L V6 5501 Gas
  • 2008 Porsche Cayenne Direct Injection High Pressure Fuel Pump
    Manual AWD Sport Utility 3.6L V6 5501 Gas
  • 2009 Porsche Cayenne Direct Injection High Pressure Fuel Pump
    Automatic AWD Sport Utility 3.6L V6 5501 Gas
  • 2009 Porsche Cayenne Direct Injection High Pressure Fuel Pump
    Manual AWD Sport Utility 3.6L V6 5501 Gas
  • 2010 Porsche Cayenne Direct Injection High Pressure Fuel Pump
    Automatic AWD Sport Utility 3.6L V6 5501 Gas
  • 2010 Porsche Cayenne Direct Injection High Pressure Fuel Pump
    Manual AWD Sport Utility 3.6L V6 5501 Gas
