Innovative Pro Design
SKU: KIT-8148234KT

Porsche Competition Intake Plenum Kit - IPD 8148234KT

Boxster, Cayman

Y-design aluminum high flow intake plenum with 82mm throttle body upgrade



Available
Ships in 7 business days
Price each: $1,618.89
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.
QTY
Make sure this fits your car
To ensure fitment and browse only products that fit, please select a vehicle first.

Description

Details

SKU:
KIT-8148234KT
FCP Euro ID:
Quality:
Performance

OE Numbers

99760511601, 99760511600, 98111013000

MFG Numbers

81482, 81482-3.4, 81482-3.8, 0280750473, FB750/04, FB75004

This Kit Includes

Qty Part SKU Brand Price
1 Engine Air Intake Plenum IPD-8148234 $1,195.00
1 Fuel Injection Throttle Body BOS-0280750473 $204.99
1 Engine Air Filter BMC-FB75004 $218.90

Product Information

981 chassis models may experience a check engine light after installation. SEE DISCLAIMER BELOW

IPD only offers the "Competition" version of the 981 Plenums which upgrades the factory 74mm throttle body with the larger 997 GT3 82mm throttle body. This combination has proven to be considerably more popular and deliver even more performance.

The 981 intake is nearly identical to the 987.2 intake. Porsche made a few upgrades with the 981, most notably being that the 981 draws outside air from both driver and passenger air intakes instead of the driver's side only as previously found with all 986, 987 and 987.2 applications. IPD has developed a custom silicone hose designed to perfectly fit the larger 82mm throttle body and considerably improve air flow.

The new 981 Plenums benefit from the internal dimpling effect that we are now implementing on all future Plenums. This internal dimpling allows us to control the boundary layer and maximize air flow. Just like a dimpled golf ball travels farther than a smooth golf ball. Controlled turbulent air creates less friction and "tumbles" over a given area more efficiently.

Power gains with the 981 Competition Plenum are virtually the same as with the 987.2 Competition Plenum, putting down 20 horsepower and 16 lb/ft of torque at the wheels. The bulk of the power gains from the IPD Plenum begin around 4000 rpm, continues all the way through to redline and become fully realized in the 6000 rpm range. IPD performance gains stay above both factory power curves throughout the entire rev range.

All Competition plenum kits are plug-and-play. No programming required. The vehicle will need to be driven for it to reset adaptations and for the ECU to optimize for the new and improved additions.

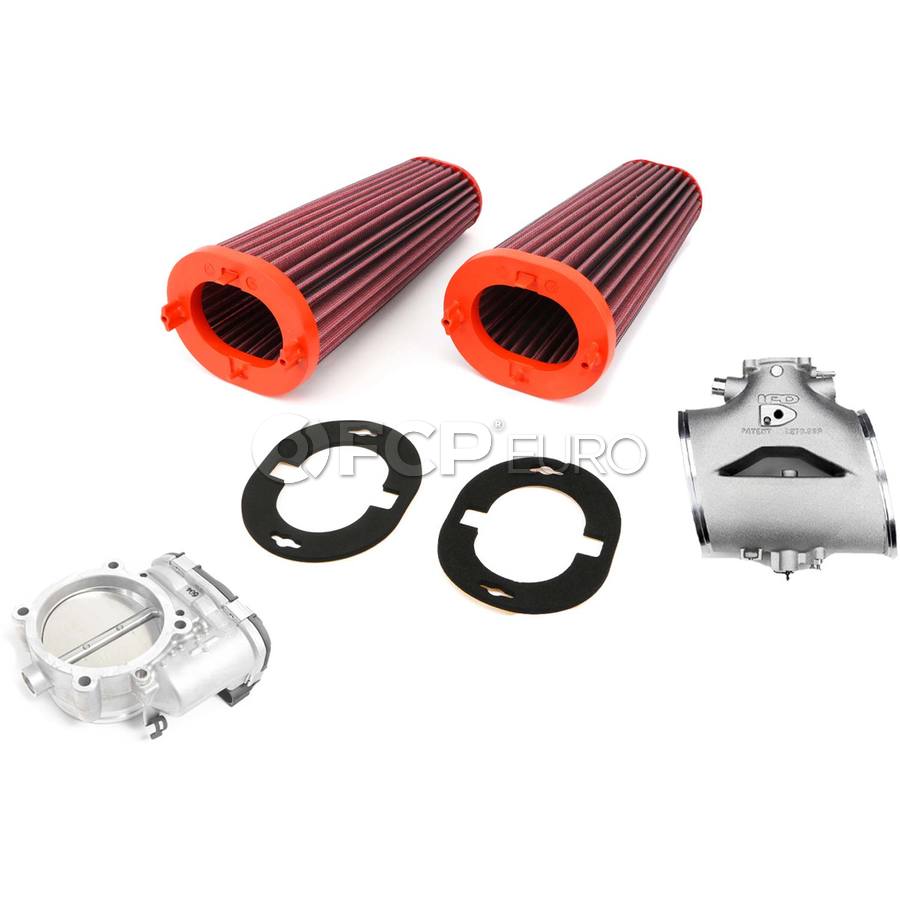

Kit Includes:

  • IPD Competition Plenum with throttle body gasket and hardware
  • Bosch 82mm throttle body
  • BMC high flow air filter

About IPD

The revolutionary and patented design of the IPD Porsche Plenums improve intake air flow by replacing the factory plastic "T" style design with a more efficient, cast aluminum "Y" design. This innovative “Y” diversion area of the IPD Plenums split and channel intake air flow reducing air flow turbulence and increasing air flow velocity. This superior and proven design ultimately results in considerable power gains throughout both horsepower and torque curves. Performance is also enhanced with our uniquely dimpled interior surfaces which create improved boundary layers further optimizing intake air flow characteristics.

About BMC Air Filters

BMC air filters are a complete replacement to the factory paper air filter and fit perfectly in the stock air filter location. Made using only high quality materials they allow for an increase in air flow with more efficient filtering of impurities as small as 7 microns.

BMC filters are made of a multi-layered cotton gauze soaked with low viscosity oil covered with an epoxy coated alloy mesh to ensure protection from fumes and oxidization due to air humidity.

All BMC air filters are pre-oiled, and they can be washed and regenerated by using the appropriate BMC regeneration kit.

Disclaimer for 981 Boxster and Cayman (All Submodels)

Sku: IPD-8148227 & IPD-8148234

The 981’s are likely, but not guaranteed, to experience a CEL (Check Engine Light) related to increased air-flow after installing the IPD Plenum and the larger 82mm GT3 Throttle Body. Unlike previous generation Porsches that used a MAF (Mass Air Flow) style metering device, the 981 employs a MAP (Manifold Absolute Pressure) sensor based intake system. As a result, the factory air flow tables are much more stringent (lower), and the ECU is much more discerning of additional air being introduced into the intake tract.

Assuming the installation was performed perfectly, it seems that about half of all 981 applications (Base, S, GTS, Spyder, and GT4) will still require a throttle body adaptation after installing of the IPD Plenum and 82mm GT3 throttle body. This procedure can ONLY be performed with a factory Porsche PIWIS computer. Once the throttle body adaptation has been performed the check engine light should not return.

On occasion some of the 981 applications will continue to experience a CEL related to the ECU reading intake air flow levels that exceed the threshold values programmed within the firmware of the ECU from the factory, ultimately causing one of the following fault codes (P0068, P1095 or P1074). To put another way, the CEL is present because the MAP sensor is detecting greater air flow than the ECU was originally calibrated for, which is exactly what the IPD plenum was designed for.

If a CEL continues, we strongly suggest a revised mapping of the ECU by having a qualified Porsche ECU tuner make the necessary adjustments to complement the IPD Competition Plenum, larger throttle body, and additional intake air flow being delivered by the IPD upgrade. An over-the-shelf Stage 1 Cobb Accessport tuner is another method to alleviate the check engine light should the above measures prove insufficient and a custom tune is not desired.

Fits These Cars

Porsche Boxster

  • 2013 Porsche Boxster S Engine Air Intake Plenum
    Automatic Dual Clutch RWD Convertible 3.4L H6 Gas
  • 2013 Porsche Boxster S Engine Air Intake Plenum
    Manual RWD Convertible 3.4L H6 Gas
  • 2014 Porsche Boxster S Engine Air Intake Plenum
    Automatic Dual Clutch RWD Convertible 3.4L H6 Gas
  • 2014 Porsche Boxster S Engine Air Intake Plenum
    Manual RWD Convertible 3.4L H6 Gas
  • 2015 Porsche Boxster GTS Engine Air Intake Plenum
    Automatic Dual Clutch RWD Convertible 3.4L H6 Gas
  • 2015 Porsche Boxster GTS Engine Air Intake Plenum
    Manual RWD Convertible 3.4L H6 Gas
  • 2015 Porsche Boxster S Engine Air Intake Plenum
    Automatic Dual Clutch RWD Convertible 3.4L H6 Gas
  • 2015 Porsche Boxster S Engine Air Intake Plenum
    Manual RWD Convertible 3.4L H6 Gas
  • 2016 Porsche Boxster GTS Engine Air Intake Plenum
    Automatic Dual Clutch RWD Convertible 3.4L H6 Gas
  • 2016 Porsche Boxster GTS Engine Air Intake Plenum
    Manual RWD Convertible 3.4L H6 Gas
  • 2016 Porsche Boxster S Engine Air Intake Plenum
    Automatic Dual Clutch RWD Convertible 3.4L H6 Gas
  • 2016 Porsche Boxster S Engine Air Intake Plenum
    Manual RWD Convertible 3.4L H6 Gas
  • 2016 Porsche Boxster Spyder Engine Air Intake Plenum
    Manual RWD Convertible 3.8L H6 DBXB Gas

Porsche Cayman

  • 2014 Porsche Cayman S Engine Air Intake Plenum
    Automatic Dual Clutch RWD Hatchback 3.4L H6 Gas
  • 2014 Porsche Cayman S Engine Air Intake Plenum
    Manual RWD Hatchback 3.4L H6 Gas
  • 2015 Porsche Cayman GTS Engine Air Intake Plenum
    Automatic Dual Clutch RWD Hatchback 3.4L H6 Gas
  • 2015 Porsche Cayman GTS Engine Air Intake Plenum
    Manual RWD Hatchback 3.4L H6 Gas
  • 2015 Porsche Cayman S Engine Air Intake Plenum
    Automatic Dual Clutch RWD Hatchback 3.4L H6 Gas
  • 2015 Porsche Cayman S Engine Air Intake Plenum
    Manual RWD Hatchback 3.4L H6 Gas
  • 2016 Porsche Cayman GT4 Engine Air Intake Plenum
    Manual RWD Hatchback 3.8L H6 DBXA Gas
  • 2016 Porsche Cayman GTS Engine Air Intake Plenum
    Automatic Dual Clutch RWD Hatchback 3.4L H6 Gas
  • 2016 Porsche Cayman GTS Engine Air Intake Plenum
    Manual RWD Hatchback 3.4L H6 Gas
  • 2016 Porsche Cayman S Engine Air Intake Plenum
    Automatic Dual Clutch RWD Hatchback 3.4L H6 Gas
  • 2016 Porsche Cayman S Engine Air Intake Plenum
    Manual RWD Hatchback 3.4L H6 Gas
