More Watch Porsche Disc Brake Rotor - Zimmermann Formula Z 460158575
Porsche Disc Brake Rotor - Zimmermann Formula Z 460158575 Porsche Disc Brake Rotor - Zimmermann Formula Z 460158575 Watch
Zimmermann Formula Z
SKU: ZIM-460158575

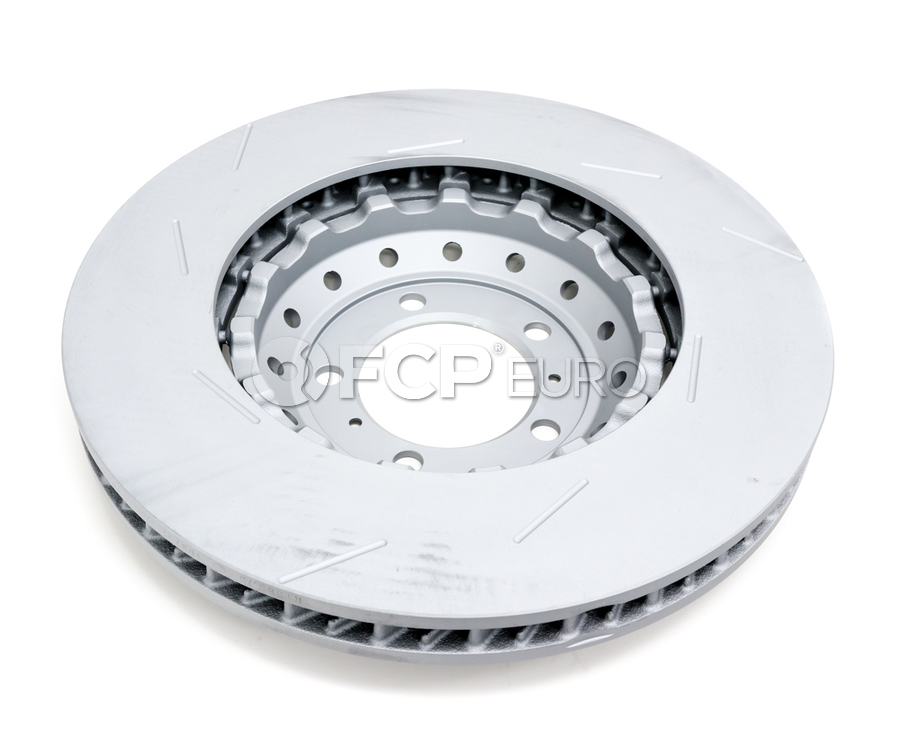

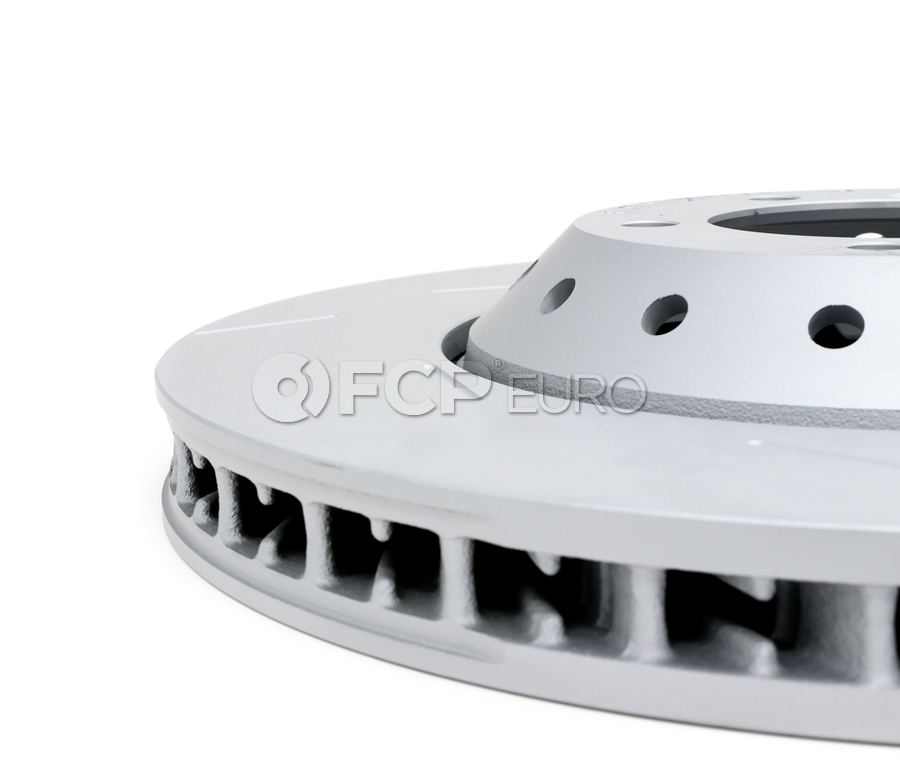

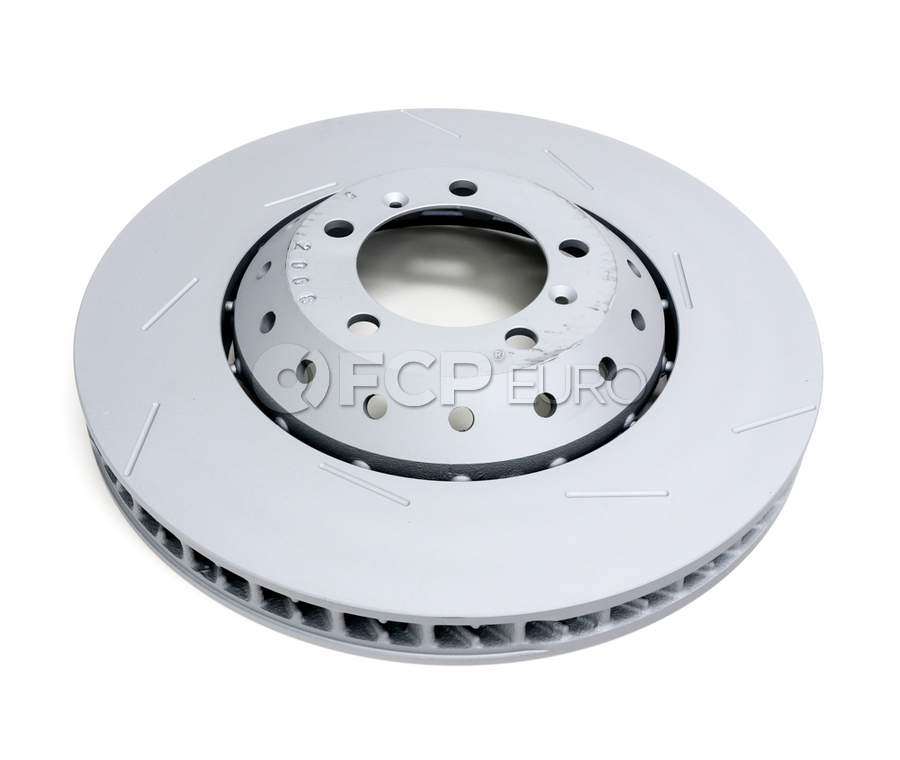

Porsche Disc Brake Rotor - Zimmermann Formula Z 460158575

Panamera

390mm, Slotted

Save for later
Available
In Stock
Price each: $371.99
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.
QTY
Make sure this fits your car
Validate fitment
To ensure fitment and browse only products that fit, please select a vehicle first.
What does this include?

Description

Details

SKU:
ZIM-460158575
FCP Euro ID:
505599
GTIN / UPC:
04250238713913
Made in:
Germany
Quality:
Aftermarket

OE Numbers

298615302C, 97035140600

MFG Numbers

460158575, 460.1585.75

Product Information

  • Position: Front Right
  • Diameter: 390mm
  • Type: High-carbon, slotted, and internally vented
  • Surface: Zimmermann Z-Coat anti-corrosion coating to keep non-friction surfaces rust and corrosion-free
  • Brake Disc Thickness: 38mm
  • Minimum Thickness: 36mm
  • Sold Individually
Disc Brake Rotor

Sold Individually

Commonly referred to as a Brake Disc or a Brake Rotor, these components play a vital role in your braking system. When applying the brake pedal, this produces hydraulic fluid pressure which then transfers the pressure from the pedal through your braking system and into your brake calipers. The caliper pistons then apply pressure against your brake pads squeezing them inward against your brake rotors ultimately causing friction and stopping the vehicle. Brake rotors are a regular maintenance item which requires either servicing by means of machine work, or most commonly replacement when they become too thin, pulsate, glaze, or grind from worn-out brake pads. It's recommended to replace the brake pads and rotors at the same time.

Disc Brake Rotor Failure Symptoms
  • Pulsating
  • Grinding
  • Squeaking
  • Glazing
  • Hot spots
  • A noticeable lip on the rotors outer edge

About Zimmermann Formula Z

The Zimmermann Formula Z brake disc was crafted to seamlessly combine easy installation with superior braking performance under intense mechanical and thermal stress. This compound brake disc, designed by Zimmermann, addresses the heightened demands associated with engine tuning and optimized chassis structures.

Advantages

  • Excellent deceleration action and no distortion of friction ring at high temperatures
  • Substantial weight saving and therefore less unsprung mass
  • Floating mounting enables radial expansion of the brake disc under relatively heavy loads, thus preventing shielding and increasing resistance to heat cracks
  • "Hot spots" prevented by optimized design of ventilation channels
  • 1:1 exchange of original disc possible
  • Not subject to registration: general ABE certification supplied with the disc
  • No conversion is required for brake tuning

Fits These Cars

Porsche Panamera

  • 2010 Porsche Panamera Turbo Disc Brake Rotor (Front Right)
    Automatic Dual Clutch AWD Hatchback 4.8L V8 4870 Gas
    Notes: Not for models with Code 450 Porsche Ceramic Composite Brakes (PCCB)
  • 2011 Porsche Panamera Turbo Disc Brake Rotor (Front Right)
    Automatic Dual Clutch AWD Hatchback 4.8L V8 4870 Gas
    Notes: Not for models with Code 450 Porsche Ceramic Composite Brakes (PCCB)
  • 2012 Porsche Panamera Turbo Disc Brake Rotor (Front Right)
    Automatic Dual Clutch AWD Hatchback 4.8L V8 4870 Gas
    Notes: Not for models with Code 450 Porsche Ceramic Composite Brakes (PCCB)
  • 2012 Porsche Panamera Turbo S Disc Brake Rotor (Front Right)
    Automatic Dual Clutch AWD Hatchback 4.8L V8 4870 Gas
    Notes: Not for models with Code 450 Porsche Ceramic Composite Brakes (PCCB)
  • 2013 Porsche Panamera GTS Disc Brake Rotor (Front Right)
    Automatic Dual Clutch AWD Hatchback 4.8L V8 4840 Gas
    Notes: Not for models with Code 450 Porsche Ceramic Composite Brakes (PCCB)
  • 2013 Porsche Panamera Turbo Disc Brake Rotor (Front Right)
    Automatic Dual Clutch AWD Hatchback 4.8L V8 4870 Gas
    Notes: Not for models with Code 450 Porsche Ceramic Composite Brakes (PCCB)
  • 2013 Porsche Panamera Turbo S Disc Brake Rotor (Front Right)
    Automatic Dual Clutch AWD Hatchback 4.8L V8 4870 Gas
    Notes: Not for models with Code 450 Porsche Ceramic Composite Brakes (PCCB)
  • 2014 Porsche Panamera GTS Disc Brake Rotor (Front Right)
    Automatic Dual Clutch AWD Hatchback 4.8L V8 CXPA Gas
    Notes: Not for models with Code 450 Porsche Ceramic Composite Brakes (PCCB)
  • 2014 Porsche Panamera Turbo Disc Brake Rotor (Front Right)
    Automatic Dual Clutch AWD Hatchback 4.8L V8 CWBA Gas
    Notes: Not for models with Code 450 Porsche Ceramic Composite Brakes (PCCB)
  • 2014 Porsche Panamera Turbo Executive Disc Brake Rotor (Front Right)
    Automatic Dual Clutch AWD Hatchback 4.8L V8 CWBA Gas
    Notes: Not for models with Code 450 Porsche Ceramic Composite Brakes (PCCB)
  • 2014 Porsche Panamera Turbo S Disc Brake Rotor (Front Right)
    Automatic Dual Clutch AWD Hatchback 4.8L V8 CWCA Gas
    Notes: Not for models with Code 450 Porsche Ceramic Composite Brakes (PCCB)
  • 2014 Porsche Panamera Turbo S Executive Disc Brake Rotor (Front Right)
    Automatic Dual Clutch AWD Hatchback 4.8L V8 CWCA Gas
    Notes: Not for models with Code 450 Porsche Ceramic Composite Brakes (PCCB)
  • 2015 Porsche Panamera GTS Disc Brake Rotor (Front Right)
    Automatic Dual Clutch AWD Hatchback 4.8L V8 CXPA Gas
    Notes: Not for models with Code 450 Porsche Ceramic Composite Brakes (PCCB)
  • 2015 Porsche Panamera Turbo Disc Brake Rotor (Front Right)
    Automatic Dual Clutch AWD Hatchback 4.8L V8 CWBA Gas
    Notes: Not for models with Code 450 Porsche Ceramic Composite Brakes (PCCB)
  • 2015 Porsche Panamera Turbo Executive Disc Brake Rotor (Front Right)
    Automatic Dual Clutch AWD Hatchback 4.8L V8 CWBA Gas
    Notes: Not for models with Code 450 Porsche Ceramic Composite Brakes (PCCB)
  • 2015 Porsche Panamera Turbo S Disc Brake Rotor (Front Right)
    Automatic Dual Clutch AWD Hatchback 4.8L V8 CWCA Gas
    Notes: Not for models with Code 450 Porsche Ceramic Composite Brakes (PCCB)
  • 2015 Porsche Panamera Turbo S Executive Disc Brake Rotor (Front Right)
    Automatic Dual Clutch AWD Hatchback 4.8L V8 CWCA Gas
    Notes: Not for models with Code 450 Porsche Ceramic Composite Brakes (PCCB)
  • 2016 Porsche Panamera Exclusive Disc Brake Rotor (Front Right)
    Automatic Dual Clutch RWD Hatchback 4.8L V8 CWCA Gas
    Notes: Not for models with Code 450 Porsche Ceramic Composite Brakes (PCCB)
  • 2016 Porsche Panamera GTS Disc Brake Rotor (Front Right)
    Automatic Dual Clutch AWD Hatchback 4.8L V8 CXPA Gas
    Notes: Not for models with Code 450 Porsche Ceramic Composite Brakes (PCCB)
  • 2016 Porsche Panamera Turbo Disc Brake Rotor (Front Right)
    Automatic Dual Clutch AWD Hatchback 4.8L V8 CWBA Gas
    Notes: Not for models with Code 450 Porsche Ceramic Composite Brakes (PCCB)
  • 2016 Porsche Panamera Turbo Executive Disc Brake Rotor (Front Right)
    Automatic Dual Clutch AWD Hatchback 4.8L V8 CWBA Gas
    Notes: Not for models with Code 450 Porsche Ceramic Composite Brakes (PCCB)
  • 2016 Porsche Panamera Turbo S Disc Brake Rotor (Front Right)
    Automatic Dual Clutch AWD Hatchback 4.8L V8 CWCA Gas
    Notes: Not for models with Code 450 Porsche Ceramic Composite Brakes (PCCB)
  • 2016 Porsche Panamera Turbo S Executive Disc Brake Rotor (Front Right)
    Automatic Dual Clutch AWD Hatchback 4.8L V8 CWCA Gas
    Notes: Not for models with Code 450 Porsche Ceramic Composite Brakes (PCCB)
