MINI Engine Wiring Harness - Genuine MINI 12517620626

Product Information

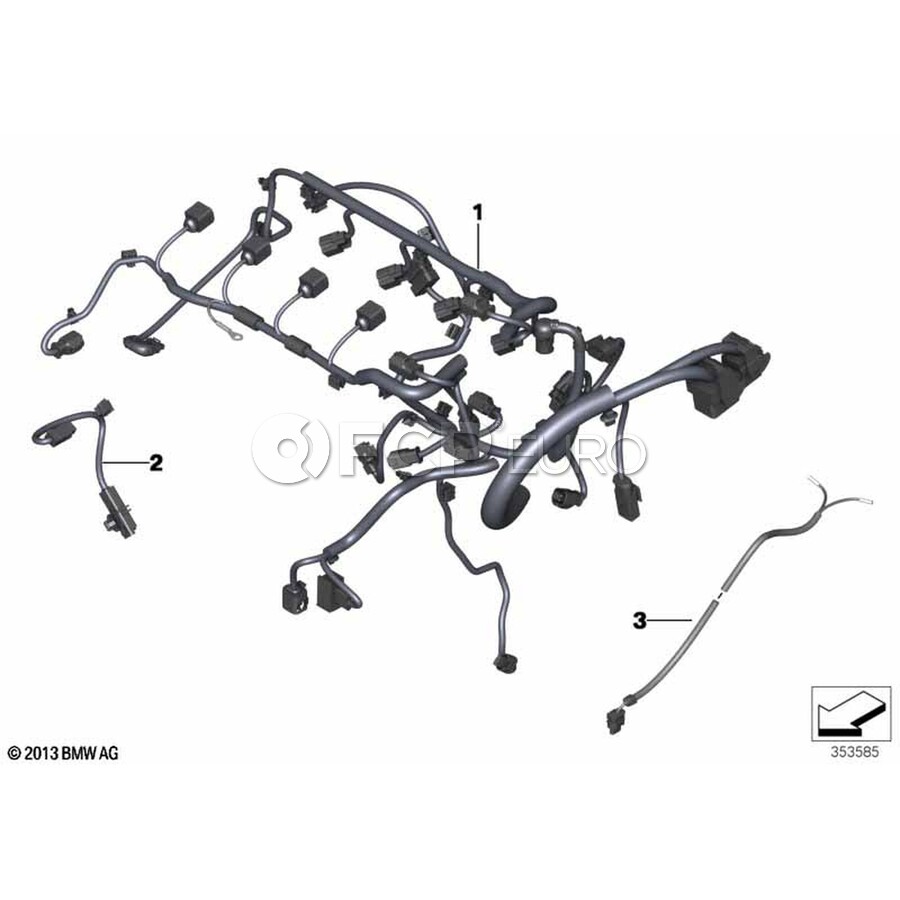

Mini Engine Wiring Harness diagram for Cooper Countryman, Cooper

An engine wiring harness is a bundled set of electrical wires, connectors, and terminals that links the engine’s sensors, actuators, ignition system, fuel injectors, and other components to the vehicle’s Engine Control Module (ECM) and power supply.

It acts as the central nervous system of the engine, carrying signals and power to ensure the engine runs efficiently and safely. The harness is usually protected with insulation, conduit, and sometimes heat shields to prevent damage from heat, vibration, and moisture.

• Check Engine Light or Multiple Warning Lights: Faulty or broken connections can trigger sensor errors.
• Engine Misfires or Rough Running: Inconsistent electrical signals to ignition coils or injectors disrupt combustion.
• Starting Problems or No Start: If critical circuits like the starter, crankshaft position sensor, or fuel system are affected.
• Intermittent Electrical Failures: Components work sometimes and fail at other times due to loose or damaged wires.

About Genuine Mini

The original parts used by Mini to build your car are available as replacement parts under the “Genuine Mini” brand. Manufactured under the direction of Mini, expect excellent quality and a premium price since these parts are exclusively available through the Mini Dealership network.

You may not realize this, but the parts that make up your Mini are not necessarily manufactured by Mini. No cause for concern, as Mini designs the part, hires a manufacturer, and ensures its quality to you. In fact, many of these manufacturers have been making parts for Mini for decades. In our industry these manufacturers are called OEM (Original Equipment Manufacturers), and these are often brands you recognize, including Lemforder, ZF, Sachs, Bosch, Valeo, Zimmermann, Siemens VDO, Corteco, and more. Don’t be surprised to open that Genuine Mini parts box and find an OEM branded part inside, simply with the addition of a Mini logo.

Be sure to keep an eye out for OE tags on our product pages to quickly identify parts coming direct from OE manufacturers. That extra bit of insight could save you some serious money while shopping! Refer to our OE Academy for further information regarding the OE/OEM tags throughout the site.
